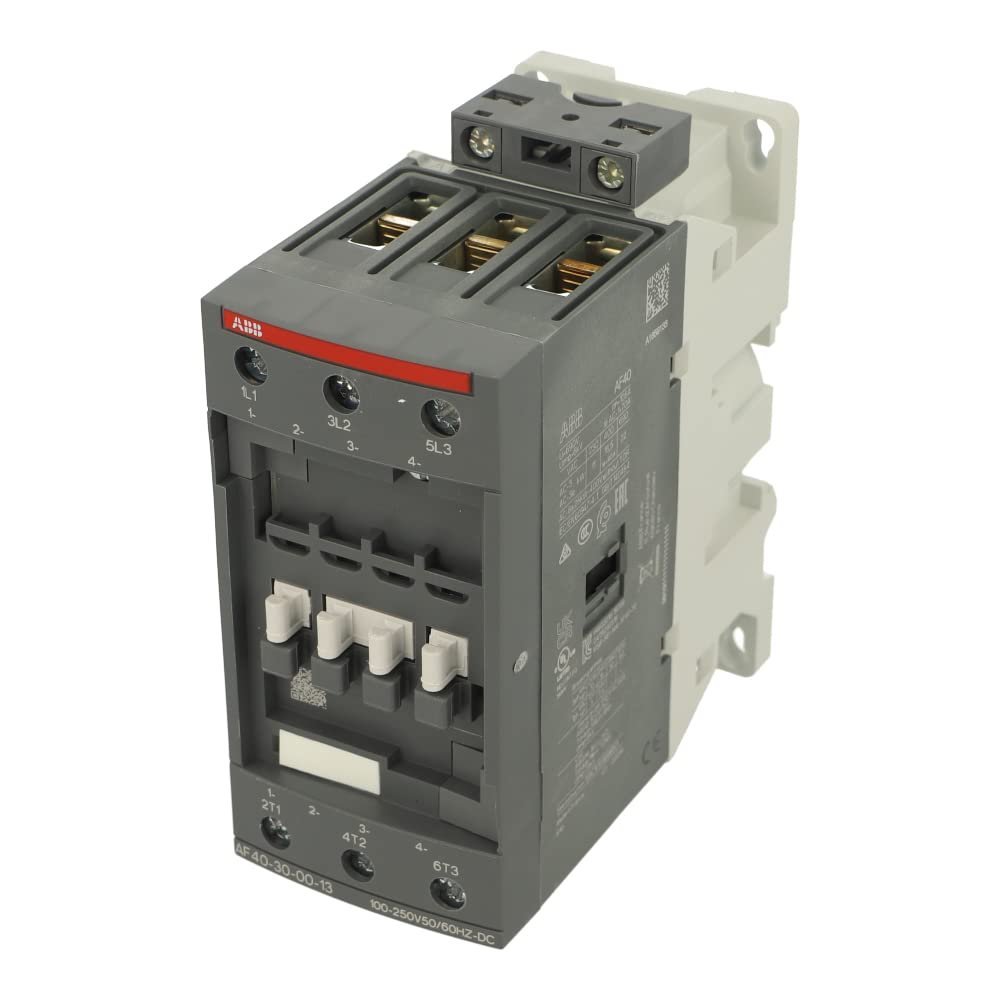

ABB AF40-30-00-13 | 1SBL347001R1300 | ABB AF40-30-00-13 CONTACTOR 3P 18.5KW 40A AC3, Coil 100-250V50/60HZ 100-250VDC
-
Overview
-
Specifications
-
FAQ
-
User Guides
-
Reviews
The ABB AF40-30-00-13 is a 3-pole IEC contactor sharing the AF40 frame with an 18.5 kW / 400V AC-3 and 70A AC-1 rating. Where the -11 variant targets lower-voltage control circuits (24–60V), the -13 variant’s wide-range coil covers 100–250V AC (50/60 Hz) and 100–250V DC — the voltage band used by the majority of industrial control systems running on 120V, 220V, or 240V supply.
Built-in surge suppression and compatibility with ABB EF-series overload relays make the AF40-30-00-13 a complete motor starter solution when paired with the appropriate relay. The 690V operational voltage rating allows use in European and international 400V and 500V distribution systems.
Best For:
- Motor control applications from 15–18.5 kW at 400V (IEC) or up to 30 hp at 480V (UL)
- Control panels operating on 110V, 120V, 220V, or 240V AC or DC control bus
- OEMs and panel builders standardizing on ABB AF-series contactors with high-voltage coils
- Facilities requiring IEC/UL dual-rated contactors for global or mixed-standard installations
- Retrofit or replacement of 40A-class IEC contactors where a 100–250V coil is needed
Key Features:
- 3-pole (3NO) configuration, IEC frame
- AC-3 rating: 18.5 kW / 400V; AC-1 rating: 70A / 690V
- UL rating: 30 hp / 480V
- Wide-range coil: 100–250V AC (50/60 Hz) / 100–250V DC
- Built-in coil surge suppression (no external varistor required)
- Compatible with ABB EF-series electronic overload relays
- Standard IEC mounting dimensions
- ABB part number: 1SBL347001R1300
Quick Specs:
- Part Number: 1SBL347001R1300
- Poles: 3 (3NO)
- AC-3 Power Rating: 18.5 kW @ 400V
- AC-1 Current Rating: 70A @ 690V
- UL Motor Rating: 30 hp @ 480V
- Coil Voltage: 100–250V AC (50/60 Hz) / 100–250V DC
- Max Operational Voltage: 690V
- Surge Protection: Built-in
| Brand | ABB |
| Color | Gray |
-
- Regular price
- $122.00
- Sale price
- $122.00
- Unit price
- per
-
- Regular price
- $122.00
- Sale price
- $122.00
- Unit price
- per
1–2 weeks lead time may apply
