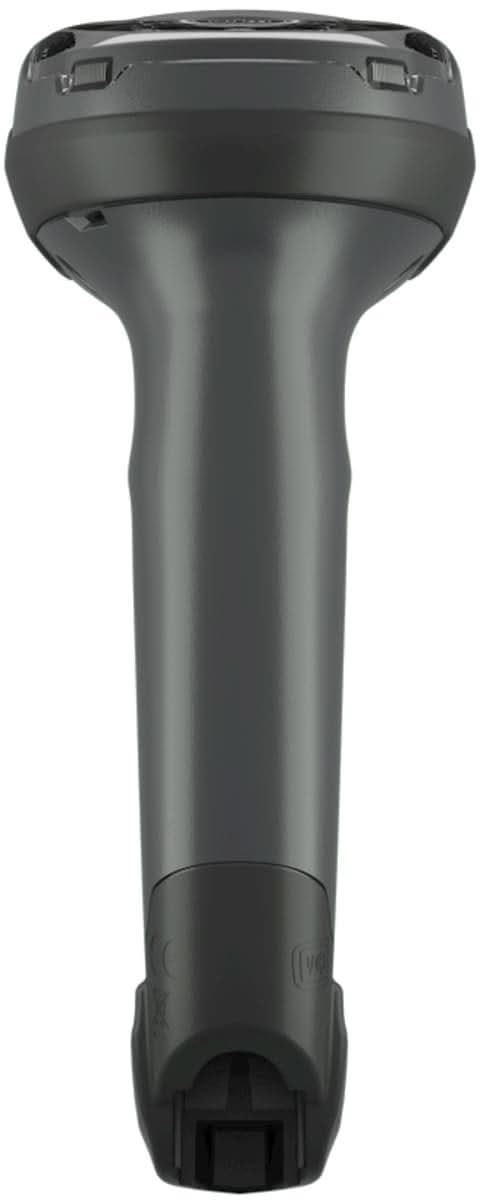

Zebra DS4608-SR7U2100SGW Handheld Imager | 1D/2D, General Purpose, Cable & Stand, Multi-Interface, Standard Range, USB

Name: Zebra DS4608-SR7U2100SGW Handheld Imager | 1D/2D, General Purpose, Cable & Stand, Multi-Interface, Standard Range, USB
Rating: 4.7 (6 reviews)

Delivery Time: 0-3 days

Brand ZEBRA

Model Number DS4608

UPC N/A

EpicRise Warranty First Year

Product Highlights

1D/2D IMAGER
BARCODE SCANNER
BLACK
GENERAL PURPOSE
HANDHELD

Overview
Specifications
FAQ
User Guides
Reviews

1D/2D IMAGER, BARCODE SCANNER, BLACK, GENERAL PURPOSE, HANDHELD, INCLUDES CABLE AND STAND, MULTI-INTERFACE, STANDARD RANGE (SR), USB; Part Number: DS4608-SR7U2100SGW; Category: Bar Code Equipment; Subcategory: Bar Code Scanner Hand Held

1D/2D IMAGER
BARCODE SCANNER
BLACK
GENERAL PURPOSE
HANDHELD

1D/2D IMAGER

Product Details
Color	Black
Connection Type	USB
Scanner Interface	USB
Barcode Supported	1D, 2D
Scanner Sensor Type	2D imager
Power Source	USB

General Specifications

Form Factor: Handheld
Scan Technology: 1D/2D Imager
Color: Twilight Black
Included: USB Cable and Stand
Mount Option: Hands-free stand capable
Model: Standard Range (SR)
Connection Type: USB, RS232, TGCS (IBM)
Keyboard Support: Supports over 90 international keyboards

Performance Characteristics

Image Sensor: 1280 x 800 pixels
Light Source: 617nm amber LED (aiming), 660nm red LEDs (illumination)
FOV: 36.1° H x 22.6° V nominal
Print Contrast: 15% minimum reflective difference
Tolerance (Skew/Pitch): +/- 60°
Tolerance (Roll): 0° - 360°

Decode Capability

1D Barcodes: Code 39, Code 128, UPC/EAN, etc.
2D Barcodes: PDF417, DataMatrix, QR Code, etc.
OCR Support: OCR-A, OCR-B, MICR, US Currency

Physical Characteristics

Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D
Weight: 5.7 oz / 161.9 g
Operating Voltage: 4.5 to 5.5 VDC
Operating Current: 340 mA typical
Idle Current: 150 mA typical

Environmental Specs

Operating Temp: 32°F to 122°F (0°C to 50°C)
Storage Temp: -40°F to 158°F (-40°C to 70°C)
Humidity: 5% to 95% RH, non-condensing
Drop Spec: Multiple 6 ft./1.8 m drops to concrete
Tumble Spec: 2,000 tumbles at 1.5 ft./0.5 m
Sealing: IP52
Ambient Light: 0 to 10,000 foot candles / 107,000 Lux

Extra Features

Smart Capture: Intelligent Document Capture, OCR, Driver’s License Parsing
Multi-Code Scan: Scans multiple barcodes with one trigger
EAS Tag Support: Optional on DS4608-HD/HL models
Management Tools: 123Scan, SMS, DataCapture DNA

Regulatory Compliance

EMI/RFI: FCC, ICES-003, EN 55032/55024/55035
Safety: UL, IEC 60950/62368, EN 62471

📥 Download Product Manual (PDF)

Does it switch automatically between handheld and stand mode?

Yes. When you set the DS4608 in the included gooseneck Intellistand, a built-in sensor puts it into hands-free mode: it stays on and reads any barcode you present. Pick it up and it returns to trigger mode. When nothing is presented for a while, it drops into low-power mode until it detects motion.

Can it scan QR codes and barcodes on customers' phone screens?

Yes. Zebra says the DS4600 series reads 1D and 2D barcodes printed on labels or displayed on a phone. If phone screens read slowly, scan the "Enhanced in Hand-held Mode" or "Enhanced in Hands-free Mode" barcode in the Product Reference Guide; the scanner ships set to Normal mode.

Can it read driver's licenses for age or ID checks?

Partly. The DS4608-SR reads PDF417, the barcode on U.S. driver's licenses, but it outputs the raw data string; your software has to sort it into fields. Built-in license parsing is only available on Zebra's DL and HL models.

How do I add Enter or Tab after each scan?

Scan "Add Enter Key (Carriage Return/Line Feed)" in the DS4608 Product Reference Guide to send Enter after each barcode. For Tab or other characters, use the guide's Prefix/Suffix settings, or build the setup in Zebra's free 123Scan software and scan the configuration barcode it generates.

Can I use it in a warehouse, cold room or outdoors?

It's built for indoor counters and workstations. It's rated to operate from 32°F to 122°F (0°C to 50°C), is IP52 sealed and survives multiple 6 ft drops, but it isn't intended for freezers or wet conditions.

Can I use the DS4608-SR hands-free in a lab?

Yes. This kit (DS4608-SR7U2100SGW) includes Zebra's Intellistand stand, which lets you switch between handheld and hands-free scanning, so lab staff can present samples without picking up the scanner.

Is the standard-range model right for very small barcodes?

For typical labels, yes. Zebra lists UPC (13 mil) up to 28 in and 10 mil Data Matrix at 1.0–11.5 in. It also reads 3 mil Code 39, but only at 2.2–5.4 in, so very small, dense codes need to be held close.
