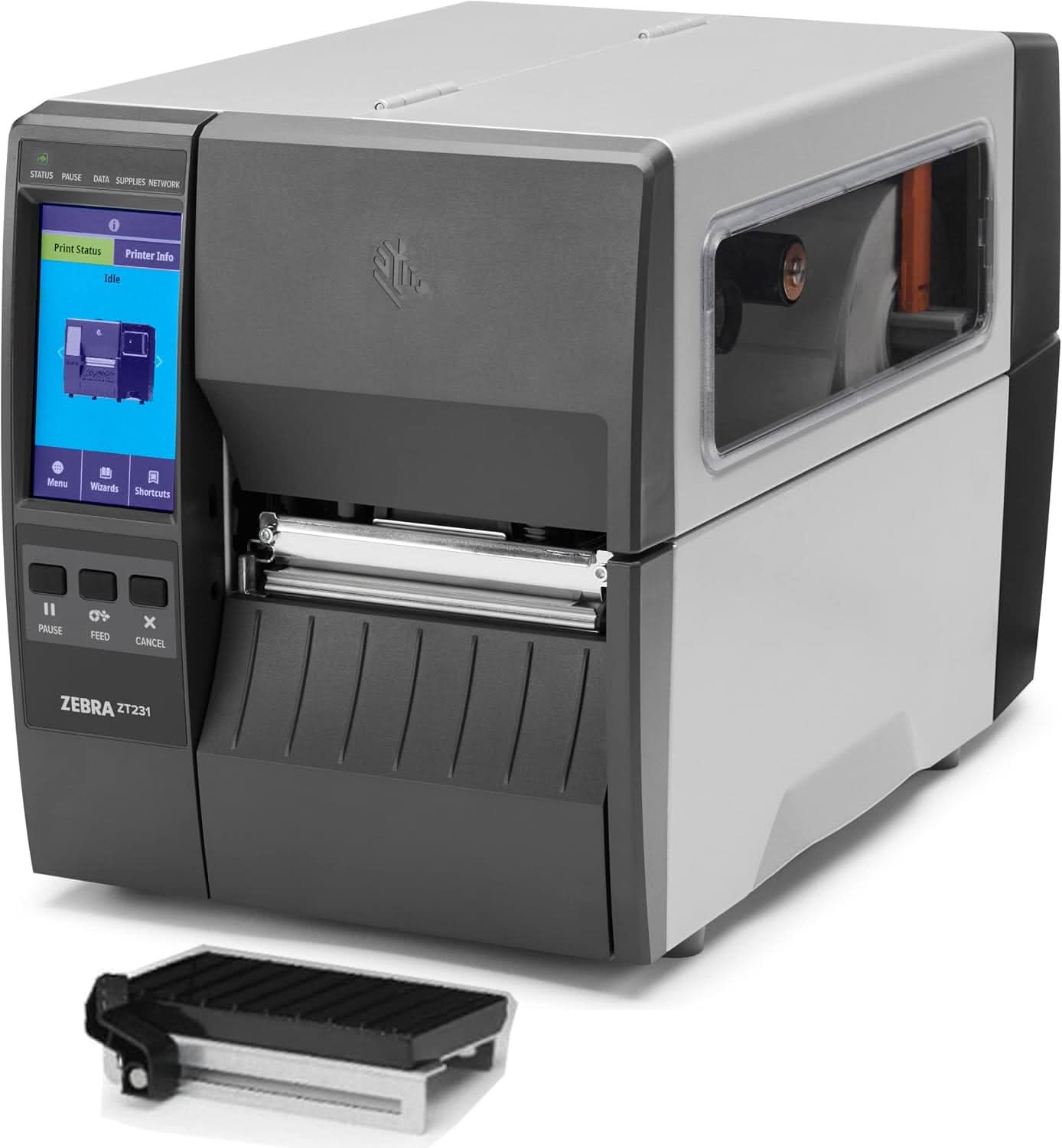

Zebra ZT23142-D01000FZ ZT231 4 Inch Direct Thermal Industrial Printer - 203 DPI, Tear-Off, USB, Serial, Ethernet, Bluetooth Low Energy, USB Host, US Cord

Name: Zebra ZT23142-D01000FZ ZT231 4 Inch Direct Thermal Industrial Printer - 203 DPI, Tear-Off, USB, Serial, Ethernet, Bluetooth Low Energy, USB Host, US Cord
Brand: Zebra
SKU: ZEB-PRI-ZT23142-D01000FZ -NEW
Price: 829.0 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Product Highlights

【Exact 203 dpi direct thermal configuration】: The ZT23142-D01000FZ is a ZT231 4 inch direct thermal printer configured with 203 dpi resolution for everyday industrial label printing.

【Core wired connectivity included】: This model includes USB, Serial, and Ethernet interfaces for flexible integration into industrial and business labeling environments.

【BTLE and USB host support】: Bluetooth Low Energy and USB Host are included to support easier device communication and peripheral workflows.

【Tear-off media handling】: This configuration is built for tear-off operation, making it suitable for standard label printing workflows without peel or cutter requirements.

【Industrial printer platform】: The ZT231 platform combines a durable construction, color touch display, and side-loading supplies path for dependable operation and easier daily use.

【US power cord included】: This SKU includes a US power cord for deployment in supported power environments.

Overview
Specifications
FAQ
User Guides
Reviews

Best For:

-Manufacturing and warehouse labeling

-Shipping and logistics labeling

-Product identification labeling

-Inventory and asset tracking

-Industrial environments needing USB, Serial, and Ethernet connectivity

-Standard 203 dpi label printing applications

Key Features:

-4 inch industrial direct thermal printer configuration.

-203 dpi printhead for routine barcode, text, and label printing.

-Tear-off media handling for standard label output workflows.

-USB, RS-232 Serial, and Ethernet connectivity.

-Bluetooth Low Energy support.

-USB Host port for added workflow flexibility.

-4.3 inch color resistive touch screen with intuitive menu.

-Real-Time Clock included.

-Side-loading supplies path for simplified media loading.

-Supports EZPL in the provided configuration text.

Quick Specs:

Brand: Zebra

Model: ZT231

Product Type: Industrial label printer

Print Width Class: 4 inch

Print Technology: Direct Thermal

Resolution: 203 dpi

Maximum Print Width: 4.09 in.

Maximum Print Speed: Up to 12 ips

Media Handling: Tear-off

Interfaces: USB, Serial, Ethernet

Wireless: BTLE

USB Host: Yes

Display: 4.3 inch color touch screen

Real-Time Clock: Yes

Power Cord: US cord included

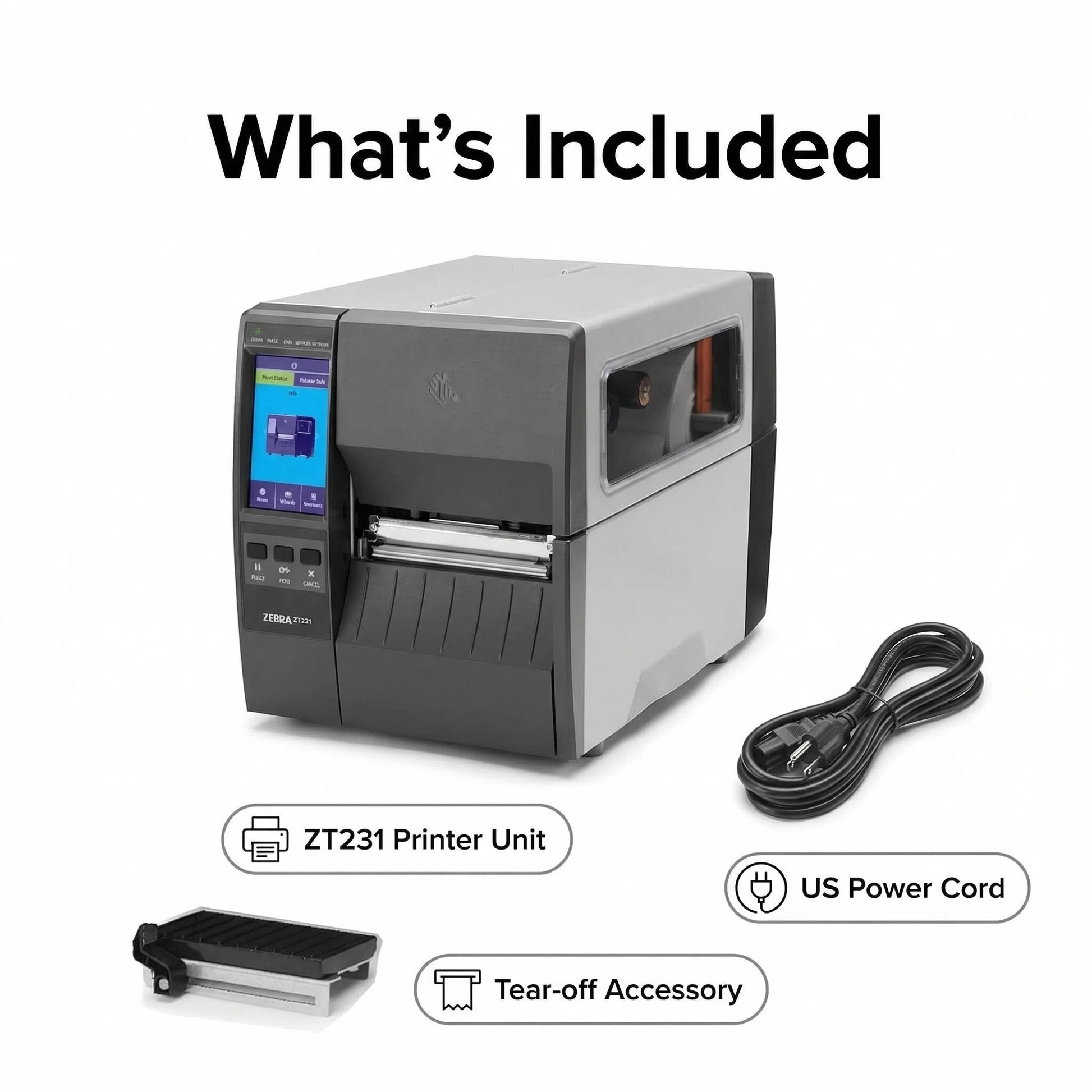

What’s Included:

Printer unit

US power cord

General Specifications

Model: ZT23142-D01000FZ
Type: Direct Thermal Only Industrial Printer
User Interface: 4.3” Full-Color Resistive Touch Display
Construction: Durable metal frame with bi-fold media door
Certifications: ENERGY STAR® certified

Print Specifications

Print Resolution: 203 dpi (8 dots/mm)
Maximum Print Width: 4.09 in (104 mm)
Maximum Print Speed: 12 in/sec (203 dpi)
Maximum Print Length: 157 in (3988 mm)
Print Method: Direct Thermal (ZT23142-D01000FZ)

Connectivity

Standard Interfaces:

USB 2.0
RS-232 Serial
10/100 Ethernet
USB Host
Bluetooth Low Energy (BTLE)

NFC: Tap-to-pair via Print Touch tag
Optional: Wi-Fi (802.11ac), Applicator Port

Memory

RAM: 256 MB SDRAM
Flash: 256 MB Onboard

Media Handling

Media Width: 0.75 in to 4.5 in (19.4 mm to 114 mm)
Media Types: Continuous, die-cut, notch, black mark
Media Roll Size: Up to 8 in O.D. on 3 in I.D. core
Media Thickness: 0.003 in to 0.010 in (0.076 mm to 0.25 mm)
Sensors: Moveable transmissive and reflective
Minimum Label Length:

Tear mode: 0.7 in (18 mm)
Cutter mode: 1.0 in (25 mm)
Peel mode: 0.5 in (13 mm)

Physical Characteristics

Dimensions (Closed): 17 in L × 9.5 in W × 11 in H (432 × 241 × 279 mm)
Weight: 20 lbs (9.1 kg)

Environmental

Operating Temp: 32°F to 105°F (0°C to 40°C)
Storage Temp: -40°F to 140°F (-40°C to 60°C)
Humidity: Operating: 20–85%, Storage: 5–85% (non-condensing)
Power Supply: 100–240 VAC, 50–60 Hz (auto-ranging, PFC-compliant)

Software and Firmware

Print DNA Suite: Includes security, remote management, analytics, and development tools
Firmware: ZPL, ZPL II, EPL, EPL2, ZBI 2.0 (optional for stand-alone applications)

Supported Barcode Symbologies

1D: Code 39, Code 128, UPC, EAN, MSI, Codabar, I 2 of 5, etc.
2D: PDF417, QR Code, Data Matrix, MaxiCode, Aztec, MicroPDF417, TLC 39

📥 Download Product Manual (PDF)

What is the print resolution and speed of the ZT23142-D01000FZ?
The printer offers a resolution of 203 dpi (8 dots/mm) and can print at speeds up to 12 inches per second (ips).

What is the maximum print width and length?
The maximum print width is 4.09 inches (104 mm), and the maximum print length is up to 157 inches (3988 mm).

What media types and sizes are supported?
The ZT231 supports various media types, including continuous, die-cut, notch, and black mark. Media width ranges from 0.75 inches (19.4 mm) to 4.5 inches (114 mm), with a maximum roll diameter of 8.0 inches (203 mm) on a 3.0-inch (76 mm) core.

What connectivity options are available?
Standard connectivity options include USB 2.0, RS-232 Serial, 10/100 Ethernet, and USB Host. Bluetooth Low Energy (BTLE) is also supported for enhanced location precision.

What are the physical dimensions and weight of the printer?
The printer measures 17 inches (432 mm) in length, 9.5 inches (241 mm) in width, and 11 inches (279 mm) in height. It weighs approximately 20 lbs (9.1 kg).

What user interface does the ZT231 have?
The printer features a 4.3-inch full-color resistive touch screen with an intuitive menu for quick operation and settings.

Can the ZT231 be upgraded to support additional features?
Yes, the ZT231 supports field-installable options, including a cutter, peeler, wireless connectivity, and UHF RFID encoding.

What programming languages are supported?
The ZT231 supports multiple programming languages, including ZPL and ZPL II, EPL and EPL2 (available on 203 dpi models only), and ZBI 2.0 (optional).
