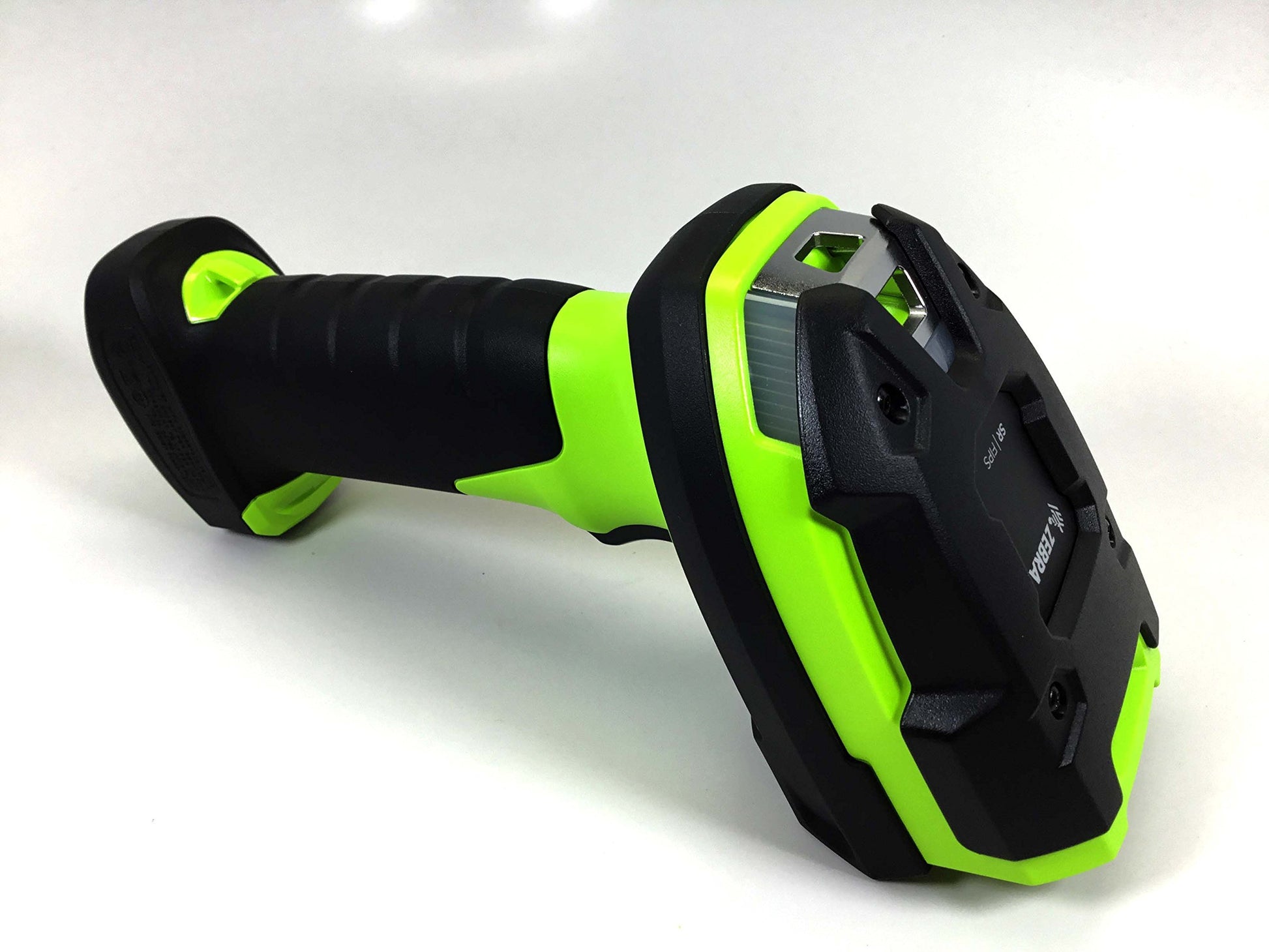

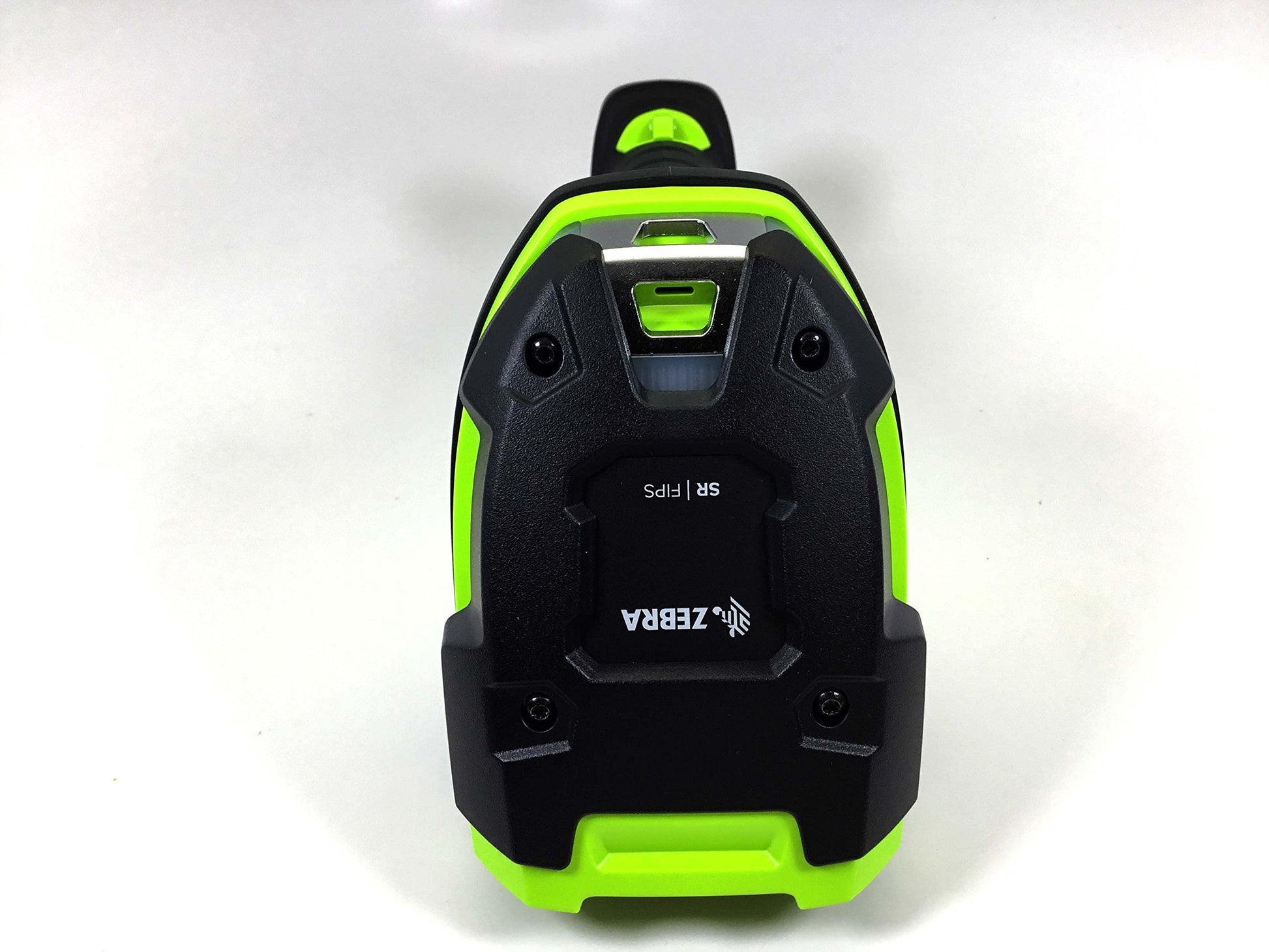

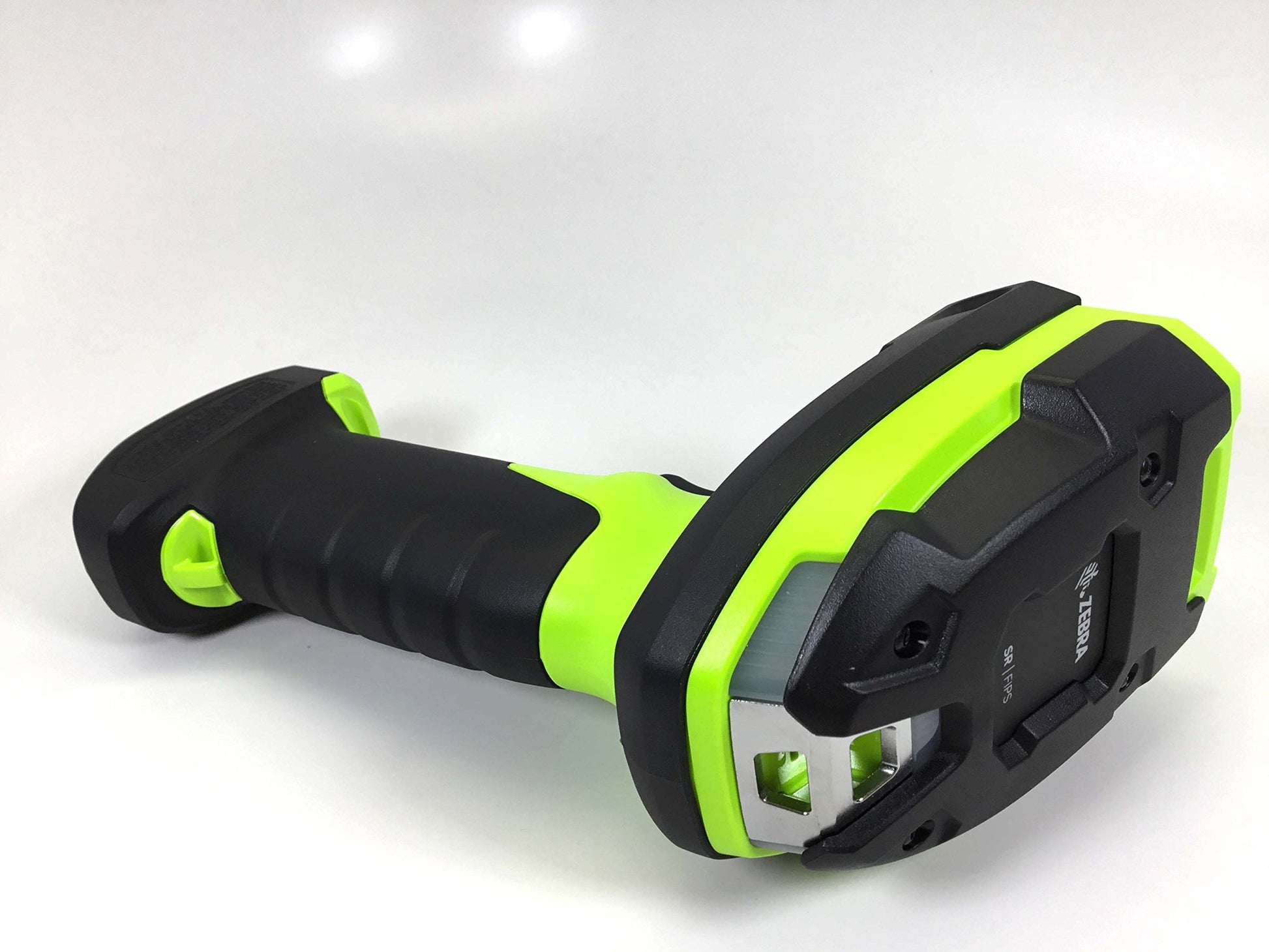

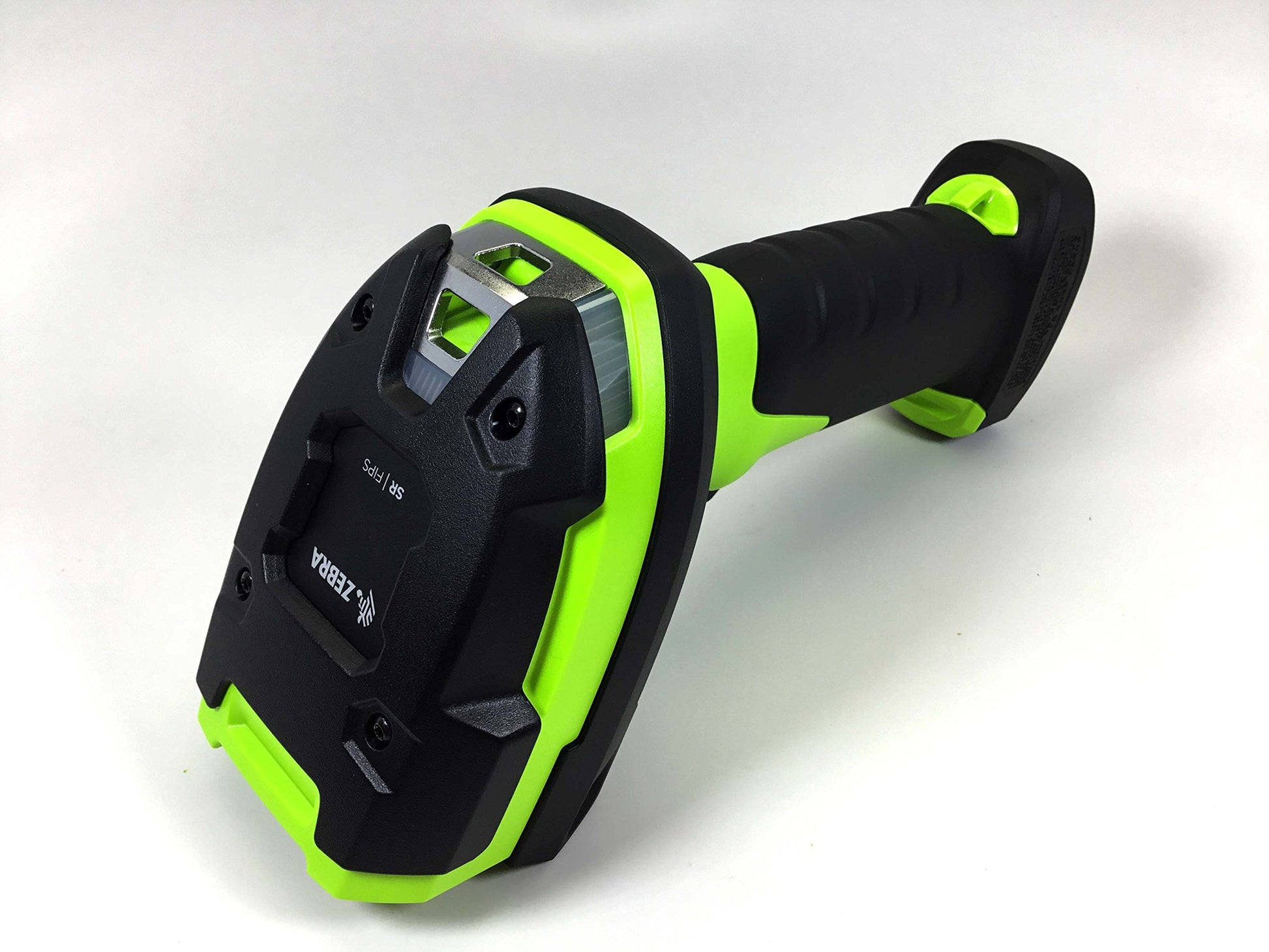

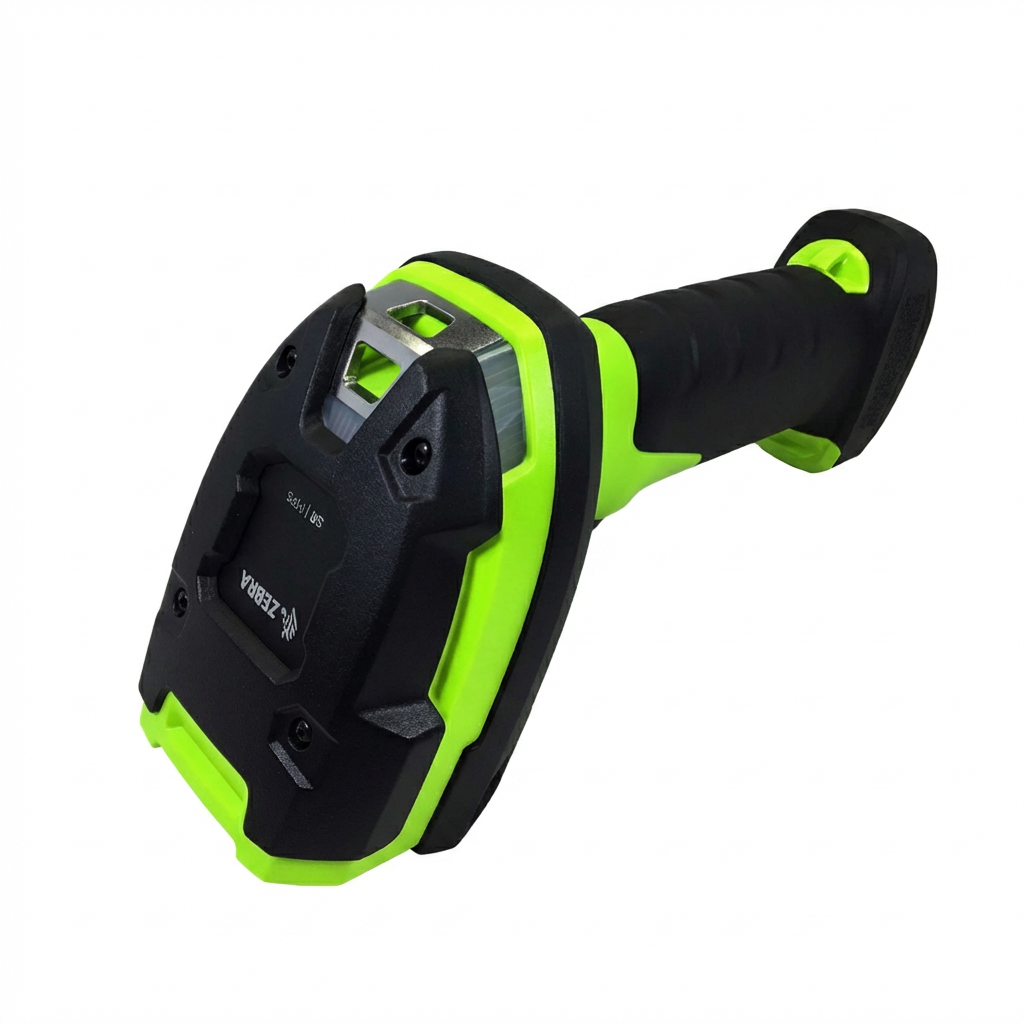

Zebra DS3678-SR Cordless Ultra-Rugged Barcode Scanner - Standard Range 1D/2D, FIPS USB Kit

Name: Zebra DS3678-SR Cordless Ultra-Rugged Barcode Scanner - Standard Range 1D/2D, FIPS USB Kit
Rating: 4.0 (8 reviews)

Delivery Time: 0-3 days

Product Highlights

【Built for harsh environments】: Ultra-rugged DS3678-SR design supports dependable barcode capture in demanding warehouse and industrial operations, with cordless mobility and reinforced durability.

【Standard range 1D/2D scanning】: Captures both 1D and 2D barcodes at standard range, helping teams scan common labels quickly and accurately during fast-paced workflows.

【Cordless workflow flexibility】: Bluetooth-enabled cordless operation gives workers greater freedom of movement for scanning tasks across aisles, docks, staging areas, and production zones.

【Clear feedback in noisy settings】: Integrated vibration, LEDs, beeper, and direct decode feedback help confirm successful scans in environments where audio alone may not be enough.

【USB kit for deployment】: This configuration is sold as a USB kit and includes the scanner, cradle, 7-foot USB cable, and power components for structured charging and host connection.

Overview
Specifications
FAQ
User Guides
Reviews

Best For:

Warehouse barcode scanning

Manufacturing operations

Distribution and logistics workflows

Industrial users needing cordless mobility

Harsh environments requiring rugged hardware

Key Features:

Standard range imager supports 1D and 2D barcode capture for everyday industrial scanning tasks.

Cordless Bluetooth design helps users move more freely through warehouse and production workflows.

Ultra-rugged housing is built for demanding environments with high drop and sealing performance.

Vibration motor adds tactile good-read confirmation where noise or motion can make audio feedback less practical.

Industrial green finish matches the rugged 3600 Series industrial design.

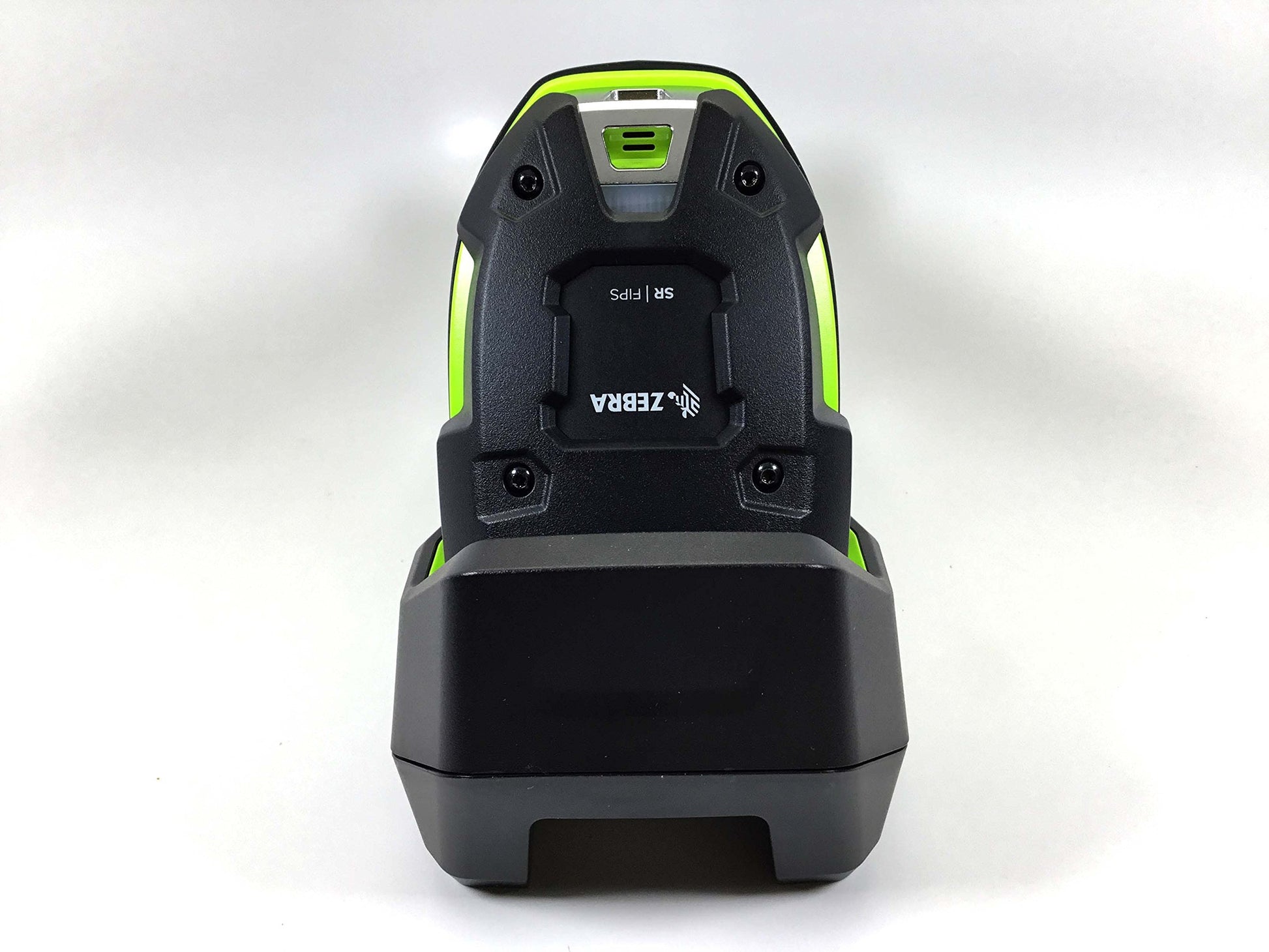

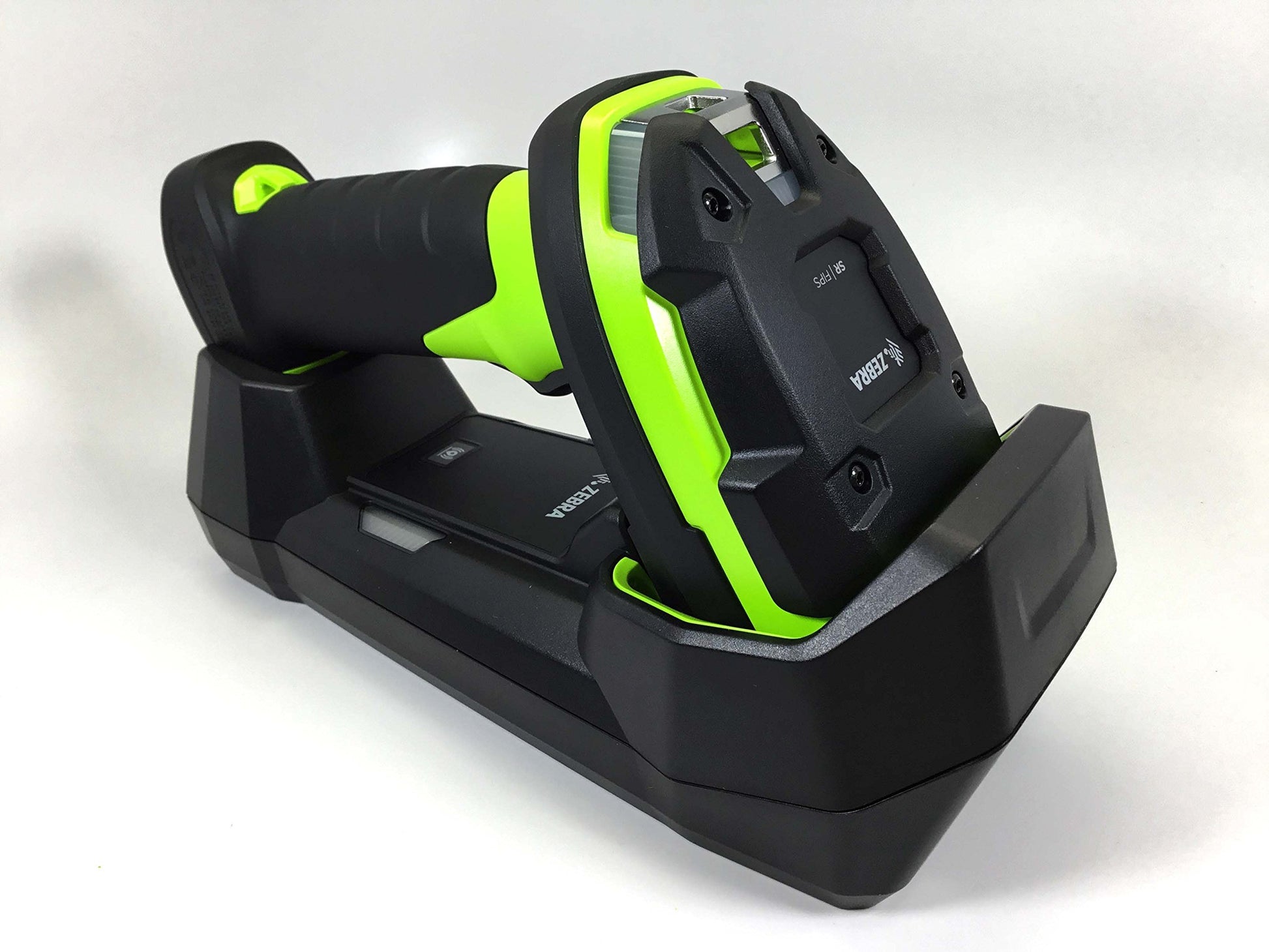

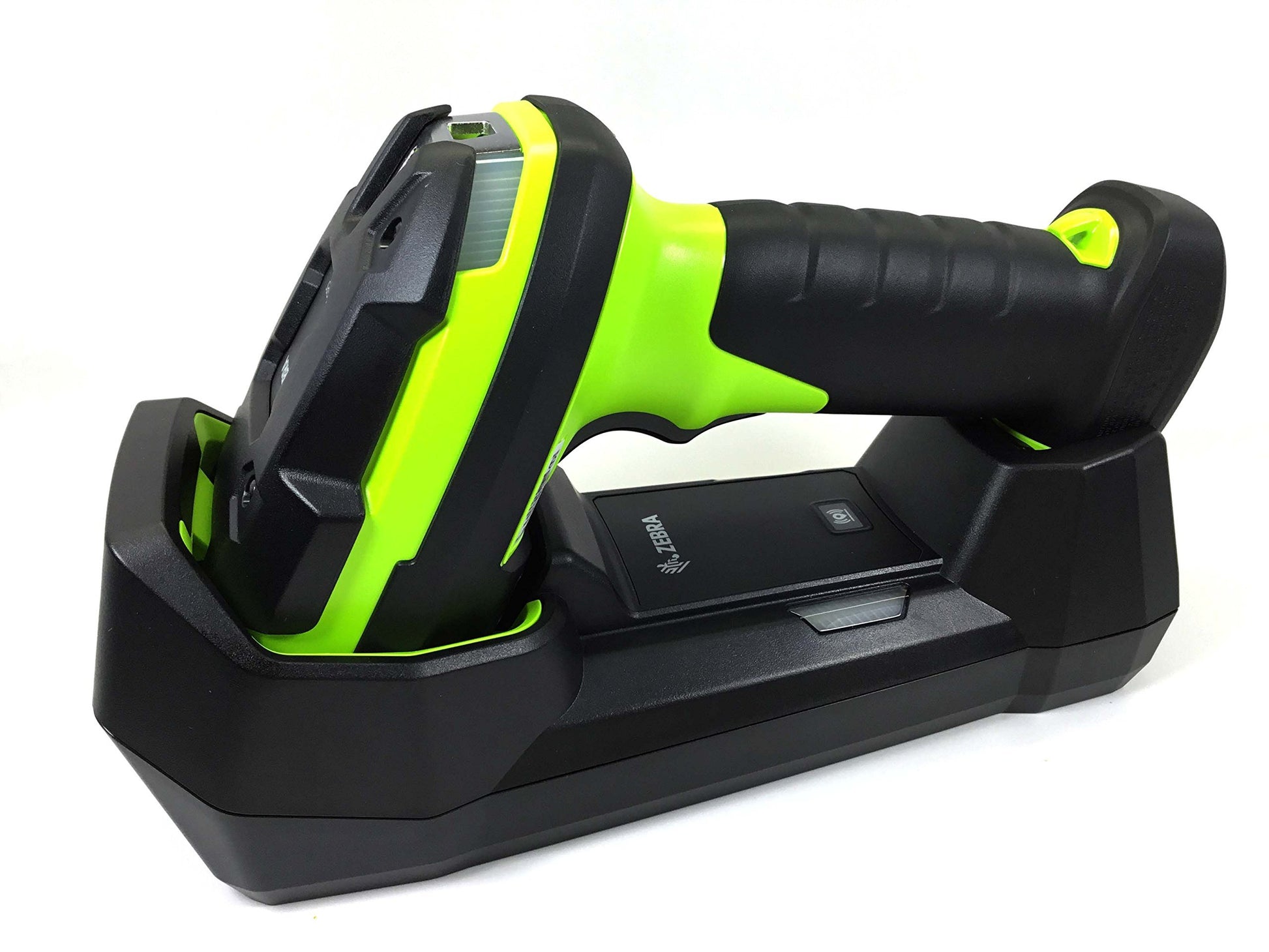

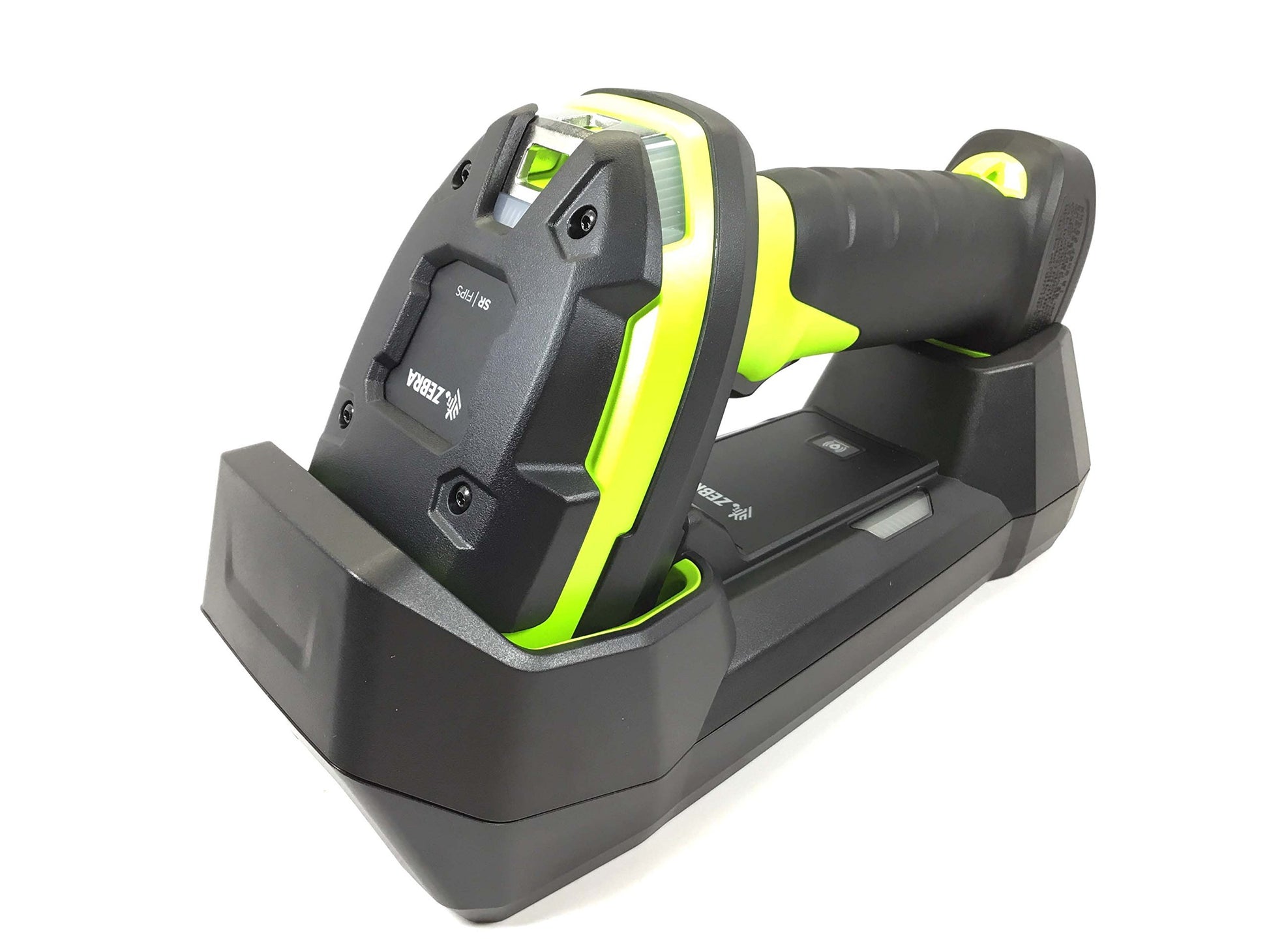

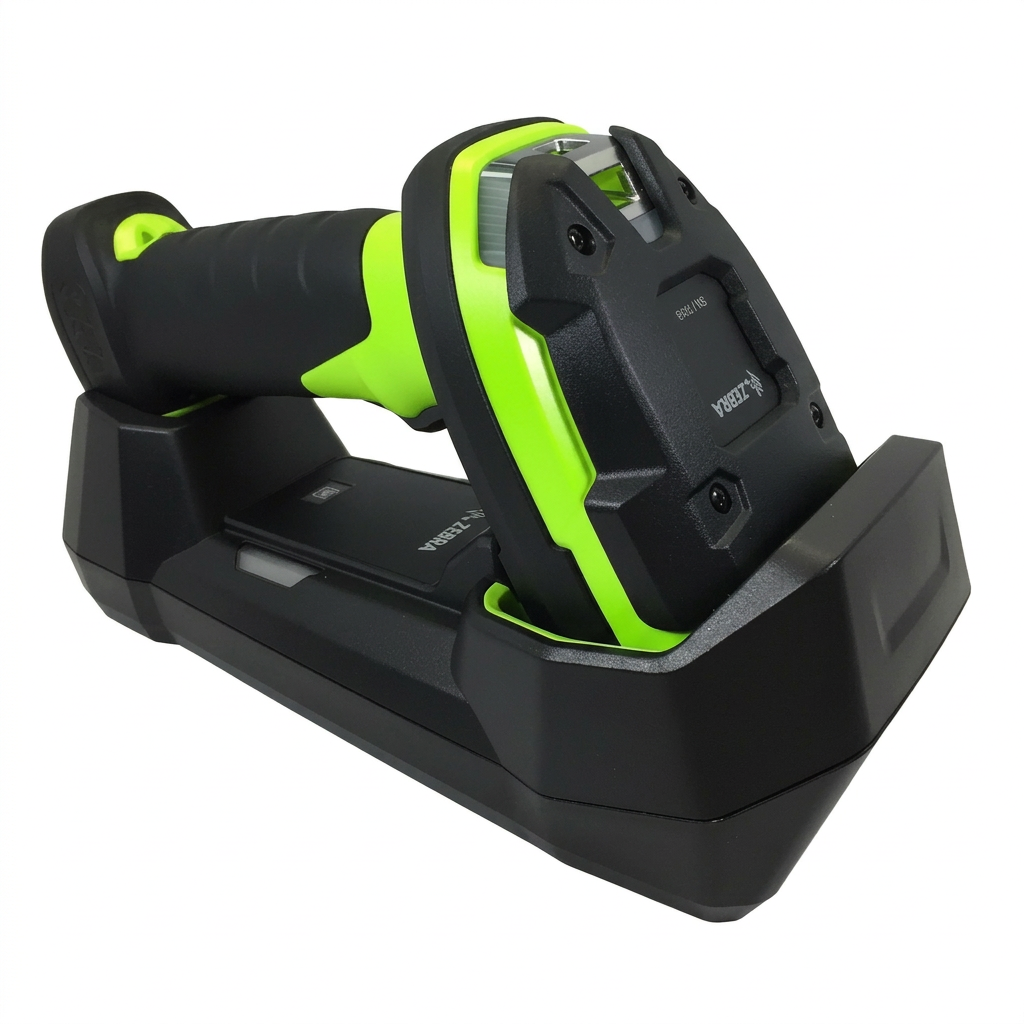

Cradle-based kit structure supports charging, pairing, and host connectivity in fixed workstations.

FIPS-designated configuration is specified in the exact SKU.

Quick Specs:

Brand: Zebra

Model: DS3678-SR

Scan Type: Standard range 1D/2D imager

Connectivity: Bluetooth; USB kit configuration

User Feedback: Vibration, LEDs, beeper, direct decode indicator

Color: Industrial Green

Battery: PowerPrecision+ 3100 mAh rechargeable battery

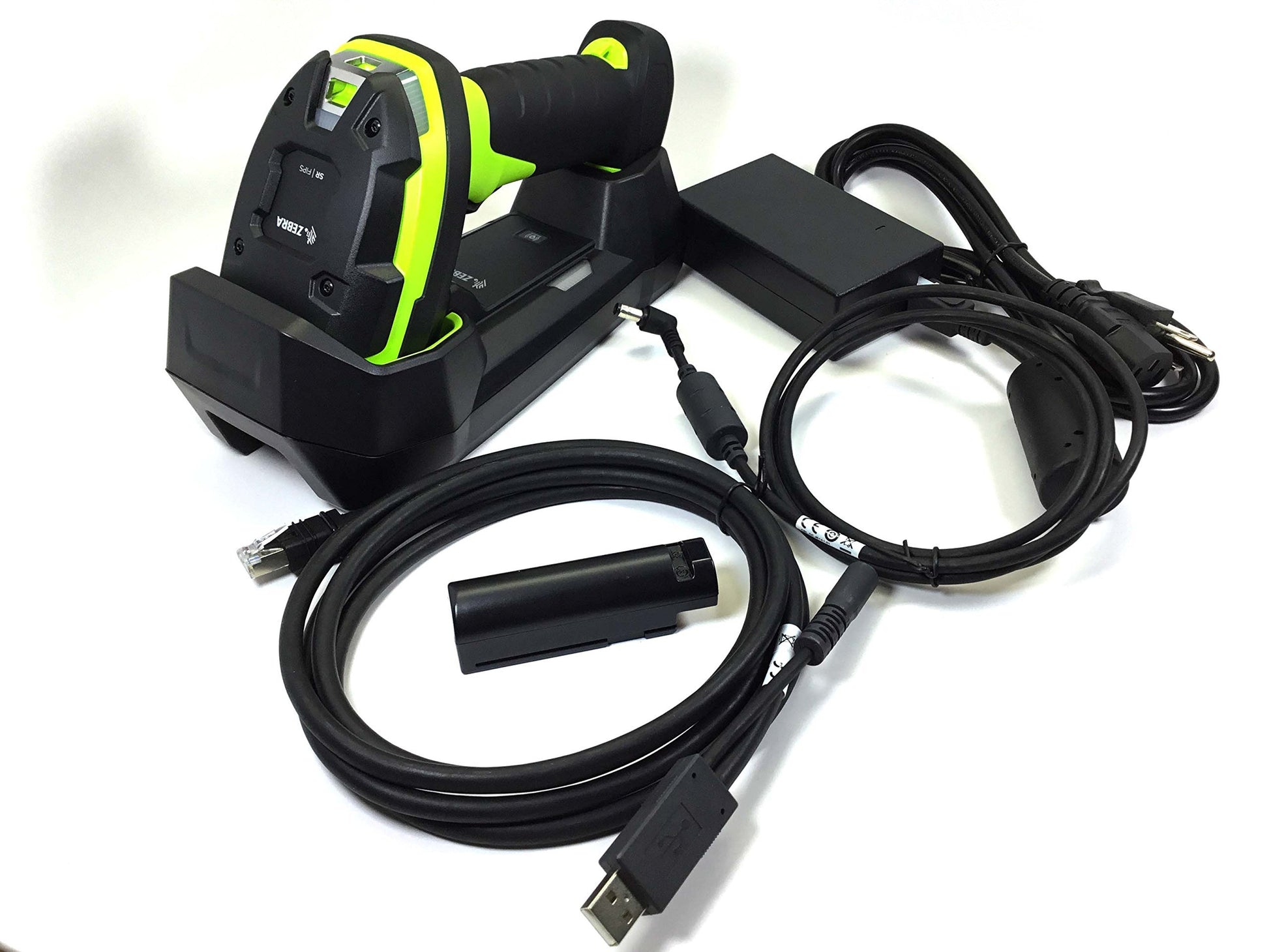

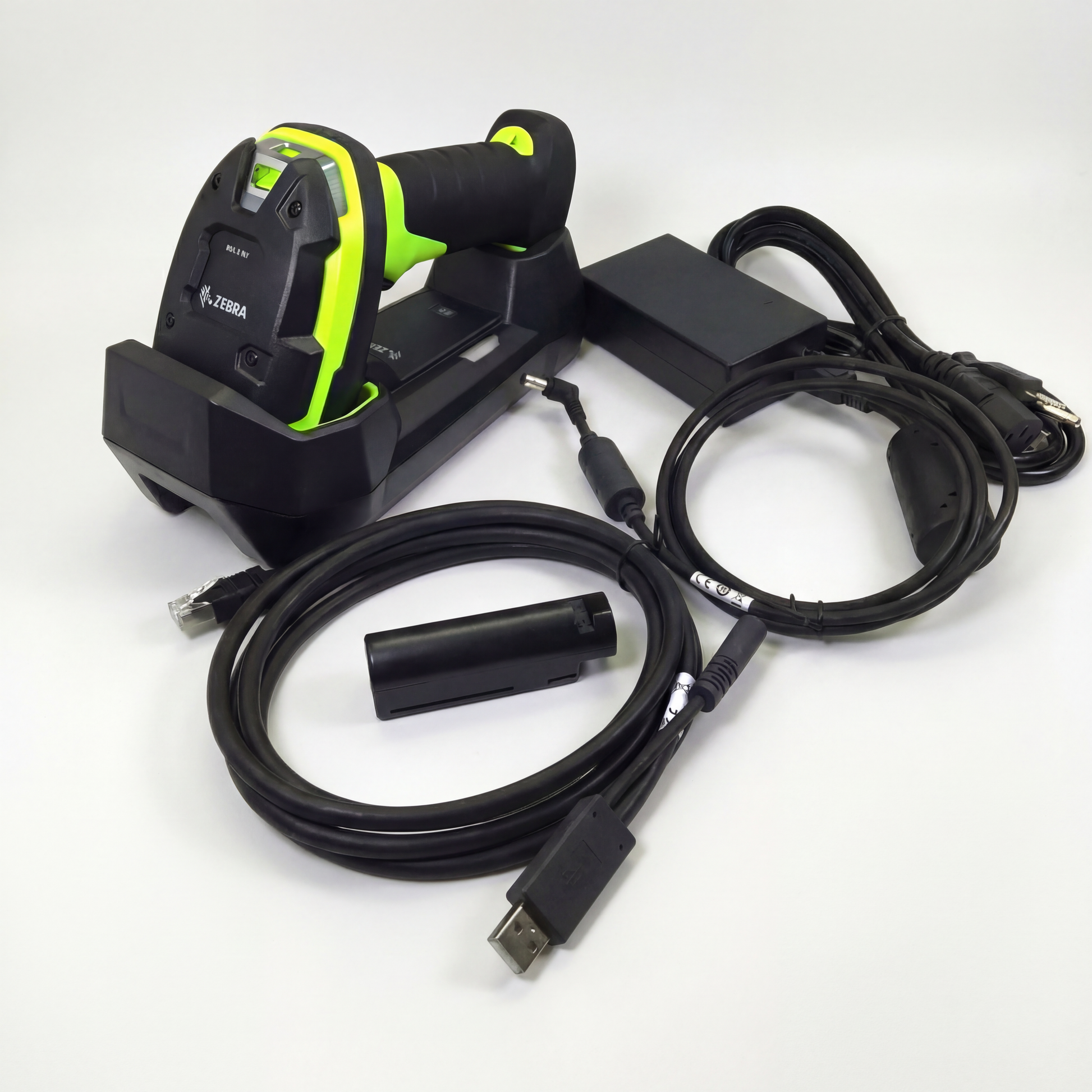

What’s Included:

DS3678-SR scanner

Cradle

7-foot USB cable

Power

（Line cord required separately: 23844-00-00R）

General Specifications

Model Number: DS3678-SR
Scanner Type: Cordless Rugged Digital Imager
Supported Symbologies: 1D and 2D barcodes
Connectivity: Bluetooth 4.0, USB, RS-232, Keyboard Wedge, IBM 46XX
Radio Range: Up to 100 meters (328 feet) line of sight
Battery Type: PowerPrecision+ Li-Ion battery
Battery Capacity: 3100 mAh
Battery Charge Time: Less than 5 hours with standard charger
Decode Feedback: Beeper, LED indicators, Vibrator

Performance Characteristics

Imager Type: 1280 × 960 pixel global shutter
Sensor Technology: PRZM Intelligent Imaging Technology
Scan Range (Standard Barcodes): Up to 1.5 meters (typical)
Motion Tolerance: Up to 100 inches per second (ips)
Aiming Element: Single dot, laser aiming pattern

User Interface

Indicators: Green Decode LED, Red Error LED, Radio/Battery LED
Trigger: Ergonomic industrial-grade trigger

Environmental

Operating Temperature: -4°F to 122°F / -20°C to 50°C
Storage Temperature: -40°F to 158°F / -40°C to 70°C
Humidity: 5% to 95% non-condensing
Drop Spec: Survives multiple 8 ft./2.4 m drops to concrete
Tumble Spec: 5000 tumbles at 3.3 ft./1 m
Sealing: IP65 and IP67 (dust tight and waterproof)

Physical Characteristics

Dimensions (Scanner): 7.3 in. × 3.0 in. × 5.2 in. (18.5 cm × 7.6 cm × 13.2 cm)
Weight (Scanner with Battery): 14.5 oz / 411 g

Connectivity Options

Standard Interfaces: USB, RS-232, Keyboard Wedge, IBM 46XX, Bluetooth 4.0
Cradle Interfaces: USB, RS-232, Industrial Ethernet options available

Battery Management

Battery Status Indicator: Multi-color battery gauge on scanner
Advanced Features: Health metrics and predictive maintenance via PowerPrecision+

Compliance and Safety

Laser Classification: IEC Class 2/FDA Class II
LED Classification: Exempt Risk Group (IEC 62471)
Certifications: FCC, CE, IC, RoHS, Bluetooth SIG Certified

Software Compatibility

Supported Tools: 123Scan2, Scanner Management Service (SMS)

Included in the Box

Package Contents: DS3678-SR Scanner, Battery, Quick Start Guide

📥 Download Product Manual (PDF)

What types of barcodes can the DS3678-SR scan?
The DS3678-SR can capture virtually any 1D or 2D barcode printed on a label or displayed on a screen, including barcodes that are under shrinkwrap, damaged, dirty, or poorly printed.

What is the scanning range of the DS3678-SR?
It offers standard-range scanning from near contact to nearly 5 feet (1.5 meters) away.

How durable is the DS3678-SR?
The scanner is built to survive an 8-foot (2.4-meter) drop to concrete and operates reliably after 5,000 tumbles. It is dustproof, sprayproof, and waterproof to IP67 standards, allowing it to be sprayed down with jetting water and even submersed in water.

What connectivity options are available?
The DS3678-SR features Bluetooth 4.0 (Low Energy) for wireless communication and includes a heavy-duty shielded 7 ft USB cable (CBA-U42-S07PAR) for wired connections.

Does the scanner include a vibration feature?
Yes, it includes a vibration motor that provides tactile feedback, which is helpful in noisy environments.

Is the DS3678-SR FIPS compliant?
Yes, this model is FIPS (Federal Information Processing Standards) compliant, ensuring secure data encryption.

What is included in the DS3678-SR kit?
The kit includes the DS3678-SR scanner, a rugged cradle, power supply, and a heavy-duty shielded 7 ft USB cable (CBA-U42-S07PAR).

Can the scanner be used in extreme temperatures?
Yes, the DS3678-SR is built to handle extreme cold, heat, and more, making it suitable for use in freezers and outdoor environments.

What is the battery life of the DS3678-SR?
The PowerPrecision+ battery delivers more than 70,000 scans per charge, providing extended operational time.

Does the scanner support multiple feedback modes?
Yes, it offers three flexible feedback modes: vibration, red and green LEDs, and a loud beep tone, allowing users to mix and match the feedback modes that are ideal in their environment.
