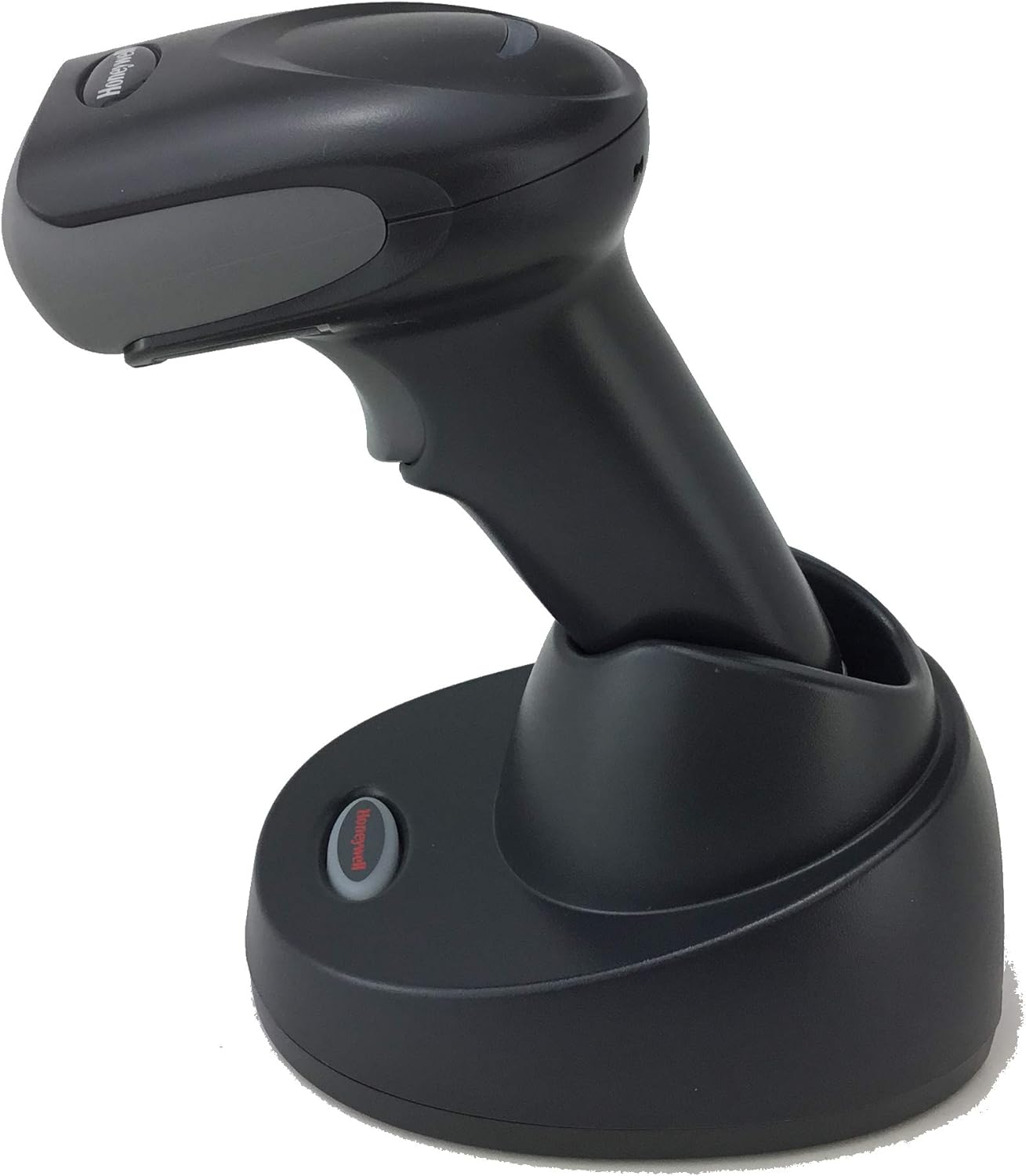

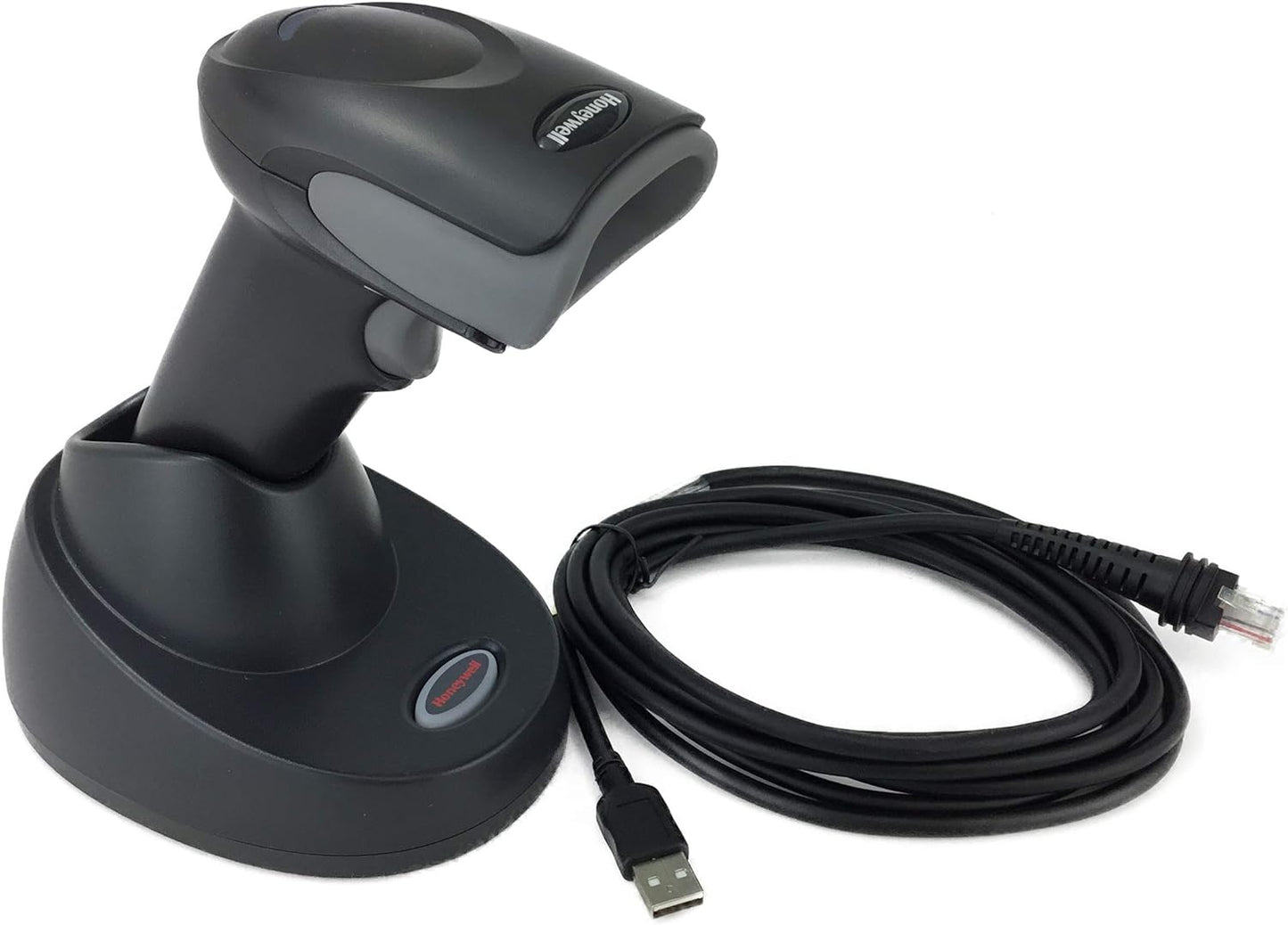

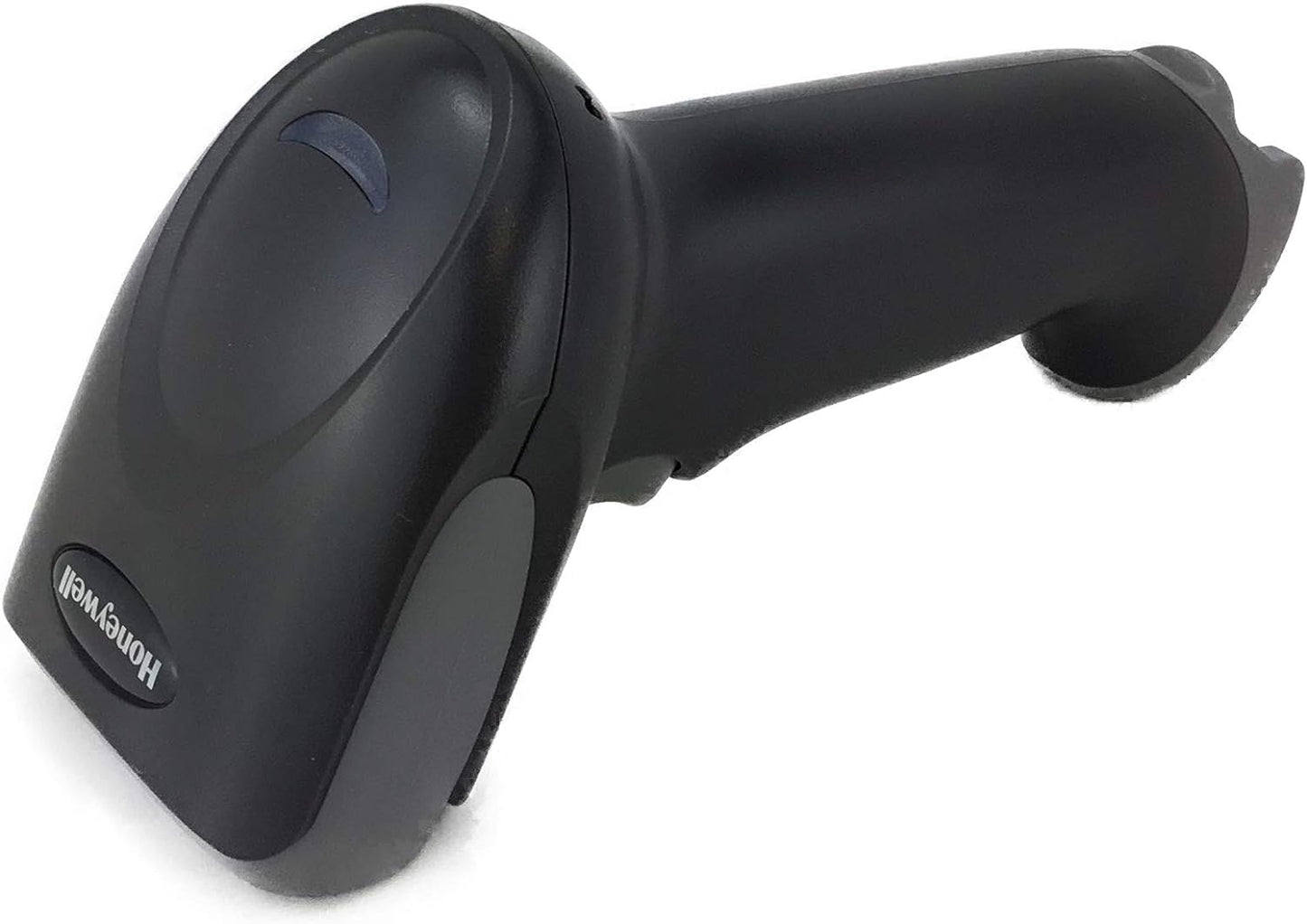

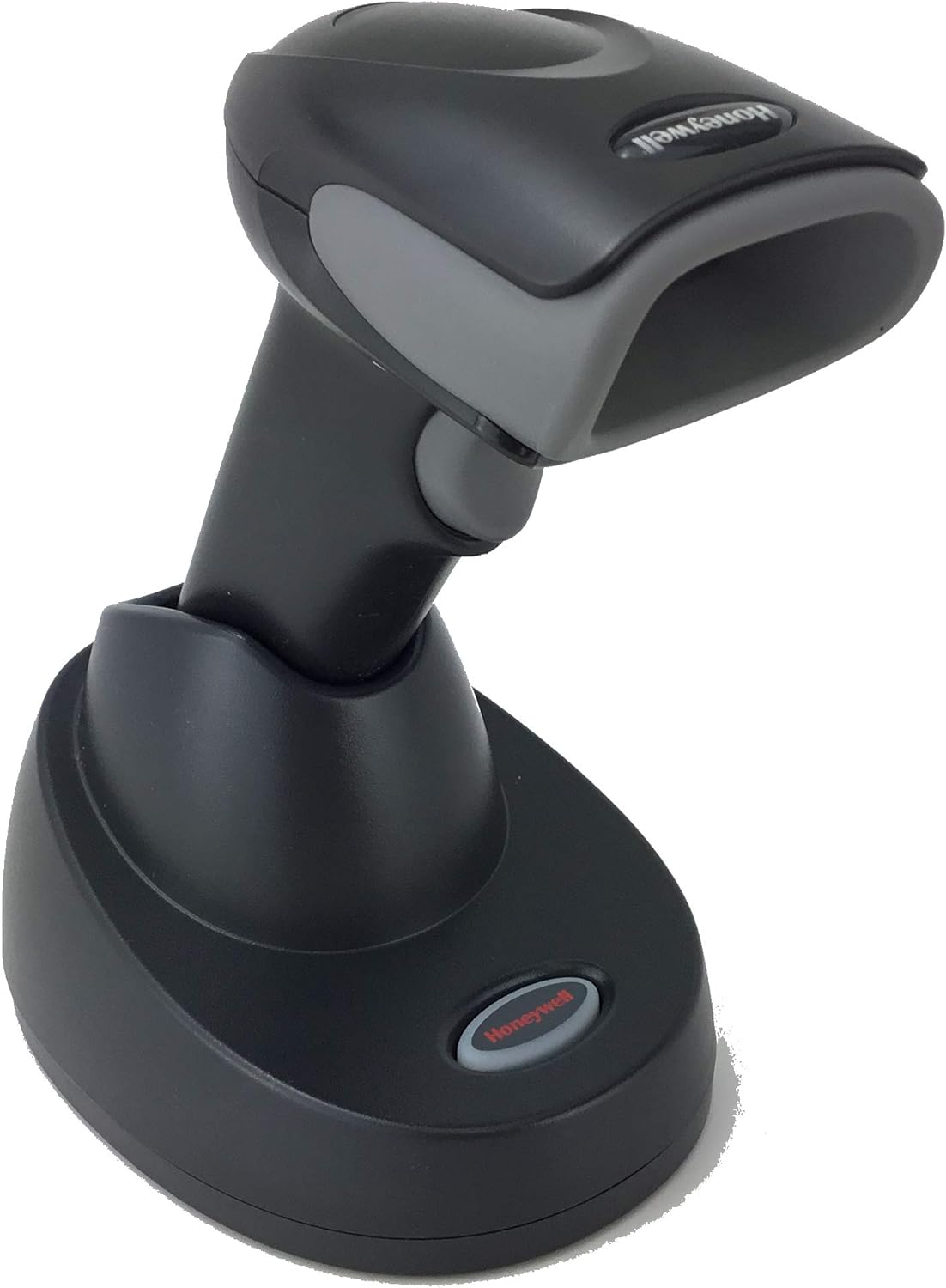

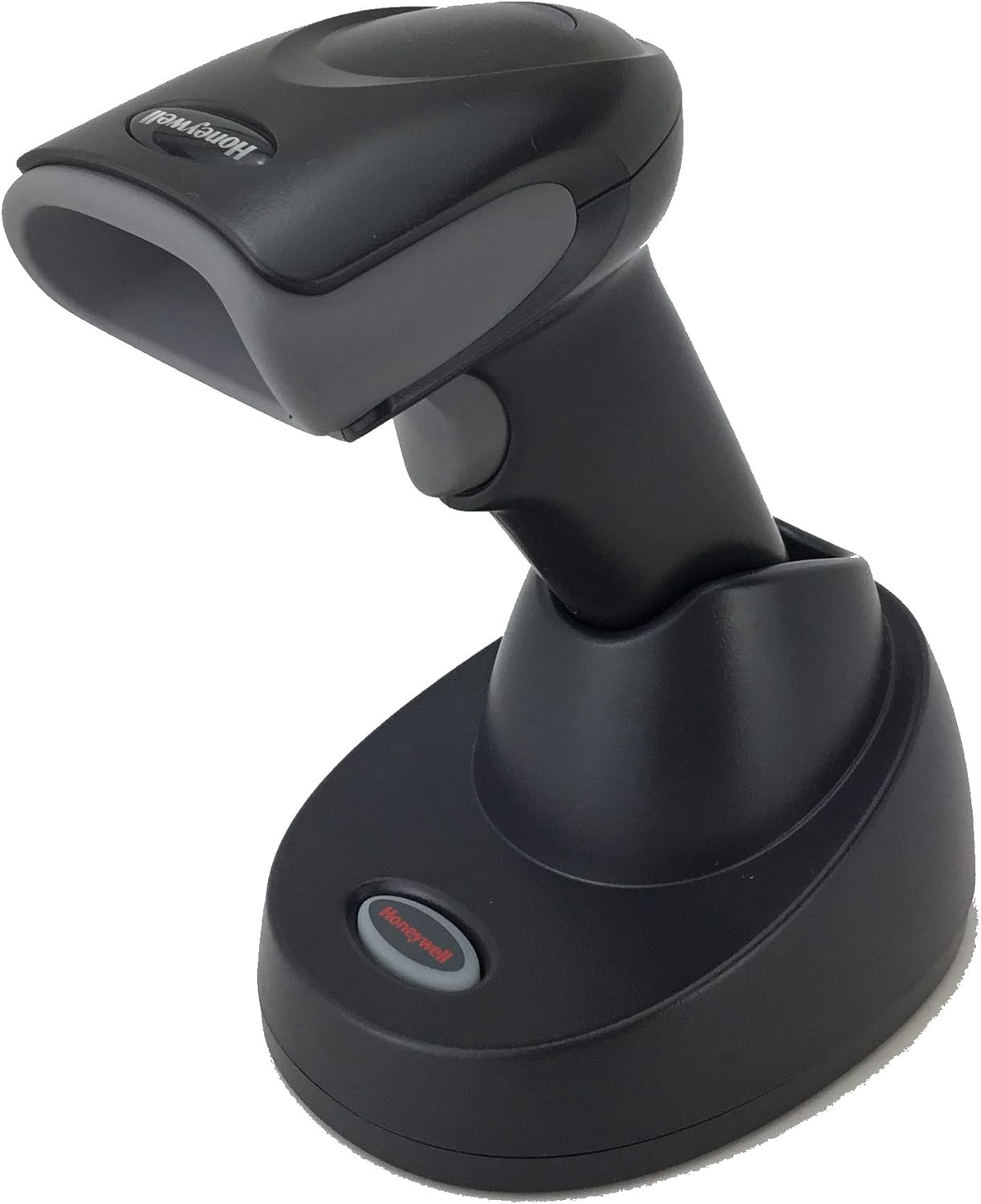

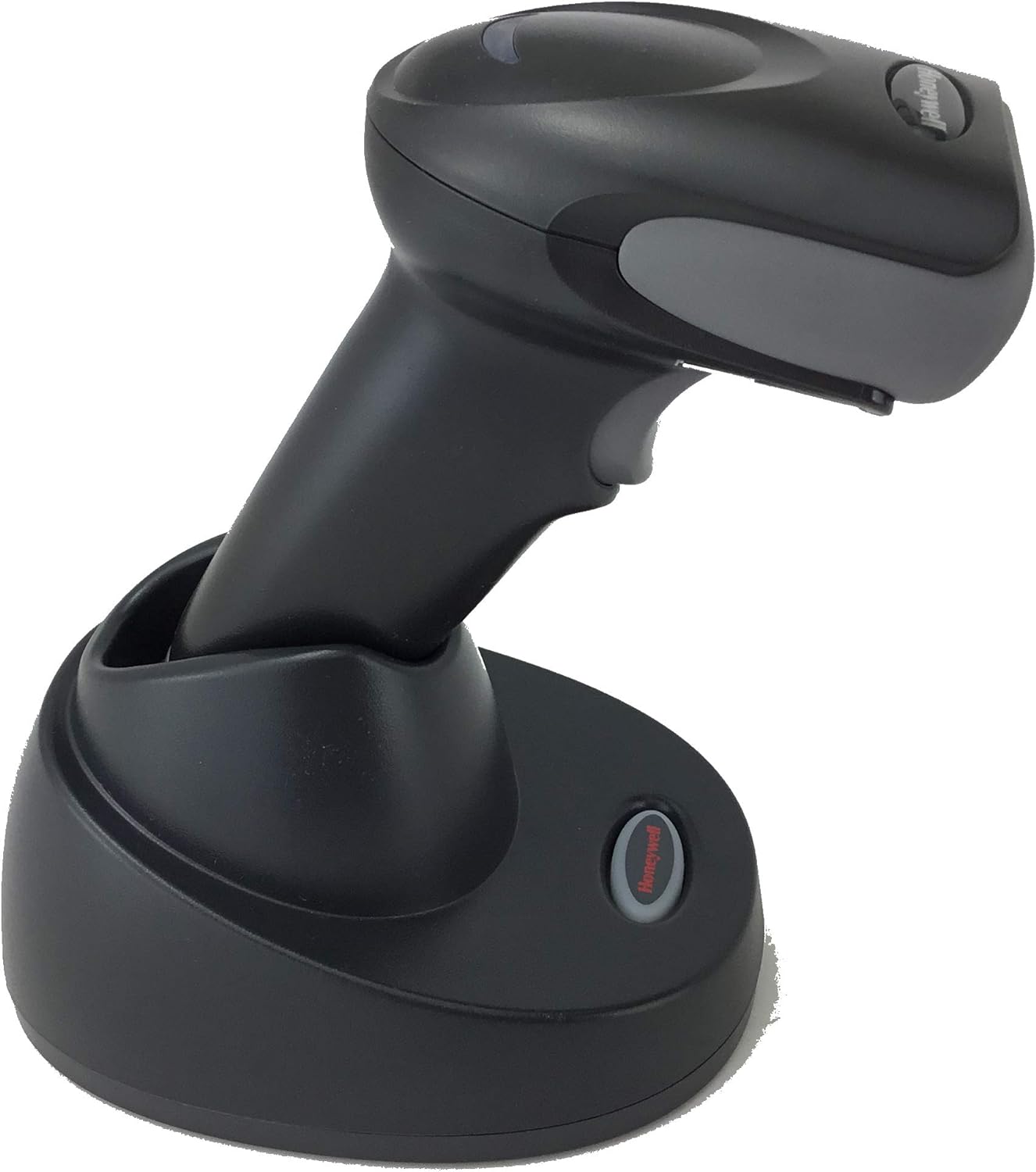

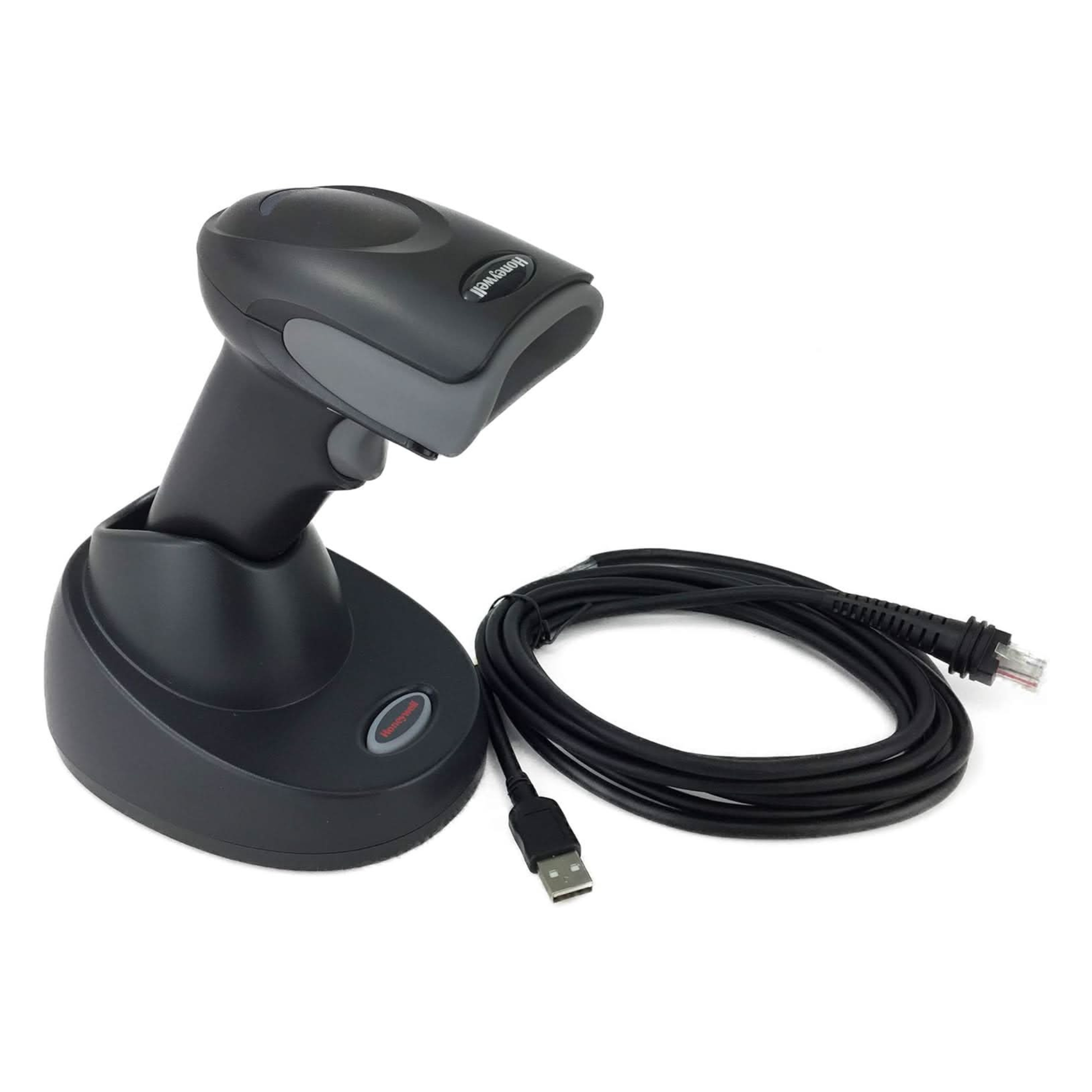

Honeywell Voyager XP 1472G Wireless Barcode/Area-Imaging Scanner Kit | 2D/1D/PDF/Postal, including a USB cable and a base

Brand Honeywell
Model Number 1472G2D
UPC 651208523176
Manufacture Warranty 2 Years
EpicRise Warranty First Year
Product Highlights
  • If not using it through a POS system, then it requires to purchase a power adapter to use this device.
  • Reads standard 1D, PDF, 2D, and DotCode symbologies.
  • Combines enhanced reading of poorquality and damaged codes with classleading durability, reducing the risk of errors and operational slowdowns.
  • Engineered to 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6 ft), the Voyager XP 1472g scanner is built to withstand busy point-of sale scanning with much better accuracy than comparable solutions.
  • Enhanced performance on the codes stores scan every day, including digital coupons, codes, and wallets on customers’ smartphones, as well as merchandise codes at the register.
  • A longer Bluetooth range compared to competitive devices enables greater operational flexibility for line busting or peak season satellite POS stations.
  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

This Honeywell 1472G2D-2USB-5-C Scanner is designed for in-store retail environments requiring a highly accurate 2D scanning solution in a durable form factor, the Voyager Extreme Performance (XP) 1472g cordless scanner delivers industry leading scanning capability on traditional barcodes and digital screens – even on damaged and difficult-to-read codes.

Dimensions: 62 mm x 173 mm x 82 mm (2.5" x 6.8" x 3.2") Weight: 210 g (7.4 oz) Expected Hours of Operation: 14 hours Expected Charge Time: 4.5 hours Operating Temp: Charging: 5°C to 40°C (41°F to 104°F), Non-Charging: 0°C to 50°C (23°F to 122°F) Drop: Engineered to withstand 30 1.8 m (6 ft) drops to concrete Warranty: 3-year factory warranty Package Includes: One Barcode Scanner One Charge and Communication Base One USB Cable One manual

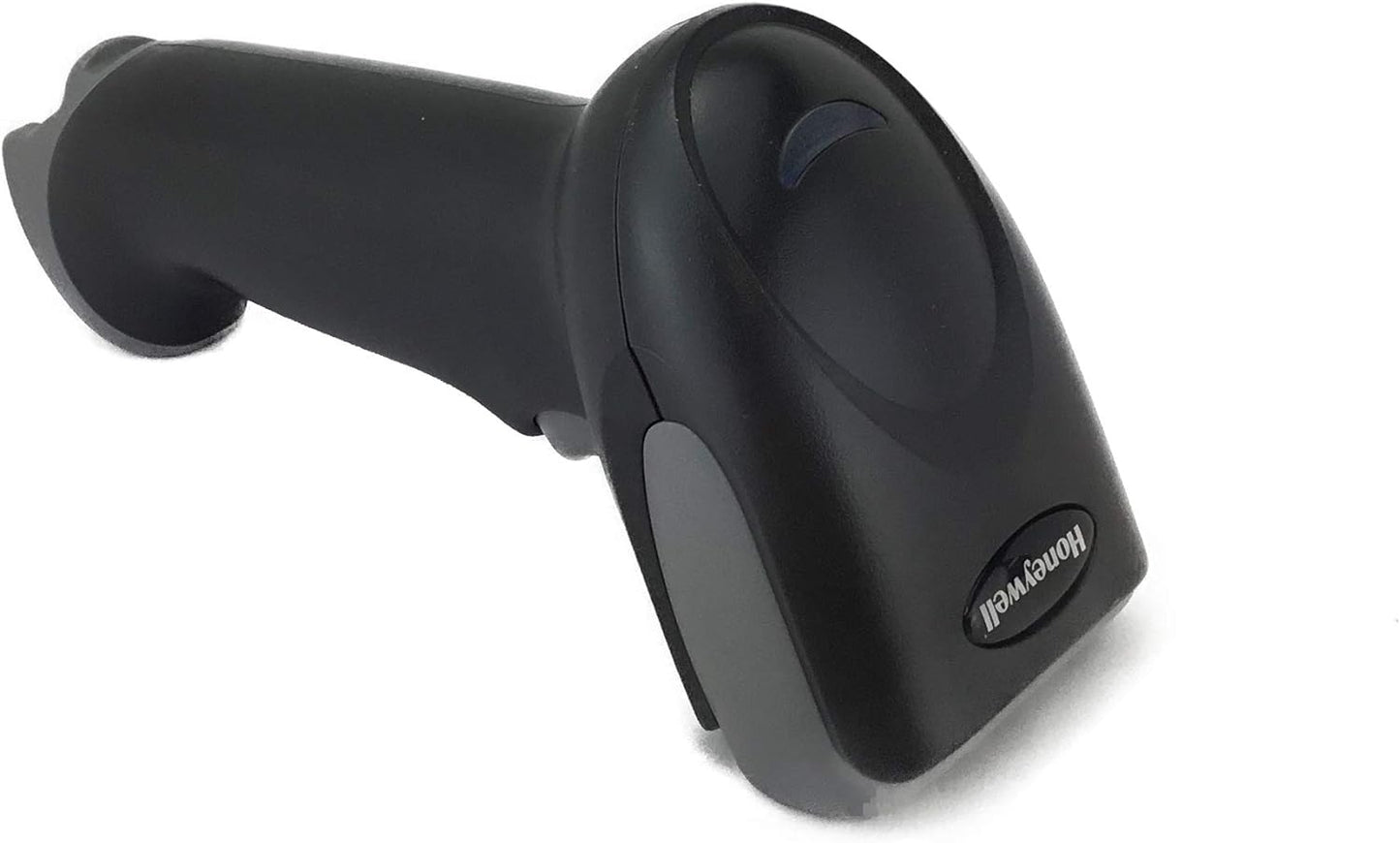

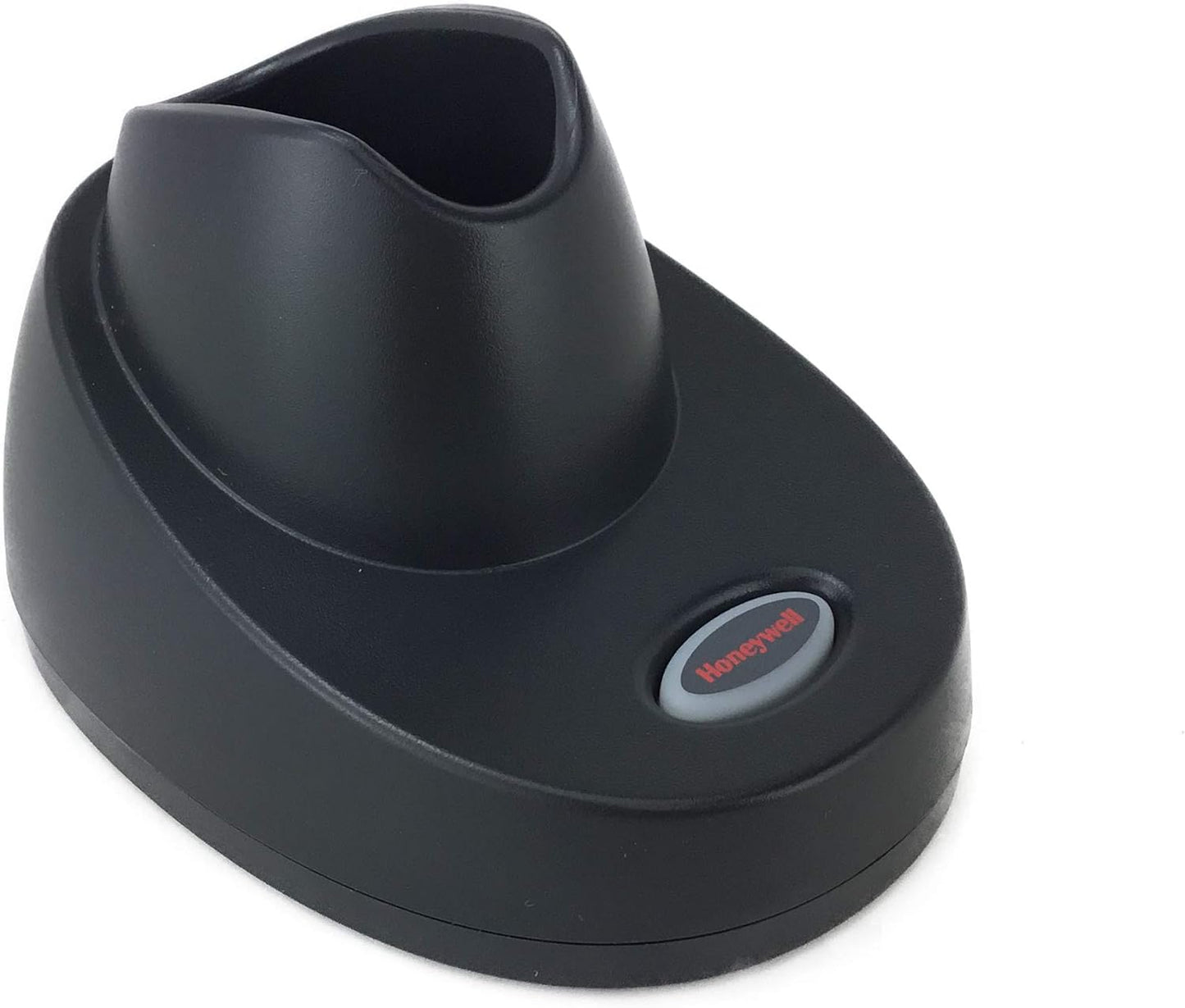

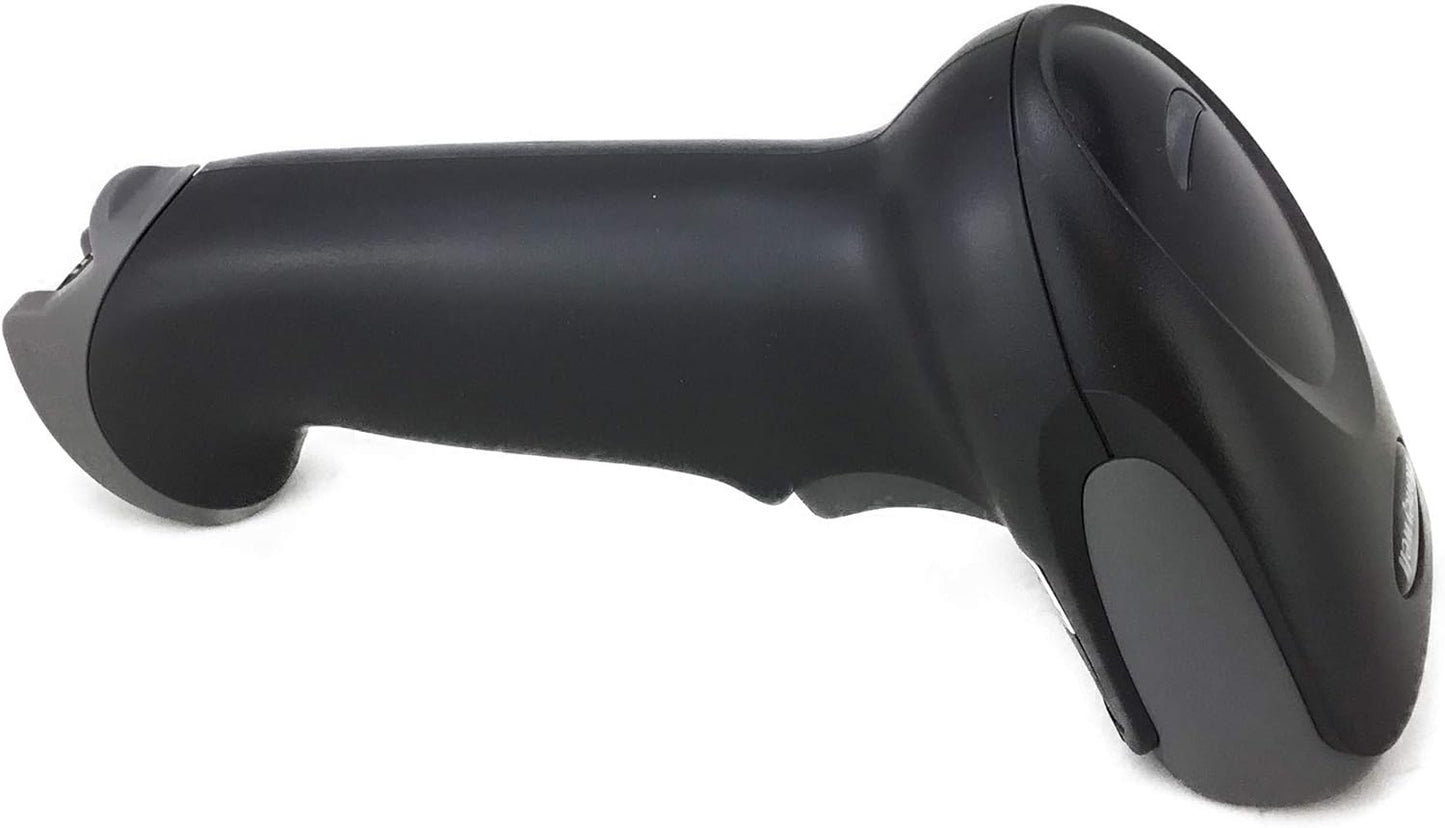

This product comes with Black Scanner 1472G2D-2, Battery (BAT-SCN01A), USB Cable (CBL-500-300-S00), Presentation Base (CCB01-010BT-V1N)

  • If not using it through a POS system, then it requires to purchase a power adapter to use this device.
  • Reads standard 1D, PDF, 2D, and DotCode symbologies.
  • Combines enhanced reading of poorquality and damaged codes with classleading durability, reducing the risk of errors and operational slowdowns.
  • Engineered to 30 drops at 1.8 m (6 ft) and 1,000 tumbles at 0.5 m (1.6 ft), the Voyager XP 1472g scanner is built to withstand busy point-of sale scanning with much better accuracy than comparable solutions.
  • Enhanced performance on the codes stores scan every day, including digital coupons, codes, and wallets on customers’ smartphones, as well as merchandise codes at the register.
  • A longer Bluetooth range compared to competitive devices enables greater operational flexibility for line busting or peak season satellite POS stations.
Product Details
Color Black
Connection Type USB, Wireless, Bluetooth
Scanner Interface USB, Wireless (RF), Bluetooth
Barcode Supported 1D, 2D
Scanner Sensor Type 2D imager
Power Source Rechargeable, Battery-powered, AC-powered
General Specifications

Model: Voyager XP 1472g
Type: Cordless 2D Handheld Scanner
Connectivity: Bluetooth v4.2 (Adaptive Frequency Hopping)

Performance

Scan Technology: Area Imager (1040 × 720 pixel array)
Supported Symbologies: 1D, 2D, PDF, DotCode
Motion Tolerance: 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Scan Angle:

  • Horizontal: 39.2°
  • Vertical: 27.4°

Range (typical):

  • 13 mil UPC: 18 mm – 400 mm (0.7 in – 15.8 in)
  • 5 mil Code 39: 20 mm – 205 mm (0.8 in – 8.1 in)
  • 6.7 mil PDF417: 15 mm – 185 mm (0.6 in – 7.3 in)
  • 20 mil QR Code: 5 mm – 325 mm (0.2 in – 12.8 in)
Mechanical / Electrical

Dimensions (Scanner): 62 mm × 173 mm × 82 mm (2.5 in × 6.8 in × 3.2 in)
Weight (Scanner): 210 g (7.4 oz)
Charger/Communication Base Size: 132 mm × 102 mm × 81 mm (5.2 in × 4.0 in × 3.2 in)
Interfaces: USB, Keyboard Wedge, RS-232, RS485 (IBM 46xx)

Wireless

Range: Up to 30 meters (98 feet) line of sight with base
Battery: 2400 mAh Li-ion (minimum)

  • Up to 50,000 scans per full charge
  • Up to 14 hours of operation
  • 4.5 hours full recharge time
Environmental

Operating Temperature:

  • Charging: 5°C to 40°C (41°F to 104°F)
  • Non-charging: 0°C to 50°C (32°F to 122°F)

Storage Temperature:

  • Up to 90 days: -20°C to 35°C (-4°F to 95°F)
  • Up to 1 year: -20°C to 20°C (-4°F to 68°F)

Drop Spec: Withstands 30 drops from 1.8 meters (6 ft) onto concrete
Tumble Spec: 1,000 tumbles from 0.5 meters (1.6 ft)
Sealing: IP42
Light Immunity: 0–100,000 lux
