Alpha Communications VK237WS 2-Wire Color Video Intercom Kit; Includes: (1) 7" Soft-touch Monitor, (1) 1-Button Surface-Mounted Aluminum Entrance Panel, and (1) Power Supply

Name: Alpha Communications VK237WS 2-Wire Color Video Intercom Kit; Includes: (1) 7" Soft-touch Monitor, (1) 1-Button Surface-Mounted Aluminum Entrance Panel, and (1) Power Supply
Brand: Alpha Communications
SKU: APH-PHO-VK237WS-NEW_1
Price: 359.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• 【Clear Video View】: See visitors clearly before opening the door.

• 【Easy Two-Wire Setup】: Installs simply with less wiring work.

• 【Strong Door Unit】: Built tough and works well in low light.

• 【Room to Grow】: Easy to expand for more doors and monitors.

• 【Ready to Use】: Comes with the main parts needed for setup.

Overview
Specifications
FAQ
User Guides
Reviews

The Alpha Communications VK237WS is a 2-wire color video intercom kit designed for door entry monitoring at residences, small offices, and front-desk environments. Using only two wires between the door station and indoor monitor, it enables fast, low-impact installation in both new construction and retrofit settings — reaching up to 230 feet with AWG#24 or 295 feet with AWG#22 cable.

The VM237W indoor monitor features a 7" Color TFT LCD display, soft-touch controls, two-way voice communication, and a built-in dry contact door release compatible with both Normally Closed and Normally Open magnetic or electric door locks. The VR237S door station is constructed from vandal-resistant aluminum alloy with water-resistant housing, a 72° wide-angle Color CCD camera, and 4 White LED illuminators that ensure clear visitor images in low-light conditions.

The VK237WS expands to support up to 3 indoor monitors and 2 outdoor door stations, with each monitor powered by its own SS237 18VDC plug-in supply — providing a scalable access control solution for properties with growing monitoring needs.

Best For:

- Single-family residences and apartment building door entry

- Small business front desk and reception areas

- Office building lobby and corridor access management

- Property managers requiring visible visitor verification

- Retrofit installations where minimal new wiring is preferred

Key Features:

- 7" Color TFT LCD display with soft-touch controls; adjustable brightness, chroma/contrast, ringtone, and voice volume

- Two-way voice communication with 120-second talk timer and 30-second monitoring timer

- Built-in dry contact door release supports Normally Closed (terminals 3 & 4) and Normally Open (terminals 4 & 5) magnetic or electric locks

- Vandal-resistant aluminum alloy door station panel with water-resistant construction for outdoor durability

- 72° wide-angle Color CCD camera with 4 White LED illuminators (0.1 Lux minimum) for clear low-light imaging

- 2-wire system cable: up to 230 ft (70m) with AWG#24 or 295 ft (90m) with AWG#22

- Expandable to 3 indoor monitors and 2 outdoor door stations with End-of-Line resistor jumper included

- Operating temperature range: -13°F to 149°F (-25°C to 65°C)

Quick Specs:

- Monitor Display: 7" Color TFT LCD

- Monitor Power Consumption: <0.5W (standby), <10W (operating)

- Monitor Power Supply: 18VDC, 1500mA (100-240VAC 50/60Hz input, SS237, UL Listed)

- Door Station Camera: Color CCD, 72° viewing angle, 0.1 Lux min illumination

- Door Station Night Light: 4 White LEDs

- Door Station Housing: Vandal-resistant aluminum alloy, water-resistant

- Door Release: Built-in dry contact (Normally Closed or Normally Open)

- Wiring: 2-wire; max 230 ft with AWG#24 or 295 ft with AWG#22

- Expandability: Up to 3 monitors + 2 door stations

- Operating Temperature: -13°F to 149°F (-25°C to 65°C)

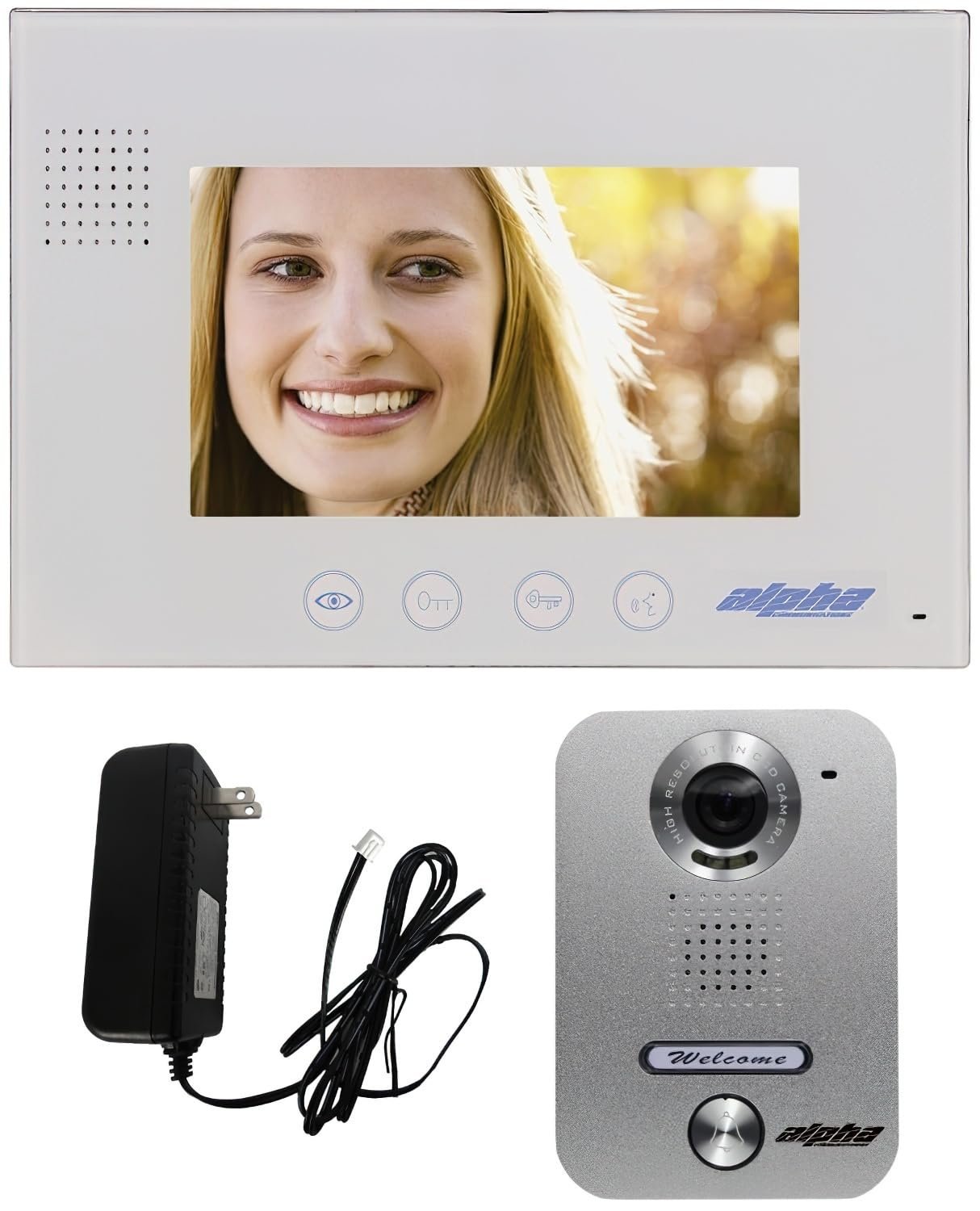

What's Included:

- 1 x VM237W 7" White Surface-Mount Color Video Monitor

- 1 x VR237S 1-Button Surface-Mount Silver Color Video Door Station

- 1 x SS237 18VDC/1.5A Plug-In Power Supply (UL Listed)

General Specifications
Brand	Alpha Communications

Product Details
Color	Silver, White
Power Source	AC-powered, DC-powered
Connection Type	Wired
Connectivity Technology	Wired
Intercom Communication Type	Video
Communication Device Features	Built-in display, Touchscreen
Mounting Type	Wall
