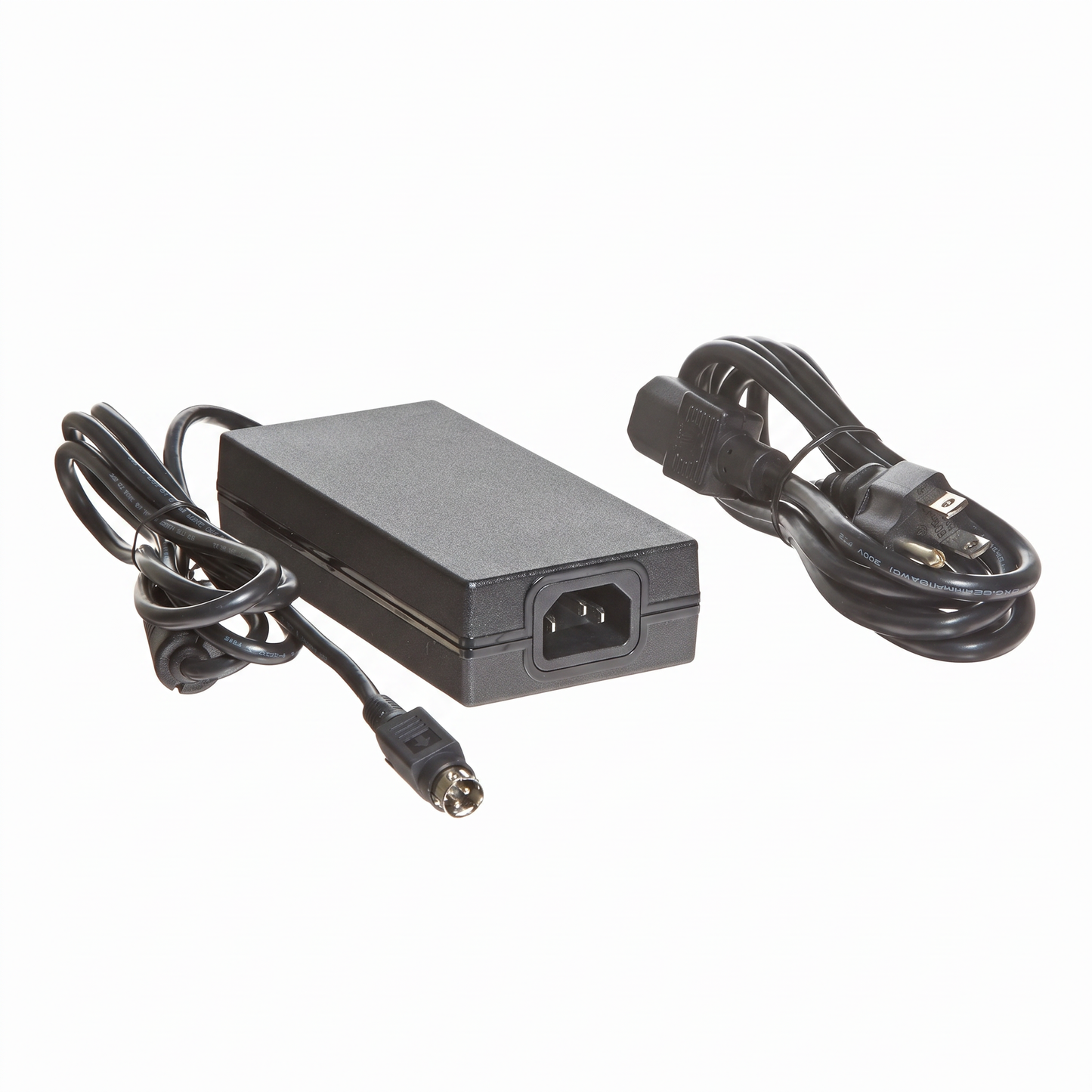

Epson PS-180 Power Supply Adapter – 24V 2A Universal AC Adapter for POS Printers

Delivery Time: 0-3 days

Brand Epson

Model Number C825343

EpicRise Warranty 1 Year

Product Highlights

• Universal 100-240V AC input adapts to global voltage standards for worldwide deployment flexibility

• 24V DC output at 2.0A with 4.5A peak current supports reliable operation of thermal and impact POS printers

• Compatible with 50+ Epson printer models including TM-T88 series, TM-U220, TM-T70, TM-H6000, and TM-J7000 series

• ENERGY STAR certified design reduces power consumption while delivering 48VA rated output power

• 3-pin dedicated DC connector with 5-6 foot cable ensures secure connection to compatible Epson POS systems

Overview
Specifications
FAQ
User Guides
Reviews

The Epson PS-180 Power Supply Adapter (C825343) is a universal AC adapter engineered for Epson thermal receipt printers and POS printing systems. This ENERGY STAR certified power solution delivers 24V DC at 2.0A output, supporting reliable operation across retail, hospitality, and service environments. The adapter accepts 100-240V AC input, making it suitable for global deployments without voltage conversion equipment.

Designed as a universal power platform, the PS-180 serves as the standard power source for over 50 Epson printer models spanning TM-T, TM-U, TM-H, TM-J, TM-L, TM-C, and TM-m series. The included AC cable and 3-pin DC connector ensure complete plug-and-play installation for enterprise buyers replacing failed adapters or standardizing power supplies across multi-location operations.

Key Features

- 24V DC output at 2.0A continuous current with 4.5A peak surge capability supports printer startup and high-speed printing cycles

- 100-240V AC input range with 50/60 Hz frequency tolerance eliminates need for voltage transformers in international deployments

- ENERGY STAR certification ensures power efficiency compliance for corporate sustainability and energy management programs

- 3-pin dedicated DC connector design provides secure mechanical connection preventing accidental disconnection during operation

- Compact 136 x 68 x 32 mm footprint and 0.4 kg weight enables flexible mounting in space-constrained POS environments

- UL60950-1 and CSA C22.2 No 60950-1 safety standards compliance meets enterprise procurement requirements for certified components

- 5-6 foot cable length provides installation flexibility for counter-mounted and under-counter printer configurations

- Broad compatibility across TM-T88, TM-U220, TM-T70, TM-H6000, TM-J7000, TM-L90, TM-C3400, and TM-m30II printer families

Quick Specs

Specification	Details
Model Number	C825343 (PS-180)
Input Voltage	90-264 VAC (100VAC -10% to 230VAC +15%)
Input Frequency	50/60 Hz ± 3 Hz
Input Power Consumption	100 VA
Output Voltage	24 VDC ± 5%
Output Current (Rated)	2.0 A continuous
Output Current (Peak)	4.5 A
Output Power	48 VA rated
Connector Type	3-pin dedicated DC connector
Cable Length	Approximately 5-6 feet
Dimensions (H x W x D)	68 x 136 x 32 mm (2.68 x 5.35 x 1.26 inches)
Weight	Approximately 0.4 kg (14.11 oz) excluding AC cable
Safety Standards	UL60950-1, CSA C22.2 No 60950-1
Energy Efficiency	ENERGY STAR certified
Compatible Printer Series	TM-T88, TM-U220, TM-T70, TM-T20II, TM-T90, TM-H6000, TM-J7000, TM-L90, TM-C3400, TM-m30II

Product Details
Color	Black
Power Source	AC-powered

What types of businesses and environments should use the Epson PS-180 C825343 power adapter?

The PS-180 serves retail stores, restaurants, hospitality venues, ticketing operations, and banking locations using Epson TM-series POS printers. It handles environments requiring thermal receipt printing, impact printing for multi-part forms, or label printing for inventory and ticketing. The universal voltage design makes it suitable for single-location businesses or multi-site enterprises needing standardized power supplies across domestic and international operations.

Is the PS-180 C825343 a cost-effective choice compared to alternative power supply options?

The PS-180 provides OEM-grade power delivery with ENERGY STAR efficiency and safety certifications that third-party adapters often lack. Using non-Epson adapters risks printer damage from incorrect voltage regulation, voiding equipment support, and creating safety hazards in commercial environments. The C825343 eliminates troubleshooting costs from power-related printer failures and ensures compliance with enterprise procurement requirements for certified components.

Which Epson printer models are compatible with the PS-180 C825343 power adapter?

The PS-180 supports TM-T88 series (II through VI), TM-U220 (A/B/D), TM-U295, TM-U330, TM-T20II, TM-T70 series, TM-T81, TM-T83II-i, TM-T90, TM-H5000II, TM-H6000 series (II/III/IV), TM-J7000/7100/7500/7600, TM-L60II, TM-L90, TM-C3400 series, and TM-m30II models. Compatibility requires matching the 24V DC output, 3-pin connector type, and power requirements. Verify specific printer model power specifications before ordering.

What are the electrical output specifications of the PS-180 adapter?

The PS-180 delivers 24V DC output with ±5% voltage regulation tolerance at 2.0A continuous current rating. Peak current capability reaches 4.5A to handle printer startup and high-speed print job surges. Rated output power is 48VA. Input accepts 90-264 VAC at 50/60 Hz, consuming up to 100VA under full load.

What are the physical dimensions and cable specifications of the PS-180?

The adapter measures 136 x 68 x 32 mm (5.35 x 2.68 x 1.26 inches) excluding protrusions and weighs approximately 0.4 kg (14.11 oz) without the AC cable. The DC output cable extends 5-6 feet from the adapter body to the 3-pin connector. Compact size enables mounting behind counters or in equipment racks without consuming excessive space.
