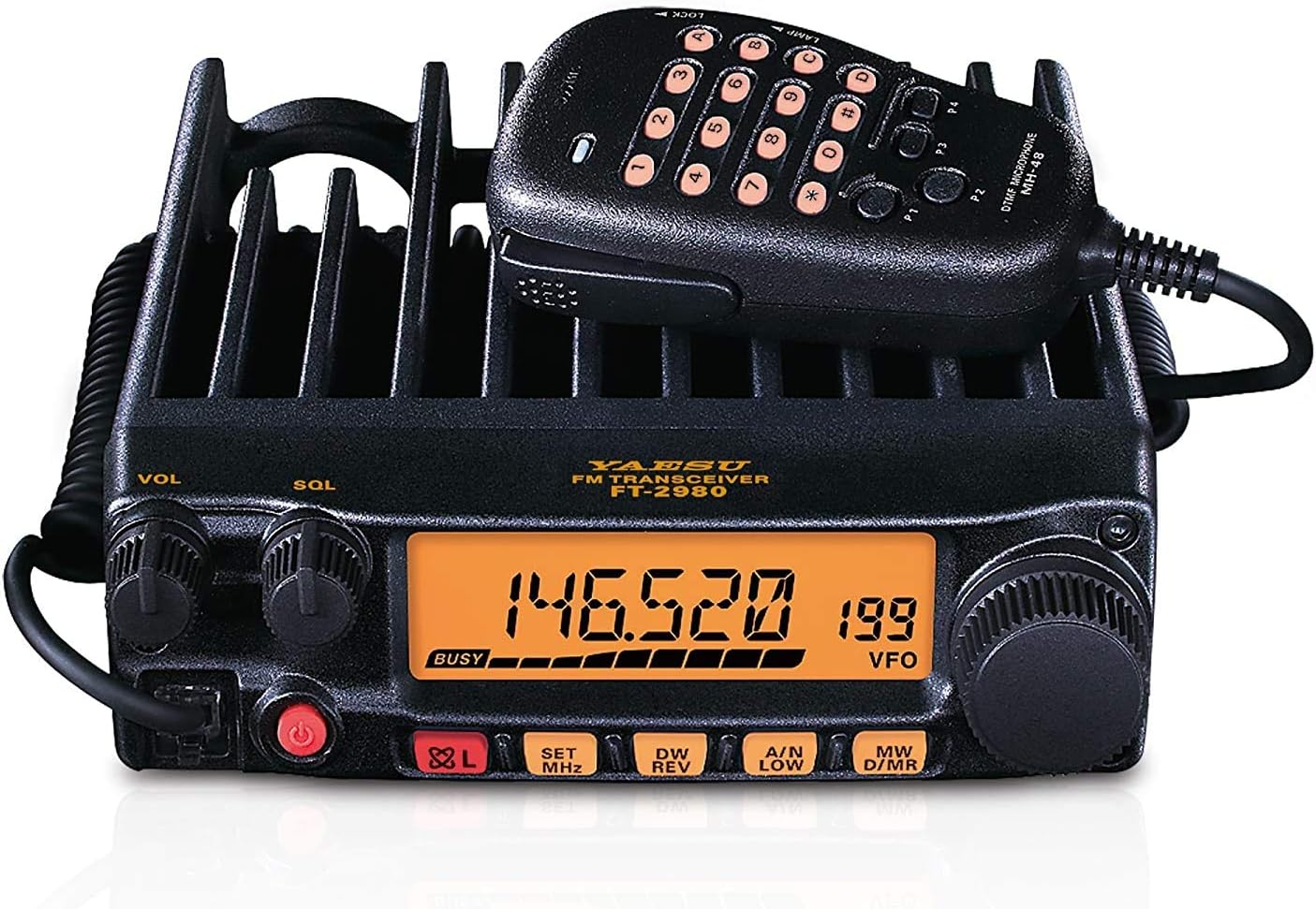

Yaesu FT-2980R Single-Band Mobile Transceiver| 144 MHz, 80W, 3-Year Manufacturer Warranty

Name: Yaesu FT-2980R Single-Band Mobile Transceiver| 144 MHz, 80W, 3-Year Manufacturer Warranty
Brand: Yaesu
SKU: YAE-SPE-FT-2980R-NEW
Price: 349.0 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Product Highlights

Massive Heatsink guarantees 80 Watts of RF Power with No Cooling Fan Needed (Four selectable power output levels are provided: 80/30/10/5 Watts) - Loud 3 Watts of Audio Output for noisy environments - Large 6 Digit Backlit LCD ensure excellent visibility
Excellent Receiver Performance - Alpha-Numeric Channel Display - 200 Memory Channels for serious users
CTCSS and DCS Encode/Decode Built in - Versatile Scanning Capability - WX Channels with "Severe Weather" Alert
Smart Search Operation - DTMF Direct Access Microphone Included - Wide/Narrow Deviation Selection - RF-Squelch
Interactive Programming Menu - Supply Voltage Display - 4-level Display Dimmer - Dual Watch FT

Overview
Specifications
FAQ
User Guides

FT-2980R FT-2980 | Original Yaesu 144 MHz Single Band Mobile Transceiver | 80 Watts | 3 Year Manufacturer Warranty

Massive Heatsink guarantees 80 Watts of RF Power with No Cooling Fan Needed (Four selectable power output levels are provided: 80/30/10/5 Watts) - Loud 3 Watts of Audio Output for noisy environments - Large 6 Digit Backlit LCD ensure excellent visibility
Excellent Receiver Performance - Alpha-Numeric Channel Display - 200 Memory Channels for serious users
CTCSS and DCS Encode/Decode Built in - Versatile Scanning Capability - WX Channels with "Severe Weather" Alert
Smart Search Operation - DTMF Direct Access Microphone Included - Wide/Narrow Deviation Selection - RF-Squelch
Interactive Programming Menu - Supply Voltage Display - 4-level Display Dimmer - Dual Watch FT

Massive Heatsink guarantees 80 Watts of RF Power with No Cooling Fan Needed (Four selectable power output levels are provided: 80/30/10/5 Watts) - Loud 3 Watts of Audio Output for noisy environments - Large 6 Digit Backlit LCD ensure excellent visibility

General Specifications

Frequency Range (TX/RX): 144 – 148 MHz (U.S. Amateur Band)
Channel Steps: 5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memory Channels: 221 total

200 regular
10 NOAA WX channels
1 “Home” channel
9 Band-edge limit memory pairs (for programmable scanning)

Power Requirements: 13.8V DC ±15%
Current Consumption:

TX: 15A (at 80W)
RX: 0.5A (squelched)

Transmitter

RF Output Power Levels (Selectable):

80 Watts (High)
30 Watts (Mid 2)
10 Watts (Mid 1)
5 Watts (Low)

Modulation Type: Variable Reactance
Spurious Emission: At least 60 dB below carrier
Microphone Impedance: 2 kΩ

Receiver

Circuit Type: Double-Conversion Superheterodyne
Intermediate Frequencies: 1st: 21.7 MHz / 2nd: 450 kHz
Sensitivity: Better than 0.2 µV (at 12 dB SINAD)
Selectivity:

-6 dB: ≥ 12 kHz
-60 dB: ≤ 30 kHz

Audio Output Power: 3W @ 10% THD into 4 Ω (internal speaker)
Audio Output Impedance: 4 – 8 Ω

Physical

Dimensions (W × H × D): Approx. 6.3” × 2.0” × 7.3” (160 × 52 × 185 mm)
Weight: Approx. 4.2 lbs (1.9 kg)
Cooling: No fan required (solid heat sink)

📥 Download Product Manual (PDF)

What frequency range does the FT-2980R cover?
The FT-2980R operates on the 2-meter amateur band, covering 144–148 MHz for transmission and 136–174 MHz for reception.

What are the selectable power output levels?
It offers four selectable RF power output levels: 80W, 30W, 10W, and 5W. The 80W output is achieved without the need for a cooling fan, thanks to its heavy-duty die-cast chassis and heat-sink design.

How many memory channels are available?
The transceiver provides a total of 221 memory channels, including 200 standard channels, 10 band-limit memories, and one home channel. Each memory can store frequency, repeater offset, CTCSS/DCS tones, power level, and alphanumeric labels.

Does the FT-2980R support CTCSS and DCS?
Yes, it has built-in CTCSS and DCS encode/decode capabilities, allowing for silent monitoring and access to repeaters requiring tone squelch.

What are the dimensions and weight of the FT-2980R?
The radio measures approximately 6.3 x 2 x 7.3 inches (160 x 50 x 185 mm) and weighs about 4.2 lbs (1.9 kg).

Is the FT-2980R suitable for mobile installations?
Yes, its robust construction and compact size make it ideal for mobile use. However, due to its weight and heat dissipation design, ensure it's securely mounted and has adequate ventilation.

What kind of display does it have?
It features a large, backlit 6-digit alphanumeric LCD display with four brightness levels, ensuring visibility in various lighting conditions.

Are NOAA weather channels accessible?
Yes, the FT-2980R includes 10 NOAA weather channels with a Severe Weather Alert feature, providing timely weather updates and alerts.

What accessories are included with the FT-2980R?
The package typically includes:
