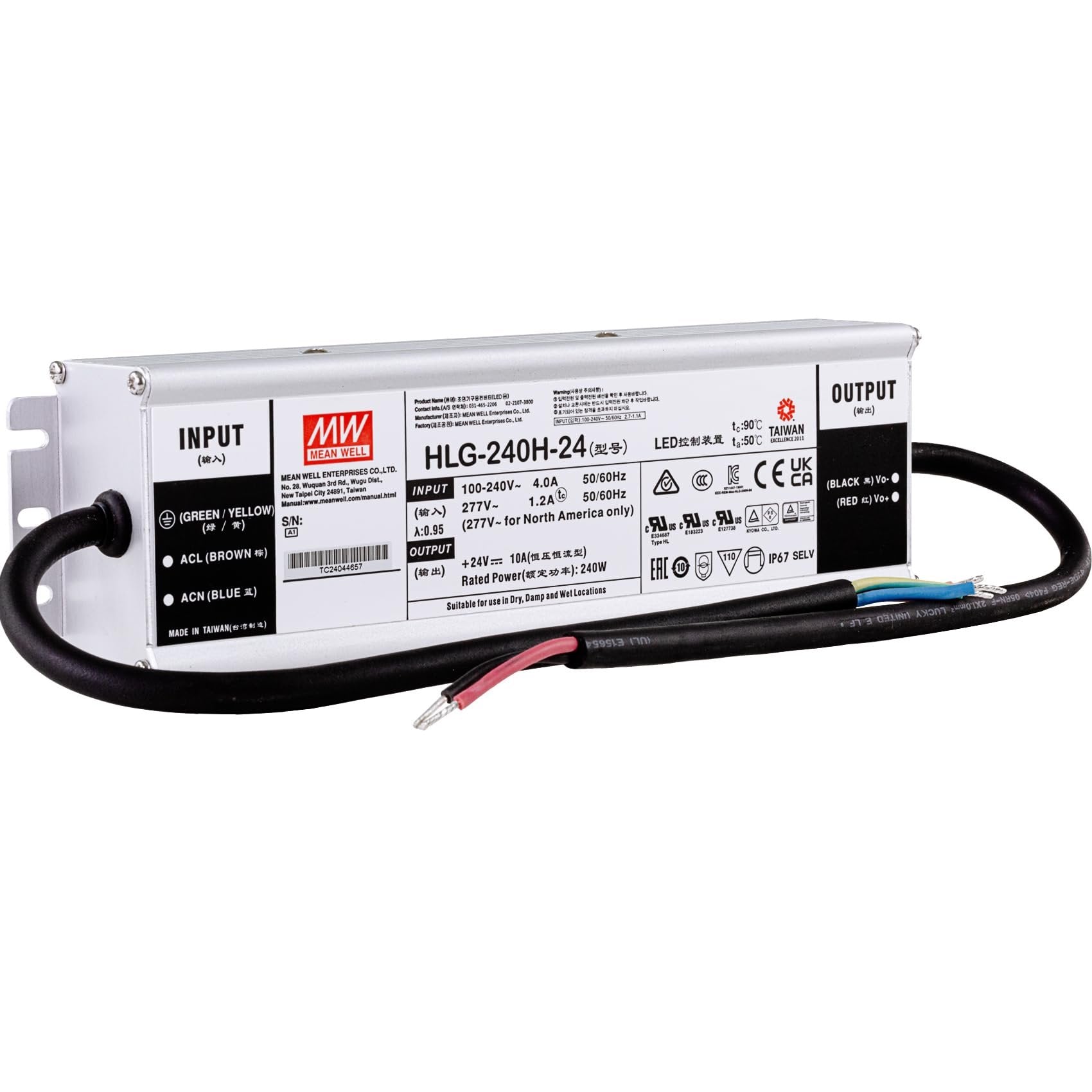

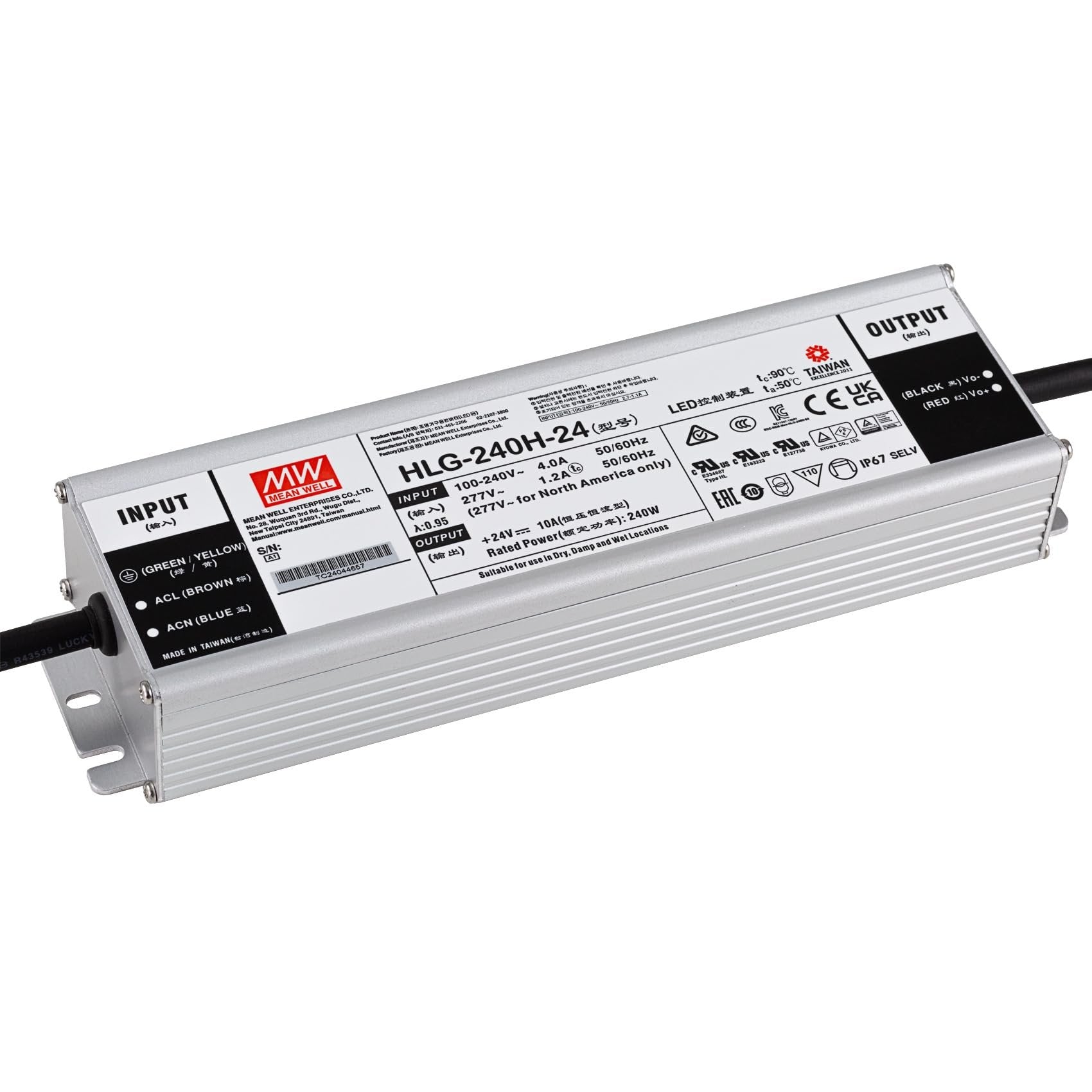

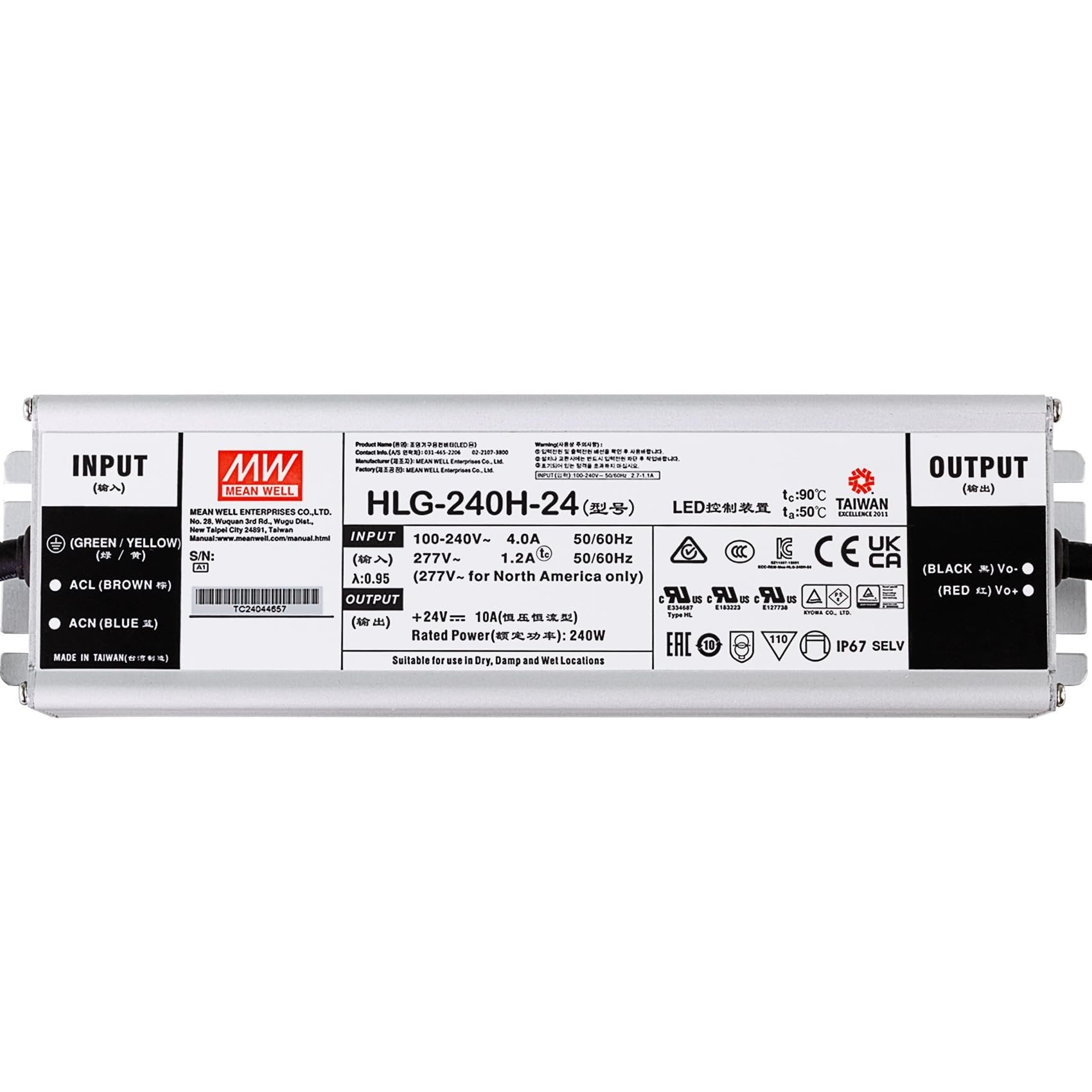

Mean Well HLG-240H-24 240W 24V DC Switching Power Supply/LED Driver - Dual Mode CV + CC Output

Name: Mean Well HLG-240H-24 240W 24V DC Switching Power Supply/LED Driver - Dual Mode CV + CC Output
Brand: SIRS-E
SKU: MEW-POW-HLG-240H-24-NEW
Price: 119.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

Input Voltage: 90~305Vac
Output Voltage (CV mode): 24Vdc
Output Max Current (CV Mode): 10 Amps
Output Current (CC Mode): 10 Amps
Constant Current Operating Range: 12-24Vdc
Max Power: 240W
Dimensions (L x W x H): 9.88 x 2.67 x 1.52 inches
Weight: 2.7lbs

Constant Voltage + Constant Current mode output
IP67 / IP65 rating for indoor or outdoor installations

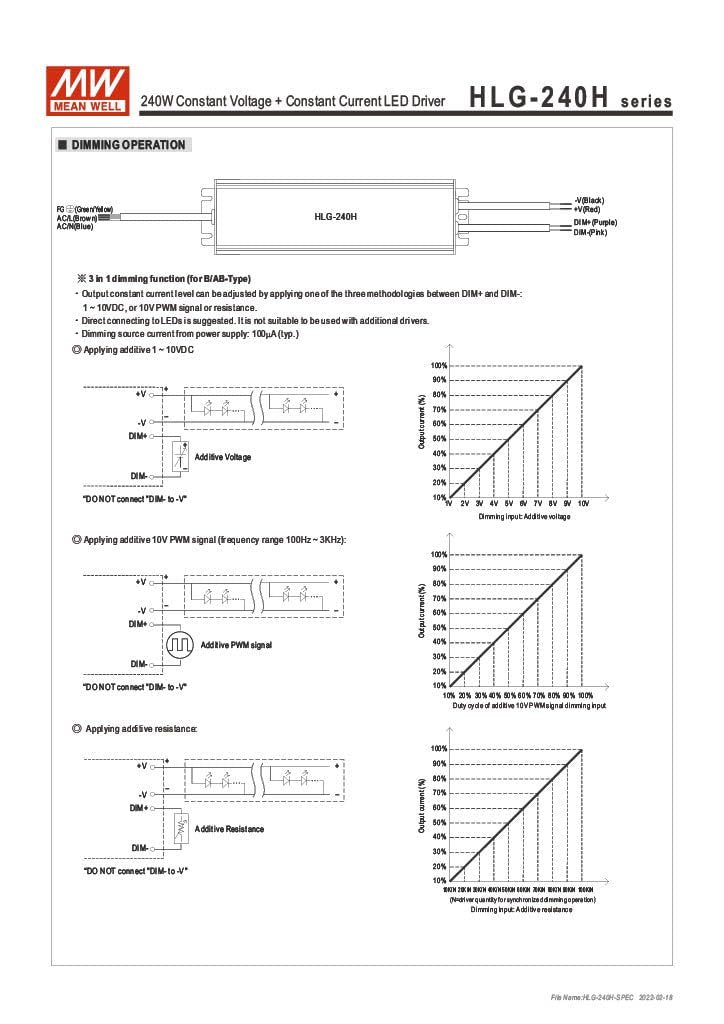

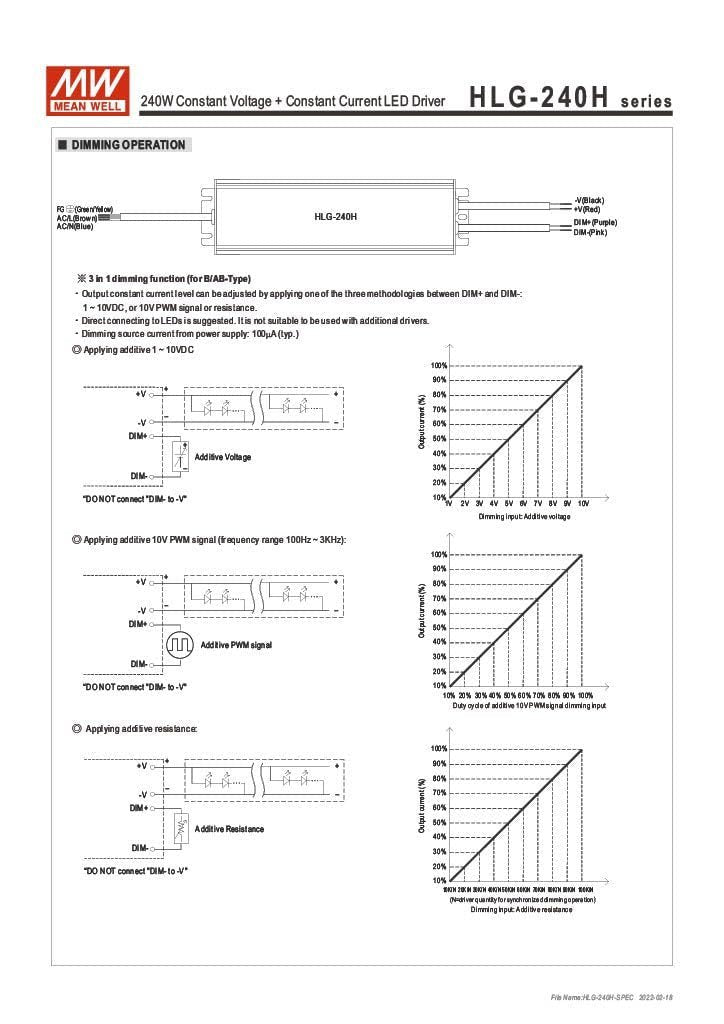

Function Options: output adjustable via potentiometer; 3 in 1 dimming
Typical Lifetime: >6200 hours
Full range AC input: 90~305Vac
Operating case temperature: -40~+90°C
UL 62368-1, UL1012 approval
UL8750 type HL LED power supply
Meet 4kV surge immunity level (IEC61000-4-5)
Built-in active PFC, THD <20%
IP67 durable aluminium enclosure
Protections: short circuit / over current / over voltage / over temperature

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in Class I , Division 2 Hazardous location

Datasheet

Overview
Specifications
FAQ
User Guides
Reviews

Mean Well HLG-240H-24 240W Constant Voltage AC/DC LED Driver

HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Product Specifications

Input Voltage: 90~305Vac
Output Voltage (CV mode): 24Vdc
Output Max Current (CV Mode): 10 Amps
Output Current (CC Mode): 10 Amps
Constant Current Operating Range: 12-24Vdc
Max Power: 240W
Dimensions (L x W x H): 9.88 x 2.67 x 1.52 inches
Weight: 2.7lbs

Product Features

Constant Voltage + Constant Current mode output
IP67 / IP65 rating for indoor or outdoor installations
Function Options: output adjustable via potentiometer; 3 in 1 dimming
Typical Lifetime: >6200 hours
Full range AC input: 90~305Vac
Operating case temperature: -40~+90°C
UL 62368-1, UL1012 approval
UL8750 type HL LED power supply
Meet 4kV surge immunity level (IEC61000-4-5)
Built-in active PFC, THD <20%
IP67 durable aluminium enclosure
Protections: short circuit / over current / over voltage / over temperature

Applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type "HL" for use in Class I , Division 2 Hazardous location

Documents

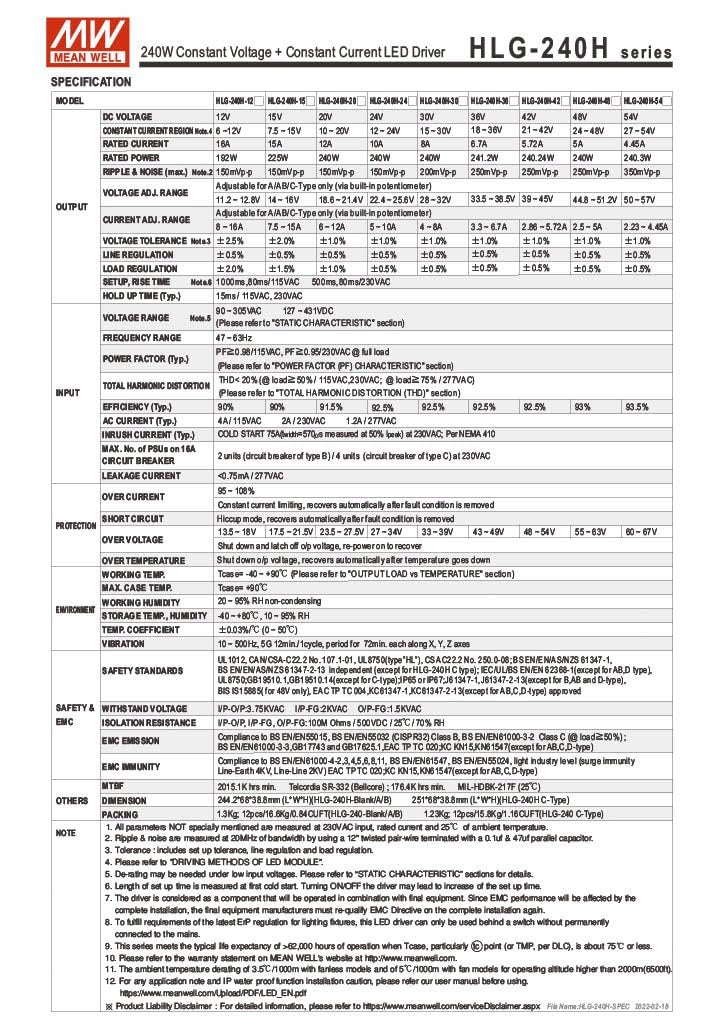

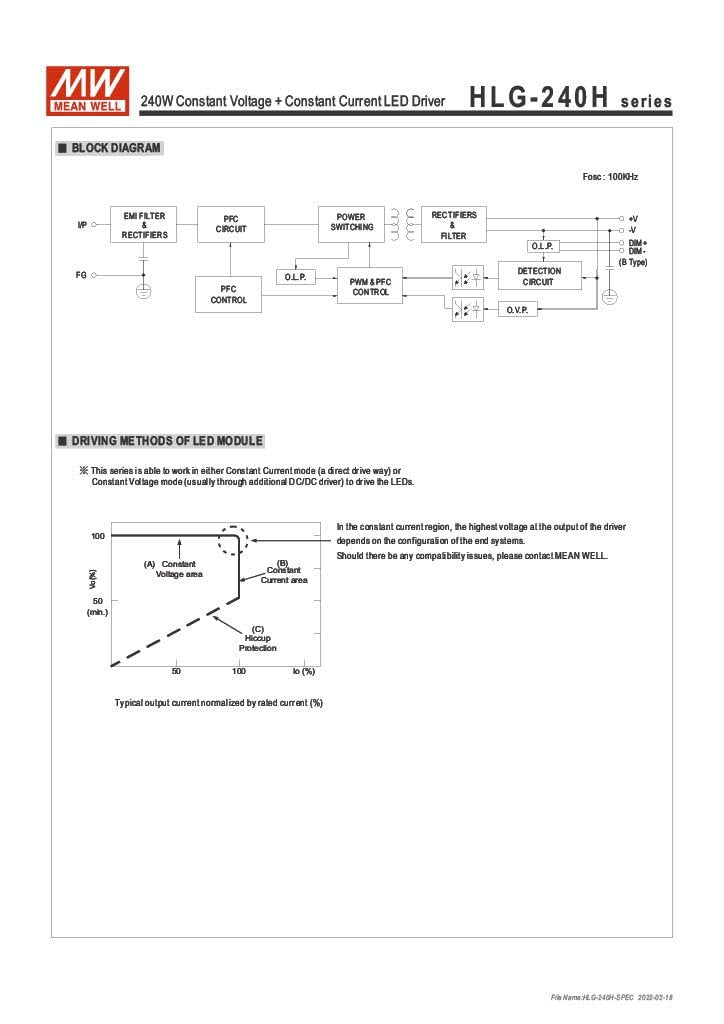

Datasheet

Mean Well HLG-240H-24 240W Constant Voltage AC/DC LED Driver is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output.Operates from 90- 305VAC and offers models with different rated voltages ranging between 12V and 54V. Thanks to the high efficiency of up to 93.5%, with the fan-less design, the entire series is able to operate for -40℃ - +90℃ case temperature under free air convection.IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, to provide optimal design flexibility for LED lighting systems.Input Voltage: 90 - 305Vac / Output Voltage (CV mode): 24Vdc / Output Max Current (CV Mode): 10 Amps / Output Current (CC Mode): 10 Amps / Constant Current Operating Range: 12-24Vdc / Max Power: 240WTypical Lifetime approx. 6200 hours / Function Options - Output adjustable via potentiometer; 3 in 1 dimming / Certification UL 62368-1, UL1012 approval
