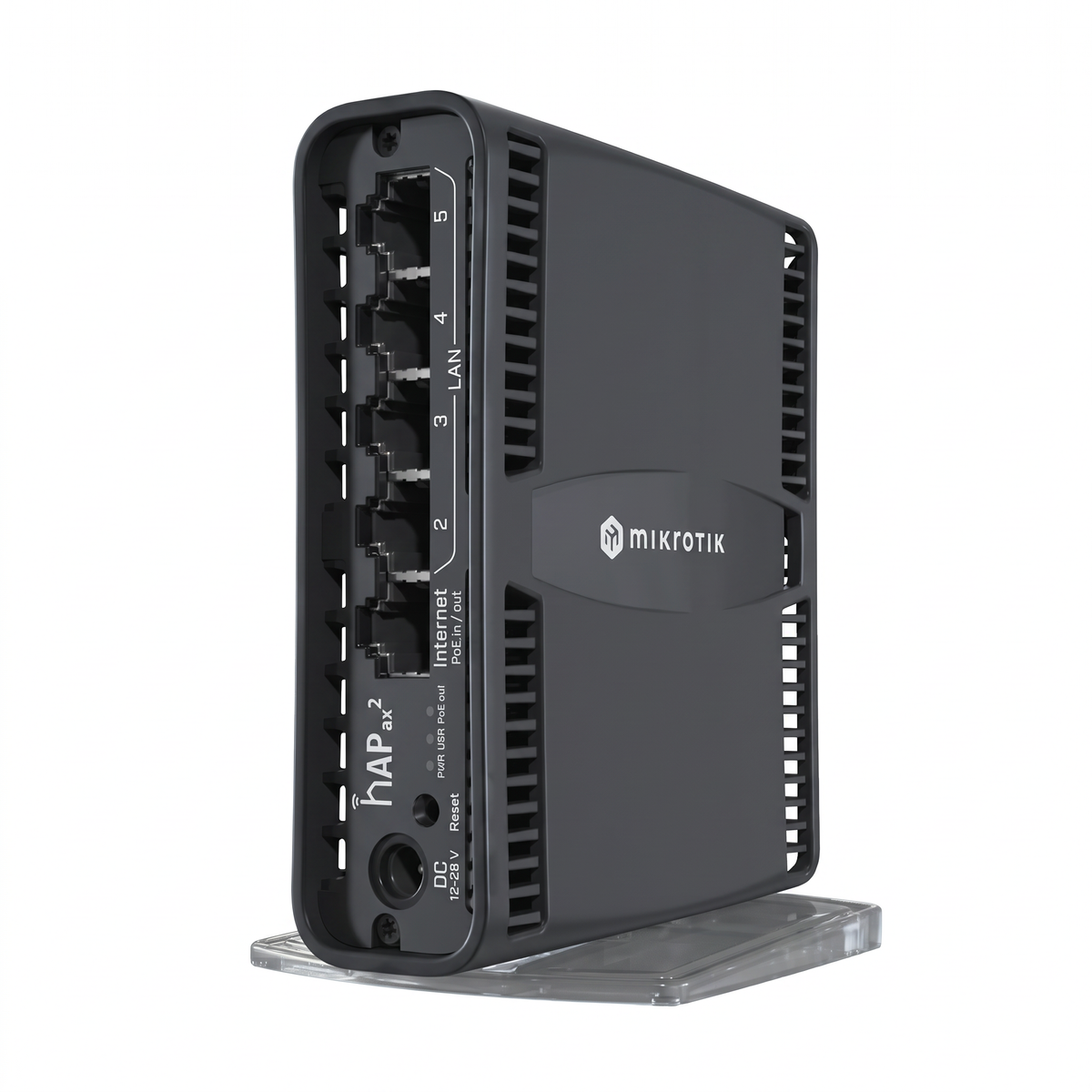

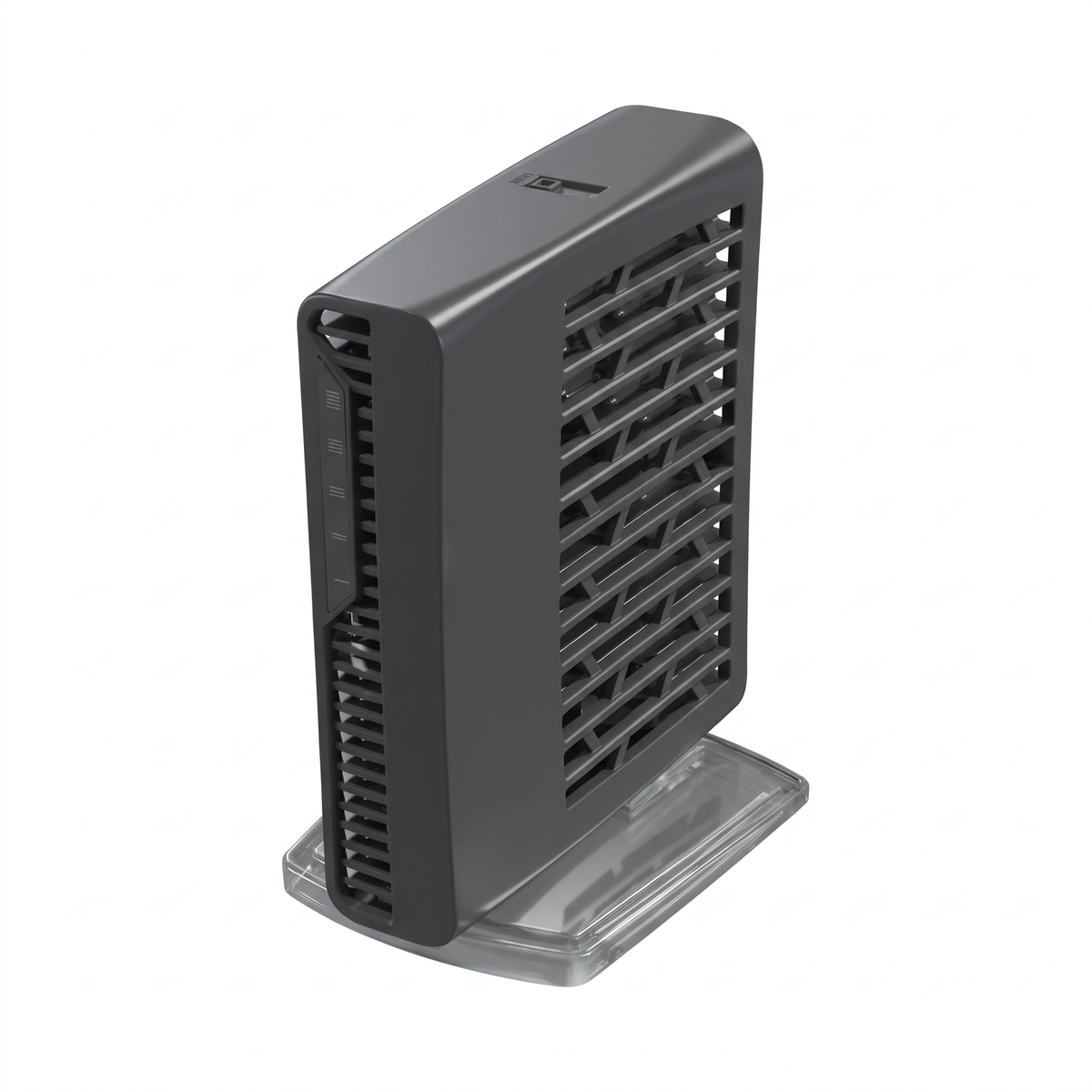

MikroTik hAP ax² C52iG-5HaxD2HaxD-TC Wi-Fi 6 Dual-Band Router with PoE for Enterprise Networks

Brand MikroTik

Model Number C52iG-5HaxD2HaxD-TC

EpicRise Warranty 1 Year

Product Highlights

• Wi-Fi 6 (802.11ax) dual-band router with up to 1774 Mbit/s combined throughput for modern enterprise wireless networks

• ARM quad-core 864 MHz processor with 1 GB RAM supports advanced RouterOS v7 features including IPsec hardware acceleration

• Flexible PoE-in and PoE-out on port 1 enables simplified deployment and power delivery to connected devices

• Five Gigabit Ethernet ports with integrated IPQ-6010 switch chip for high-speed wired connectivity

• Compact design with passive cooling tested from -40°C to 50°C for reliable operation in varied environments

Overview
Specifications
FAQ
User Guides
Reviews

The MikroTik hAP ax² (C52iG-5HaxD2HaxD-TC) is a next-generation Wi-Fi 6 router designed for home users, network professionals, and small business environments requiring reliable, high-performance connectivity. Equipped with an ARM quad-core processor running at 864 MHz, 1 GB of RAM, and 128 MB NAND storage, this device runs RouterOS v7 with License Level 4, delivering comprehensive network management capabilities including VLANs, advanced firewall rules, VPN tunneling, and traffic shaping. Its dual-band wireless system provides up to 574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz, representing significant performance gains over previous generations while maintaining compatibility with existing wireless clients.

Designed as the successor to the popular hAP ac², this compact router integrates PoE-in and PoE-out functionality, allowing simplified installation in locations where AC power is unavailable and enabling power delivery to compatible devices through port 1. The device supports both DC jack input (12-28 V) and PoE input (18-28 V), with passive PoE output capability up to 16.8 W total. With five Gigabit Ethernet ports and the IPQ-6010 integrated switch chip, the hAP ax² handles demanding wired network requirements while the dual-chain wireless radios with 4-4.5 dBi antennas provide robust coverage. Operating temperature range from -40°C to 50°C and passive cooling ensure reliable deployment in varied environmental conditions.

Best For

The MikroTik hAP ax² serves home users, network enthusiasts, and IT professionals seeking a feature-rich, compact routing solution with modern wireless capabilities and flexible deployment options.

- Home Networks: Perfect device for 99% of households requiring simultaneous wired and wireless connectivity with advanced security features including WPA3 encryption and hardware-accelerated IPsec VPN

- Remote Site Deployments: PoE-powered installations in warehouses, retail locations, or branch offices where centralized power management simplifies infrastructure

- Managed Wi-Fi Environments: Controlled wireless networks requiring VLAN segmentation, guest network isolation, and granular access policies through RouterOS scripting

- Network Lab and Testing: Educational institutions and technology professionals evaluating RouterOS features, testing network configurations, or training on enterprise routing protocols

- Multi-Device Environments: Workspaces with numerous Wi-Fi 6 clients benefiting from improved efficiency and reduced latency compared to legacy wireless standards

Key Features

- Wi-Fi 6 (802.11ax) dual-band wireless with 2x2 MIMO on both 2.4 GHz and 5 GHz bands delivers up to 40% faster 5 GHz and 90% faster 2.4 GHz speeds compared to previous generation

- IPQ-6010 quad-core ARM processor at 864 MHz with 1 GB RAM handles complex firewall rules, IPsec hardware encryption, and multi-threaded RouterOS applications

- RouterOS v7 License Level 4 provides full networking functionality including BGP, OSPF, MPLS, VLAN management, advanced QoS, and scripting capabilities

- PoE-in (18-28 V) and PoE-out (passive, up to 16.8 W) on dedicated port simplify installation and enable powering of downstream devices like IP cameras or access points

- Five Gigabit Ethernet ports (10/100/1000 Mbps) with integrated IPQ-6010 switch chip support high-throughput wired connections for servers, NAS, and workstations

- IPsec hardware acceleration offloads encryption processing to maintain routing performance during VPN tunnel operations

- WPA3 advanced encryption support strengthens wireless security beyond WPA2 for protecting sensitive business communications

- Compact 120 x 101 x 37 mm footprint with multiple mounting options (horizontal/vertical desktop, wall-mount with included accessories) fits space-constrained locations

Quick Specs

Processor	IPQ-6010 ARM 64-bit, 4 cores, 864 MHz, 4 threads
Memory	1 GB RAM, 128 MB NAND storage
Operating System	RouterOS v7, License Level 4 (requires v7.4.1 or higher)
Wireless 2.4 GHz	802.11b/g/n/ax, 2x2 MIMO, up to 574 Mbit/s, 4 dBi antennas, QCN-5022 chipset
Wireless 5 GHz	802.11a/n/ac/ax (Wi-Fi 6), 2x2 MIMO, up to 1200 Mbit/s, 4.5 dBi antennas, QCN-5052 chipset, AX1800 class
Ethernet Ports	5x Gigabit Ethernet (10/100/1000 Mbps), 1 port with PoE-out capability
Switch Chip	IPQ-6010 integrated
Power Input	DC jack: 12-28 V, PoE-in: 18-28 V (2 input options)
PoE Output	Passive PoE on port 1, 0.6 A total, 16.8 W max output power
Included Adapter	24 V / 1.2 A DC power adapter
Max Power Draw	27 W
Dimensions	120 x 101 x 37 mm
Cooling	Passive (fanless)
Operating Temp	-40°C to 50°C (tested)
Protection Rating	IP20
MTBF	~100,000 hours at 25°C
Special Features	IPsec hardware acceleration, WPA3 support, CPU temperature monitoring, mode button, RouterBOOT reset

What's Included

- MikroTik hAP ax² router (C52iG-5HaxD2HaxD-TC)

- 24 V / 1.2 A DC power adapter

- Wall-mount accessories

Product Details
Power Source	AC-powered, DC-powered

What type of business environment is the MikroTik hAP ax² best suited for?

The hAP ax² fits small to medium businesses with 10-50 users requiring both wired and wireless connectivity. Its RouterOS v7 License Level 4 supports advanced networking features like VLANs, VPN tunneling, and traffic shaping. The device handles typical office applications, file sharing, and cloud services while providing hardware-accelerated IPsec encryption for secure remote access.

How does the hAP ax² compare to the previous hAP ac² model?

The hAP ax² upgrades to Wi-Fi 6 (802.11ax) from Wi-Fi 5 (802.11ac), delivering up to 40% faster 5 GHz and 90% faster 2.4 GHz speeds. It features a more powerful ARM quad-core processor versus the dual-core in the ac², doubles the RAM to 1 GB, and runs RouterOS v7 instead of v6. Both models include PoE-in/out and five Gigabit Ethernet ports, but the ax² adds IPsec hardware acceleration and WPA3 security support.

Is the MikroTik hAP ax² worth the investment compared to consumer-grade routers?

The hAP ax² at $99 MSRP provides RouterOS v7 with professional routing protocols (BGP, OSPF), VLAN management, scripting capabilities, and hardware VPN acceleration not available in consumer routers. The PoE-in/out functionality eliminates need for separate power adapters in remote installations. Organizations requiring granular network control, multi-site VPN connectivity, or integration with managed infrastructure justify the investment over simplified consumer devices.

What devices and systems is the hAP ax² compatible with?

The router supports all Wi-Fi clients using 802.11b/g/n/ax on 2.4 GHz and 802.11a/n/ac/ax on 5 GHz, ensuring compatibility with legacy and modern wireless devices. Gigabit Ethernet ports work with any 10/100/1000 Mbps wired equipment. RouterOS v7 integrates with standard networking protocols including TCP/IP, DHCP, DNS, SNMP, and supports VPN clients using IPsec, allowing connection to various enterprise VPN gateways. Passive PoE output powers MikroTik devices and other equipment accepting non-standard PoE voltages.

What is the maximum wireless throughput of the hAP ax²?

The device provides up to 574 Mbit/s on the 2.4 GHz band (802.11ax, 2x2 MIMO) and up to 1200 Mbit/s on the 5 GHz band (802.11ax, 2x2 MIMO), totaling 1774 Mbit/s combined theoretical maximum. Real-world throughput depends on client capabilities, wireless interference, distance, and network configuration. The AX1800 class designation reflects this combined dual-band capacity.

What PoE standard does the hAP ax² support?

The device uses passive PoE for both input and output, not standard IEEE 802.3af/at/bt. PoE input accepts 18-28 V, while PoE output on port 1 delivers passive PoE up to 0.6 A with 16.8 W total output power. Ensure connected devices support passive PoE voltage ranges before connection, as standard PoE equipment may not function or could be damaged without proper voltage compatibility.

How is the hAP ax² accessed for initial configuration?

Connect via any Ethernet port except port 1, or join the pre-configured wireless network labeled "MikroTik-..." using the password printed on the device label. Default IP address is 192.168.88.1. Each router ships with a unique password printed on the side (no longer "admin/admin"), which must be used for first login to RouterOS. RouterOS v7.4.1 or higher firmware is required for full functionality.

Can the hAP ax² operate in extreme temperature environments?

The device has been tested from -40°C to 50°C and uses passive cooling without fans, making it suitable for warehouses, outdoor enclosures (when properly protected to maintain IP20 rating), and temperature-variable locations. MTBF is approximately 100,000 hours at 25°C. Ensure adequate ventilation as maximum power draw reaches 27 W, and avoid direct sunlight or heat sources that could exceed the 50°C upper limit.
