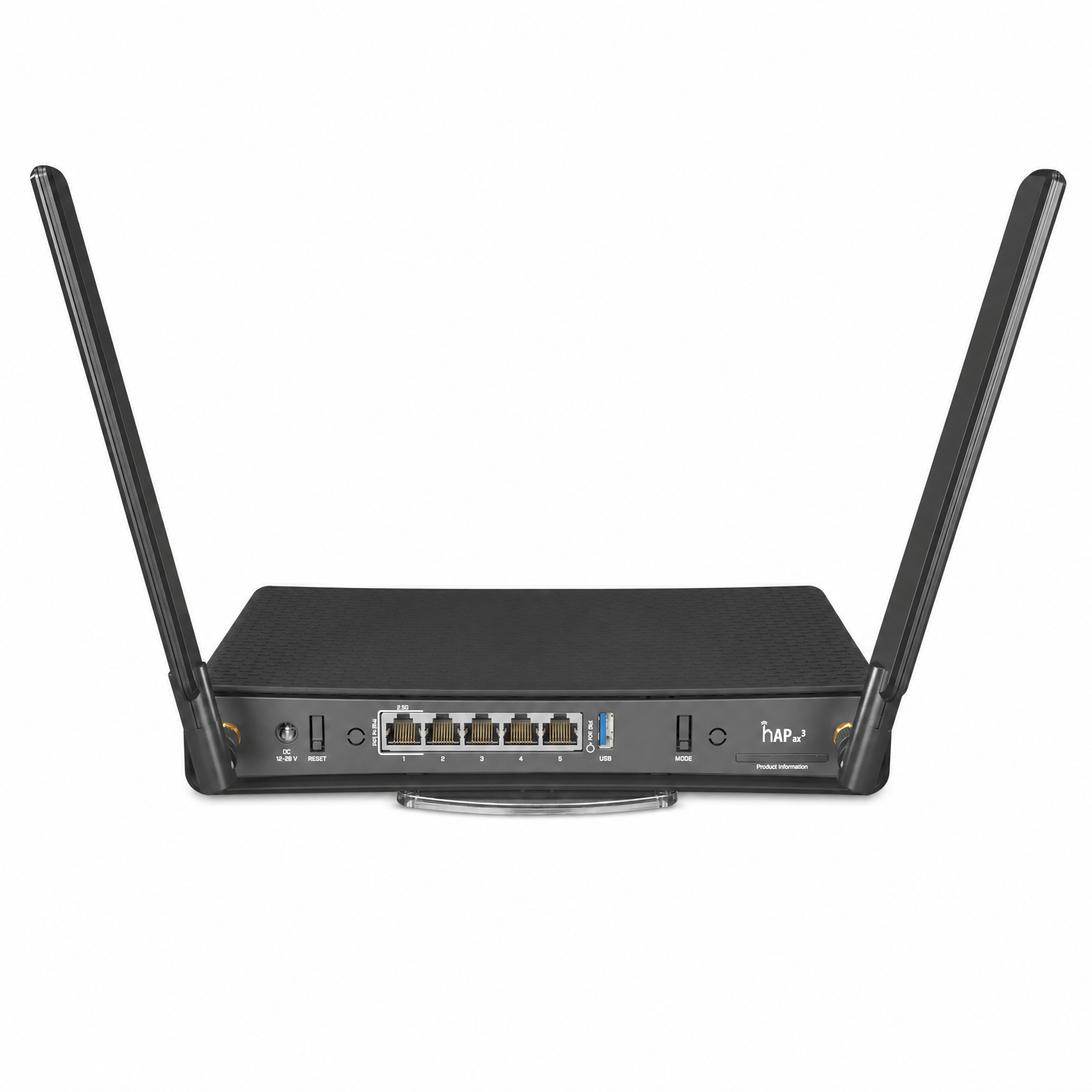

MikroTik hAP ax³ C53UiG+5HPaxD2HPaxD Wi-Fi 6 Dual-Band Router with 2.5GbE Port and PoE Support

Q: What types of business environments is the MikroTik C53UiG+5HPaxD2HPaxD best suited for?

The hAP ax³ is designed for small to medium business offices, branch locations, and professional home offices requiring enterprise-grade routing with Wi-Fi 6. Its quad-core 1.8 GHz processor and 1GB RAM handle demanding tasks like multiple concurrent VPN tunnels, complex firewall rules, and BGP routing. The 2.5 Gigabit Ethernet port accommodates high-speed internet connections beyond typical gigabit service.

Q: How does the hAP ax³ compare to other MikroTik routers in the hAP series?

The hAP ax³ is MikroTik's most powerful hAP model with Wi-Fi 6 support, offering significantly faster wireless speeds than previous hAP ac models. It includes a 2.5 Gigabit Ethernet port not found on lower models and a more powerful quad-core 1.8 GHz CPU compared to dual-core processors in entry-level hAP devices. Organizations requiring IPsec hardware acceleration and advanced routing protocols benefit from choosing this model over simpler hAP variants.

Q: Is the $139 price point justified for this router compared to consumer-grade alternatives?

The hAP ax³ delivers enterprise software capabilities through RouterOS v7 without recurring licensing fees, unlike many commercial routers requiring subscriptions for advanced features. Its IPsec hardware acceleration, BGP support, and unlimited firewall rules provide functionality typically found in equipment costing several times more. Organizations needing reliable VPN performance, advanced routing, or granular network control find substantial value at this price point.

Q: What systems and network equipment is the C53UiG+5HPaxD2HPaxD compatible with?

The hAP ax³ operates as a standard Wi-Fi 6 router compatible with all 802.11a/b/g/n/ac/ax client devices across 2.4 GHz and 5 GHz bands. Its RouterOS v7 supports industry-standard protocols including TCP/IP, DHCP, DNS, VLAN (802.1Q), and routing protocols like BGP and OSPF. The 2.5 Gigabit Ethernet port works with multi-gigabit switches and network adapters, while the USB 3.0 port accommodates external storage and many LTE modems for failover connectivity.

Q: What is the maximum wireless throughput and coverage range of the hAP ax³?

The device delivers up to 1200 Mbps on 5 GHz and 574 Mbps on 2.4 GHz using Wi-Fi 6 technology with 2x2 MIMO on both bands. External antennas with 5.5 dBi gain on 5 GHz and 3.3 dBi on 2.4 GHz provide extended coverage compared to internal antenna models. Actual range and throughput depend on environmental factors, client device capabilities, and interference levels.

Q: Can the hAP ax³ power other devices through PoE, and what are the power requirements?

The device accepts PoE-in at 18-28V and provides passive PoE-out on Ethernet port 1 with maximum output of 0.625A when input voltage is below 30V. It can be powered via the 2.5 Gigabit Ethernet port using PoE or through the DC jack accepting 12-28V. The included power adapter supplies 24V at 1.5A for standard installations.

Q: What VPN protocols and encryption capabilities does this router support?

RouterOS v7 supports IPsec with hardware acceleration, Wireguard, OpenVPN, PPTP, L2TP, and SSTP VPN protocols. The IPQ-6010 processor includes dedicated cryptographic acceleration for IPsec, maintaining high VPN throughput without consuming general CPU resources. WPA3 encryption is supported for wireless security, alongside traditional WPA2 modes.

Q: How many simultaneous wireless clients can the hAP ax³ reliably support?

While MikroTik does not publish specific client limits, the 1.8 GHz quad-core processor and 1GB RAM provide resources substantially beyond typical home routers. Wi-Fi 6 MU-MIMO technology improves efficiency with multiple simultaneous clients compared to older standards. Practical client capacity depends on usage patterns, with bandwidth-intensive applications supporting fewer simultaneous users than light browsing.

Brand MikroTik

Model Number C53UiG+5HPaxD2HPaxD

EpicRise Warranty 1 Year

Product Highlights

• Wi-Fi 6 (802.11ax) dual-band router delivering up to 1200 Mbps on 5GHz and 574 Mbps on 2.4GHz for high-performance wireless connectivity

• Quad-core ARM CPU at 1.8 GHz with 1GB RAM handles complex firewall rules, IPsec hardware encryption, and multiple VPN tunnels simultaneously

• 2.5 Gigabit Ethernet port plus four Gigabit ports with PoE-in/out support for flexible network topology and power delivery

• IPsec hardware acceleration and WPA3 encryption provide enterprise-grade security without compromising network performance

• RouterOS v7 with unlimited software features enables advanced routing, BGP, VPN, and firewall capabilities without subscription fees

Overview
Specifications
FAQ
User Guides
Reviews

The MikroTik hAP ax³ (C53UiG+5HPaxD2HPaxD) is an enterprise-grade Wi-Fi 6 router designed to deliver exceptional wireless coverage and processing power for demanding network environments. Equipped with a quad-core ARM CPU running at 1.8 GHz and 1GB of RAM, this device handles complex networking tasks including advanced firewall configurations, IPsec hardware encryption, Wireguard VPN, BGP routing, and multiple concurrent VPN tunnels without performance degradation.

This AX1800 router combines Wi-Fi 6 technology with high-speed wired connectivity, featuring one 2.5 Gigabit Ethernet port and four Gigabit Ethernet ports. The 2.5GbE port supports both PoE-in and PoE-out, enabling flexible deployment options and power delivery to connected devices. With external antennas reaching up to 5.5 dBi gain and support for WPA3 encryption, the hAP ax³ provides both extensive coverage and advanced security for modern enterprise networks.

Best For

The hAP ax³ serves organizations requiring robust wireless infrastructure with advanced routing capabilities and hardware-accelerated security features.

- Small to Medium Business Networks: Offices requiring simultaneous support for multiple users with bandwidth-intensive applications, VoIP, and cloud services

- Remote Work Infrastructure: Organizations deploying secure VPN gateways for remote workers requiring IPsec or Wireguard connectivity with hardware acceleration

- Multi-Site Deployments: Branch offices needing advanced routing protocols like BGP for redundant connectivity and intelligent traffic management

- SOHO Professional Environments: Home offices and small professional setups demanding enterprise-grade features including VLAN segmentation and guest network isolation

- Educational and Training Facilities: Computer labs and training centers requiring robust wireless coverage and granular access control policies

Key Features

- Wi-Fi 6 (802.11ax) technology delivers up to 40% speed improvement on 5GHz and 90% on 2.4GHz compared to previous generations, with MU-MIMO support for efficient multi-device connectivity

- Quad-core ARM IPQ-6010 processor at 1.8 GHz with 1GB RAM and 128MB NAND storage provides substantial computing resources for advanced network services

- Five Ethernet ports including one 2.5 Gigabit port and four Gigabit ports accommodate high-speed wired connections and network expansion

- PoE-in (18-28V) and passive PoE-out on Ethernet1 enable flexible installation and power delivery to compatible devices without separate power supplies

- IPsec hardware acceleration offloads encryption processing from the CPU, maintaining VPN throughput while preserving resources for other network functions

- RouterOS v7 operating system provides unlimited networking capabilities including advanced firewall, routing protocols (BGP, OSPF), VPN technologies, and VLAN management

- USB 3.0 Type-A port supports external storage for logs and backups or additional LTE modems for failover connectivity

- Two RP-SMA connectors allow attachment of external antennas for customized wireless coverage patterns and extended range

Quick Specs

Processor	ARM 64-bit IPQ-6010, quad-core, 1.8 GHz
Memory	1 GB RAM, 128 MB NAND storage
Wi-Fi Standard	802.11ax (Wi-Fi 6), dual-band concurrent
2.4 GHz Radio	802.11b/g/n/ax, up to 574 Mbps, 2x2 MIMO, 3.3 dBi antenna gain
5 GHz Radio	802.11a/n/ac/ax, up to 1200 Mbps, 2x2 MIMO, 5.5 dBi antenna gain
Ethernet Ports	4x Gigabit Ethernet (10/100/1000), 1x 2.5 Gigabit Ethernet
PoE Support	PoE-in (18-28V), Passive PoE-out on Ether1 (max 0.625A when input <30V)
USB Port	1x USB 3.0 Type-A
Power Input	12-28V DC jack or 18-28V PoE-in; 24V 1.5A adapter included
Security Features	WPA3, IPsec hardware acceleration, advanced firewall
Operating System	RouterOS v7, License Level 6
Dimensions	251 x 130 x 39 mm
Operating Temperature	-40°C to +70°C
MTBF	Approximately 200,000 hours at 25°C

What's Included

- MikroTik hAP ax³ router (C53UiG+5HPaxD2HPaxD)

- 24V 1.5A power adapter

- HGO indoor antenna kit (two external antennas)

- K-47 wall mounting kit

- hAP base stand

- Hardware bag with screws and wall anchors for mounting

Product Details
Power Source	AC-powered, DC-powered

What types of business environments is the MikroTik C53UiG+5HPaxD2HPaxD best suited for?

The hAP ax³ is designed for small to medium business offices, branch locations, and professional home offices requiring enterprise-grade routing with Wi-Fi 6. Its quad-core 1.8 GHz processor and 1GB RAM handle demanding tasks like multiple concurrent VPN tunnels, complex firewall rules, and BGP routing. The 2.5 Gigabit Ethernet port accommodates high-speed internet connections beyond typical gigabit service.

How does the hAP ax³ compare to other MikroTik routers in the hAP series?

The hAP ax³ is MikroTik's most powerful hAP model with Wi-Fi 6 support, offering significantly faster wireless speeds than previous hAP ac models. It includes a 2.5 Gigabit Ethernet port not found on lower models and a more powerful quad-core 1.8 GHz CPU compared to dual-core processors in entry-level hAP devices. Organizations requiring IPsec hardware acceleration and advanced routing protocols benefit from choosing this model over simpler hAP variants.

Is the $139 price point justified for this router compared to consumer-grade alternatives?

The hAP ax³ delivers enterprise software capabilities through RouterOS v7 without recurring licensing fees, unlike many commercial routers requiring subscriptions for advanced features. Its IPsec hardware acceleration, BGP support, and unlimited firewall rules provide functionality typically found in equipment costing several times more. Organizations needing reliable VPN performance, advanced routing, or granular network control find substantial value at this price point.

What systems and network equipment is the C53UiG+5HPaxD2HPaxD compatible with?

The hAP ax³ operates as a standard Wi-Fi 6 router compatible with all 802.11a/b/g/n/ac/ax client devices across 2.4 GHz and 5 GHz bands. Its RouterOS v7 supports industry-standard protocols including TCP/IP, DHCP, DNS, VLAN (802.1Q), and routing protocols like BGP and OSPF. The 2.5 Gigabit Ethernet port works with multi-gigabit switches and network adapters, while the USB 3.0 port accommodates external storage and many LTE modems for failover connectivity.

What is the maximum wireless throughput and coverage range of the hAP ax³?

The device delivers up to 1200 Mbps on 5 GHz and 574 Mbps on 2.4 GHz using Wi-Fi 6 technology with 2x2 MIMO on both bands. External antennas with 5.5 dBi gain on 5 GHz and 3.3 dBi on 2.4 GHz provide extended coverage compared to internal antenna models. Actual range and throughput depend on environmental factors, client device capabilities, and interference levels.

Can the hAP ax³ power other devices through PoE, and what are the power requirements?

The device accepts PoE-in at 18-28V and provides passive PoE-out on Ethernet port 1 with maximum output of 0.625A when input voltage is below 30V. It can be powered via the 2.5 Gigabit Ethernet port using PoE or through the DC jack accepting 12-28V. The included power adapter supplies 24V at 1.5A for standard installations.

What VPN protocols and encryption capabilities does this router support?

RouterOS v7 supports IPsec with hardware acceleration, Wireguard, OpenVPN, PPTP, L2TP, and SSTP VPN protocols. The IPQ-6010 processor includes dedicated cryptographic acceleration for IPsec, maintaining high VPN throughput without consuming general CPU resources. WPA3 encryption is supported for wireless security, alongside traditional WPA2 modes.

How many simultaneous wireless clients can the hAP ax³ reliably support?

While MikroTik does not publish specific client limits, the 1.8 GHz quad-core processor and 1GB RAM provide resources substantially beyond typical home routers. Wi-Fi 6 MU-MIMO technology improves efficiency with multiple simultaneous clients compared to older standards. Practical client capacity depends on usage patterns, with bandwidth-intensive applications supporting fewer simultaneous users than light browsing.
