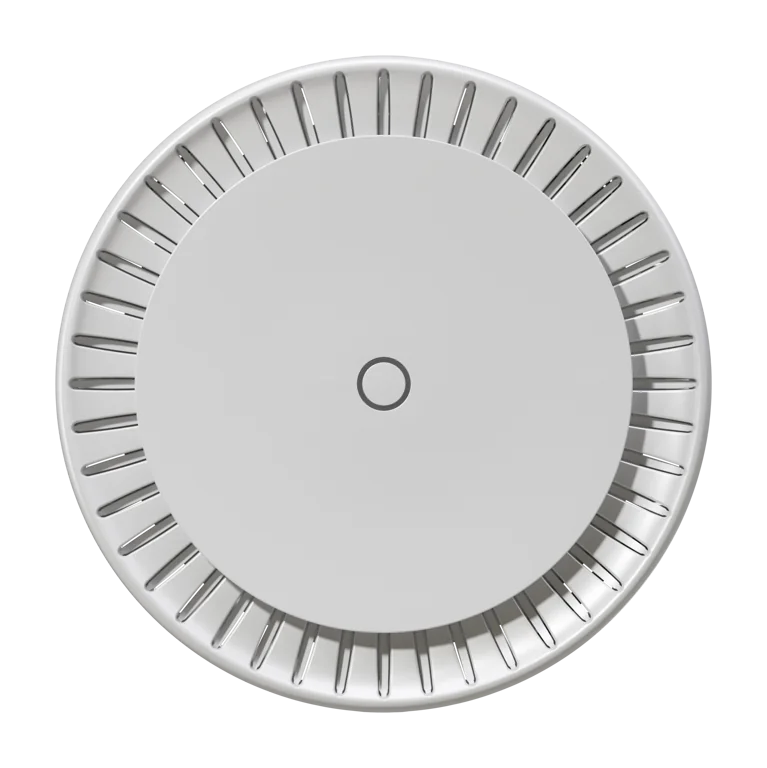

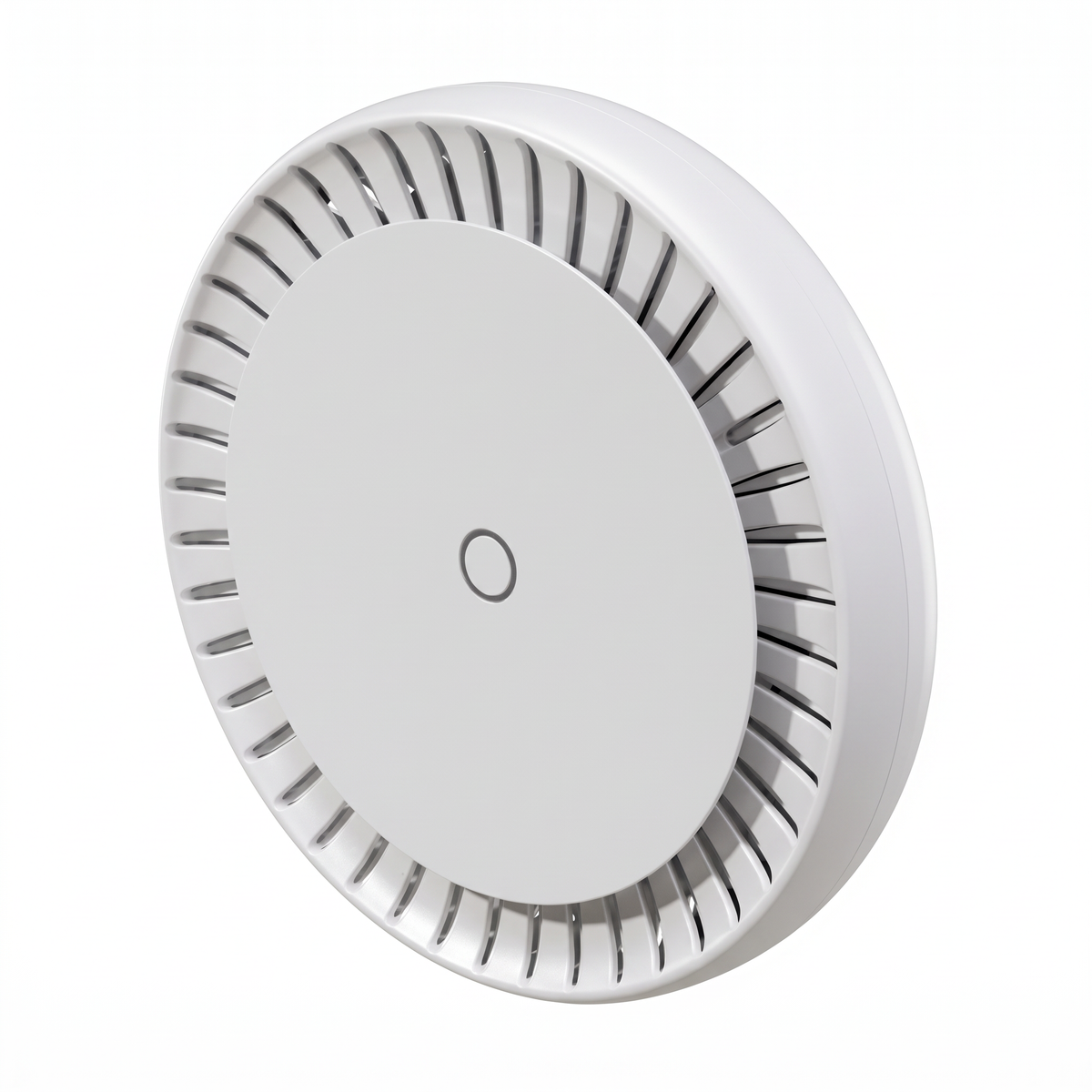

MikroTik cAPGi-5HaxD2HaxD Wi-Fi 6 Dual-Band Ceiling Access Point with PoE for High-Density Environments

Brand MikroTik

Model Number cAP ax

EpicRise Warranty 1 Year

Product Highlights

• Wi-Fi 6 (802.11ax) dual-band wireless with up to 1774 Mbit/s combined throughput for reliable high-speed connectivity

• Quad-core IPQ-6010 CPU with auto frequency scaling (864-1800 MHz) and 1GB RAM handles complex routing, VPN tunnels, and IPsec hardware encryption

• PoE-in and PoE-out on Gigabit Ethernet ports simplify installation and power other devices like cameras or switches

• CAPsMAN wifiwave2 central management enables streamlined deployment and monitoring of hundreds of access points

• Discreet ceiling mount design with 6 dBi (2.4 GHz) and 5.5 dBi (5 GHz) integrated antennas for wide coverage

Overview
Specifications
FAQ
User Guides
Reviews

The MikroTik cAPGi-5HaxD2HaxD brings enterprise-grade Wi-Fi 6 performance to offices, hotels, retail spaces, and educational facilities requiring reliable wireless connectivity for dozens of concurrent clients. This ceiling-mounted access point combines dual-band 802.11ax radios with advanced processing power to handle demanding network tasks while maintaining stable connections in high-interference environments.

Powered by a quad-core ARM CPU with auto frequency scaling from 864 MHz to 1.8 GHz and equipped with 1GB of RAM, the cAP ax processes complex firewall rules, hardware-accelerated encryption, and multiple VPN tunnels without compromising wireless performance. The device supports both PoE input and output, allowing you to power the access point via Ethernet while simultaneously powering downstream devices like surveillance cameras or additional network equipment through the second Gigabit Ethernet port.

Integration with RouterOS v7's wifiwave2 CAPsMAN system enables IT administrators to deploy, configure, and monitor large-scale wireless networks from a central controller. The access point supports advanced Wi-Fi 6 features including OFDMA, BSS coloring, MU-MIMO, and 802.11r fast roaming, along with enhanced security protocols like WPA3-PSK, WPA3-EAP, and OWE.

Best For

The cAPGi-5HaxD2HaxD excels in environments where wireless reliability and client density matter more than raw speed specifications.

- Corporate Offices: Open floor plans and conference rooms with 30-50 simultaneous device connections including laptops, smartphones, and IoT sensors requiring stable connectivity for video conferencing and cloud applications

- Hospitality Venues: Hotels, resorts, and event spaces providing guest Wi-Fi across multiple rooms or public areas with centralized management for consistent service quality and VLAN segmentation

- Retail and Restaurants: Point-of-sale systems, inventory scanners, and customer Wi-Fi networks requiring PoE-powered deployment without dedicated electrical outlets at mounting locations

- Educational Institutions: Classrooms, libraries, and lecture halls supporting student devices and interactive displays with fast roaming between access points as users move through buildings

- Healthcare Facilities: Medical offices and clinics connecting tablets, diagnostic equipment, and staff devices while maintaining network segmentation for HIPAA compliance

Key Features

- Dual-band Wi-Fi 6 (802.11ax) radios deliver 574 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz with 2x2 MIMO on each band for improved performance in crowded spectrum

- OFDMA and BSS coloring technologies reduce latency and interference when multiple access points operate in overlapping coverage areas

- Two Gigabit Ethernet ports with 802.3af/at PoE input and passive PoE output (up to 57V) eliminate the need for separate power supplies at installation sites

- Quad-core IPQ-6010 processor with auto frequency scaling (864-1800 MHz), 1GB DDR3L RAM and 128MB NAND storage runs RouterOS v7 with full routing, firewall, and VPN capabilities

- CAPsMAN centralized management with wifiwave2 package enables bulk configuration, firmware updates, and real-time monitoring across hundreds of access points from a single controller

- WPA3-PSK, WPA3-EAP, and OWE authentication protocols provide enhanced security compared to WPA2-only devices

- 802.11r fast roaming support allows seamless handoff for mobile devices moving between access points without dropped connections

- Passive cooling design operates reliably in temperatures from -40°C to 70°C with IP20 rating for indoor installations

Quick Specs

Wireless Standard	Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
Frequency Bands	2.4 GHz (574 Mbit/s) and 5 GHz (1200 Mbit/s), 2x2 MIMO on each band
Antenna	Integrated omnidirectional: 6 dBi (2.4 GHz), 5.5 dBi (5 GHz)
Processor	Quad-core ARM 64-bit IPQ-6010 at 864-1800 MHz
Memory	1 GB DDR3L RAM, 128 MB NAND storage

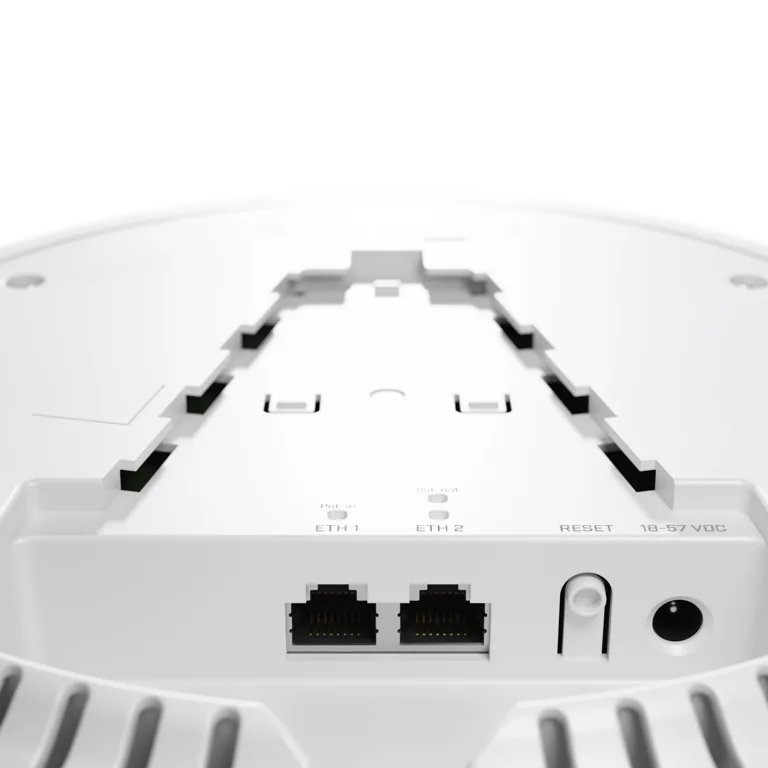

Ethernet Ports	2x Gigabit (10/100/1000) with integrated switch chip
PoE	Input: 802.3af/at (18-57V) on Ether1; Output: Passive PoE on Ether2 (up to 57V, 600mA)
Power Input	18-57V DC via PoE or DC jack; max consumption 36W (US) / 28.2W (international)
Operating System	RouterOS v7 with License Level 4
Management	CAPsMAN wifiwave2, web interface, Winbox, SSH, serial console
Security	WPA3-PSK, WPA3-EAP, WPA2, OWE, 802.11r roaming
Dimensions	228 x 48 mm (diameter x height)
Operating Temperature	-40°C to 70°C tested ambient
Mounting	Ceiling or wall with included bracket
MTBF	Approximately 200,000 hours at 25°C

What's Included

- cAPGi-5HaxD2HaxD access point unit

- 48V 0.95A power supply adapter

- Gigabit PoE injector

- Ceiling and wall mounting bracket

- Fastening hardware set (screws and anchors)

Product Details
Color	White
Power Source	DC-powered, AC-powered

What environments and deployment scenarios is the cAPGi-5HaxD2HaxD designed for?

The cAPGi-5HaxD2HaxD is designed for indoor environments requiring coverage for 30-50 concurrent wireless clients per access point. It performs best in offices, hotels, retail spaces, and educational facilities with ceiling heights of 2.5-4 meters where discreet installation is preferred. The access point handles high-density deployments when managed through CAPsMAN with multiple units covering large floor areas.

How does the cAPGi-5HaxD2HaxD compare to the previous generation cAP ac?

The cAPGi-5HaxD2HaxD offers Wi-Fi 6 with up to 40% higher speeds on 5 GHz and 90% higher speeds on 2.4 GHz compared to the cAP ac. It includes a more powerful quad-core 1.8 GHz processor versus the dual-core CPU in the cAP ac, plus upgraded security with WPA3 and OWE support. The cAP ax maintains the same compact form factor and PoE-in/out functionality while adding OFDMA and BSS coloring for better performance in congested wireless environments.

Is the $129 price point justified for this access point compared to consumer-grade alternatives?

The cAPGi-5HaxD2HaxD provides enterprise features not found in consumer access points at similar prices: full RouterOS routing and firewall capabilities, CAPsMAN centralized management for large deployments, PoE-out for powering downstream devices, and hardware-accelerated VPN processing. The included PoE injector and lifetime RouterOS updates eliminate recurring licensing costs. For deployments requiring centralized management or advanced networking features, the value exceeds consumer-grade alternatives that only provide basic wireless bridging.

What network infrastructure and controllers is this access point compatible with?

The cAPGi-5HaxD2HaxD runs RouterOS v7 and integrates with MikroTik CAPsMAN (wifiwave2 package) for centralized management. It requires a MikroTik router or server running RouterOS v7 to function as a CAPsMAN controller. The access point operates as a standalone router when not connected to CAPsMAN. Standard 802.3af/at PoE injectors or switches power the device, and both Gigabit Ethernet ports support standard network equipment without vendor lock-in.

What is the maximum PoE output capacity on the second Ethernet port?

Ether2 provides passive PoE output up to 57V with a maximum of 600mA when the input voltage is 18-30V, or 400mA when input voltage is 30-57V. Total output is limited to 600mA across all powered devices. Drawing more than 300mA requires powering the cAPGi-5HaxD2HaxD through the DC jack instead of PoE input to avoid overloading the input power budget.

Can the cAPGi-5HaxD2HaxD operate in mesh mode or as a wireless backhaul?

The official specifications do not document mesh networking or wireless backhaul capabilities for the cAPGi-5HaxD2HaxD. The device is designed for wired Ethernet uplink operation with both radios serving clients rather than dedicating a radio for backhaul. Wireless distribution system or mesh features would need to be verified through RouterOS documentation or testing.

What is the expected wireless coverage area per access point in a typical office environment?

Coverage depends on building materials, interference, and required throughput rather than a fixed radius. With 6 dBi (2.4 GHz) and 5.5 dBi (5 GHz) integrated antennas, a single cAPGi-5HaxD2HaxD typically covers 1000-1500 square feet in open office layouts with drywall partitions. Dense environments benefit from more access points spaced 30-50 feet apart for reliable 5 GHz coverage and capacity. A proper site survey with signal mapping tools provides accurate deployment planning.

Does the access point support VLAN tagging and multiple SSIDs for network segmentation?

RouterOS v7 supports VLAN tagging and multiple SSIDs for network segmentation. The cAPGi-5HaxD2HaxD can broadcast separate SSIDs for guest, corporate, and IoT networks with per-SSID VLAN assignment. Configuration is performed through RouterOS interface or CAPsMAN templates when centrally managed. The number of concurrent SSIDs and VLANs is not specifically limited in the specifications provided.
