MikroTik CCR2004-1G-12S+2XS Cloud Core Router with 12x 10G SFP+ and 2x 25G SFP28 Ports

Delivery Time: 0-3 days

Brand MikroTik

Model Number CCR2004-1G-12S+2XS

EpicRise Warranty 1 Year

Product Highlights

• 12x 10G SFP+ and 2x 25G SFP28 ports deliver flexible high-speed fiber connectivity for demanding network environments

• 1.7GHz quad-core CPU with 4GB ECC RAM provides enterprise-grade performance with single-tunnel speeds up to 3.4 Gbps

• Dual redundant AC power supplies eliminate single points of failure and ensure continuous network uptime

• 1U rackmount design with integrated temperature and voltage monitoring simplifies data center deployment

• RouterOS Level 6 license included with lifetime software updates and BGP feed processing capabilities

Overview
Specifications
FAQ
User Guides
Reviews

The MikroTik CCR2004-1G-12S+2XS Cloud Core Router is engineered for enterprise networks, ISPs, and data centers requiring high-density 10G and 25G fiber connectivity. This 1U rackmount router combines twelve 10G SFP+ ports and two 25G SFP28 ports with a powerful quad-core processor, delivering the single-core performance necessary for demanding routing tasks, BGP operations, and network aggregation.

Built with dual redundant power supplies and comprehensive hardware monitoring, this connectivity router ensures continuous operation in mission-critical environments. The AL32400 quad-core CPU at 1.7GHz provides performance comparable to the renowned CCR1009/CCR1016 series, while 4GB of ECC RAM supports complex routing tables and advanced network configurations. With RouterOS preinstalled and licensed at Level 6, the device is ready to deploy immediately with full access to MikroTik's extensive routing and networking features.

Best For

The CCR2004-1G-12S+2XS is designed for organizations requiring high-speed fiber networking with enterprise-grade reliability and advanced routing capabilities.

Internet Service Provider Networks: Handle BGP routing, network aggregation, and multi-gigabit subscriber connections with powerful single-core performance optimized for tunnel processing.

Data Center Interconnects: Deploy as a core router or aggregation layer with mixed 10G/25G uplinks and comprehensive hardware redundancy for maximum uptime.

Enterprise Network Core: Centralize high-speed fiber connections from distribution switches and provide advanced routing with OSPF, BGP, and MPLS support.

Campus Network Backbones: Aggregate multiple 10G building connections and provide 25G uplinks to data centers with robust hardware monitoring.

Network Integration Projects: Pair with MikroTik CRS series switches for complete networking solutions requiring SFP, SFP+, and SFP28 management.

Key Features

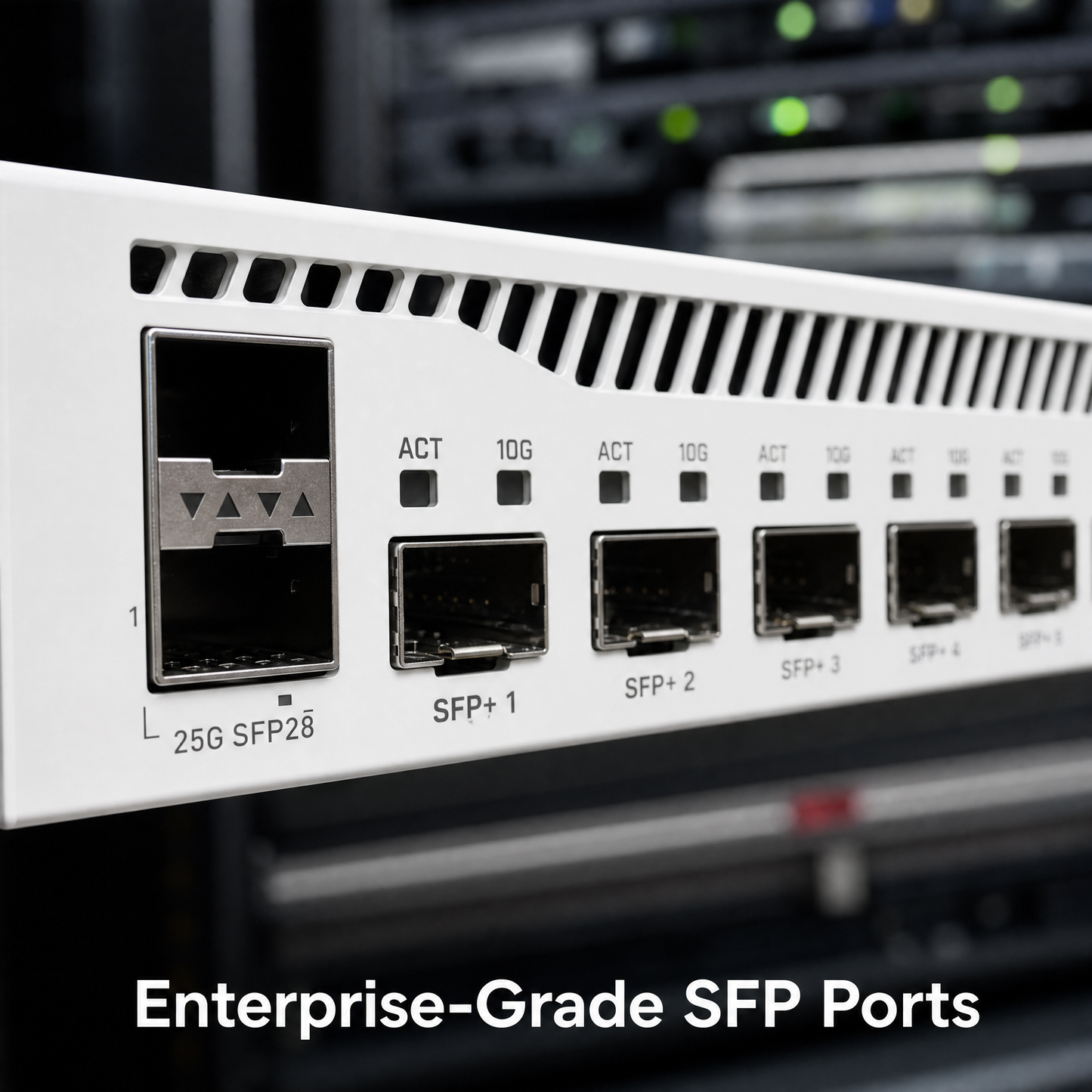

- 12x 10G SFP+ ports and 2x 25G SFP28 ports provide flexible high-speed fiber connectivity options for diverse network topologies

- AL32400 quad-core CPU at 1.7GHz delivers MikroTik's strongest single-core performance for tunnel processing up to 3.4 Gbps

- 4GB ECC RAM in RouterOS v7 (1792MB in v6) supports large routing tables and complex network configurations

- Dual redundant AC power supplies with separate inputs eliminate single points of failure in critical deployments

- Integrated hardware monitoring tracks CPU temperature, PCB temperature, and voltage levels for proactive maintenance

- RouterOS Level 6 license included with lifetime software updates (minimum 5 years guaranteed)

- 1U rackmount chassis (443 x 224 x 44 mm) with dual fans optimizes data center space utilization

- RJ45 serial console port enables out-of-band management and emergency access

Quick Specs

Processor	AL32400 quad-core CPU, 1.7 GHz
Memory	4GB ECC (RouterOS v7) / 1792MB ECC (RouterOS v6)
10G Ports	12x SFP+ (10 Gigabit)
25G Ports	2x SFP28 (25 Gigabit)
Management Port	1x Gigabit Ethernet RJ45
Console Port	1x RJ45 Serial
Power Supply	Dual redundant AC inputs
Cooling	2x fans with active monitoring
Operating System	RouterOS (preinstalled and licensed)
License Level	Level 6
Single-Tunnel Performance	Up to 3.4 Gbps
Form Factor	1U rackmount, 443 x 224 x 44 mm
Mounting	Indoor rackmount installation
Monitoring	CPU temperature, PCB temperature, voltage

Product Details
Color	White
Power Source	AC-powered

What network environments is the CCR2004-1G-12S+2XS best suited for?

This router is designed for ISP networks, data centers, enterprise cores, and campus backbones requiring high-density 10G/25G fiber connectivity. The combination of twelve 10G SFP+ ports and two 25G SFP28 ports makes it ideal for network aggregation, where multiple 10G connections converge to 25G uplinks. Its BGP optimization and single-tunnel performance up to 3.4 Gbps support demanding routing scenarios.

How does the CCR2004-1G-12S+2XS compare to other MikroTik cloud core routers?

This model delivers MikroTik's strongest single-core performance to date, matching the CCR1009/CCR1016 series in overall throughput while excelling in single-tunnel scenarios. The 12x 10G plus 2x 25G port configuration provides more high-speed fiber ports than most other CCR models. Its quad-core architecture balances parallel processing with strong per-core performance for both routing and tunnel workloads.

Is the CCR2004-1G-12S+2XS worth the investment for mid-size networks?

Organizations requiring high-density 10G fiber aggregation with 25G uplinks will find this router delivers enterprise-grade performance and redundancy at a competitive price point. The dual redundant power supplies and hardware monitoring provide reliability features typically found in higher-cost platforms. The included Level 6 RouterOS license with lifetime updates eliminates ongoing software costs.

What MikroTik switches and SFP modules are compatible with this router?

The CCR2004-1G-12S+2XS pairs directly with MikroTik's CRS series switches including the CRS317-1G-16S+RM, CRS312-4C+8XG-RM, and CRS326-24S+2Q+RM for complete networking solutions. All standard 10G SFP+ and 25G SFP28 transceivers work with the respective ports. The 10G ports support both fiber and direct attach copper (DAC) modules, while the 25G ports accommodate SFP28 fiber and DAC options.

How much rack space does the CCR2004-1G-12S+2XS require?

This router occupies 1U of rack space with dimensions of 443mm width, 224mm depth, and 44mm height. The standard 19-inch rackmount design fits in enterprise and data center racks. The dual-fan cooling system operates within the 1U profile without requiring additional ventilation space.

Can the CCR2004-1G-12S+2XS run both RouterOS v6 and v7?

Yes, the router supports both RouterOS v6 and v7. In RouterOS v7, the full 4GB of ECC RAM is available for routing operations. In RouterOS v6, 1792MB of ECC RAM is accessible. The device ships with RouterOS preinstalled and includes lifetime software updates, allowing upgrades between versions.

What routing protocols does the CCR2004-1G-12S+2XS support?

With RouterOS Level 6 licensing, this router supports BGP, OSPF, RIP, and static routing protocols. The quad-core CPU is specifically optimized for BGP feed processing, making it suitable for ISP peering and transit applications. Advanced features include MPLS, VPN tunneling, and policy-based routing.

What are the power requirements for the dual redundant power supplies?

The router features two separate AC power inputs for redundancy. Each power supply can independently power the entire unit. Specific voltage and current specifications are not detailed in the provided documentation.
