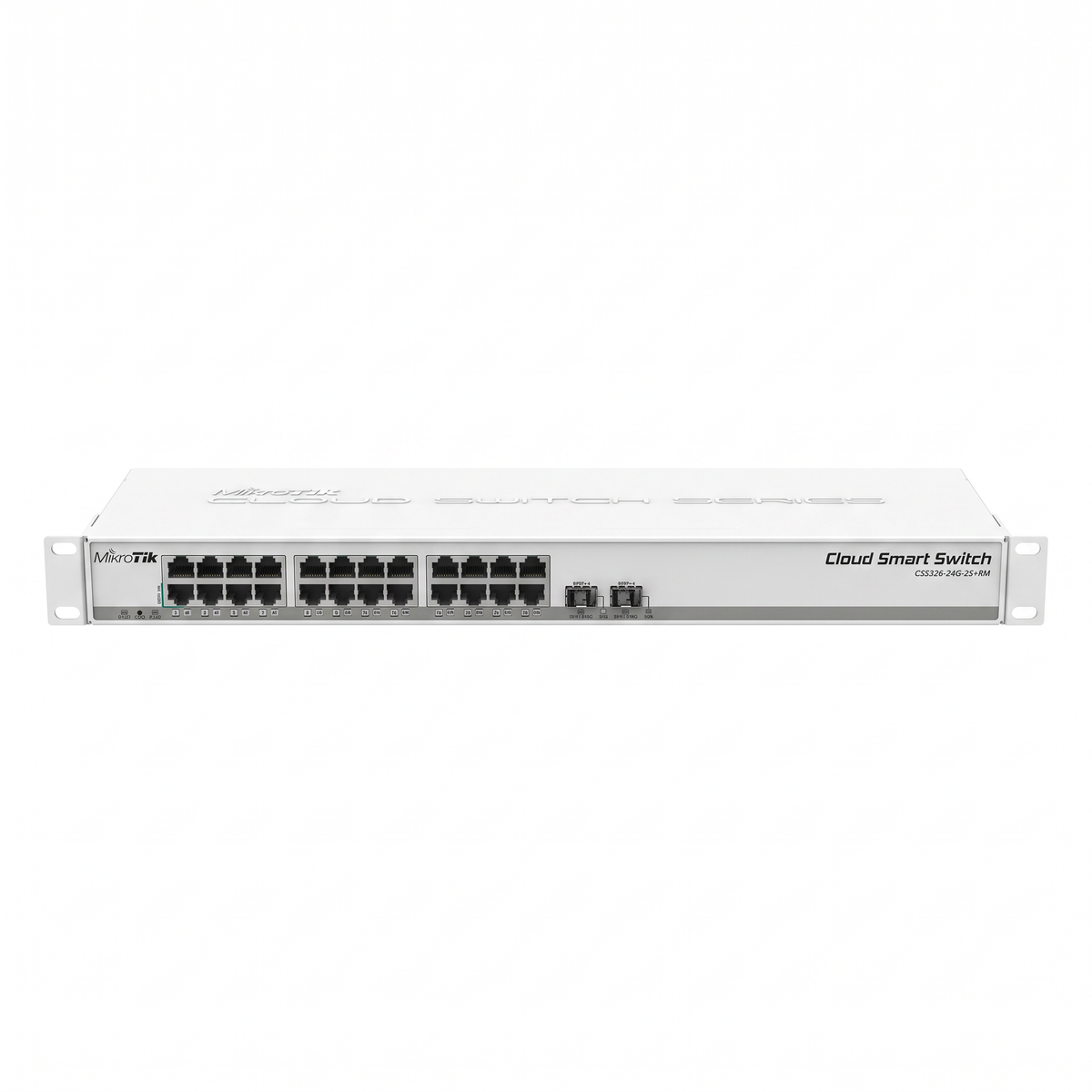

MikroTik CSS326-24G-2S+RM 24-Port Gigabit Managed Switch with Dual 10G SFP+ Uplinks for SMB Networks

Brand MikroTik

Model Number CSS326-24G-2S+RM

EpicRise Warranty 1 Year

Product Highlights

• 24 Gigabit Ethernet ports plus 2x 10G SFP+ uplinks deliver 52 Gbps non-blocking switching for high-density access deployment

• SwOS web-based management provides VLAN configuration (up to 4K VLANs), port mirroring, and bandwidth control without complex CLI

• Fanless passive cooling with 19W maximum power consumption ensures silent operation in office environments

• Dual power input options (DC jack and passive PoE-IN 10-30V) provide flexible installation redundancy

• 1U rackmount design with Marvell 98DX3216A1 switch chip delivers 77.4 Mpps forwarding rate for wire-speed performance

Overview
Specifications
FAQ
User Guides
Reviews

The MikroTik CSS326-24G-2S+RM is a cost-optimized Layer 2 managed switch designed for enterprise access layer deployments where high port density meets 10G uplink capability. Built around the Marvell 98DX3216A1 switch chip, it delivers 52 Gbps non-blocking switching capacity with 24 Gigabit Ethernet ports and two SFP+ cages supporting both 1.25G SFP and 10G SFP+ modules. The SwOS operating system provides essential managed switch features through an intuitive web interface, eliminating the complexity of RouterOS while maintaining enterprise-grade VLAN, traffic management, and security controls.

This 1U rackmount switch operates silently with passive cooling and draws only 19W maximum power. Dual power input options—DC jack (10-30V) and passive PoE-IN—offer installation flexibility and backup power capability. With a proven MTBF of approximately 200,000 hours at 25°C and an extended operating temperature range of -40°C to +70°C, the CSS326-24G-2S+RM suits demanding environments from climate-controlled data centers to industrial installations.

Best For

The CSS326-24G-2S+RM serves access layer switching scenarios where budget-conscious network administrators need managed switch capabilities with 10G uplink connectivity.

- SMB Office Networks: Connect 24 workstations, VoIP phones, and printers while aggregating traffic through 10G SFP+ uplinks to core switches or NAS storage

- ISP Customer Aggregation: Deploy at aggregation tier for small ISPs connecting residential gateways or business customer routers with centralized 10G backhaul

- Edge Data Center Access: Provide high-density Gigabit access for rack servers with 10G uplinks to distribution layer in edge computing facilities

- IP Surveillance Deployments: Aggregate IP camera feeds across 24 Gigabit ports with dedicated 10G SFP+ uplinks to video management servers

- Multi-Tenant Environments: Implement VLAN segmentation for up to 250 configured VLANs isolating tenant traffic in co-working spaces or apartment buildings

Key Features

- Non-blocking Layer 2 switching architecture with 52 Gbps capacity and 77.4 Mpps forwarding rate ensures all 24 ports operate at full wire speed simultaneously

- SFP+ cages support both 1.25 Gb SFP and 10 Gb SFP+ modules for flexible uplink configuration matching existing fiber infrastructure

- SwOS web-based management simplifies configuration with graphical interface for administrators without deep networking experience

- VLAN support includes IEEE 802.1Q standard with up to 4K simultaneous VLANs and 250 configured VLANs for comprehensive network segmentation

- Traffic control features include port-to-port forwarding, MAC filtering, bandwidth limitation, and broadcast storm control for granular network management

- Port mirroring of ingress/egress traffic enables network monitoring and troubleshooting without inline appliances

- Rapid Spanning Tree Protocol (RSTP) and Link Aggregation (LACP) provide redundancy and increased bandwidth between switches

- Access Control List (ACL) and port security features protect against unauthorized access and MAC address spoofing

- Jumbo frame support up to 10,218 bytes optimizes throughput for storage and virtualization traffic

- SNMP v1 and MikroTik neighbor discovery integrate with existing network management systems

Quick Specs

Switch Chip	Marvell 98DX3216A1
CPU Architecture	ARM 32-bit
Storage	2 MB Flash
Gigabit Ethernet Ports	24 ports (10/100/1000)
SFP+ Ports (10G)	2 cages (supports 1.25G SFP and 10G SFP+ modules)
Switching Capacity	52 Gbps non-blocking
Forwarding Rate	77.4 Mpps
MAC Address Table	16K entries
VLAN Support	IEEE 802.1Q, up to 4K simultaneous / 250 configured
Switching Layer	Layer 2
Operating System	SwOS (web-based management)
Power Input	DC jack (10-30V) or passive PoE-IN (10-30V)
Maximum Power Consumption	19 W
Cooling	Passive (fanless)
Form Factor	1U rackmount
Dimensions	443 x 144 x 44 mm
Weight	Approximately 1.8 kg
Operating Temperature	-40°C to +70°C (tested)
MTBF	Approximately 200,000 hours at 25°C
Management Protocols	Web GUI, SNMP v1, MikroTik neighbor discovery
Advanced Features	Port mirroring, RSTP, LACP, ACL, bandwidth limitation, jumbo frames (up to 10,218 bytes)

What's Included

- MikroTik CSS326-24G-2S+RM managed switch

- 24V 1.2A power adapter

- Rack mounting ears with screws

Product Details
Color	White
Power Source	DC-powered

What network environments is the CSS326-24G-2S+RM designed for?

This switch is designed for SMB office networks, small ISP aggregation tiers, and edge data center access layers where you need 24 Gigabit ports with 10G uplinks. It handles workstation connectivity, IP camera aggregation, and multi-tenant VLAN segmentation. The fanless design suits office environments requiring silent operation.

How does the CSS326 model differ from the CRS326 series?

The CSS326-24G-2S+RM runs only SwOS and cannot run RouterOS, unlike the CRS326 which supports both operating systems. Storage is reduced from 16MB to 2MB for cost optimization. The CSS version offers the same port configuration and switching capacity at a lower price point, trading RouterOS advanced routing capabilities for simplified Layer 2 management.

Is this switch cost-effective compared to similar managed switches?

The CSS326-24G-2S+RM delivers enterprise managed switch features with dual 10G SFP+ uplinks at a budget-conscious price point. You get non-blocking 52 Gbps switching, VLAN support for up to 4K simultaneous VLANs, and fanless operation without paying for RouterOS licensing or routing features you may not need. It fills the gap between unmanaged switches and full-featured Layer 3 devices.

What systems and modules does this switch work with?

The switch supports both 1.25 Gb SFP and 10 Gb SFP+ modules in its two uplink cages, allowing mixed-speed fiber connections. It integrates with existing networks through IEEE 802.1Q VLAN standard, SNMP v1 monitoring, and MikroTik neighbor discovery. SwOS is web-based and works with any modern browser for configuration. The switch cannot run RouterOS.

What is the actual switching capacity and forwarding performance?

The switch delivers 52 Gbps non-blocking switching capacity with 77.4 Mpps forwarding rate using the Marvell 98DX3216A1 chip. All 24 Gigabit ports plus two 10G SFP+ uplinks can operate simultaneously at full wire speed without bottlenecks. The 16K MAC address table supports enterprise-scale deployments.

Can this switch provide power to connected devices?

This switch does not provide PoE output to connected devices. It accepts passive PoE input (10-30V) for its own power supply as an alternative to the DC jack. You cannot power IP phones, cameras, or access points from this switch's Gigabit ports.

How many VLANs can be configured on this switch?

The switch supports up to 4K simultaneous VLANs following IEEE 802.1Q standard, with a practical configuration limit of 250 VLANs. This capacity handles complex multi-tenant environments, department segmentation, and guest network isolation typical in SMB and ISP deployments.

What management options are available beyond the web interface?

Management is primarily through the SwOS web-based GUI accessible from any modern browser. SNMP v1 support enables integration with network monitoring systems like PRTG or Zabbix. MikroTik neighbor discovery protocol helps identify adjacent MikroTik devices. There is no CLI access, and the switch cannot run RouterOS management tools.
