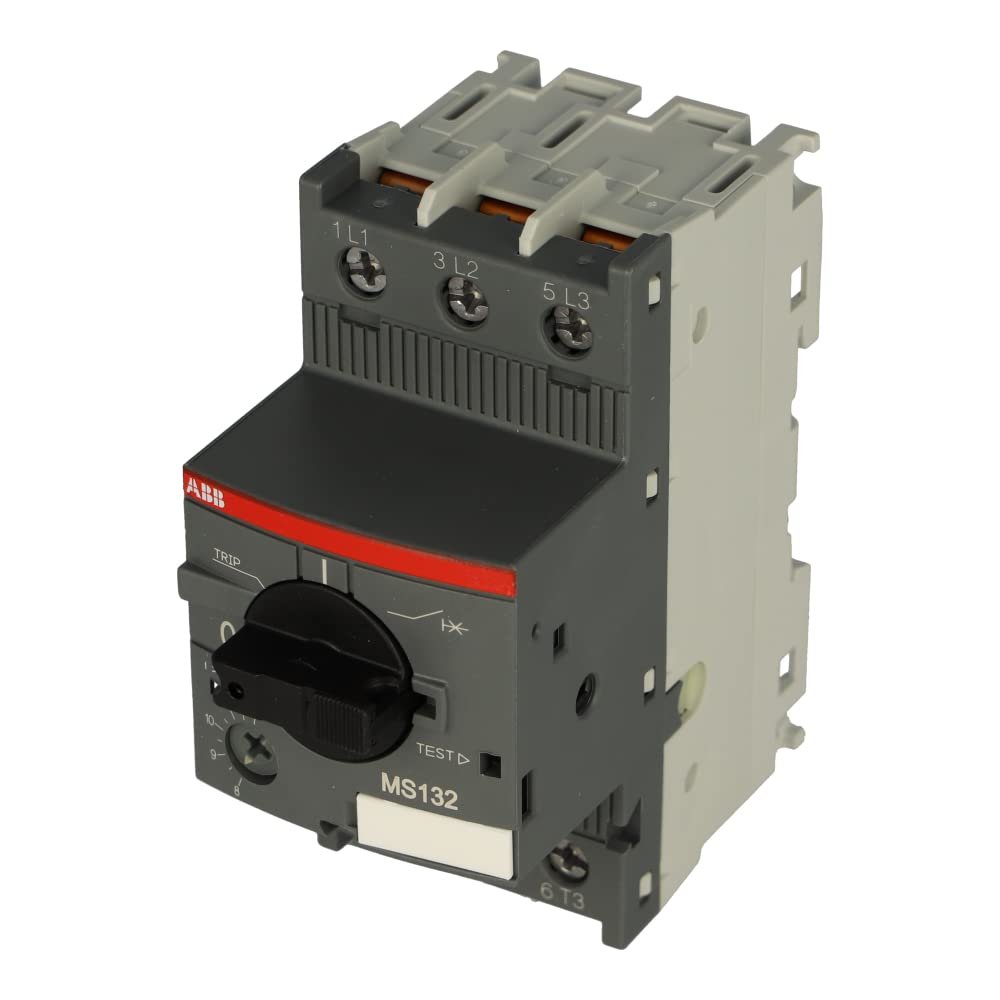

ABB MS132-12 Manual Motor Starter, 8-12A, 690V, Thermal/Magnetic, MS132 Series

Delivery Time: 0-3 days
Product Highlights

  • Adjustable thermal setting range 8–12 A for precise overload protection

  • Rated service breaking capacity Ics 100 kA at 400 VAC for short-circuit protection

  • Trip class 10A with independent magnetic element for rapid fault clearing

  • Phase-loss sensitivity and temperature compensation enhance motor safety

  • Lockable rotary handle with clear ON/OFF/TRIP indication (IP20 enclosure)

  • Supports up to 5.5 kW motor power @ 230 V (3⊘) and 7.5 kW @ 460 V (3⊘)

  • Compact 97.8 × 45 × 86.6 mm profile for space-saving installation

  • Threaded connection and 100,000 operating cycles for durability

  • Optional accessories: auxiliary contacts, undervoltage releases, shunt trips

  • Overview
  • Specifications
  • FAQ
  • User Guides

The ABB MS132-12 is a compact, three-pole manual motor starter designed to switch and protect single- and three-phase motors in industrial panels. It features adjustable thermal-magnetic protection (8–12 A range) with trip class 10A and a service breaking capacity of 100 kA at 400 VAC. A trip-free, lockable rotary handle clearly indicates ON/OFF/TRIP positions, while the IP20 housing and temperature-compensated design ensure reliable operation from –25 °C to 70 °C. At just 97.8 × 45 × 86.6 mm, it fits tight panel spaces and handles motor loads up to 5.5 kW (3 HP @ 230 V 3⊘, 7.5 HP @ 460 V 3⊘) without a fuse

  • Adjustable thermal setting range 8–12 A for precise overload protection

  • Rated service breaking capacity Ics 100 kA at 400 VAC for short-circuit protection

  • Trip class 10A with independent magnetic element for rapid fault clearing

  • Phase-loss sensitivity and temperature compensation enhance motor safety

  • Lockable rotary handle with clear ON/OFF/TRIP indication (IP20 enclosure)

  • Supports up to 5.5 kW motor power @ 230 V (3⊘) and 7.5 kW @ 460 V (3⊘)

  • Compact 97.8 × 45 × 86.6 mm profile for space-saving installation

  • Threaded connection and 100,000 operating cycles for durability

  • Optional accessories: auxiliary contacts, undervoltage releases, shunt trips

$58.00
$58.00
$58.00
$58.00
In stock

Get same day shipping on orders placed before 3 PM EST.
