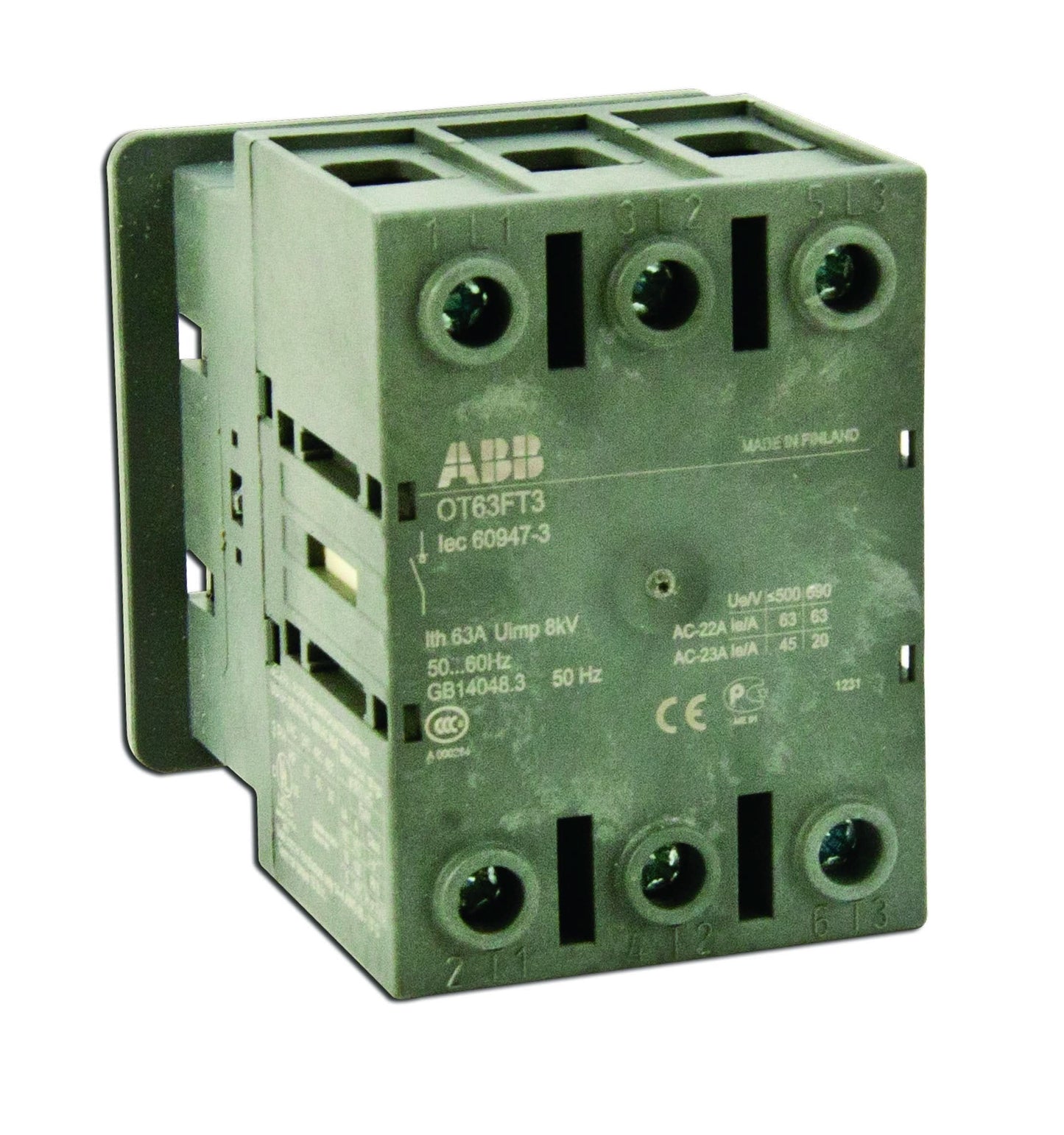

ABB OT63FT3 Non-Fused Disconnect | 60A, 3-Pole

Product Highlights
  • Mounting: Door Mount
  • Poles: 3
  • Type: Non-Fused
  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

ABB OT63FT3 Non-Fused Disconnect, 60 Amp, 3-Pole Non-Fused Disconnect Switch. 60 Amp. 3-Pole. Door Mounted. 600V AC. UL 508. For use with Selector Handle. Integral Lug Kit Included.

  • Mounting: Door Mount
  • Poles: 3
  • Type: Non-Fused

Mounting: Door Mount

General Specifications

Manufacturer: ABB
Alternate Part Number: 1SCA105382R1001
Type: Disconnect Switch
Primary Type: Non-Fusible Disconnect Switch
Mounting Type: Door Mount

Electrical Characteristics

Number of Poles: 3 Poles
Current Rating: 60 A
Maximum Current: 1250 A
Voltage Rating: 600 V
Power Loss: 29 W
Fuse Type: Non-Fusible

Physical Characteristics

Dimensions: 0.00 in W × 2.85 in D
Terminal Type: Screw
IP Rating: IP20

Standards and Approvals

Standards: UL508 / IEC
Approvals: CSA 22-2 No.14, IEC 60947-3, UL 508

What is the ABB OT63FT3?
The ABB OT63FT3 is a non-fusible disconnect switch rated at 60 Amps and 600 VAC. It is a 3-pole, front-operated switch designed for panel or DIN rail mounting. ​

What are the key features of the OT63FT3?

  • Current Rating: 60 Amps
  • Voltage Rating: 600 VAC
  • Poles: 3
  • Mounting: Base or DIN rail mountable
  • Operation: Front-operated with a handle (sold separately)
  • Standards: UL 508, CSA C22.2, IEC 60947-3 compliant
  • Terminal Type: Screw terminals suitable for 14 to 4 AWG copper conductors
  • Enclosure Compatibility: Suitable for use in NEMA 1, 3R, 4, 4X, and 12 enclosures ​

Is the OT63FT3 suitable for motor disconnect applications?
Yes, the OT63FT3 is UL 508 listed, making it suitable for use as a motor disconnect in industrial control panels. ​

Does the OT63FT3 come with a handle and shaft?
No, the handle and shaft are sold separately. ABB offers compatible handles and shafts that can be selected based on the specific application and enclosure requirements. ​

Can the OT63FT3 be padlocked for safety?
Yes, when used with the appropriate ABB handle, the switch can be padlocked in the OFF position to comply with lockout/tagout safety procedures. ​

What are the dimensions of the OT63FT3?

  • Width: 52.5 mm
  • Depth: 72.5 mm
  • Height: 91.5 mm
