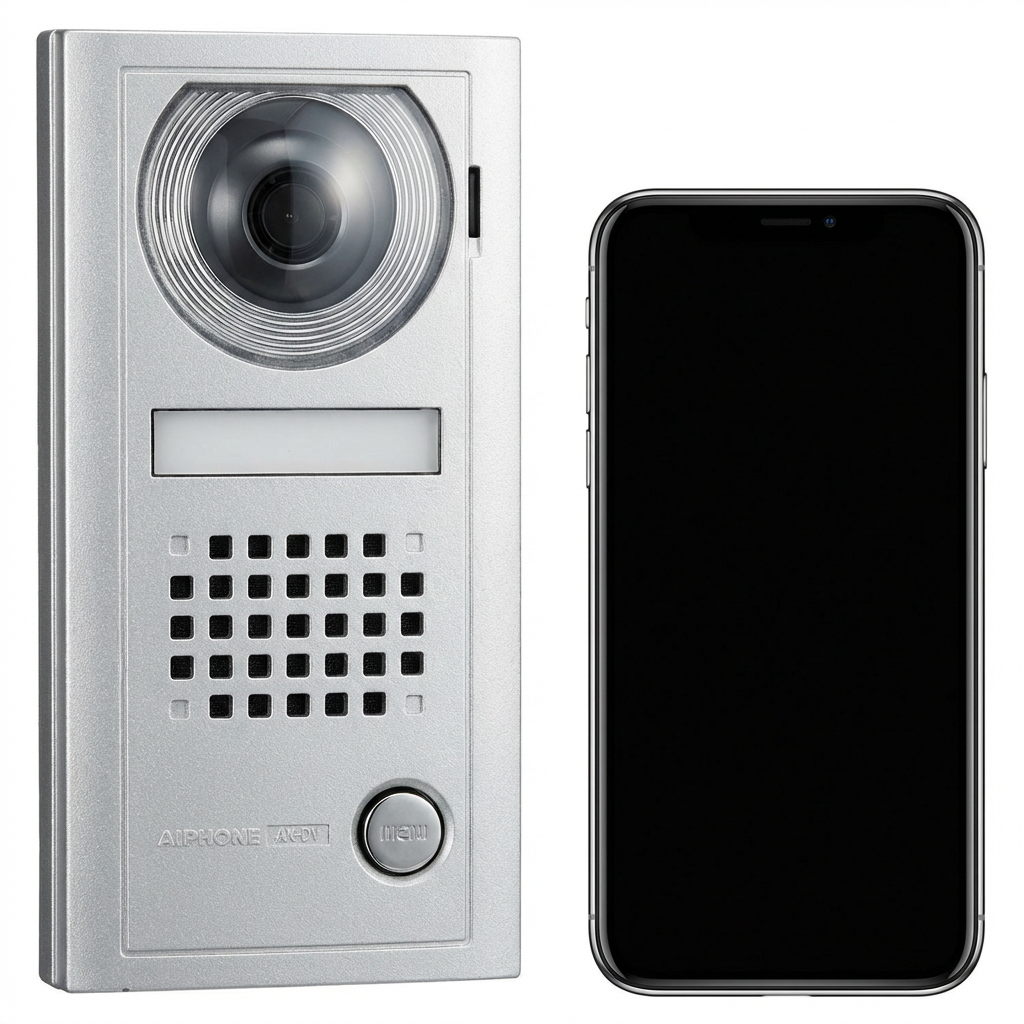

Aiphone AX-DV Surface-Mount Audio/Video Door Station — Cast-Aluminum Vandal-Resistant Housing, 1/4" Color CCD Camera, Illuminated Directory, Cat-5e RJ45 Wiring, AX Series Compatible

Name: Aiphone AX-DV Surface-Mount Audio/Video Door Station — Cast-Aluminum Vandal-Resistant Housing, 1/4" Color CCD Camera, Illuminated Directory, Cat-5e RJ45 Wiring, AX Series Compatible
Brand: Aiphone
SKU: AIP-NET-AX-DV-NEW
Price: 352.0 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Product Highlights

•【Clear Video View】: Visitors are easy to see, even in dim light.

•【Strong Build】: Built tough for busy entry areas and daily use.

•【Long Cable Reach】: Works well across large buildings with flexible cable runs.

•【Easy Wall Mount】: Installs simply on the wall with less setup trouble.

•【Works with AX System】: Made to work smoothly with the AX Series intercom system.

Overview
Specifications
FAQ
User Guides
Reviews

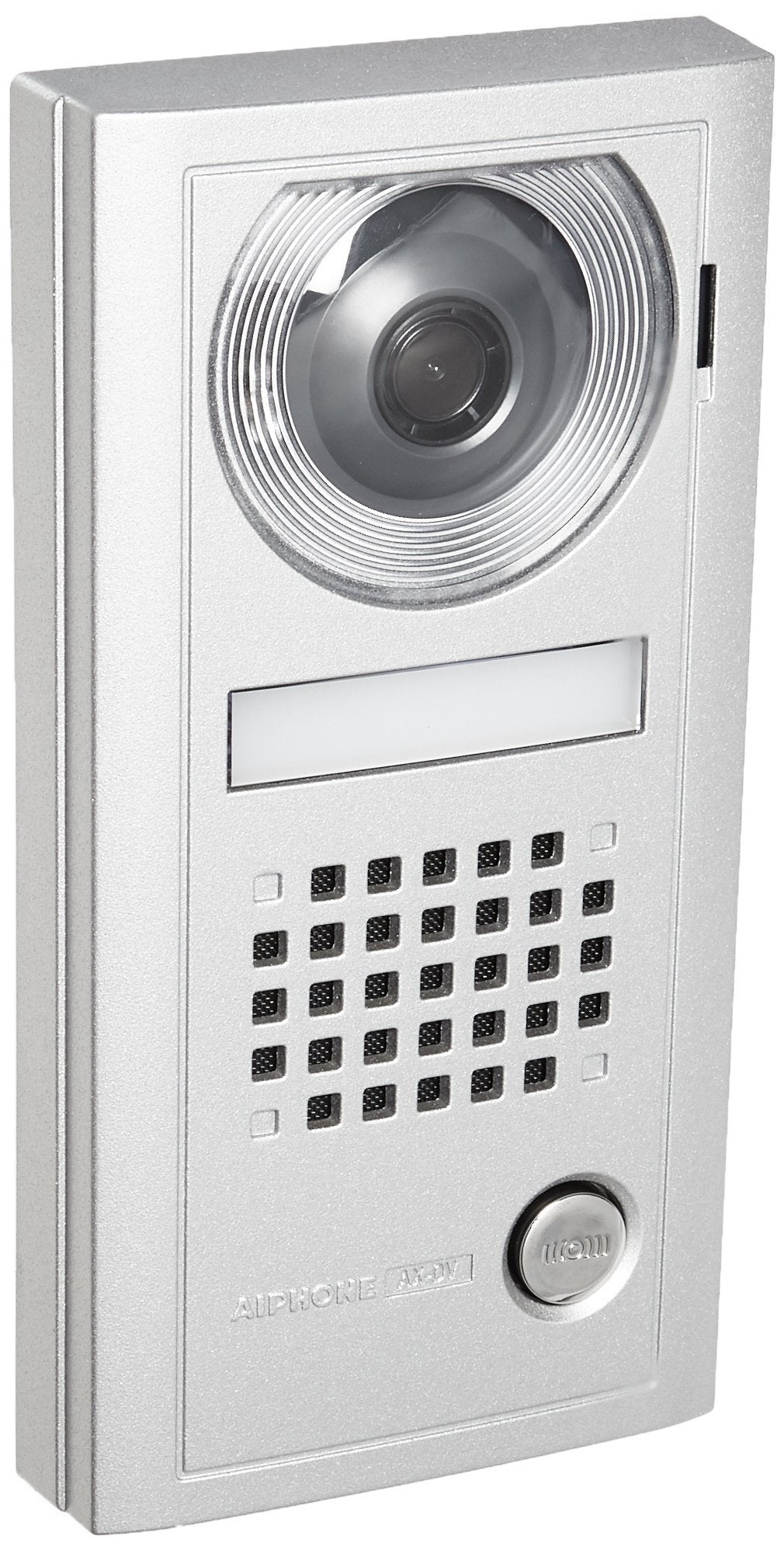

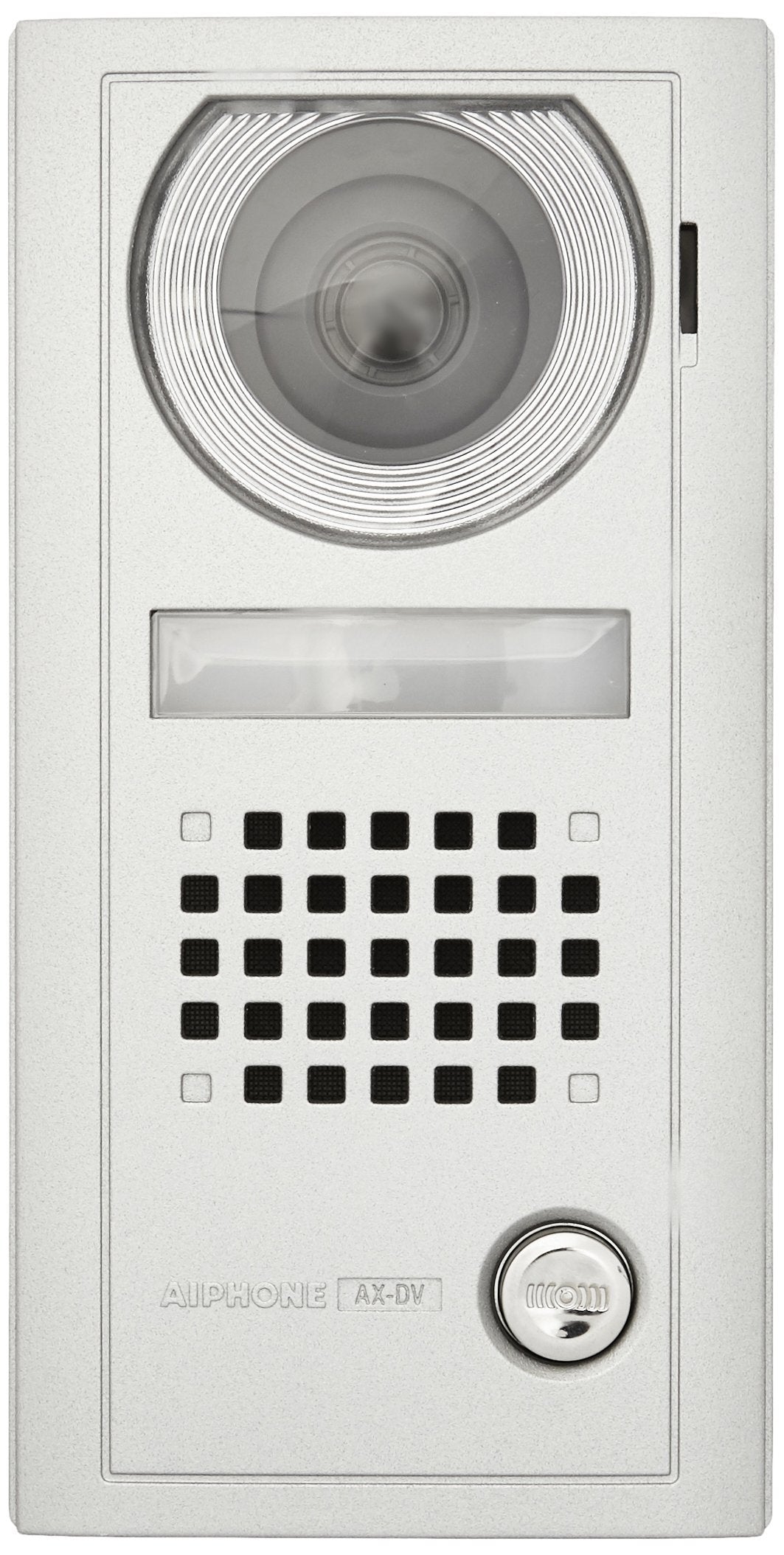

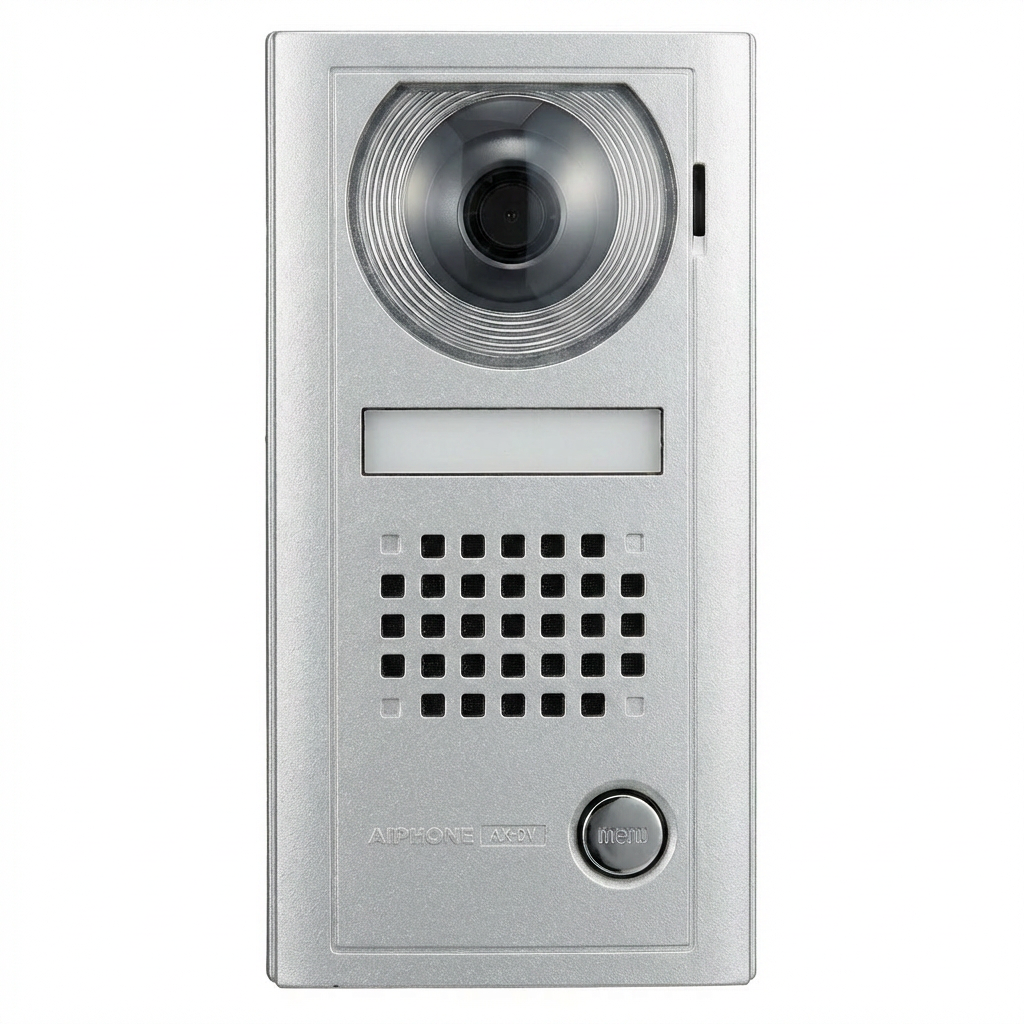

The Aiphone AX-DV is a surface-mount audio and video door station built for the AX Series integrated intercom system, providing color video monitoring and two-way audio communication at building entry points. Its 1/4" color CCD camera captures live video with a wide viewing area of 2'1" vertical by 3'1" horizontal at 20 inches, transmitted to connected AX Series master stations so occupants can visually confirm visitor identity before authorizing access.

Best For:

Commercial building lobby and main entrance intercom installations, multi-tenant residential building entry video door stations, institutional and campus facilities with AX Series intercom infrastructure, high-security or at-risk entry points requiring vandal-resistant video monitoring, retrofit surface-mount installations where flush back boxes are unavailable.

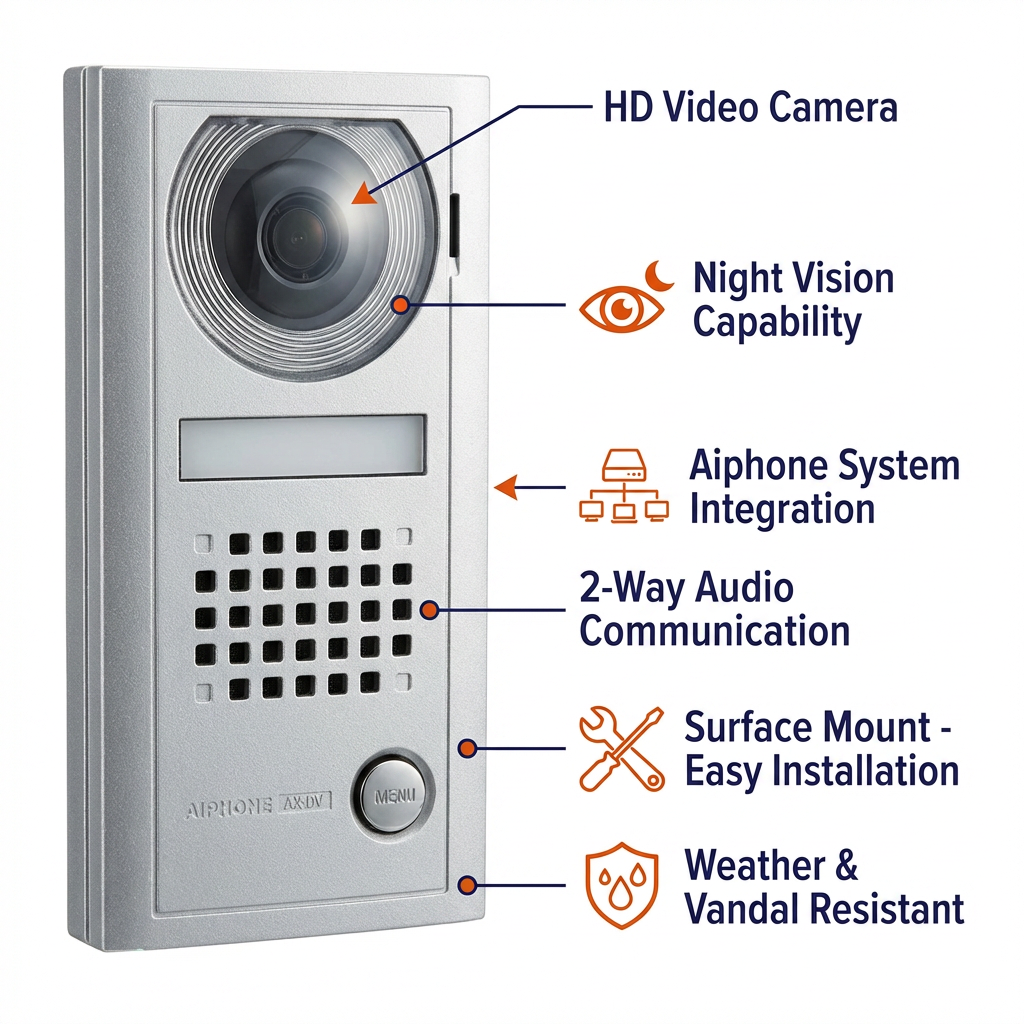

Key Features:

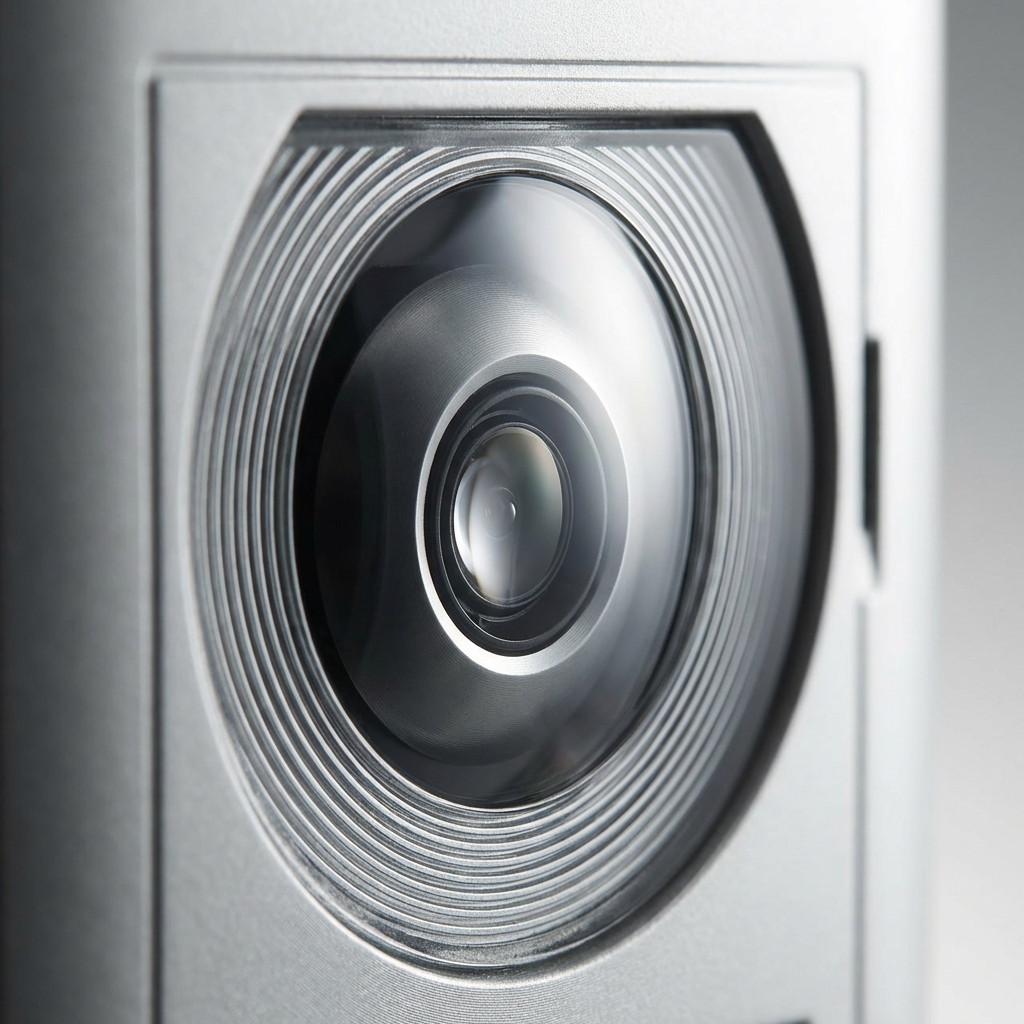

• 1/4" color CCD camera: Delivers live color video to AX Series master stations with a 2'1" V × 3'1" H viewing area at 20" and 5 lux minimum illumination.

• White LED illuminated directory: Backlights the occupant directory for visitor and station visibility in low-light or nighttime conditions.

• Cast-aluminum faceplate: Combined with a clear polycarbonate lens cover, provides vandal resistance suitable for exposed exterior and high-traffic installation environments.

• Cat-5e RJ45 connection: Single-cable infrastructure using standard Cat-5e with RJ45 jack supports up to 980 ft runs from the central exchange unit.

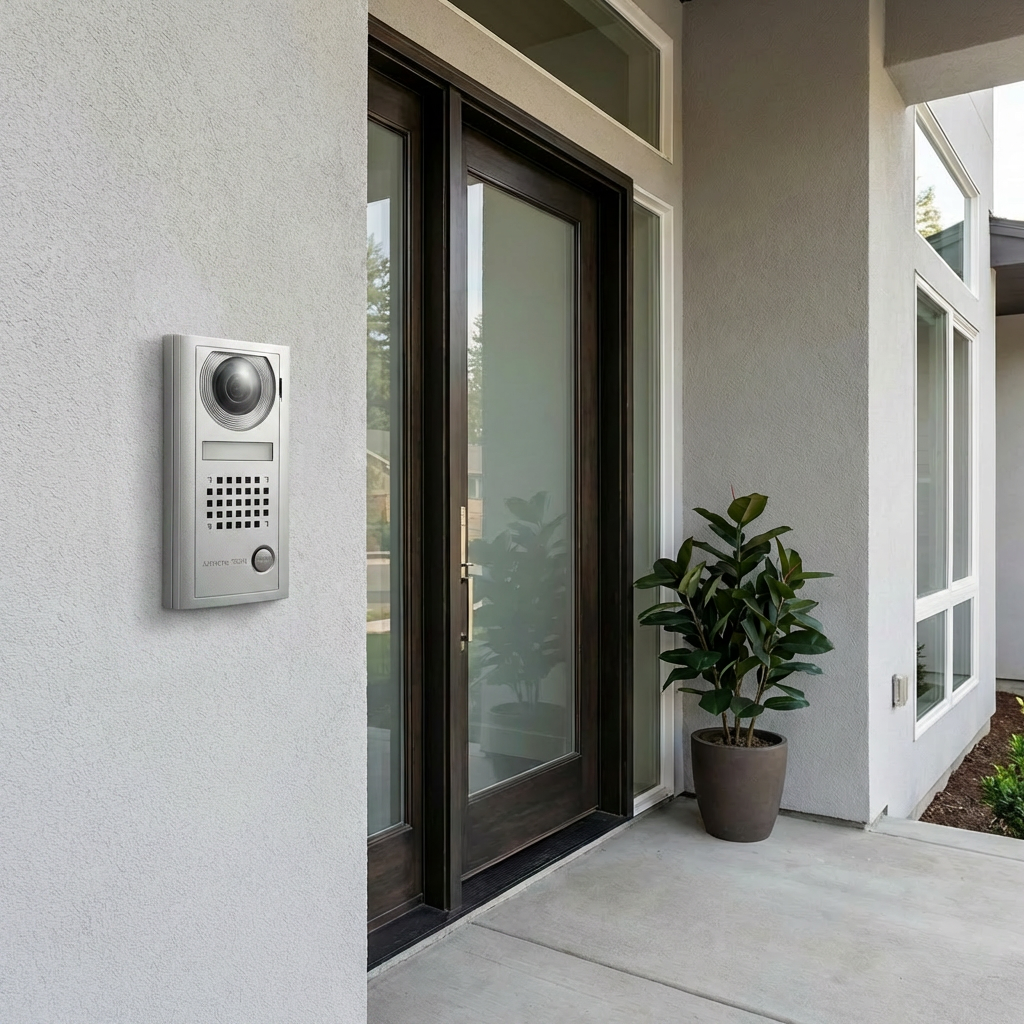

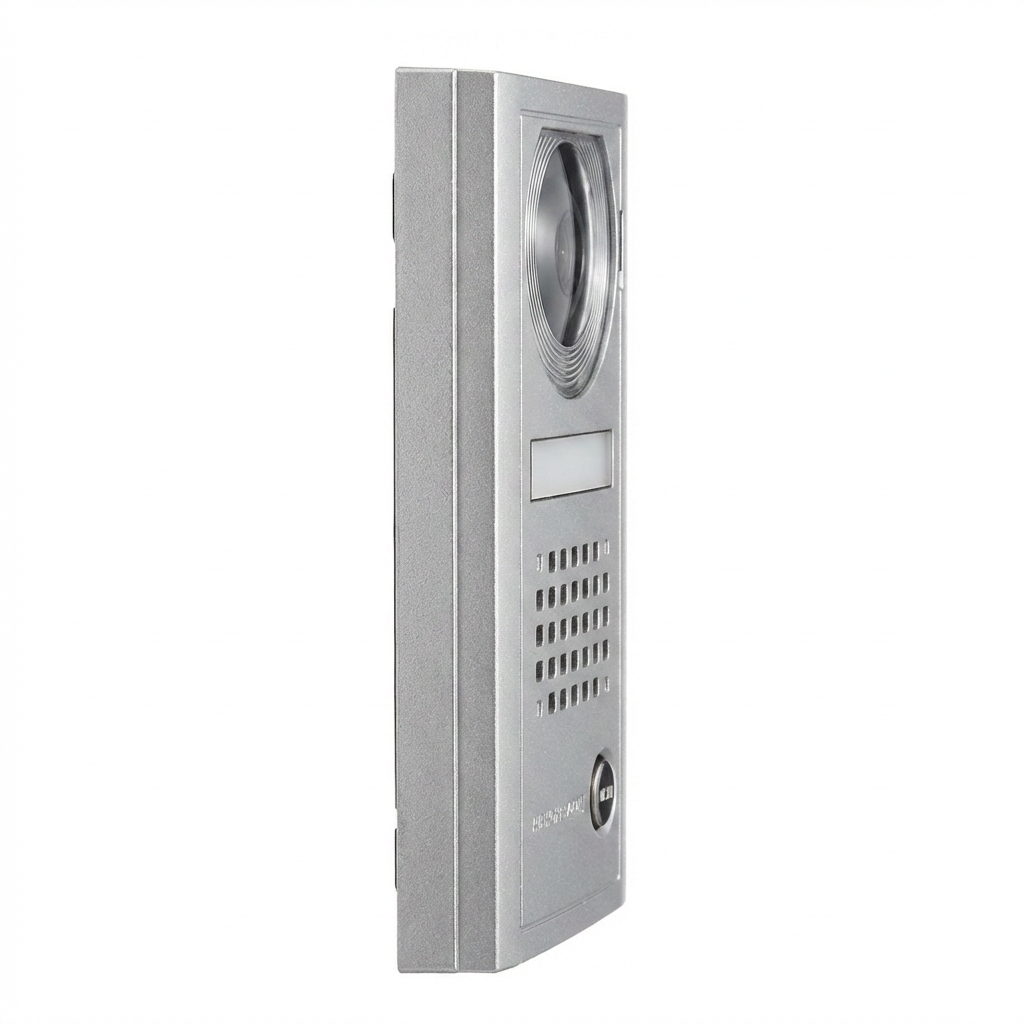

• Surface mount design: Mounts directly to the wall surface without back box cutout, offering installation flexibility in retrofit and new-build scenarios.

• AX Series integration: Connects to Aiphone AX Series master stations and central exchange units as part of a complete managed audio/video intercom system.

Quick Specs:

• Mounting: Surface mount

• Camera: 1/4" color CCD

• Viewing Area: 2'1" V × 3'1" H at 20"

• Minimum Illumination: 5 lux

• Faceplate: Cast aluminum with polycarbonate lens cover

• Wiring: Cat-5e, RJ45 jack

• Max Cable Run: 980 ft from central exchange unit

• Power: 24V DC (supplied by AX Series central exchange unit)

• Operating Temperature: 14°F to 140°F (-10°C to 60°C)

• Dimensions: 7-11/16" H × 3-15/16" W × 1" D (195 × 100 × 25 mm)

• Weight: ~0.88 lbs (400 g)

General Specifications
Brand	Aiphone
Model No.	AX-DV

Product Details
Color	Silver, White
Power Source	AC-powered
Intercom Communication Type	Video
Mounting Type	Wall
Monitor Mounting Type	Wall

Q: What system is the Aiphone AX-DV compatible with?

A: The AX-DV is designed exclusively for use with Aiphone's AX Series integrated audio and video intercom system. It requires an AX Series central exchange unit and compatible AX Series master stations, all sold separately.

Q: Does the AX-DV include a power supply?

A: No. The AX-DV is powered at 24V DC via the AX Series central exchange unit, which is sold separately. No standalone power supply is required for the door station itself.

Q: What cable type does the AX-DV use?

A: The AX-DV uses standard Cat-5e cable with an RJ45 jack connection, supporting single-cable runs up to 980 feet from the central exchange unit.

Q: Is the AX-DV suitable for outdoor installation?

A: Yes. The AX-DV features a cast-aluminum faceplate and polycarbonate lens cover for vandal resistance, and operates across a temperature range of 14°F to 140°F, making it suitable for exterior installation at covered or semi-exposed entry points.

Q: What is the camera viewing area of the AX-DV?

A: The 1/4" color CCD camera provides a viewing area of 2 feet 1 inch vertical by 3 feet 1 inch horizontal at a distance of 20 inches, with a minimum illumination requirement of 5 lux.

Q: How is the call directory illuminated on the AX-DV?

A: The call directory is illuminated by a white LED, ensuring the occupant name display and station interface remain visible in low-light and nighttime conditions.
