Alpha Communications EK117B Toilet emergency alarm kit | for stand-alone emergency call

Name: Alpha Communications EK117B Toilet emergency alarm kit | for stand-alone emergency call
Brand: Alpha Communications
SKU: APH-TOL-EK117B-NEW_2
Price: 205.0 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Product Highlights

• 【Complete Call Kit】: Includes all three components — CDL123B LED dome with buzzer, SF117/2A pull cord station, and SS106 transformer — for a ready-to-install emergency call system.

• 【Easy Activation】: Pull cord triggers a call with a short pull in any direction, accommodating users with limited mobility or reach in restrooms and patient rooms.

• 【Dual-Mode Alert】: CDL123B dome unit delivers simultaneous hi-brightness LED visual and audible buzzer alerts to notify staff of an active emergency call.

• 【Safe Low-Voltage Power】: UL Listed Class II SS106 transformer steps down 117VAC to 24VAC at up to 30VA — safe, code-compliant power for the entire system.

• 【Standard Box Mounting】: CDL123B dome mounts directly over a 1 or 2-gang electrical back box, simplifying installation in existing wall infrastructure.

Overview
Specifications
FAQ
User Guides
Reviews

The Alpha Communications EK117B is a complete emergency call kit designed for healthcare facilities, public restrooms, and handicapped-accessible areas where immediate staff notification is essential. It includes all three components needed for a functional emergency call station, eliminating the need to source parts separately.

The CDL123B dome unit provides both visual and audible alerts using hi-brightness LEDs and an integrated buzzer at 24VAC, while the SF117/2A pull cord station allows occupants to trigger a call with a short pull in any direction. The SS106 UL Listed Class II transformer handles step-down power conversion from 117VAC to 24VAC, rated at 30VA max.

Once activated, the alert can only be canceled at the point of origin, ensuring staff must physically respond before the system resets.

Best For:

- Healthcare patient rooms and nursing call installations

- Public restroom emergency call compliance

- Handicapped-accessible facility requirements

- Assisted living and small clinic environments

- ADA-compliant emergency notification installations

Key Features:

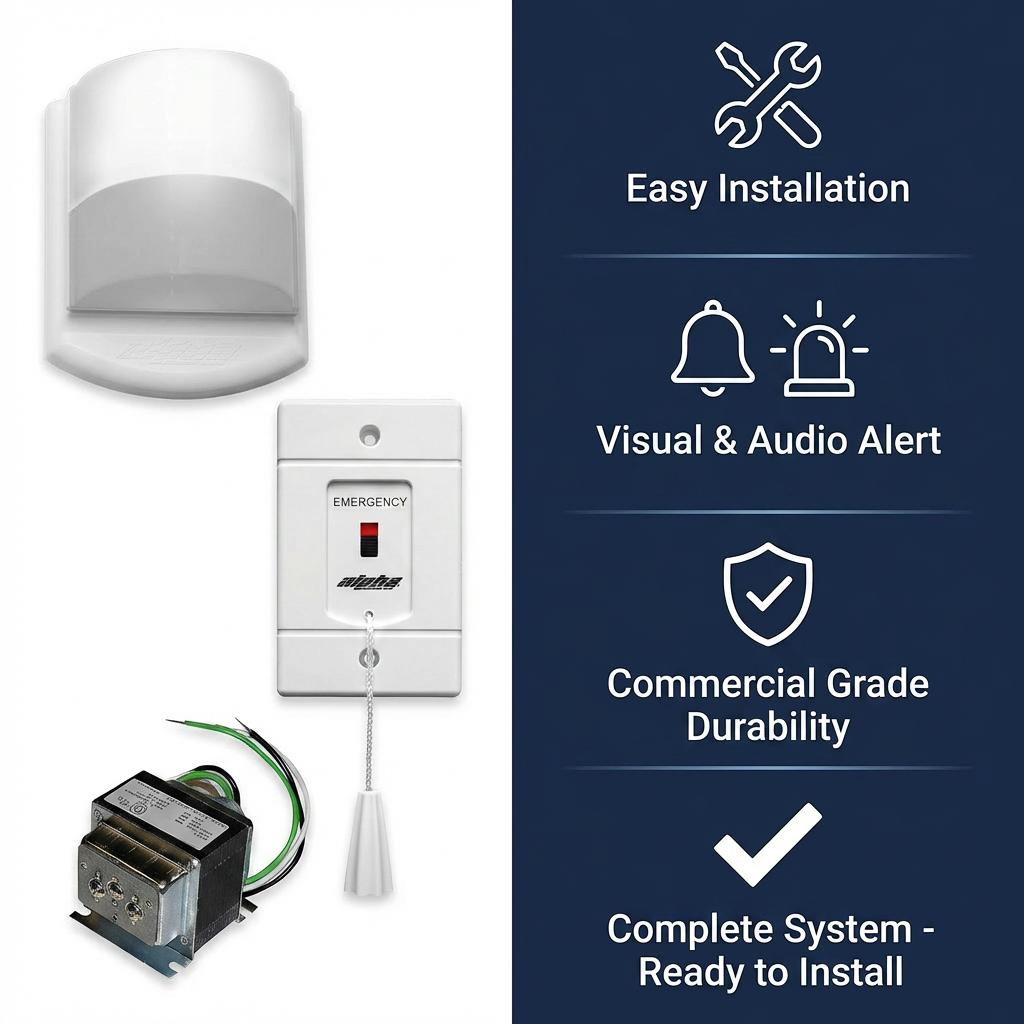

- Complete 3-component kit includes CDL123B LED dome with buzzer, SF117/2A pull cord station, and SS106 step-down transformer — no additional components required for basic installation

- SF117/2A pull cord station activates with a short pull in any direction, accommodating users regardless of mobility or reach capability

- CDL123B dome unit delivers both hi-brightness LED visual alerts and audible buzzer notification simultaneously when a call is triggered

- 24VAC system operation via UL Listed Class II SS106 transformer (117VAC to 24VAC, 30VA max) ensures safe, code-compliant low-voltage power

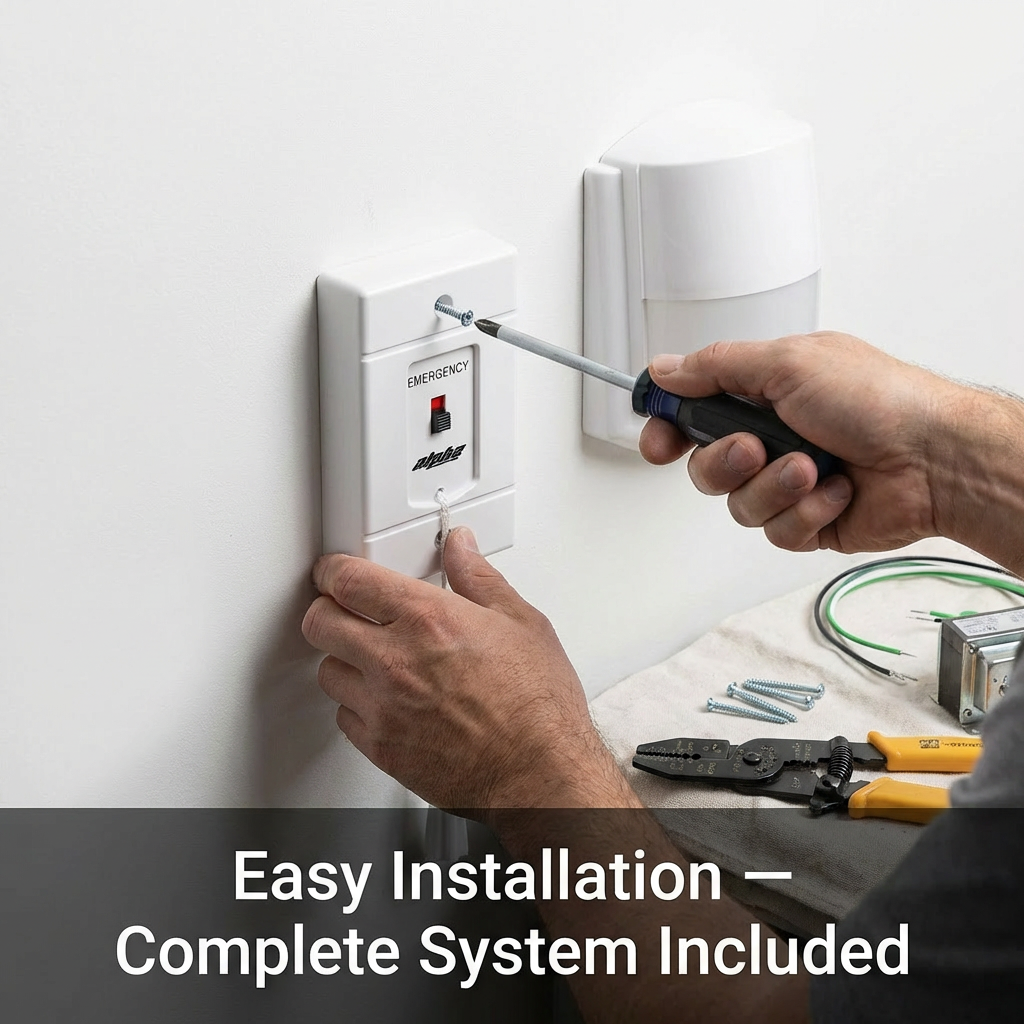

- CDL123B mounts directly over a standard 1 or 2-gang electrical back box for straightforward integration into existing wall installations

- Call cancellation requires physical reset at the point of origin, ensuring staff must visit the location before the alert clears

Quick Specs:

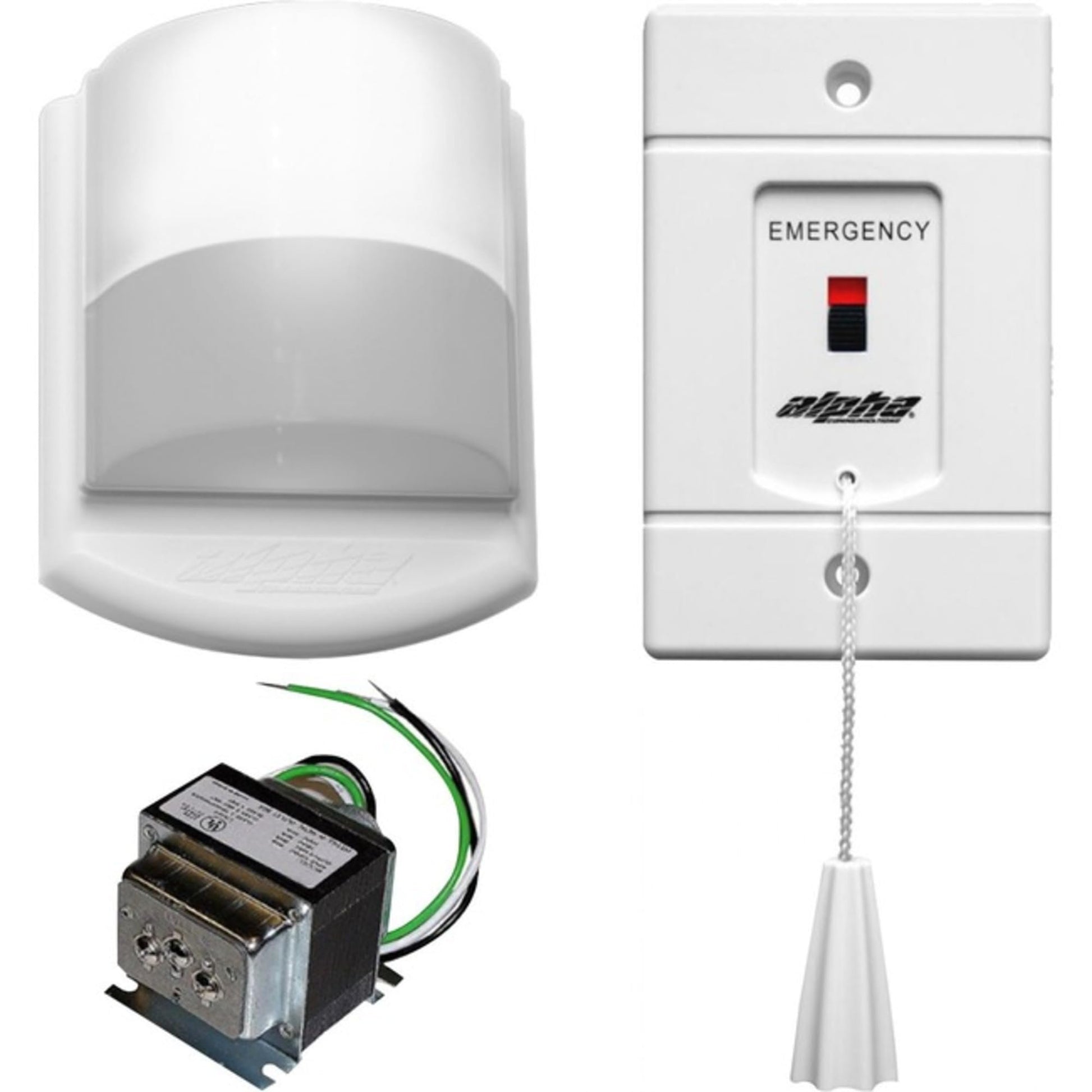

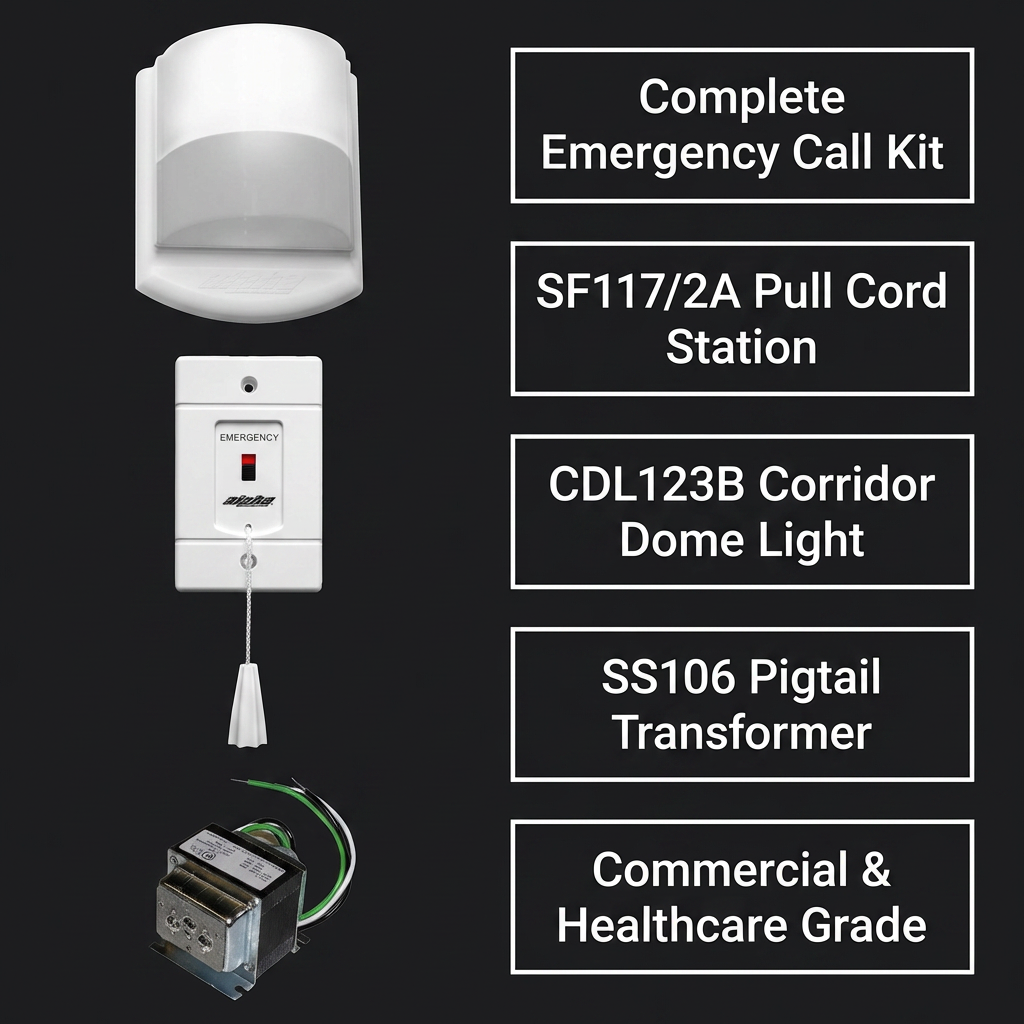

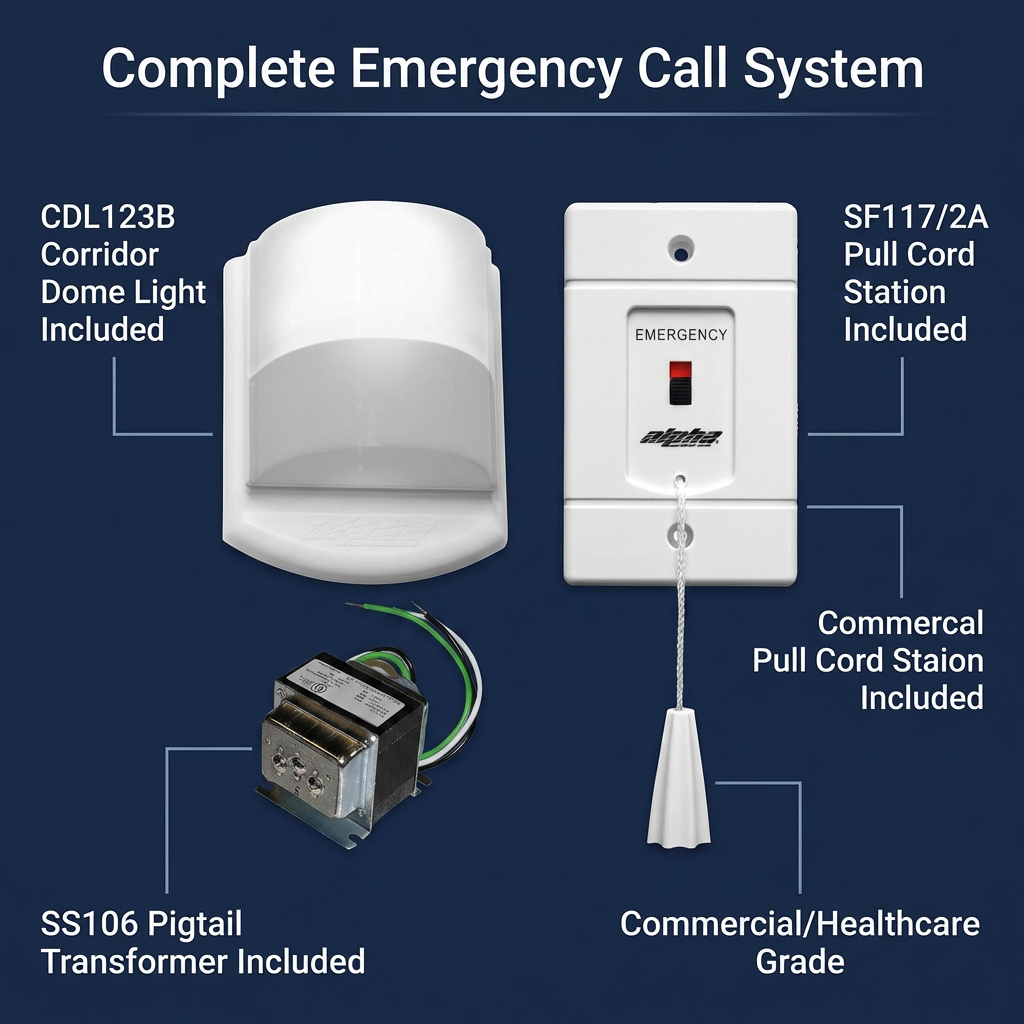

- Kit Components: CDL123B LED Dome Light with Buzzer, SF117/2A Pull Cord Station, SS106 Transformer

- Dome Unit Power: 24VAC, 200mA

- Transformer Input/Output: 117VAC to 24VAC

- Transformer Rating: 30VA max, UL Listed Class II

- Pull Cord Length: 6 feet (nylon)

- Mounting: 1 or 2-gang electrical back box (not included)

What's Included:

- CDL123B LED dome light with buzzer (white)

- SF117/2A pull cord station with 6-foot nylon cord and red indicator

- SS106 UL Listed Class II transformer

General Specifications
Brand	Alpha Communications

Product Details
Color	White
Ingress Protection (IP) Rating	Not rated

Q: What components are included in the EK117B kit?

A: The EK117B includes three components: the CDL123B LED dome light with buzzer, the SF117/2A pull cord station with a 6-foot nylon cord, and the SS106 UL Listed Class II transformer.

Q: Does the EK117B include everything needed for installation?

A: The kit includes the dome light, pull cord station, and transformer. A standard 1 or 2-gang electrical back box is required for mounting the dome unit but is not included in the kit.

Q: What voltage does the EK117B system operate on?

A: The SS106 transformer converts 117VAC input to 24VAC output to power the dome light and buzzer. The CDL123B operates at 24VAC, drawing up to 200mA.

Q: How is the emergency call activated?

A: The SF117/2A pull cord station activates with a short pull in any direction, making it accessible to users with limited mobility or reach.

Q: Can the call alert be canceled remotely?

A: No. Once activated, the alert can only be canceled at the point of origin — the pull cord station location — requiring staff to physically respond before the system resets.

Q: Where is the EK117B typically installed?

A: The EK117B is used in healthcare patient rooms, public restrooms, handicapped-accessible areas, assisted living facilities, and small clinics requiring emergency call capability.

Q: How does the CDL123B notify staff of an active call?

A: The CDL123B provides simultaneous visual (hi-brightness LED) and audible (integrated buzzer) alerts when the pull cord is activated.

Q: Does the EK117B require a back box for installation?

A: Yes. The CDL123B dome unit mounts over a standard 1 or 2-gang electrical back box, which must be installed in the wall separately and is not included in the kit.
