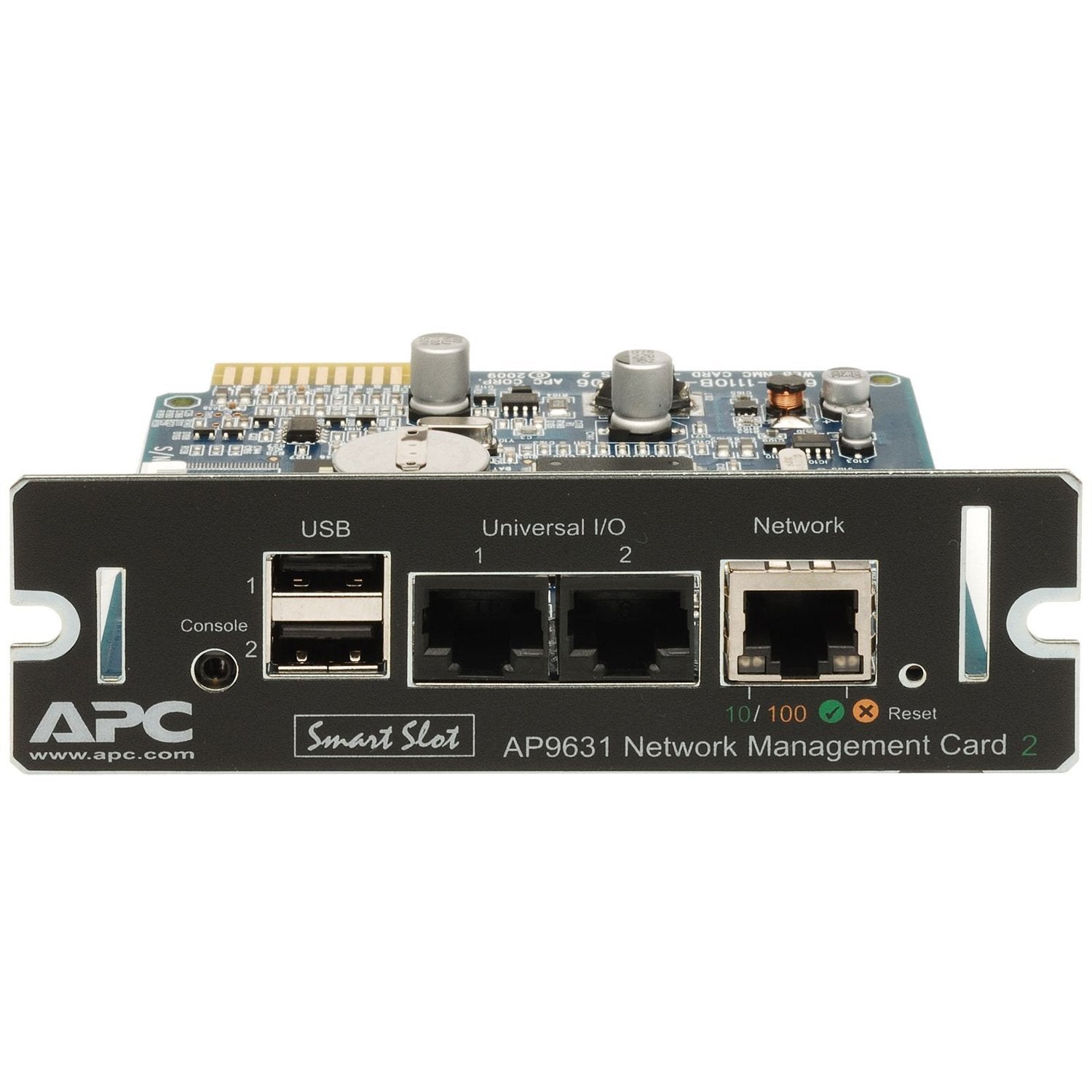

The APC AP9631 UPS Network Management Card 2 enables full IP-based monitoring and control of APC SmartSlot UPS systems, with the added capability of two Universal I/O ports for connecting environmental sensors. Administrators can monitor UPS status, configure alarms, execute graceful server shutdowns, and track temperature and humidity conditions — all from a secure network browser or command line interface.

Security features include HTTPS/SSL, SSH (up to 2048-bit), SNMPv3, and FTP, with IPv6 support for modern network infrastructure. The card supports up to 8 concurrent web users and 3 CLI sessions, making it suitable for distributed IT teams managing UPS assets across multiple locations.

Best For:

-IT administrators requiring remote UPS monitoring and graceful shutdown capability

- Data centers and server rooms where environmental monitoring (temperature, humidity) is required alongside power monitoring

- Organizations deploying APC SmartSlot UPS systems on IPv6 networks

- Facilities management teams needing centralized UPS status and alarm reporting

- Replacing or upgrading an existing AP9630 card where environmental I/O is needed

Key Features:

SmartSlot form factor — installs in APC UPS without powering down

- RJ45 10/100 Ethernet interface

- IPv4 and IPv6 dual-stack support

- HTTPS/SSL, SSH (up to 2048-bit), SNMPv3 secure communications

- 2x Universal I/O ports for temperature, temperature/humidity, or dry-contact relay sensors

- Up to 8 simultaneous web browser sessions; up to 3 concurrent CLI sessions

- Two USB ports for firmware upgrade

- Operating temperature: 32-113F (0-45C)

- Dimensions: 1.5” H x 4.75” W x 4.5” D; weight: 0.2 lbs

- APC part number: AP9631

Quick Specs:

Part Number: AP9631

- Form Factor: SmartSlot

- Network Interface: RJ45 10/100 Ethernet

- Protocols: HTTPS/SSL, SSH, SNMPv3, FTP, SMTP, Telnet, IPv4, IPv6

- Environmental I/O: 2x Universal I/O (temperature, temp/humidity, or relay)

- Concurrent Web Users: 8

- Concurrent CLI Users: 3

- Operating Temperature: 0-45C (32-113F)

- Dimensions: 1.5” H x 4.75” W x 4.5” D

- Weight: 0.2 lbs
