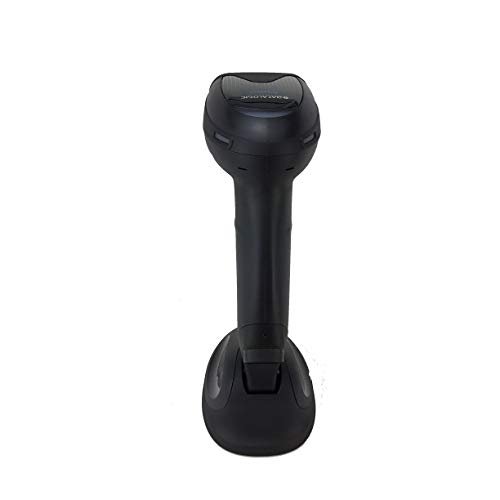

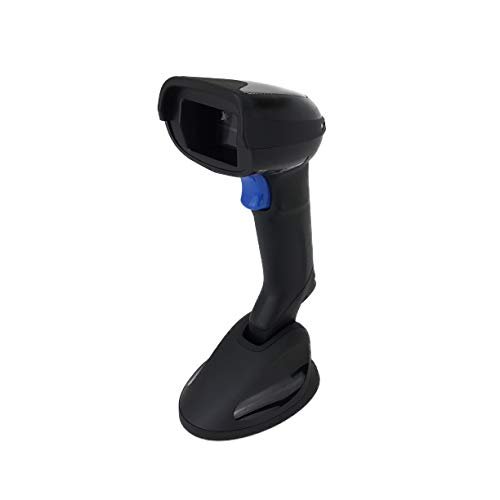

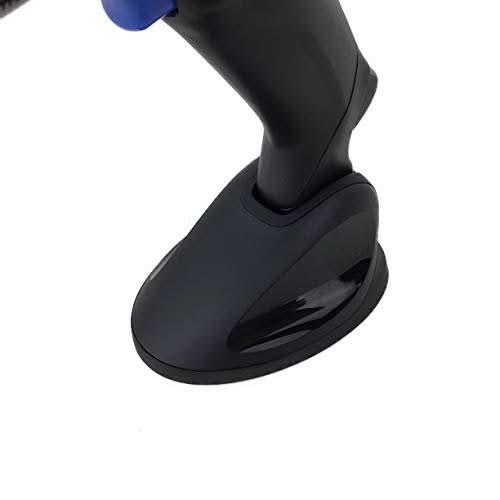

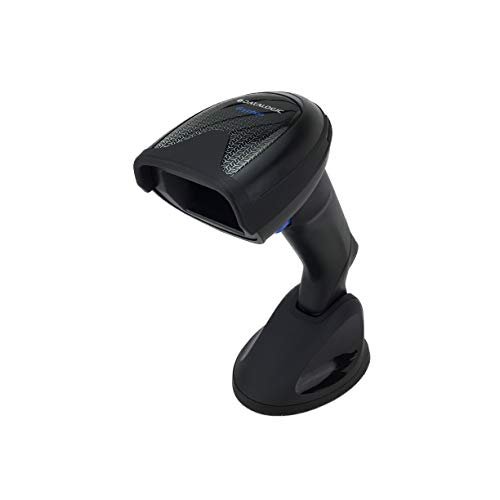

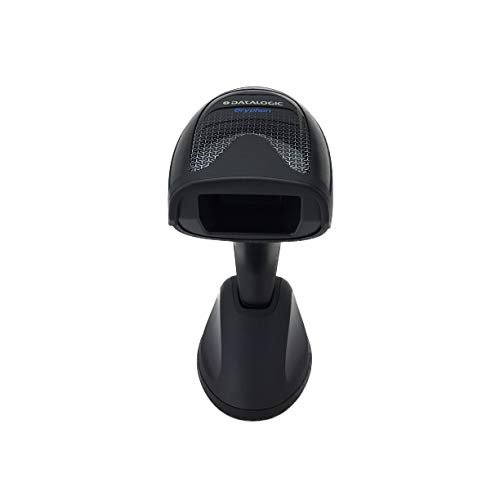

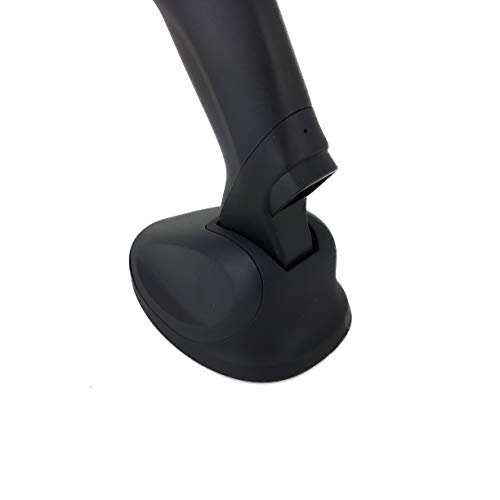

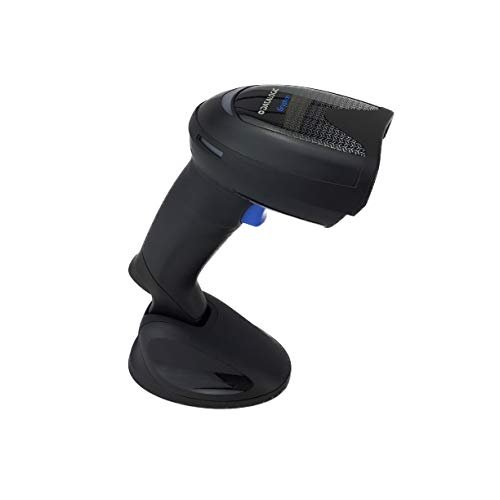

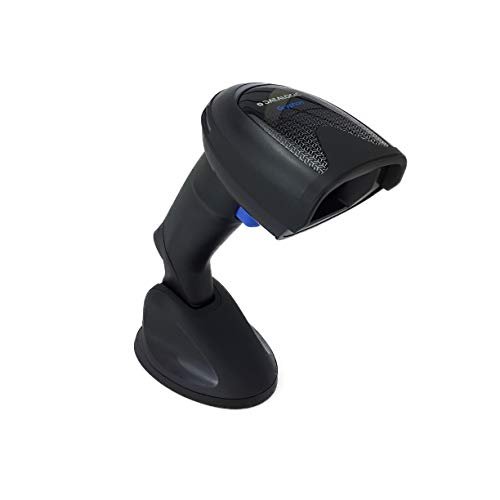

Datalogic Gryphon GD4500 Omnidirectional Scanner | 2D/1D, High Density, USB, with Stand

Name: Datalogic Gryphon GD4500 Omnidirectional Scanner | 2D/1D, High Density, USB, with Stand
Brand: Datalogic
SKU: DTL-SCA-GD4590-BK-HD-NEW
Price: 180.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

Natural replacement for the Gryphon GD4430-HD
Optimized for high-density barcodes, reading small and condensed codes
Reads 1D, 2D, postal, stacked, and composite codes
Advanced megapixel sensor with white-illumination 2D technology
Distinctive 4-dot aimer with center cross for accurate targeting
Omnidirectional scanning with motion tolerance optics
Ergonomic, modern design for comfortable long-term use
Multi-interface support: USB-only or RS-232 / USB / Keyboard Wedge

Overview
Specifications
FAQ
User Guides

The Gryphon GD4590-HD is the ideal upgrade from the Gryphon GD4430-HD, offering enhanced performance in a sleek, ergonomic design. As part of Datalogic’s premium handheld scanner range, it features a high-resolution megapixel sensor with white-illumination 2D technology, delivering superior performance across a wide range of barcode types. The HD (High Density) model is optimized to read smaller, more condensed codes with precision. It supports omnidirectional reading and is equipped with advanced motion tolerance optics, making it highly effective in fast-paced environments. The 4-dot aimer with a center cross and 1 MP optics ensure accurate, targeted scanning, while multi-interface options like USB-only or RS-232/USB/Keyboard Wedge provide flexible integration across systems.

Natural replacement for the Gryphon GD4430-HD
Optimized for high-density barcodes, reading small and condensed codes
Reads 1D, 2D, postal, stacked, and composite codes
Advanced megapixel sensor with white-illumination 2D technology
Distinctive 4-dot aimer with center cross for accurate targeting
Omnidirectional scanning with motion tolerance optics
Ergonomic, modern design for comfortable long-term use
Multi-interface support: USB-only or RS-232 / USB / Keyboard Wedge

Omnidirectional reading, Advanced motion tolerance optics

General Specifications

Model: Gryphon GD4590-HD
Type: Wired High Density (HD) 2D Imager Scanner
Connectivity: Multi-Interface (RS-232 / USB / Keyboard Wedge)

Performance

Scan Technology: 1 Megapixel sensor (1280 × 800 pixels)
Light Source:

Aiming: Red Laser 650 nm
Illumination: Warm White LED

Supported Symbologies:

1D / Linear Codes
2D Codes: QR Code, DataMatrix, Aztec, MaxiCode, Micro QR
Stacked Codes: PDF417, MicroPDF417
Postal Codes: USPS, Royal Mail, Japan Post, and others
Digimarc® Barcodes (on select models)

Motion Tolerance: 35 inches per second (IPS)
Print Contrast Ratio: Minimum 15%
Image Capture: Supports BMP, JPEG, TIFF formats

Resolution (High Density)

1D Linear Codes: Down to 3 mils
PDF417: Down to 3 mils
Data Matrix: Down to 4 mils

Reading Ranges

Code 39 (3 mils): 5.0 to 15.0 cm (2.0 to 5.9 in)
Data Matrix (5 mils): 5.5 to 9.0 cm (2.2 to 3.5 in)
PDF417 (4 mils): 3.0 to 12.0 cm (1.2 to 4.7 in)
QR Code (10 mils): 2.0 to 25.0 cm (0.8 to 9.8 in)

Physical Characteristics

Dimensions: 16.6 × 6.8 × 10.9 cm (6.5 × 2.7 × 4.3 in)
Weight: 161 g (5.7 oz)
Color Options: Black or White

Electrical

Operating Current: <300 mA @ 5V; <200 mA @ 12V
Standby Current: <90 mA @ 5V; <50 mA @ 12V
Input Voltage: 4.5 – 14.0 VDC

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 0% to 95% RH, non-condensing
Drop Resistance: Withstands multiple drops from 1.8 m (6 ft) onto concrete
Sealing: IP52 rated for dust and water protection
Ambient Light Immunity: 0–100,000 lux

Features

Motionix™ Technology: Automatically detects hand movement for seamless mode switching
Green Spot Technology: Visual confirmation of good-read
3GL™ (Three Green Lights): Additional visual good-read feedback
Omnidirectional Reading
Advanced Document Scanning Capabilities
Datalogic Aladdin™ Software: For easy configuration

📥 Download Product Manual (PDF)

What types of barcodes can the GD4590-HD scan?
The GD4590-HD can decode all standard 1D and 2D barcodes, including QR Code, Data Matrix, Aztec, Micro QR, MaxiCode, Dot Code A, and postal codes.

What does the “HD” in GD4590-HD stand for?
“HD” stands for High Density, indicating the scanner is optimized for reading small, condensed barcodes commonly found on electronics, medical devices, and compact product labels.

What is the sensor resolution of the GD4590-HD?
It features a 1-megapixel sensor with a resolution of 1280 x 800 pixels, enabling high-precision scanning.

What interfaces are supported?
The scanner supports USB, RS-232, and Keyboard Wedge interfaces, offering flexibility for various system integrations.

Is the scanner suitable for both handheld and hands-free use?
Yes, it is designed for ergonomic handheld use and can also be used hands-free with an optional stand.

Does the GD4590-HD support autosensing?
Yes, it utilizes Datalogic’s Motionix™ motion-sensing technology to automatically switch between handheld and presentation modes based on user movement.

What is the durability rating of the scanner?
The GD4590-HD has an IP52 rating for dust and water resistance and can withstand multiple drops from 1.8 meters (6 feet) onto concrete.

What is the scanning range of the GD4590-HD?
It offers a short-range scanning capability, ideal for close-up scanning of high-density barcodes.

What are the physical dimensions and weight of the scanner?
The scanner measures 166 mm in height, 68 mm in width, 109 mm in depth, and weighs 161 grams.

What is the operating temperature range?
The GD4590-HD operates within a temperature range of 0°C to 50°C (32°F to 122°F).

Does the scanner provide visual feedback upon successful scans?
Yes, it features Datalogic’s Green Spot technology, projecting a green dot on the barcode to confirm a successful scan.

Is the scanner compatible with mobile device screens?
Yes, it can read barcodes displayed on mobile device screens, making it suitable for mobile marketing and ticketing applications.
