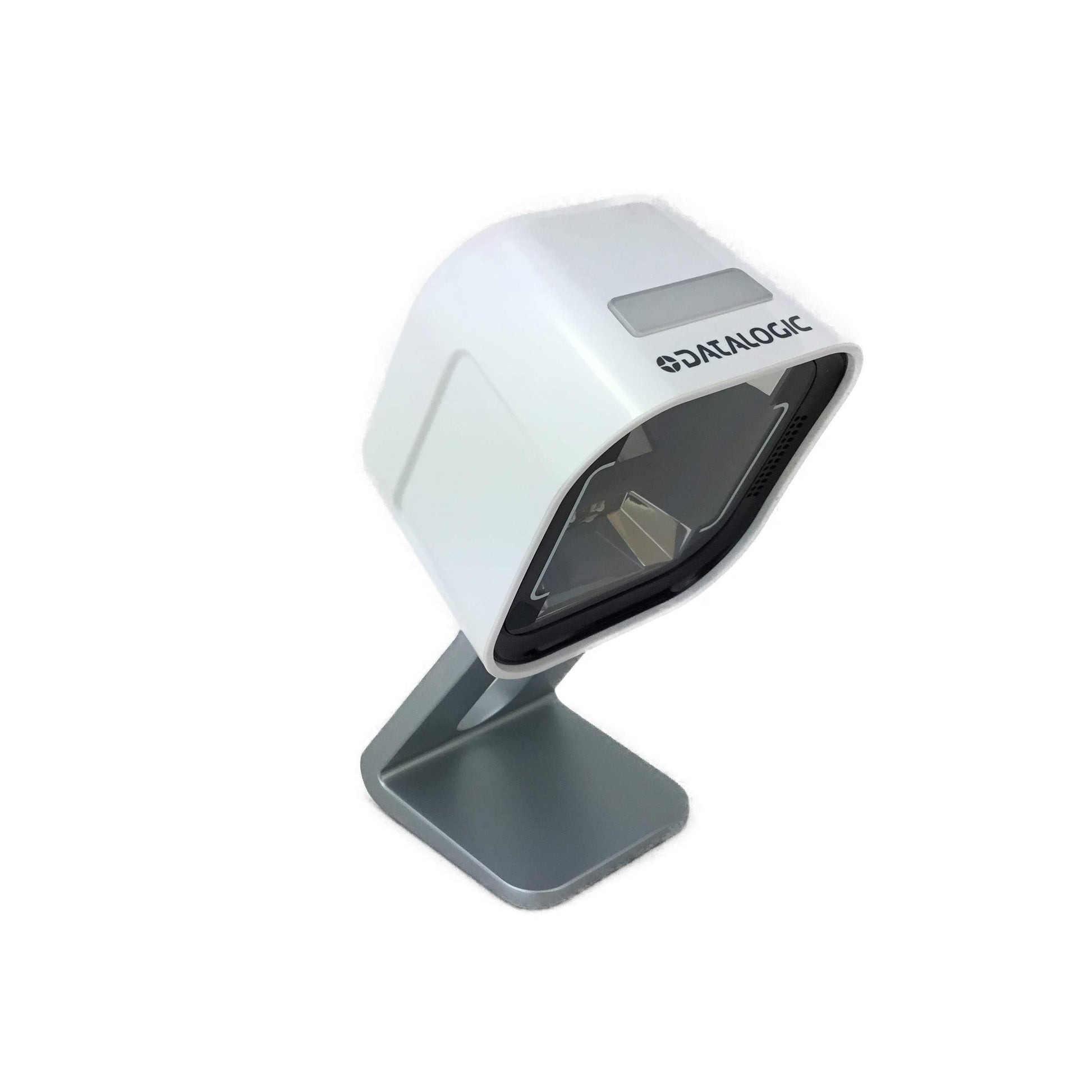

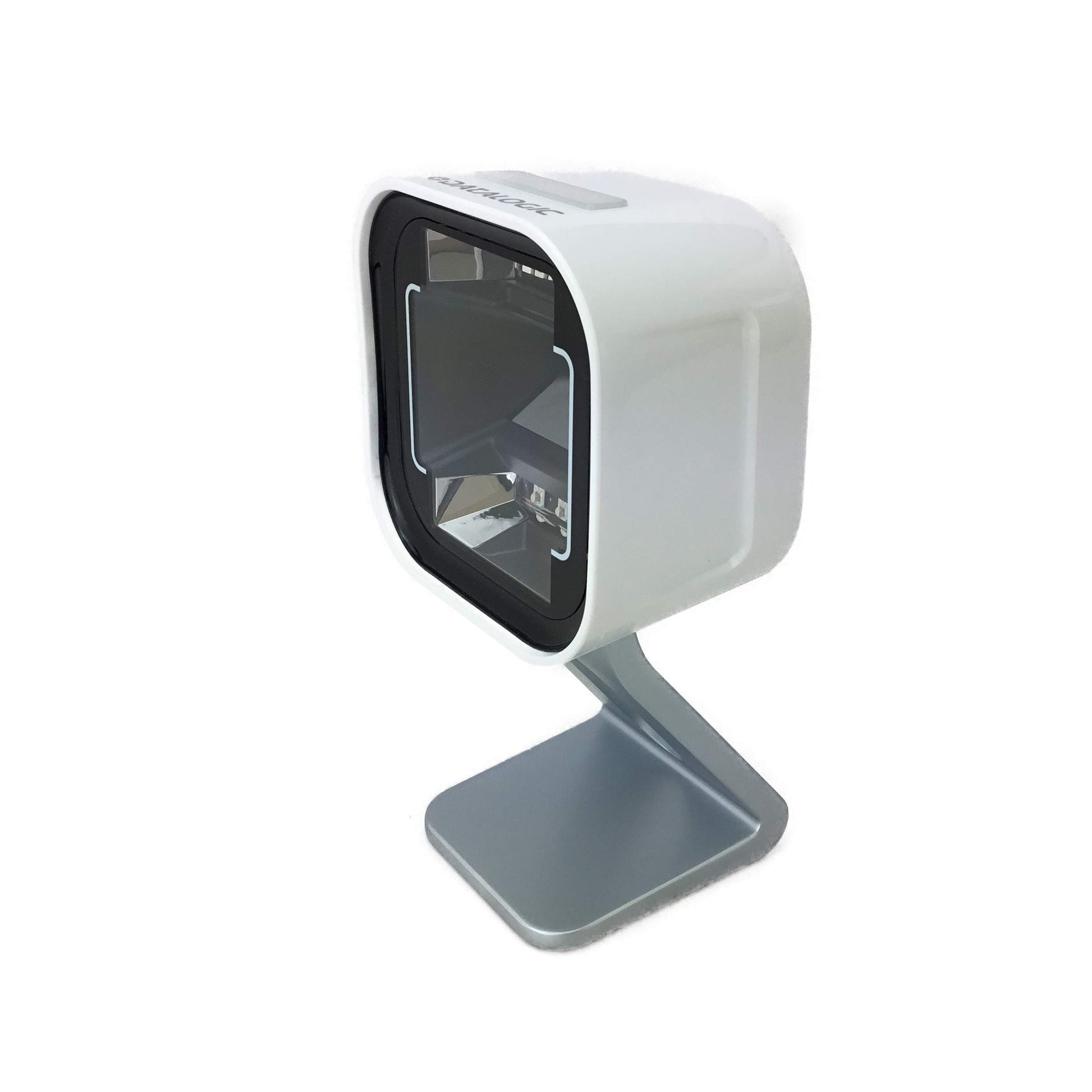

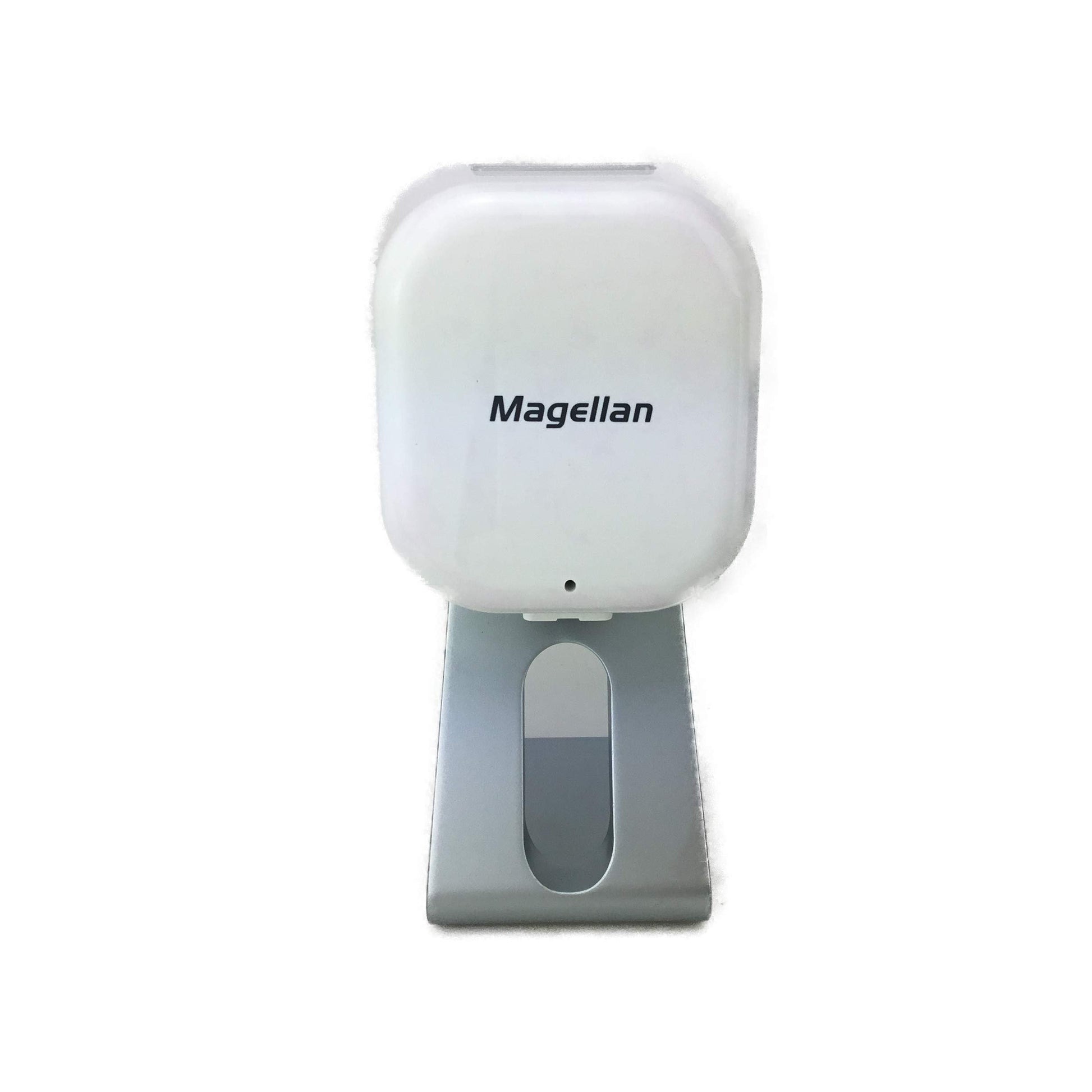

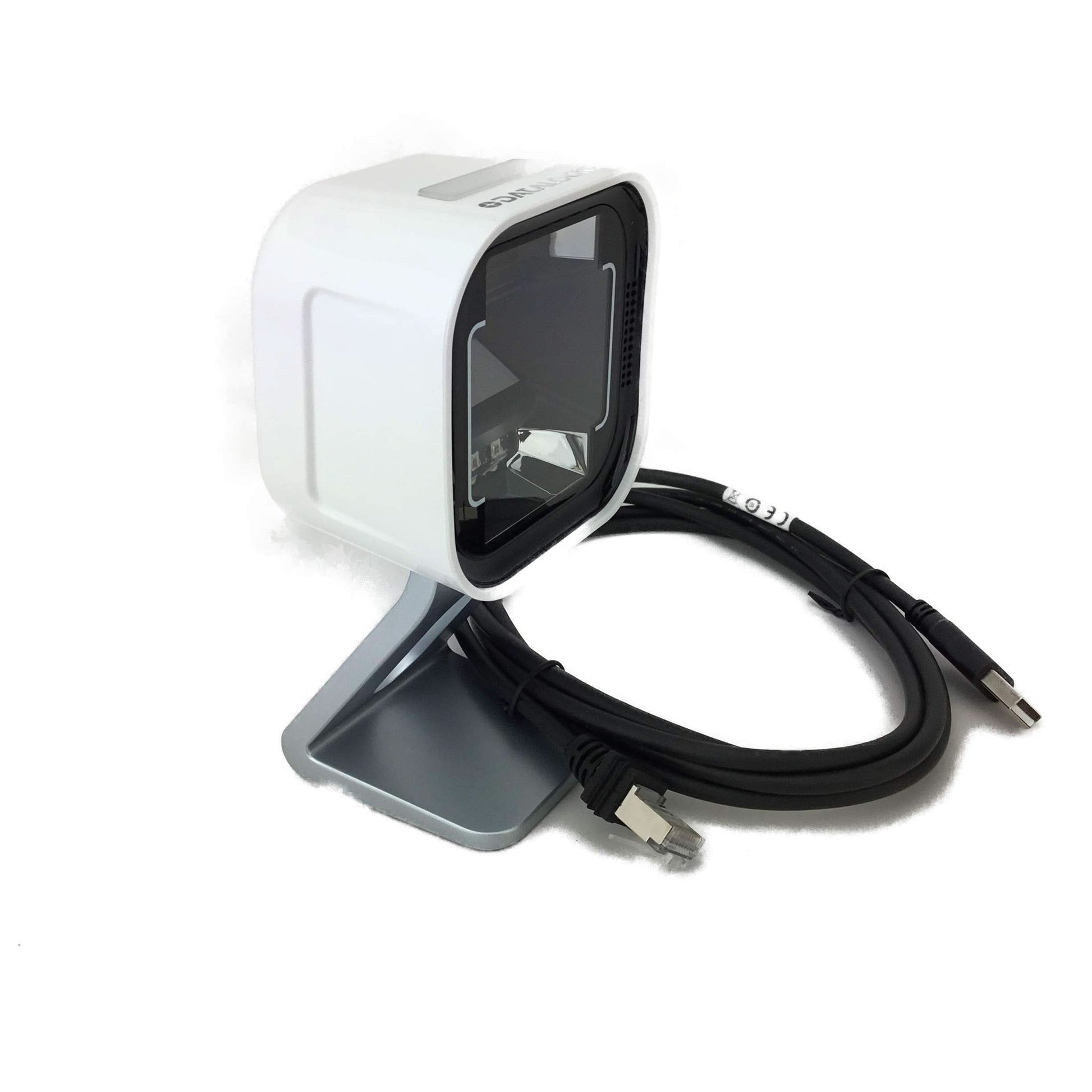

Datalogic Magellan 1500i High Performance Omnidirectional Presentation Barcode Scanner/Imager (1D and 2D) (White, USB)

Product Highlights

Seamlessly reads 1D and 2D bar codes, whether printed or displayed on mobile phone, laptop or tablets
Optional Digimarc Barcode decoding
Subtle, adaptive illumination for user comfort
Adjustable stand, Compact, ergonomic design is ideal for hands-free or hand held operations
Datalogic’s ‘Green Spot’ technology for good-read feedback

Overview
Specifications
FAQ
User Guides

The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The addition of Digimarc? Barcodes watermark decoding makes this a uniquely capable scanner in the presentation category.

The Magellan 1500i uses a high performance megapixel sensor and custom optics to create a large reading area capable of reading at distances up to 25 cm and with 1D sweep speeds up to 1.5 m/s. Powerful decoding algorithms provide unmatched performance on a variety of 1D and 2D labels, including hard-to-read, truncated and damaged codes. The large reading area and sweep performance of the Magellan 1500i scanner makes scanning easy and intuitive even for novice users. The consistent, comfortable illumination enables seamless reading of 1D and 2D bar codes from printed or mobile sources while reducing reflection and eliminating flickering that can cause operator discomfort.

Seamlessly reads 1D and 2D bar codes, whether printed or displayed on mobile phone, laptop or tablets
Optional Digimarc Barcode decoding
Subtle, adaptive illumination for user comfort
Adjustable stand, Compact, ergonomic design is ideal for hands-free or hand held operations
Datalogic’s ‘Green Spot’ technology for good-read feedback

Seamlessly reads 1D and 2D bar codes, whether printed or displayed on mobile phone, laptop or tablets

General Specifications

Model: Magellan 1500i
Type: High-Performance Omnidirectional Presentation Scanner
Color: White
Connection: USB (Keyboard, USB COM, OEM USB)

Performance

Scan Technology: Digital Imaging
Supported Codes:

1D/Linear: All standard 1D codes including GS1 DataBar
2D Codes: QR Code, Data Matrix, Aztec, MaxiCode
Stacked Codes: PDF417, Micro PDF417, GS1 DataBar Stacked
Postal Codes: IMB, Royal Mail, Japan Post, Australian Post, and more
Optional: Digimarc® Barcode decoding

Image Sensor: 1 Megapixel (1280 × 800 pixels)
Print Contrast: Minimum 25%
Reading Angles:

Pitch: ±65°
Roll: 0–360°
Skew: ±75°

Depth of Field (Typical):

5 mil Code: 2.5–9.0 cm (0.9–3.5 in)
13 mil UPC: 0–25 cm (0–9.8 in)
20 mil Code: 1.0–30.0 cm (0.4–11.8 in)

Features

Good-Read Feedback: Datalogic Green Spot & Good Read LED
Aiming: LED Aimer for precision
Adaptive Illumination: Automatic adjustment for operator comfort
Hands-Free and Handheld Operation: Compact and ergonomic
Image Capture: JPEG, BMP format support
Checkpoint® EAS Compatible
Remote Management and Configuration via Scanalyzer

Electrical

Input Voltage: 5 VDC ± 10%
Operating Current: <500 mA
Standby Current: <300 mA

Environmental

Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5%–95% non-condensing
Ambient Light Immunity: 0–86,100 lux
Drop Resistance: Withstands repeated drops from 1.2 m (4 ft) onto concrete
Sealing: IP52

Physical Characteristics

Dimensions:

Tilting Riser: 6.0 × 7.5 × 13.8 cm (2.4 × 3.0 × 5.4 in)
Fixed Riser: 6.0 × 7.5 × 10.6 cm (2.4 × 3.0 × 4.2 in)
Wall Mount: 6.0 × 7.5 × 8.4 cm (2.4 × 3.0 × 3.3 in)

Weight:

Tilting Stand: 240 g (8.5 oz)
Fixed Riser: 164 g (5.8 oz)
Wall Mount: 170 g (6 oz)

📥 Download Product Manual (PDF)

What types of barcodes can the Magellan 1500i scan?
The Magellan 1500i can scan both 1D and 2D barcodes, including QR codes, Data Matrix, Aztec, and MaxiCode. It also supports Digimarc® Barcode decoding, making it versatile for various applications.

Does the scanner work with mobile device screens?
Yes, it seamlessly reads barcodes from printed materials as well as digital screens like smartphones and tablets, ensuring flexibility in different environments.

What is the scanning range and speed?
The scanner has a reading range of up to 25 cm and supports 1D sweep speeds up to 1.5 m/s, facilitating quick and efficient scanning.

What are the key features of the Magellan 1500i?

Adaptive Illumination: Adjusts lighting automatically to reduce eye strain and improve scanning accuracy.
Motionix™ Technology: Detects motion to switch between handheld and presentation modes seamlessly.
Green Spot Technology: Provides visual confirmation of successful scans.
Compact Design: Small footprint suitable for limited counter spaces.

Is the scanner durable for retail environments?
Yes, it has an IP52 rating, offering protection against dust and water, and can withstand multiple drops from up to 1.2 meters, ensuring reliability in demanding settings. Datalogic

How do I set up the Magellan 1500i?
Simply connect the scanner to your computer using the provided USB cable. It is designed for plug-and-play operation, requiring no additional drivers for most systems. Cleverence+1Manua.ls+1

Can the scanner be mounted or used hands-free?
Yes, it comes with a tilting stand and magnetic base, allowing for flexible mounting options and hands-free operation.
