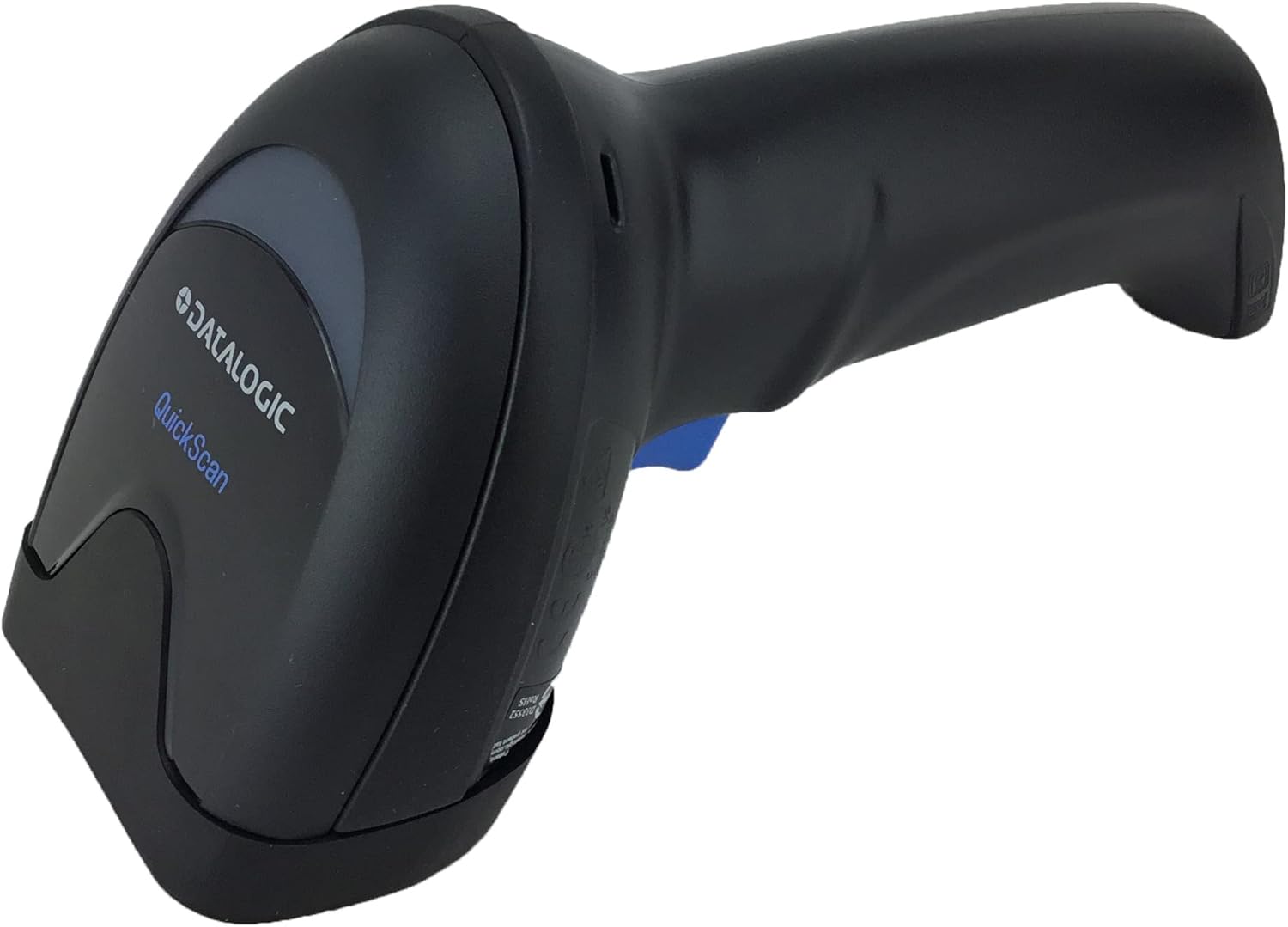

Datalogic QuickScan QD2590 Corded Handheld Omnidirectional Area Imager/Barcode Scanner

Name: Datalogic QuickScan QD2590 Corded Handheld Omnidirectional Area Imager/Barcode Scanner
Brand: EpicRise
SKU: DTL-SCA-QD2590-NEW
Price: 92.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

Omnidirectional reading for 1D, 2D, postal codes, stacked and composite bar codes, dot codes and Digital Watermark codes
Datalogic LED-based technology with extreme precision aiming system
Datalogic’s ‘Green Spot’ technology for superior good-read feedback
Motionix patented motion-sensing technology for seamless reading mode transitions
Multi-interface options: RS-232 / USB / Keyboard Wedge, including USB-C

Overview
Specifications
FAQ
User Guides

The Datalogic QuickScan QD2590 is a high-performance corded handheld barcode scanner designed for omnidirectional reading of 1D, 2D, postal, stacked, composite, dot, and Digital Watermark codes. It features Datalogic’s advanced LED-based technology with an extremely precise aiming system and the patented ‘Green Spot’ for clear good-read feedback. With Motionix™ motion-sensing technology, it automatically switches between handheld and presentation modes. The scanner also supports multiple interface options, including RS-232, USB, Keyboard Wedge, and USB-C for flexible integration.

Omnidirectional reading for 1D, 2D, postal codes, stacked and composite bar codes, dot codes and Digital Watermark codes
Datalogic LED-based technology with extreme precision aiming system
Datalogic’s ‘Green Spot’ technology for superior good-read feedback
Motionix patented motion-sensing technology for seamless reading mode transitions
Multi-interface options: RS-232 / USB / Keyboard Wedge, including USB-C

Omnidirectional reading for 1D, 2D, postal codes, stacked and composite bar codes, dot codes and Digital Watermark codes

General Specifications

Model: QuickScan QD2590
Type: Corded Handheld 2D Area Imager
Connectivity: RS-232 / USB / Keyboard Wedge Multi-Interface (USB-C available)

Performance

Scan Technology: 1 Megapixel Image Sensor (1280 × 800 pixels)
Light Source:

Aiming: Dual Blue LEDs (470 nm)
Illumination: Red LED (617 nm)

Supported Symbologies:

1D/Linear codes
2D codes: QR Code, Data Matrix, Aztec, Micro QR, MaxiCode, Dotcode
Postal Codes: USPS, Royal Mail, Japan Post, and others
Stacked Codes: PDF417, MicroPDF417
Digital Watermarking: Digimarc® Barcodes

Motion Tolerance: 30 inches per second (IPS)
Print Contrast Ratio: Minimum 15%
Image Capture: BMP, JPEG, TIFF formats supported

Resolution

1D Linear Codes: 3 mils
PDF417: 3 mils
Data Matrix: 5 mils
QR Code: 6.7 mils

Reading Ranges (Typical)

Code 39 (5 mils): 0.5 to 25.0 cm (0.2 to 9.8 in)
Code 39 (10 mils): 0.5 to 38.0 cm (0.2 to 14.9 in)
Data Matrix (10 mils): 0.5 to 21.5 cm (0.2 to 8.5 in)
EAN/UPC (13 mils): 0.5 to 41.0 cm (0.2 to 16.1 in)
QR Code (20 mils): 0 to 37.0 cm (0 to 14.6 in)

Physical Characteristics

Dimensions: 14.8 × 6.8 × 12.6 cm (5.8 × 2.7 × 4.96 in)
Weight: 145 g (5.1 oz)
Colors Available: Black, White

Electrical

Operating Current: <450 mA @ 5V
Standby Current: <90 mA @ 5V
Input Voltage: 5 VDC

Environmental

Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 0% to 95% RH, non-condensing
Drop Resistance: Withstands drops from 1.5 meters (5 ft) onto concrete
Sealing: IP52 rating
Ambient Light Immunity: 0–100,000 lux

Features

Aimer: Extreme precision dual-blue LED aimer
Green Spot Technology: Visual good-read feedback
Motionix™ Technology: Motion-sensing for automatic mode switching
Omnidirectional Reading
Aladdin™ 3.0 Software: Easy scanner configuration

📥 Download Product Manual (PDF)

What types of barcodes can the QD2590 scan?
The QD2590 can read all standard 1D and 2D barcodes, including QR codes, Data Matrix, Aztec, PDF417, postal codes, stacked and composite barcodes, dot codes, and digital watermark codes.

Is the scanner omnidirectional?
Yes, it features omnidirectional scanning, allowing barcodes to be read from any angle without needing precise alignment.

What is the sensor resolution of the QD2590?
It has a 1-megapixel (1280 x 800 pixels) sensor, providing high-resolution scanning for various barcode types.

What interfaces does the QD2590 support?
The scanner supports USB, RS-232, and Keyboard Wedge interfaces, including USB Type-C connectivity.

Does the QD2590 have any visual indicators for successful scans?
Yes, it features Datalogic’s patented Green Spot technology, which projects a green dot on the barcode upon a successful read.

What is the durability rating of the QD2590?
The scanner has an IP52 rating for dust and water resistance and can withstand multiple drops from 1.5 meters (5 feet) onto concrete.

What are the physical dimensions and weight of the scanner?
The QD2590 measures 148 mm (width) x 68 mm (height) x 126 mm (depth) and weighs 145 grams.

What is the operating temperature range?
It operates within a temperature range of 0°C to 50°C (32°F to 122°F).

Does the scanner support hands-free operation?
Yes, it can be used with an optional stand for hands-free scanning, and it utilizes Motionix™ motion-sensing technology to switch between handheld and presentation modes automatically.
