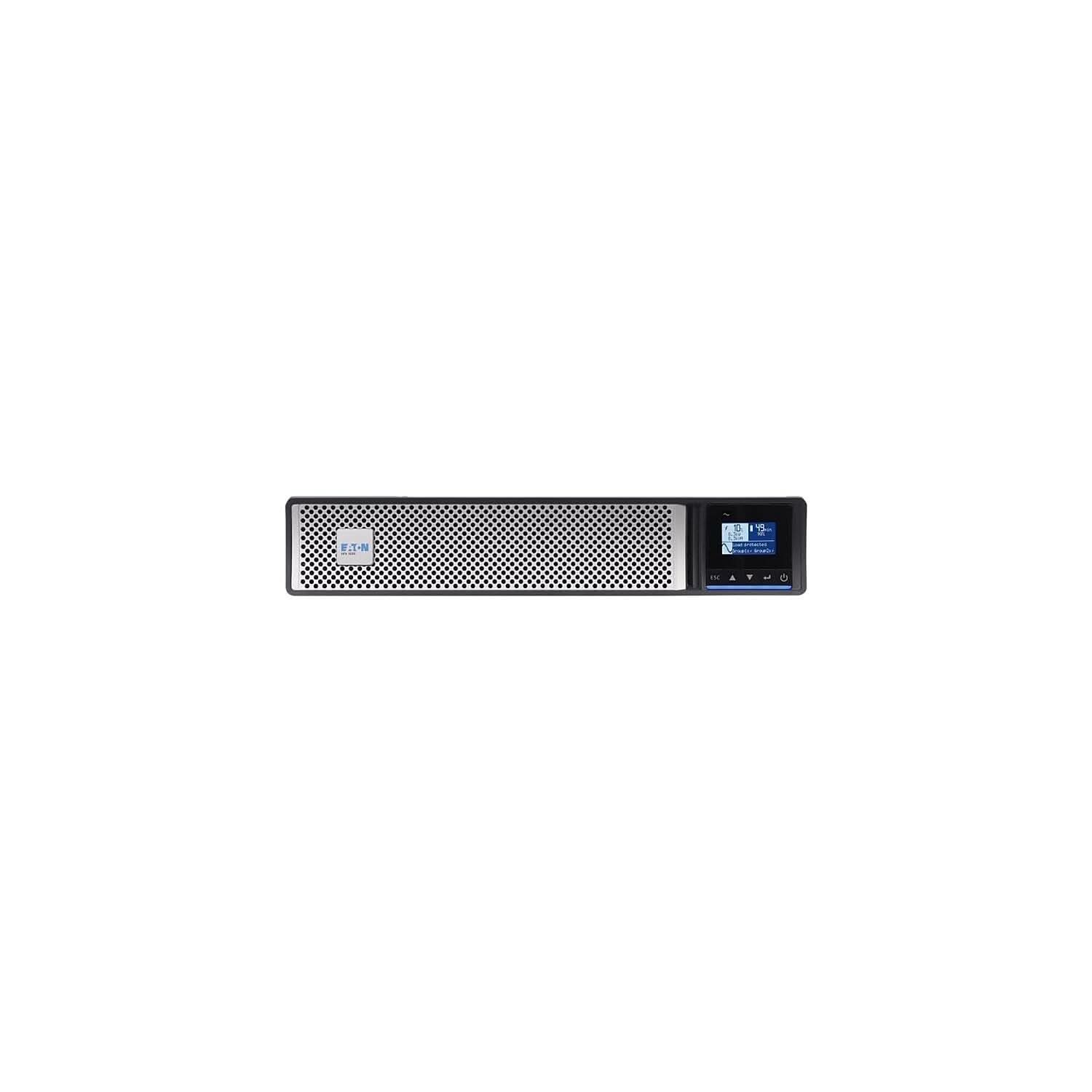

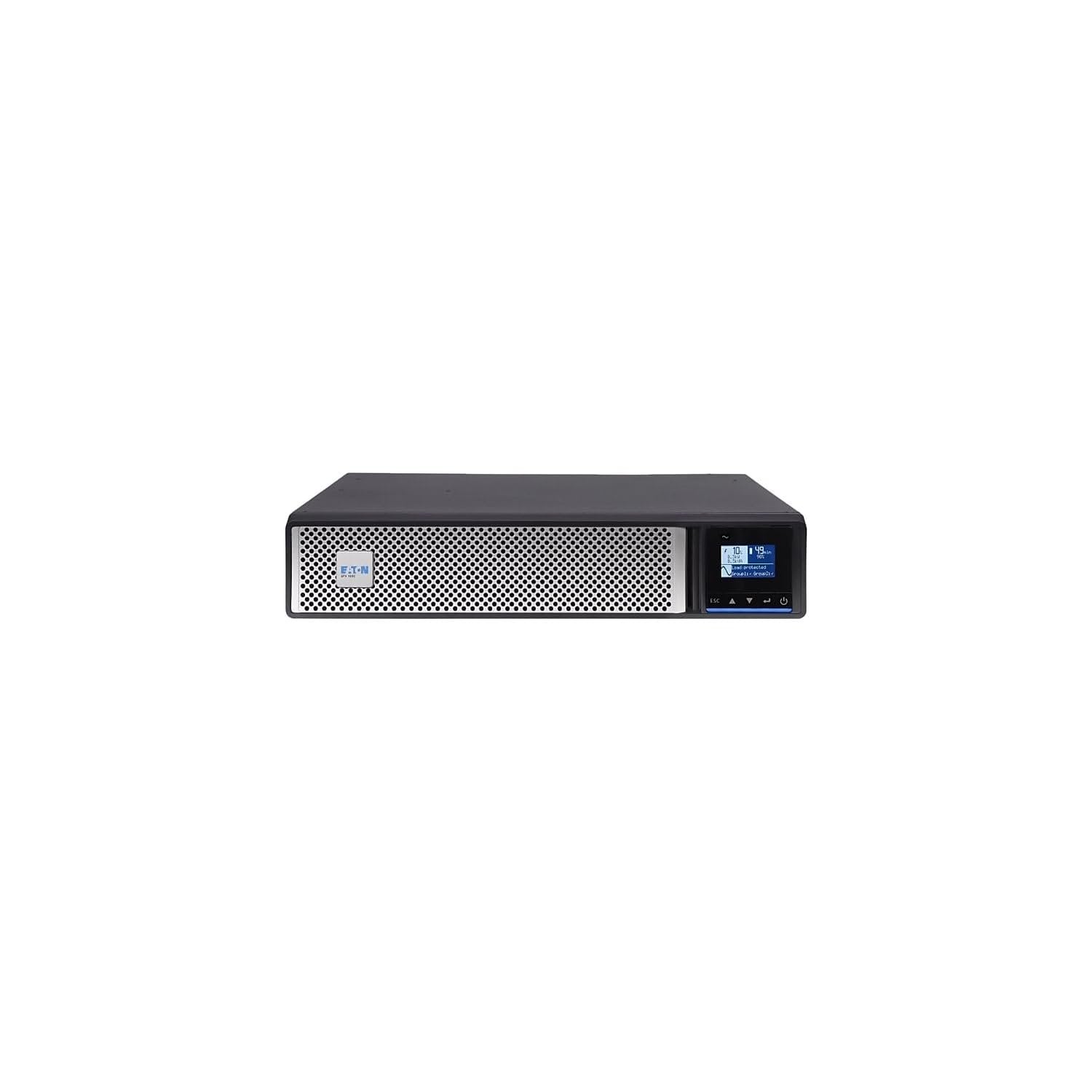

Eaton 5PX G2 1000VA 1000W 120V Line-Interactive UPS - 8 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower

Name: Eaton 5PX G2 1000VA 1000W 120V Line-Interactive UPS - 8 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, 2U Rack/Tower
Rating: 4.5 (2 reviews)

Brand Eaton

Model Number 5PX1000RTG2

UPC 743172105677

EpicRise Warranty First Year

Product Highlights

• 【Full Power Output】: Gives you the full power you expect with no extra compromise.

• 【Energy Saving Design】: Helps lower energy use and running costs.

• 【Eight Protected Outlets】: Supports multiple devices from one UPS.

• 【Remote Monitoring Ready】: Easy to upgrade for remote system management.

• 【Rack or Tower Use】: Fits easily in either rack or tower setups.

Overview
Specifications
FAQ
User Guides
Reviews

The Eaton 5PX1000RTG2 is a second-generation 1000VA/1000W 2U line-interactive UPS with a unity (1.0) power factor, ENERGY STAR 2.0 certification, and Mini-Slot expansion support. Its line-interactive topology with automatic voltage regulation (AVR) corrects voltage sags and surges without switching to battery, while the 1.0 power factor ensures the full rated watt output is available for connected loads.

Measuring 3.4” H x 17.2” W x 17.6” D and weighing 44.5 lbs, the 5PX1000RTG2 fits standard 19” racks in 2U and can convert to tower orientation. Eight NEMA 5-15R receptacles and a Mini-Slot bay for optional network management cards round out a feature set aimed at IT teams requiring efficient, manageable rack UPS protection.

Best For:

Server rack deployments requiring 1000VA/1000W line-interactive UPS with ENERGY STAR 2.0 compliance

- IT teams standardizing on Eaton 5PX Gen 2 for SNMP monitoring via NETWORK-M2 or INDGW-M2

- Green purchasing programs requiring ENERGY STAR certified UPS equipment

- Rack environments where unity power factor maximizes usable watts from a 1000VA unit

- Mixed rack/tower deployments where installation flexibility is required

Key Features:

Line-interactive topology with automatic voltage regulation (AVR)

- 1000VA / 1000W, 1.0 power factor

- Input: NEMA 5-15P, 120V

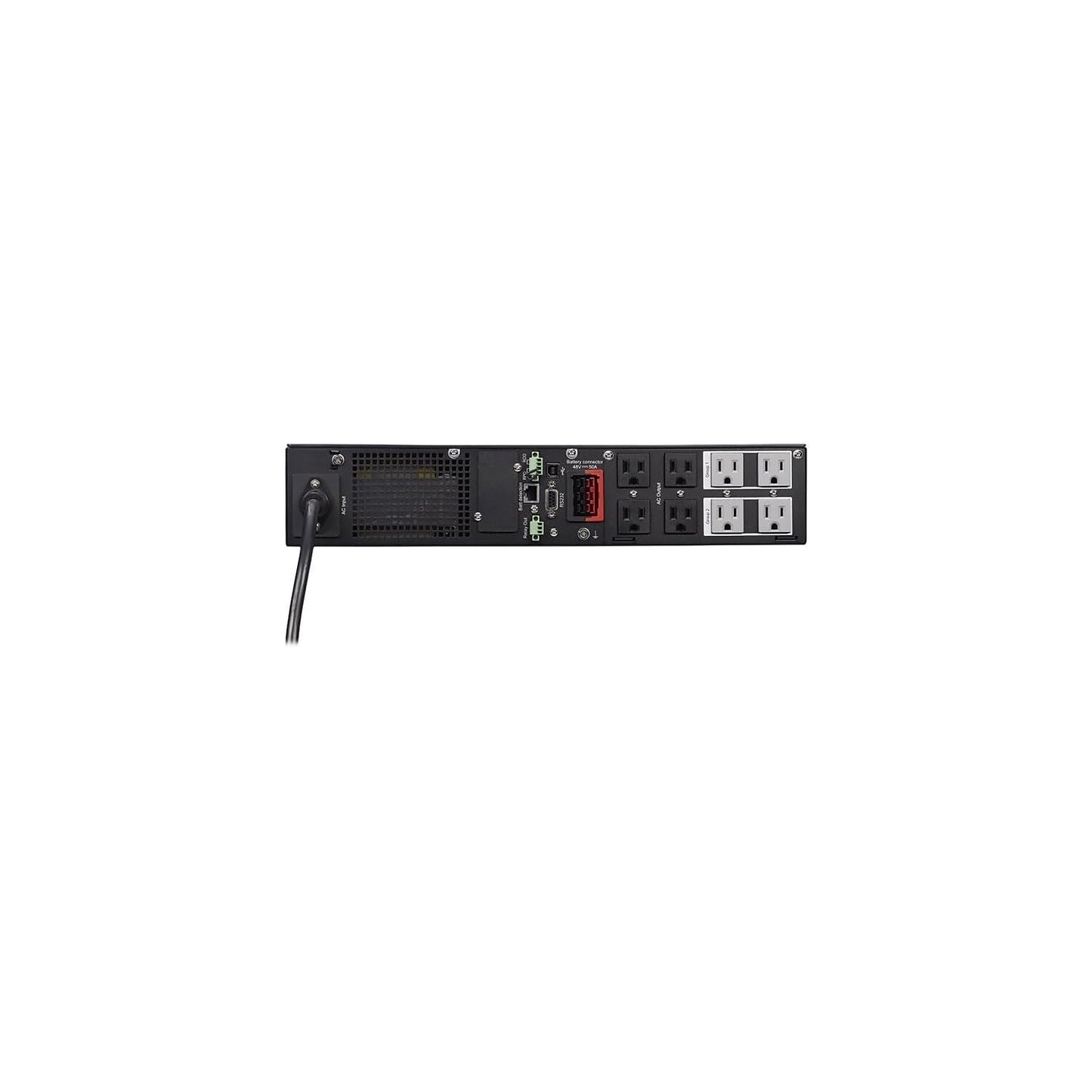

- Output: (8) NEMA 5-15R battery-backed receptacles

- Runtime: ~6 min at full load (1000W); ~17 min at half load (~500W)

- ENERGY STAR 2.0 certified

- 2U rack/tower convertible form factor

- Dimensions: 3.4” H x 17.2” W x 17.6” D

- Weight: 44.5 lbs

- Mini-Slot bay for optional network management card

- Eaton model: 5PX1000RTG2

Quick Specs:

Model: 5PX1000RTG2

- Capacity: 1000VA / 1000W

- Topology: Line-Interactive with AVR

- Power Factor: 1.0

- Input: NEMA 5-15P, 120V

- Output: (8) NEMA 5-15R

- Runtime: ~6 min (full) / ~17 min (half load)

- Certification: ENERGY STAR 2.0

- Form Factor: 2U Rack/Tower

- Dimensions: 3.4” H x 17.2” W x 17.6” D

- Weight: 44.5 lbs

- Communication: USB, Serial, Mini-Slot

Product Details
Color	Black, Silver

What is the power factor of the 5PX1000RTG2?

1.0 (unity power factor) — the full 1000VA rating translates to 1000W of available output power, with no derating.

What is the runtime at full load?

Approximately 6 minutes at full load (1000W) and approximately 17 minutes at half load (~500W) from internal batteries.

Does the 5PX1000RTG2 support network management cards?

Yes. The Gen 2 platform includes a Mini-Slot bay for optional Eaton network management cards including the NETWORK-M2 (SNMP/web) and INDGW-M2 (industrial protocols/cybersecurity certified).

Is this UPS ENERGY STAR certified?

Yes. The 5PX1000RTG2 is ENERGY STAR 2.0 certified for high-efficiency UPS operation.

How does the 5PX1000RTG2 differ from the 5P1000R?

The 5PX1000RTG2 is 2U (vs. 1U for the 5P1000R), has a 1.0 power factor (vs. ~0.77 for the 5P1000R), includes ENERGY STAR 2.0 certification, and adds a Mini-Slot expansion bay for network management cards. The 5P1000R has a smaller footprint but fewer features.

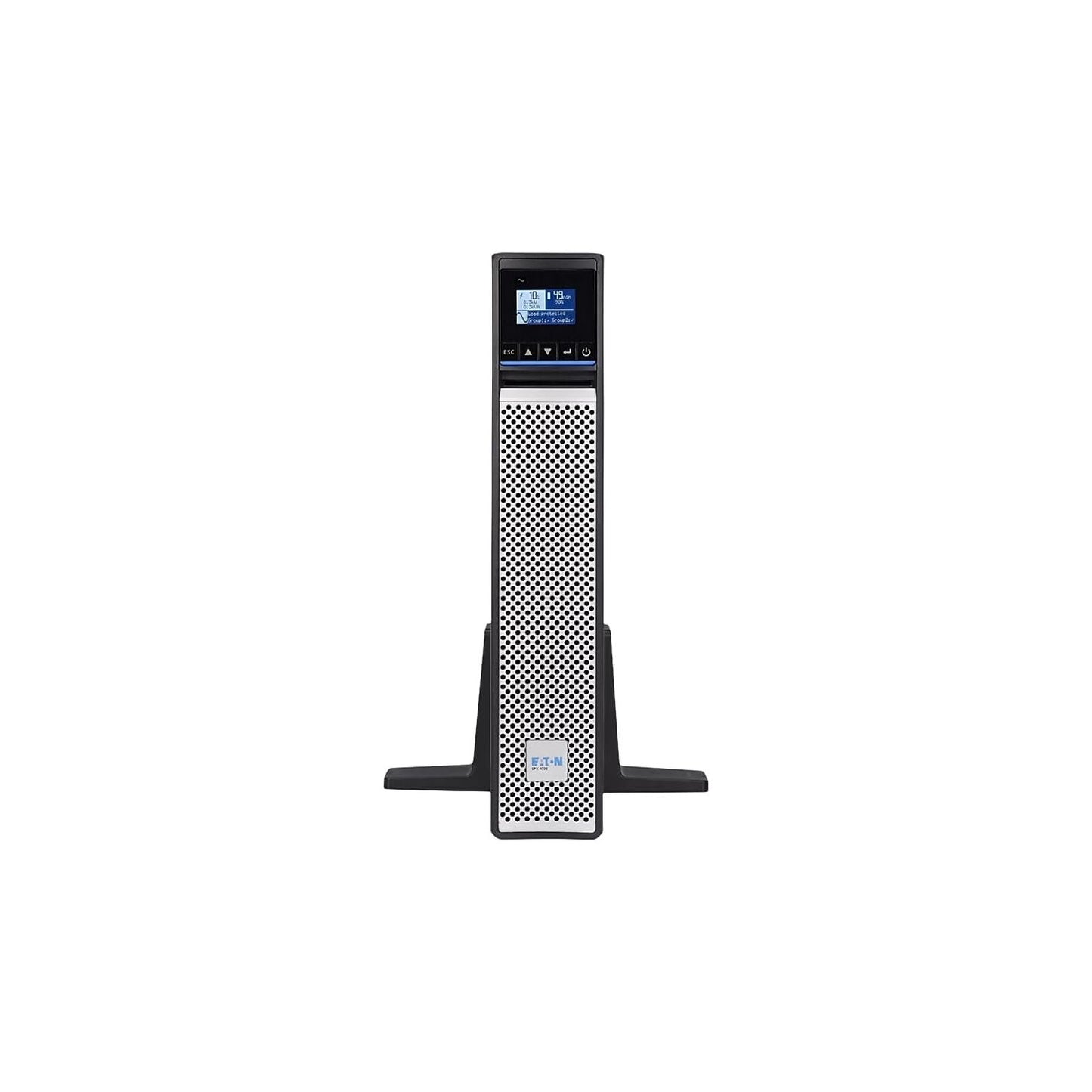

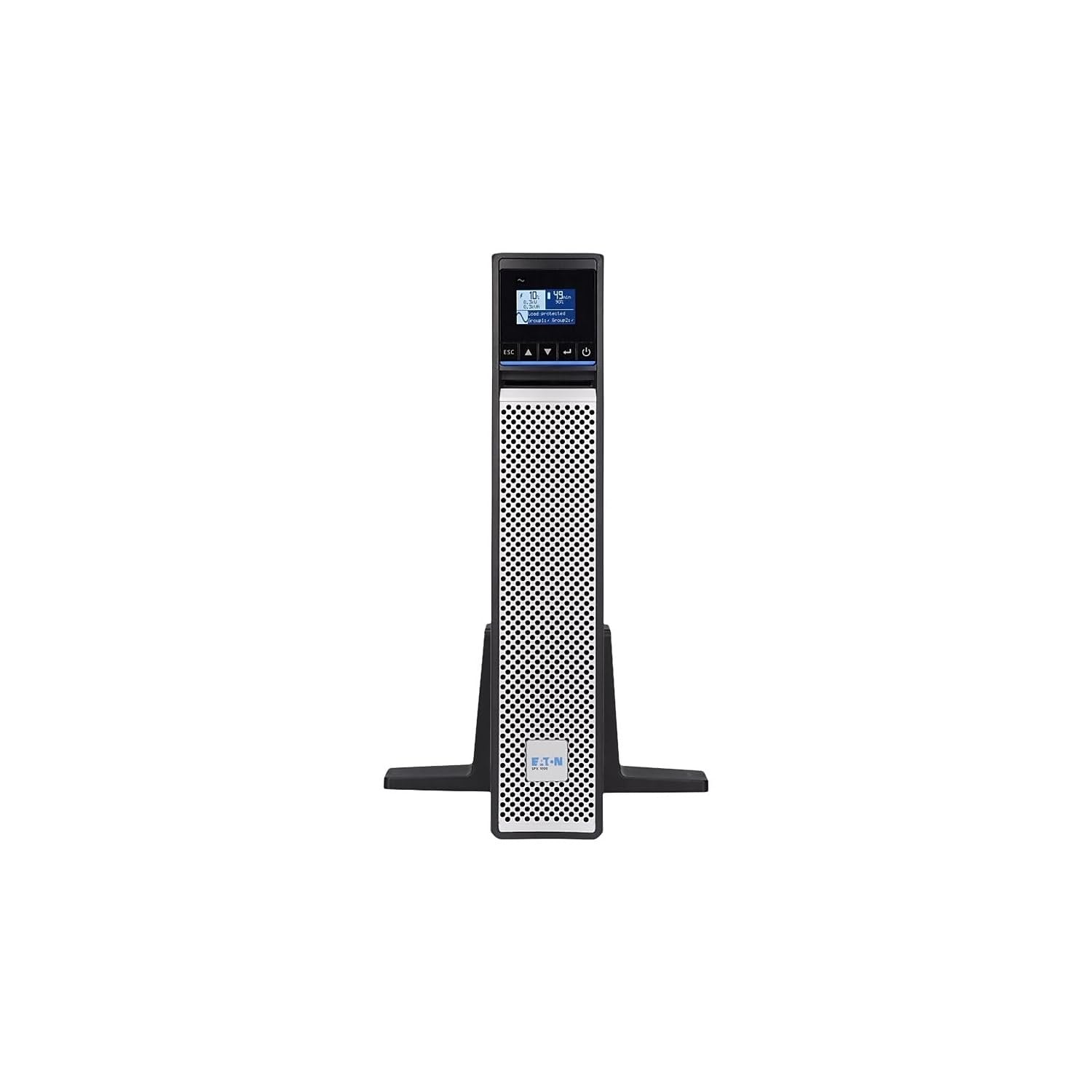

Can the 5PX1000RTG2 be used as a tower?

Yes. It ships with rack hardware for 2U installation but can also be deployed as a tower on a floor or shelf.
