Eaton EMPDT1H1C2 Environmental Monitoring Probe

Name: Eaton EMPDT1H1C2 Environmental Monitoring Probe
Brand: Eaton
SKU: EAT-UPS-744-A4026 EMPDT1H1C2-NEW
Price: 168.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• [Temperature and Humidity Monitoring]: Integrated sensors simultaneously measure ambient temperature and relative humidity — providing environmental data for UPS, server room, and data center monitoring systems.

• [2 Dry-Contact I/O Ports]: Two general-purpose dry-contact inputs/outputs support connection of external sensors (door alarms, water leak detectors, smoke sensors) or relay outputs for third-party integration.

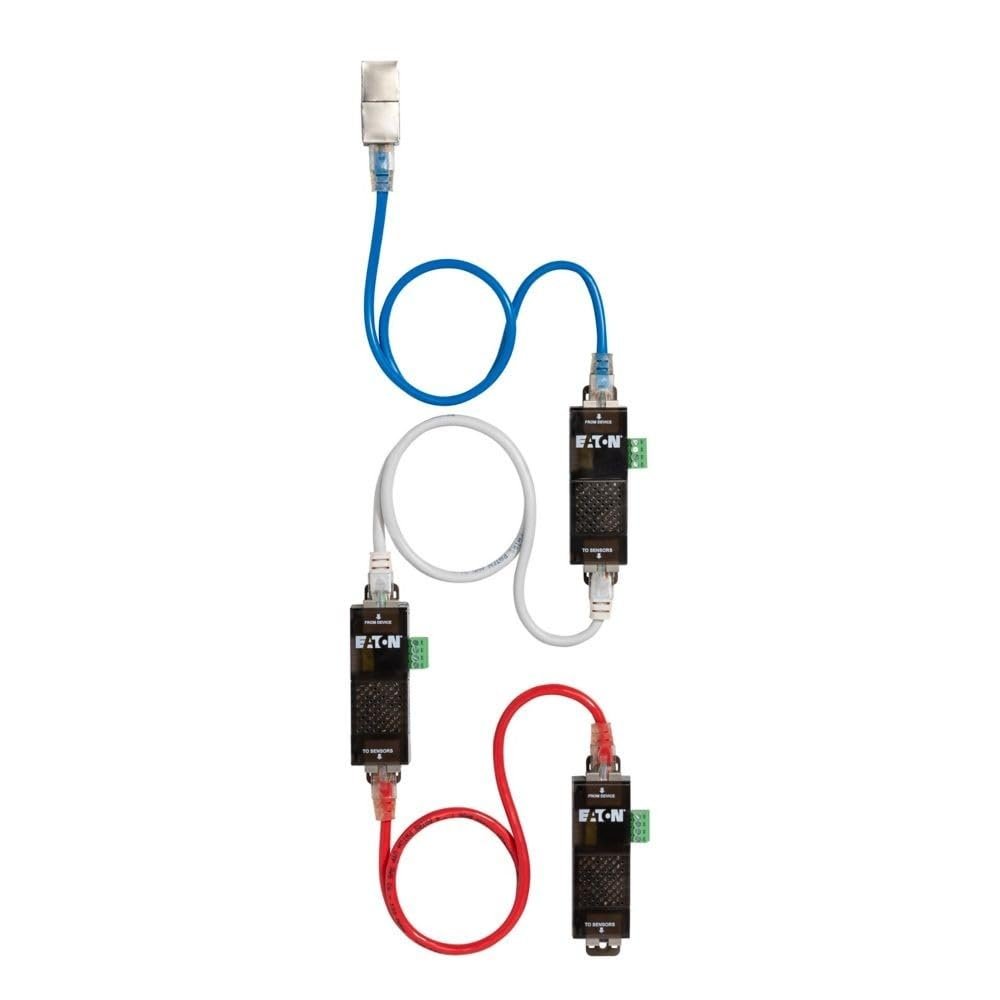

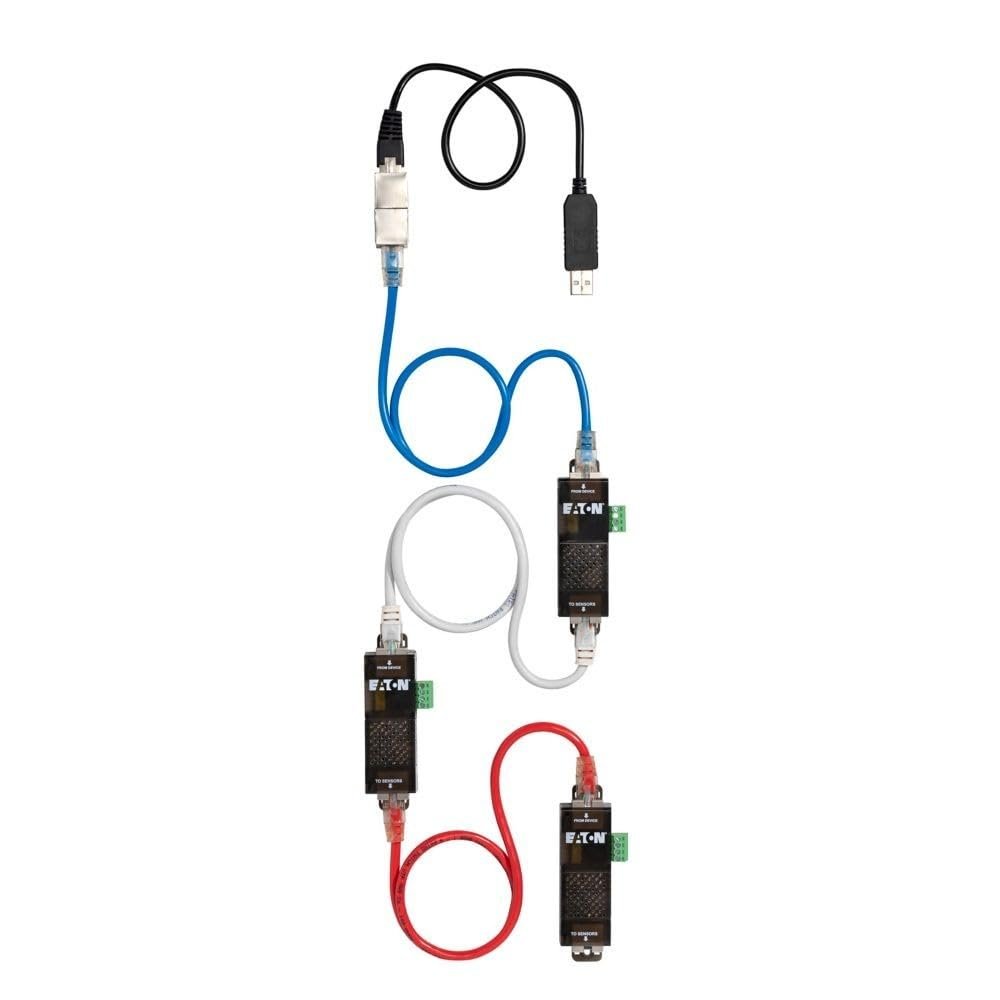

• [Daisy-Chain Up to 3 Units]: RJ45 interface supports daisy-chaining of up to three EMP probes from a single network management card port, expanding environmental coverage without additional network ports.

• [Compact Plug-In Design]: At 2.26” x 1.48” x 1.15” and 1.19 oz, the probe installs directly in data center racks, UPS enclosures, or equipment rooms without requiring separate mounting hardware.

• [Eaton IPM and NETWORK-M2 Compatible]: Works with Eaton Intelligent Power Manager software and NETWORK-M2 / compatible Gigabit network management cards for centralized environmental and power monitoring.

Overview
Specifications
FAQ
User Guides
Reviews

The Eaton EMPDT1H1C2 Environmental Monitoring Probe Gen 2 adds temperature, humidity, and dry-contact I/O sensing to Eaton UPS systems equipped with compatible network management cards. It connects via RJ45 to Eaton Gigabit network cards and supports daisy-chaining of up to three probes per card, allowing environmental monitoring at multiple points in a rack or room from a single management connection.

Two dry-contact I/O ports extend the probe’s utility beyond temperature and humidity, enabling integration with external alarm devices such as door contacts, water leak sensors, and smoke detectors. Data is accessible through Eaton Intelligent Power Manager (IPM) and compatible SNMP/web management platforms.

Best For:

- Data center and server room environmental monitoring alongside Eaton UPS systems

- Rack-level temperature and humidity tracking for compliance and capacity planning

- Integration of door alarms, water sensors, or smoke detectors into UPS monitoring systems

- Facilities requiring multi-point environmental monitoring from a single network card port

- Eaton IPM deployments needing environmental sensor data alongside power metrics

Key Features:

-Integrated temperature and relative humidity sensors

- 2 dry-contact I/O ports for external sensor/relay integration

- RJ45 interface with daisy-chain support (up to 3 probes per host card)

- Compatible with Eaton NETWORK-M2 and compatible Gigabit network management cards

- Compatible with Eaton Intelligent Power Manager (IPM)

- Compact: 2.26” W x 1.48” H x 1.15” D

- Weight: 1.19 oz

- Eaton part number: EMPDT1H1C2 (A4026)

Quick Specs:

- Part Number: EMPDT1H1C2 (A4026)

- Sensors: Temperature, Relative Humidity

- Dry-Contact I/O: 2 ports

- Interface: RJ45

- Daisy-Chain: Up to 3 probes per host

- Compatible Cards: Eaton NETWORK-M2 and compatible Gigabit network management cards

- Compatible Software: Eaton Intelligent Power Manager (IPM)

- Dimensions: 2.26” W x 1.48” H x 1.15” D

- Weight: 1.19 oz

General Specifications
Brand	Eaton
Model No.	EMPDT1H1C2

Product Details
Color	Multicolor

Q: What environmental parameters does the EMPDT1H1C2 measure?

A: Temperature and relative humidity simultaneously.

Q: How many probes can be connected to one network management card?

A: Up to three EMPDT1H1C2 probes can be daisy-chained from a single RJ45 port on a compatible Eaton network management card.

Q: What are the dry-contact I/O ports used for?

A: The two dry-contact ports can connect external sensors (door contacts, water leak detectors, smoke alarms) or relay outputs, allowing their status to be monitored through the UPS management interface.

Q: Which Eaton network cards are compatible?

A: The EMPDT1H1C2 is compatible with the Eaton NETWORK-M2 and other compatible Eaton Gigabit network management cards. Consult Eaton’s compatibility list for your specific card model.

Q: Is the EMPDT1H1C2 compatible with Eaton Intelligent Power Manager?

A: Yes. Environmental data from the probe is accessible through Eaton IPM for centralized monitoring and alarming.

Q: Does the probe require external power?

A: The EMPDT1H1C2 is powered through the RJ45 connection to the host network management card — no separate power supply is required.
