ENERPAC GA-3 20532 GAUGE ADAPTOR, 1/4" NPTF Gauge Port, 3/8" NPTF Male × 3/8" NPTF Female Inline, 10,000 psi Max, 5.25 in Length

Name: ENERPAC GA-3 20532 GAUGE ADAPTOR, 1/4" NPTF Gauge Port, 3/8" NPTF Male × 3/8" NPTF Female Inline, 10,000 psi Max, 5.25 in Length
Brand: Enerpac
SKU: EPC-IND-GA3-NEW
Price: 118.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• [Inline Gauge Port]: Adds easy pressure checking right in the hydraulic line.

• [High Pressure Ready]: Built to handle tough high-pressure work.

• [Three-Port Design]: Connects easily with the hose, system, and pressure gauge.

• [No Line Changes]: Lets you add pressure monitoring without changing the main line.

• [Compact Size]: Fits more easily into tight hydraulic setups.

Overview
Specifications
FAQ
User Guides
Reviews

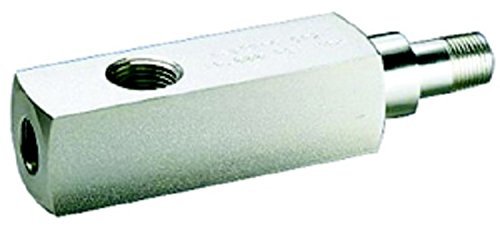

The Enerpac GA-3 is a hydraulic gauge adaptor that installs inline in a 3/8 NPTF hydraulic circuit, providing a dedicated 1/4" NPTF side port for mounting a pressure gauge without interrupting the main hydraulic line. The 3/8" NPTF male end connects directly to a hydraulic cylinder or pump; the 3/8" NPTF female end accepts a standard Enerpac hydraulic hose — allowing the GA-3 to drop into existing setups without adapters or line modifications.

Rated to 10,000 psi (700 bar), the GA-3 is compatible throughout the Enerpac RC, RCH, RSM, and P-series tooling ecosystem. Its 5.25 in (133 mm) overall length and 1.38 in (35 mm) body width suit production and field maintenance environments where monitoring live system pressure is required during pressing, lifting, or bolting operations.

Best For:

- Adding pressure gauge monitoring to an Enerpac hydraulic circuit without breaking the main hydraulic line

- Field and shop monitoring of live system pressure during cylinder advance and hold operations

- Any 10,000 psi Enerpac setup requiring inline gauge access at the cylinder or pump port

- Production environments where gauge readout is required during pressing, lifting, or bolting operations

- Retrofitting gauge capability to existing 3/8 NPTF hydraulic installations where a 1/4" NPT gauge is used

Key Features:

- 1/4" NPTF gauge port: accepts a standard 1/4" NPTF hydraulic pressure gauge (sold separately) for inline pressure monitoring at rated system pressure

- 3/8" NPTF male end: connects to a hydraulic cylinder or pump throughout the Enerpac RC, RCH, RSM, and P-series tooling range

- 3/8" NPTF female end: accepts a standard Enerpac hydraulic hose for true inline installation without modifying the circuit

- 10,000 psi (700 bar) rated: compatible with full Enerpac system pressure for sustained production and field use

- Compact inline form: 5.25 in (133 mm) overall length and 1.38 in (35 mm) body width fit in tight hydraulic circuit layouts

Quick Specs:

- Max Operating Pressure: 10,000 psi (700 bar)

- Gauge Port: 1/4" NPTF

- Male End: 3/8" NPTF

- Female End: 3/8" NPTF

- Overall Length (Dimension A): 5.25 in (133 mm)

- Body Width (Dimension B): 1.38 in (35 mm)

What's Included:

- Enerpac GA-3 hydraulic gauge adaptor

General Specifications
Brand	Enerpac
Model No.	GA3

Q: What is the GA-3 used for?

A: The GA-3 is a hydraulic gauge adaptor that installs inline in a 3/8 NPTF hydraulic circuit. It adds a 1/4" NPTF side port for mounting a pressure gauge to monitor circuit pressure without interrupting the main hydraulic line between the pump and cylinder.

Q: What threads does the GA-3 use?

A: The GA-3 has three ports: a 1/4" NPTF side port for pressure gauge connection, a 3/8" NPTF male end for connection to a hydraulic cylinder or pump, and a 3/8" NPTF female end for connection to a hydraulic hose.

Q: What is the maximum operating pressure of the GA-3?

A: The GA-3 is rated to 10,000 psi (700 bar) maximum operating pressure.

Q: Does the GA-3 include a pressure gauge?

A: No. The GA-3 is a gauge adaptor only — a compatible 1/4" NPTF pressure gauge is sold separately.

Q: What is the difference between the GA-2 and GA-3?

A: The GA-2 has a 1/2" NPTF gauge port and an overall length of 6.1 in (155 mm). The GA-3 has a 1/4" NPTF gauge port and an overall length of 5.25 in (133 mm). Both share the same 3/8" NPTF male and female ends and 10,000 psi rating.

Q: Is the GA-3 compatible with Enerpac RC-series cylinders and P-series pumps?

A: Yes. The GA-3 uses 3/8" NPTF male and female ends that are standard throughout the Enerpac RC, RCH, RSM, and P-series tooling ecosystem and compatible with standard Enerpac hydraulic hoses.

Q: What is the overall length of the GA-3?

A: The GA-3 has an overall length of 5.25 in (133 mm) with a body width of 1.38 in (35 mm).

Q: How does the GA-3 install in a hydraulic system?

A: The GA-3 installs inline between a hydraulic hose and the cylinder or pump port. The 3/8" NPTF male end threads into the cylinder or pump; the 3/8" NPTF female end accepts the hydraulic hose; the 1/4" NPTF side port accepts a pressure gauge — no line cutting or modification required.
