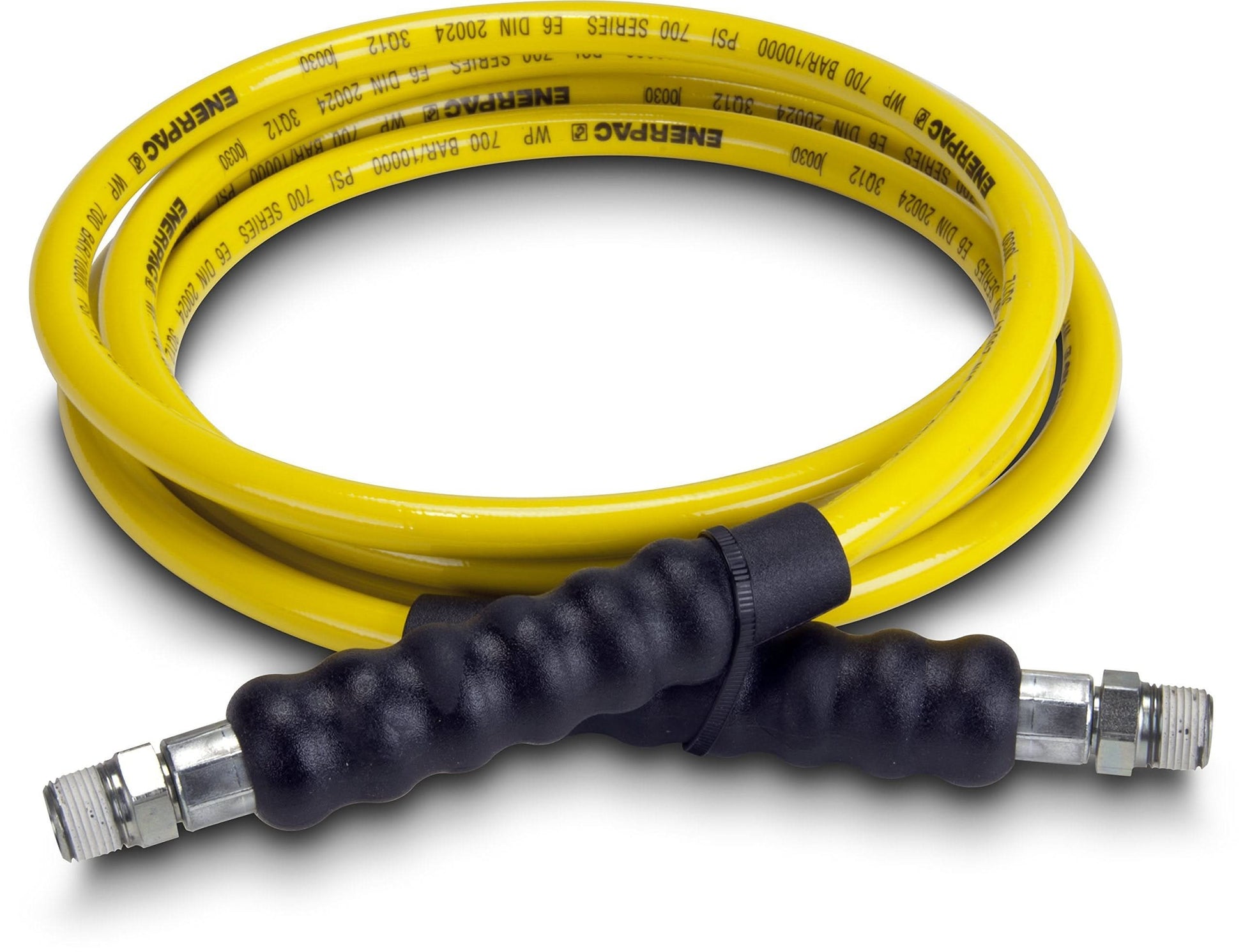

Enerpac H7210 High Pressure Hydraulic Hose, 700 Series, 10' Length, 0.25" Diameter, Yellow

Name: Enerpac H7210 High Pressure Hydraulic Hose, 700 Series, 10' Length, 0.25" Diameter, Yellow
Rating: 4.4 (2 reviews)

Delivery Time: 0-3 days

Product Highlights

• [High Pressure Ready]: Built for tough high-pressure hydraulic work.

• [Steel Reinforced]: Made stronger with durable steel wire support.

• [Wear-Resistant Cover]: Helps protect the hose in rough work areas.

• [Better Control Flow]: Helps keep hydraulic response smooth and efficient.

• [Standard End Fit]: Connects easily with matching Enerpac equipment.

Overview
Specifications
FAQ
User Guides
Reviews

The Enerpac H7210 is a 700-Series high-pressure hydraulic hose designed for demanding 10,000 psi (700 bar) applications using Enerpac single-acting and double-acting cylinders. Its 10 ft (3 m) length and 0.25 in (6.4 mm) internal diameter provide 5.89 in³ of oil capacity across the hose run. Two layers of steel wire braid covered by a thermoplastic polyurethane outer jacket deliver both pressure integrity and abrasion resistance in production and field maintenance environments.

The H7210 is rated with a 4:1 design safety factor and exhibits low volumetric expansion under pressure — supporting responsive load control and system efficiency throughout the full stroke cycle. Both end couplers are 3/8" NPTF female, matching standard Enerpac pumps, cylinders, and fittings directly.

Best For:

- Connecting Enerpac pumps to RC, RCH, RSM cylinders and hydraulic tools requiring 10 ft hose reach

- High-pressure lifting, pressing, and bolting operations at rated 10,000 psi system pressure

- Production and field environments where hose abrasion resistance is required

- Applications where low volumetric expansion supports precise cylinder positioning and control

- Replacing worn or damaged 10 ft Enerpac 700-Series hydraulic hoses in existing setups

Key Features:

- 10,000 psi (700 bar) rated with 4:1 safety factor: built for sustained high-pressure operations throughout the Enerpac tooling ecosystem

- Two-layer steel wire braid reinforcement: provides structural integrity at rated system pressure across the 10 ft hose run

- Thermoplastic polyurethane outer jacket: maximum abrasion resistance for production floor and field maintenance environments

- Low volumetric expansion: thermoplastic construction maintains responsive cylinder control under load

- 3/8" NPTF both ends: direct connection to Enerpac pumps, cylinders, and fittings — no adapters required

- 5.89 in³ oil capacity: suitable for extended stroke cylinders operating across the full 10 ft hose length

Quick Specs:

- Max Operating Pressure: 10,000 psi (700 bar)

- Safety Factor: 4:1

- Hose Length: 10 ft

- Internal Diameter: 0.25 in (6.4 mm)

- End One Coupler: 3/8" NPTF

- End Two Coupler: 3/8" NPTF

- Oil Capacity: 5.89 in³

- Series: 700 Series

- Outer Jacket: Polyurethane

- Color: Yellow

What's Included:

- Enerpac H7210 high-pressure hydraulic hose (10 ft)

General Specifications
Brand	Enerpac
Model No.	H7210

Product Details
Color	Yellow

Q: What is the maximum operating pressure of the H7210?

A: The H7210 is rated to 10,000 psi (700 bar) maximum operating pressure with a 4:1 design safety factor.

Q: What are the end connections on the H7210?

A: Both ends of the H7210 have 3/8" NPTF female couplers for direct connection to standard Enerpac pumps, cylinders, and hydraulic fittings.

Q: How long is the H7210?

A: The H7210 is 10 ft in length.

Q: What is the internal diameter of the H7210?

A: The H7210 has an internal diameter of 0.25 in (6.4 mm) and an oil capacity of 5.89 in³.

Q: What is the hose construction?

A: The H7210 uses two layers of steel wire braid reinforcement covered by a thermoplastic polyurethane outer jacket. The polyurethane sleeve provides abrasion resistance, and the thermoplastic construction minimizes volumetric expansion under pressure.

Q: What does the 4:1 safety factor mean?

A: The 4:1 design safety factor means the hose is rated to burst at four times its maximum working pressure of 10,000 psi — providing a substantial safety margin for demanding high-pressure applications.

Q: Is the H7210 compatible with Enerpac RC-series cylinders?

A: Yes. The H7210's 3/8" NPTF end couplers are compatible with standard Enerpac pumps, cylinders, and fittings throughout the RC, RCH, RSM, and P-series tooling range.

Q: What color is the H7210?

A: The H7210 hose has a yellow polyurethane outer jacket.
