Fanvil A10W SIP Mini Intercom with Dual-Band Wi-Fi for Indoor Security and Access Control

Name: Fanvil A10W SIP Mini Intercom with Dual-Band Wi-Fi for Indoor Security and Access Control
Rating: 5.0 (3 reviews)

Brand Fanvil

Model Number A10W

Manufacture Warranty 2 Years

EpicRise Warranty First Year

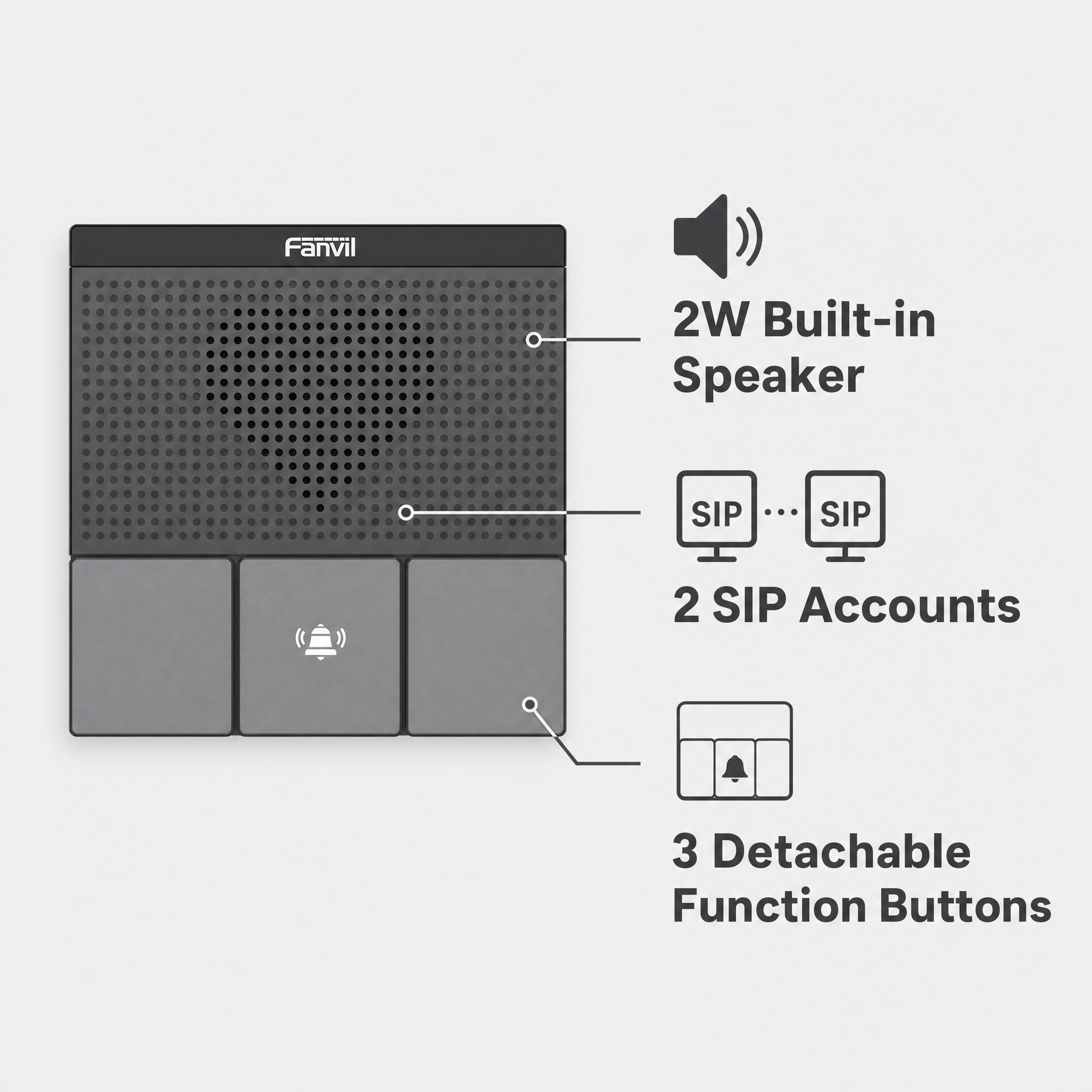

Product Highlights

• Dual-band Wi-Fi (2.4GHz and 5GHz) eliminates the need for hardwired Ethernet in wireless network environments

• IP54-rated housing protects against dust and water ingress in semi-exposed indoor locations

• 3 detachable function buttons support custom icon programming for one-touch emergency calls or door release

• HD audio with G.722 and Opus codecs plus 2W speaker and AEC deliver clear two-way communication

• Compact 3.5-inch square footprint fits standard doorways, entryways, and 86mm junction boxes

Overview
Specifications
FAQ
User Guides
Reviews

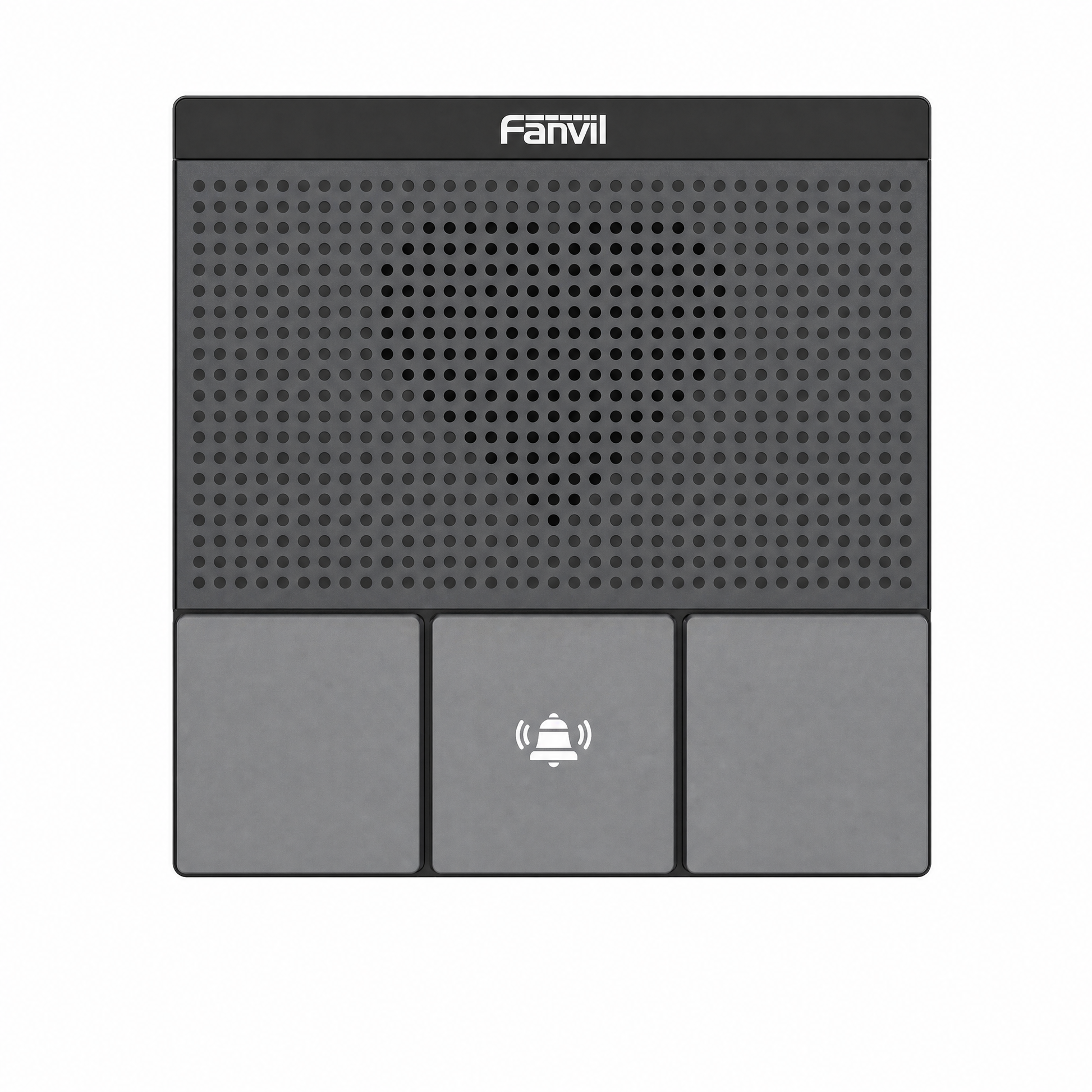

The Fanvil A10W is a SIP-based mini intercom designed for enterprise security, access control, and internal communication applications. It combines dual-band Wi-Fi connectivity with PoE support, enabling flexible deployment in locations where running Ethernet cables is impractical. The unit features three programmable buttons, HD audio processing, and an IP54-rated enclosure, making it suitable for indoor environments that require reliable two-way communication and integration with external sensors or alarm systems.

The A10W supports two SIP accounts, allowing it to register with separate VoIP platforms or function as a dedicated emergency station and general intercom simultaneously. Its compact design includes both wall-mount and flush-mount (86mm box) installation options, accommodating a variety of architectural requirements. Built-in short-circuit input and output interfaces enable connection to door locks, panic buttons, and alarm indicators for comprehensive facility management.

Best For

The Fanvil A10W is engineered for enterprise facilities requiring secure voice communication and integration with physical security systems:

- Building Access Control: Deploy at secured entry points to verify visitor identity and trigger electric door strikes through the short-circuit output interface

- Emergency Response Stations: Install in parking garages, stairwells, or loading docks with external panic buttons connected via the short-circuit input for immediate SIP-based emergency calls

- Healthcare Facilities: Mount at nurse stations or patient room entries for hands-free intercom with central monitoring desks, leveraging the IP54 rating for environments with cleaning protocols

- Educational Campuses: Place at dormitory entrances or administrative offices where wireless connectivity simplifies installation across multiple buildings

- Multi-Tenant Commercial Buildings: Integrate with property management VoIP systems for tenant-to-lobby communication without dedicated cabling infrastructure

Key Features

- Dual-band Wi-Fi (802.11 a/b/g/n on 2.4GHz and 5GHz) provides wireless SIP connectivity with WPA/WPA2-PSK and 802.1X EAP encryption

- Two SIP line registrations enable simultaneous connection to separate PBX systems or dedicated emergency hotlines

- HD audio codecs (G.722 and Opus wideband) with acoustic echo cancellation and 2W speaker ensure intelligible communication in noisy environments

- Three detachable function buttons support DSS key customization for speed dial, door release, or emergency services

- IP54 ingress protection rating guards against dust accumulation and water splashes during routine cleaning

- One short-circuit input and one short-circuit output interface connect external door sensors, panic buttons, alarm lights, or electric locks

- PoE (IEEE 802.3af) power draw of 1.99W to 3.05W eliminates the need for separate power adapters

- Auto-provisioning via SIP PnP, DHCP options, static HTTP/HTTPS, FTP, or TR-069 streamlines mass deployment across enterprise networks

Quick Specs

Model	Fanvil A10W
SIP Lines	2
Function Buttons	3 (detachable, customizable)
Audio Codecs	Narrowband: G.711a/u, G.729AB, G.723.1, G.726, iLBC Wideband: G.722, Opus
Speaker	2W built-in with AEC
Wi-Fi	2.4GHz (802.11 b/g/n) and 5GHz (802.11 a/n) Encryption: WPA/WPA2-PSK, 802.1X EAP
Ethernet	10/100Mbps RJ45
Power	PoE (IEEE 802.3af) or 12V/1A DC adapter (optional)
Power Consumption	1.99W to 3.05W
External Interfaces	1 short-circuit input, 1 short-circuit output, 1 RS485
Ingress Protection	IP54 (dust and water splash resistant)

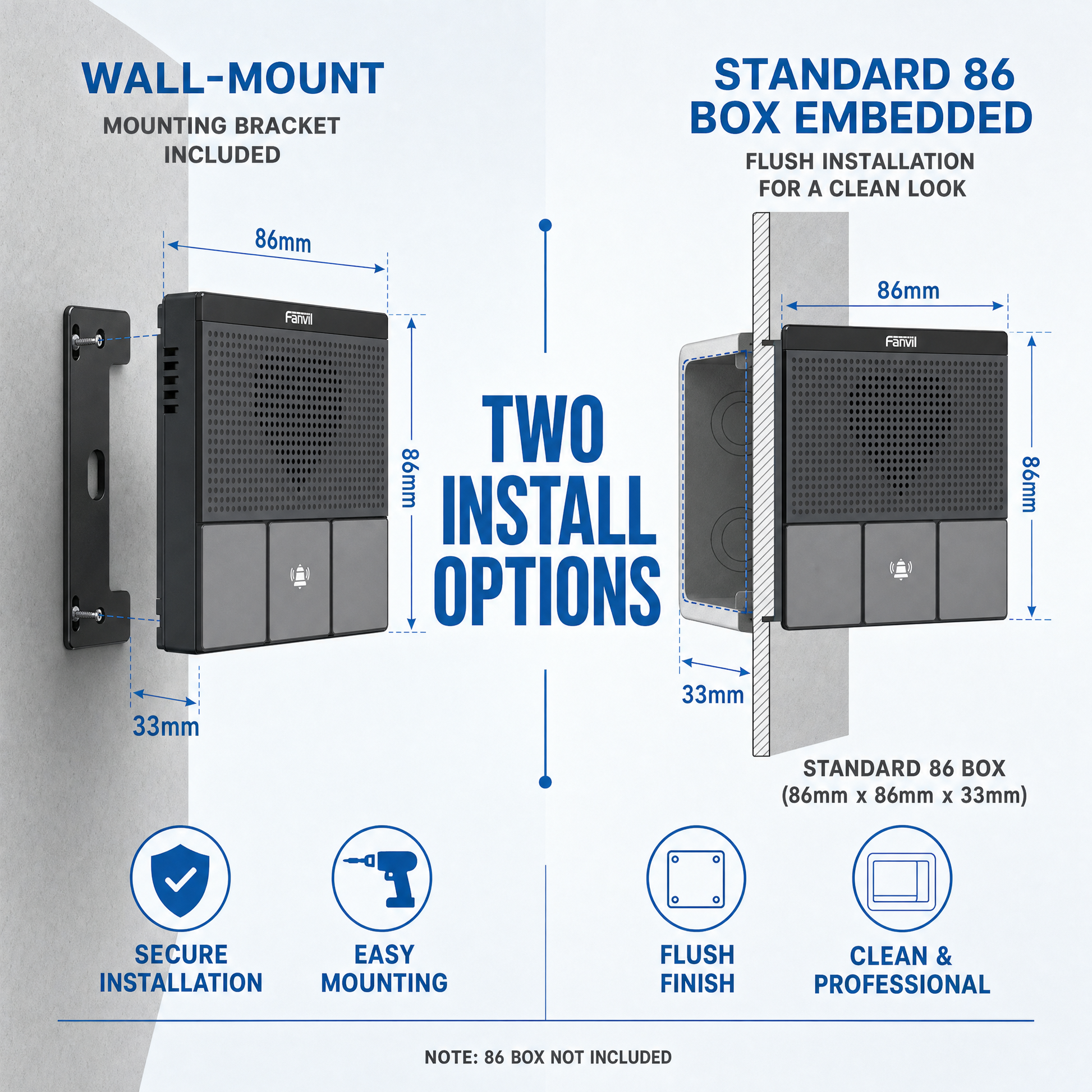

Installation	Wall mount or 86mm junction box flush mount
Dimensions (Wall Mount)	87.56 x 87.56 x 30mm
Dimensions (Flush Mount)	87.56 x 87.56 x 21.5mm
Housing Material	ABS, Gunmetal color
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 50°C
Relative Humidity	10% to 90%
Network Protocols	SIP 2.0 (UDP/TCP/TLS), IPv4/IPv6, DHCP, PPPoE, VLAN, LLDP, QoS, RTP/RTCP/SRTP, STUN, L2TP, OpenVPN
Provisioning	SIP PnP, DHCP options, Static (FTP/TFTP/HTTP/HTTPS), TR-069
Compatibility	3CX, Asterisk, Broadsoft, Elastix, PortSIP, Zoom, and other SIP 2.0 compliant platforms

What's Included

- Fanvil A10W SIP Intercom unit

- Power/network connector

- Mounting template

- Installation screws and tool

- Quick Installation Guide

Product Details
Color	Black
Power Source	AC-powered

What types of facilities and use cases is the Fanvil A10W best suited for?

The A10W is designed for indoor security and intercom applications in commercial buildings, healthcare facilities, educational campuses, and multi-tenant properties. Its dual-band Wi-Fi eliminates the need for hardwired Ethernet in retrofit installations or locations where cabling is impractical. The IP54 rating and external sensor interfaces make it suitable for semi-exposed areas like entryways, parking garage stairwells, and service corridors that require integration with door locks or panic buttons.

How does the A10W differ from the standard Fanvil A10, and when should I choose the wireless model?

The A10W adds dual-band Wi-Fi (2.4GHz and 5GHz 802.11 a/b/g/n) while maintaining the same SIP functionality, button count, audio quality, and PoE support as the wired A10. Choose the A10W when deploying in locations where running Ethernet cables is costly or disruptive, such as historic buildings, temporary installations, or areas undergoing renovation. Both models share identical dimensions, IP54 ratings, and external interface options.

Is the A10W a cost-effective choice for enterprise intercom deployments compared to traditional hardwired systems?

The A10W reduces installation labor costs in retrofit scenarios by eliminating the need to run Ethernet cabling to every intercom location. Its PoE capability (when using wired Ethernet) or Wi-Fi connectivity provides flexible power and network options that lower total deployment expense in multi-building campuses or multi-floor facilities. The unit's support for auto-provisioning and compatibility with open SIP platforms avoids vendor lock-in and ongoing licensing fees.

Which VoIP platforms and network infrastructure does the A10W integrate with?

The A10W is compatible with 3CX, Asterisk, Broadsoft, Elastix, PortSIP, Zoom, and any SIP 2.0 compliant platform. It supports IPv4 and IPv6 networks, VLAN tagging for voice traffic segmentation, QoS for call prioritization, and secure provisioning via HTTPS, FTPS, or TR-069. Wi-Fi connectivity requires WPA/WPA2-PSK or 802.1X EAP authentication on existing enterprise wireless networks.

What external devices can I connect to the A10W's short-circuit input and output interfaces?

The short-circuit input accepts signals from external panic buttons, door sensors, or motion detectors to trigger SIP calls or automated actions. The short-circuit output controls electric door strikes, magnetic locks, or alarm indicators by providing a relay closure signal. Both interfaces use simple contact closure logic and do not require external power supplies or complex wiring harnesses.

Does the A10W require PoE power if I'm using it with Wi-Fi connectivity?

PoE is not required when the A10W is connected via Wi-Fi only. You can power the unit with the optional 12V/1A DC adapter instead. However, if you connect the A10W to wired Ethernet for network redundancy or to leverage VLAN features, PoE provides a single-cable installation without needing a separate power supply.

Can I customize the three function buttons for specific quick-dial or door release functions?

The three detachable buttons support DSS key programming through the web interface or auto-provisioning files. You can assign each button to speed-dial a specific extension, trigger a door unlock via the short-circuit output, initiate an emergency call, or execute an HTTP action URL. Icons on the buttons are customizable to match the assigned function.

What is the maximum Wi-Fi range for the A10W in a typical office building?

Wi-Fi range depends on access point placement, building construction materials, and wireless interference. The A10W supports both 2.4GHz (longer range, more interference) and 5GHz (shorter range, less interference) bands. For reliable SIP call quality, deploy the unit within line-of-sight or one-wall distance from an enterprise-grade access point with sufficient signal strength for voice traffic.
