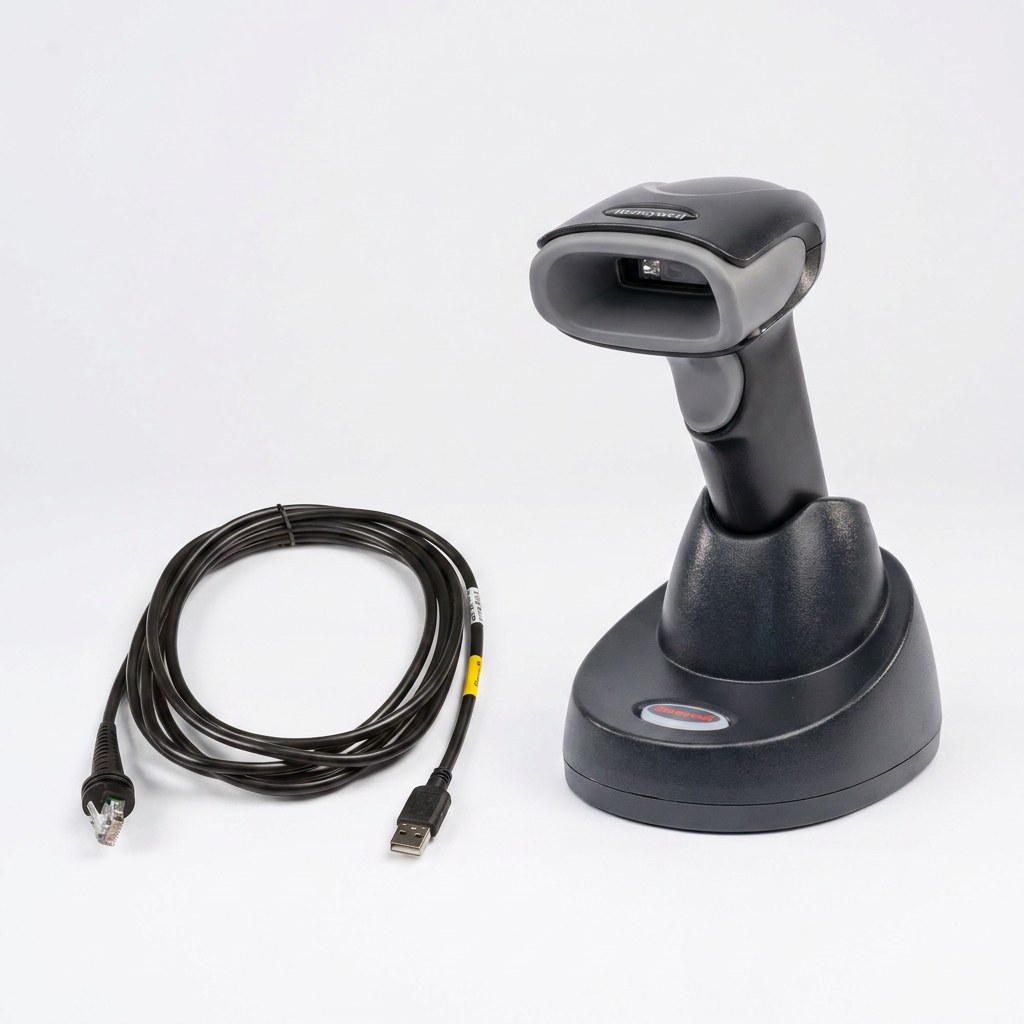

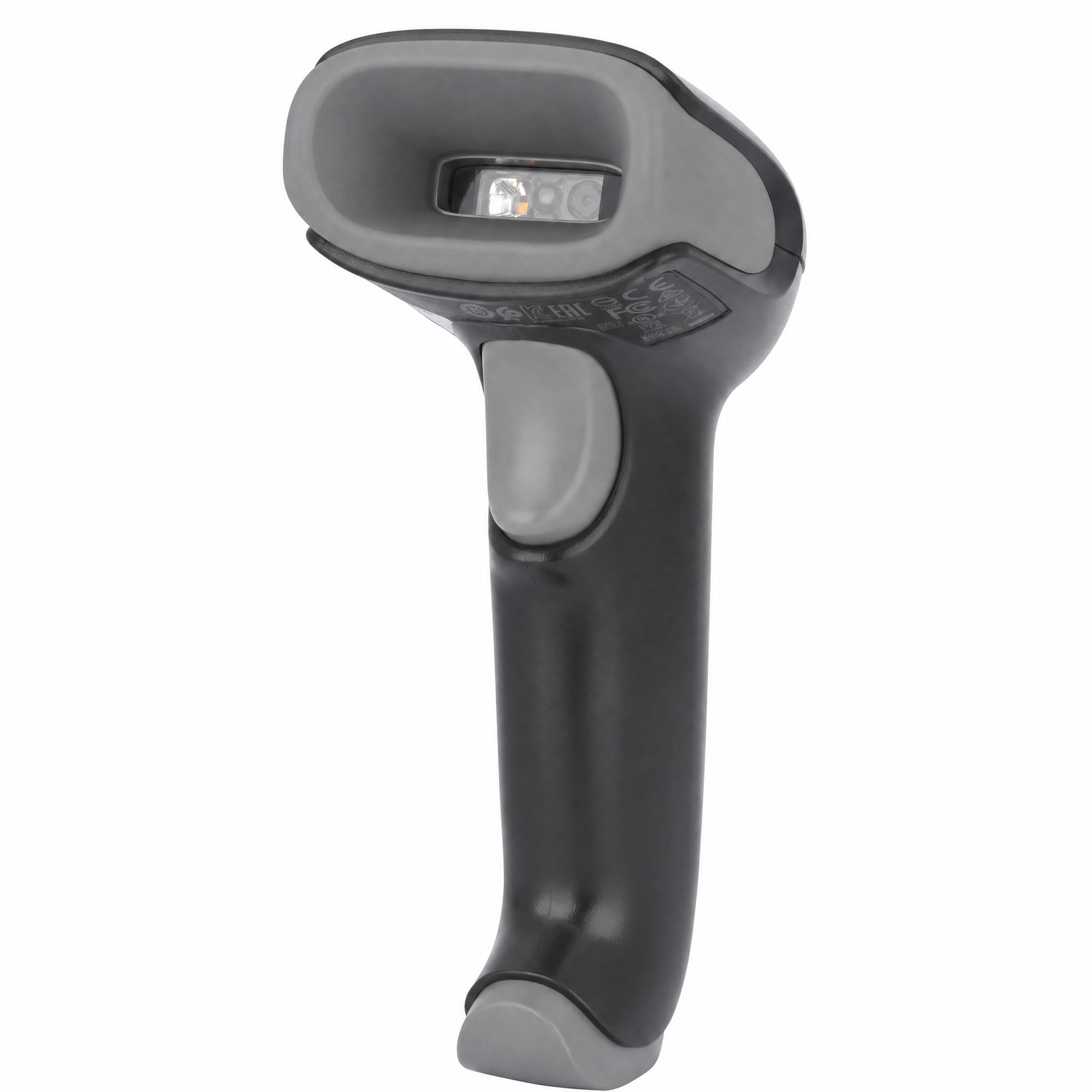

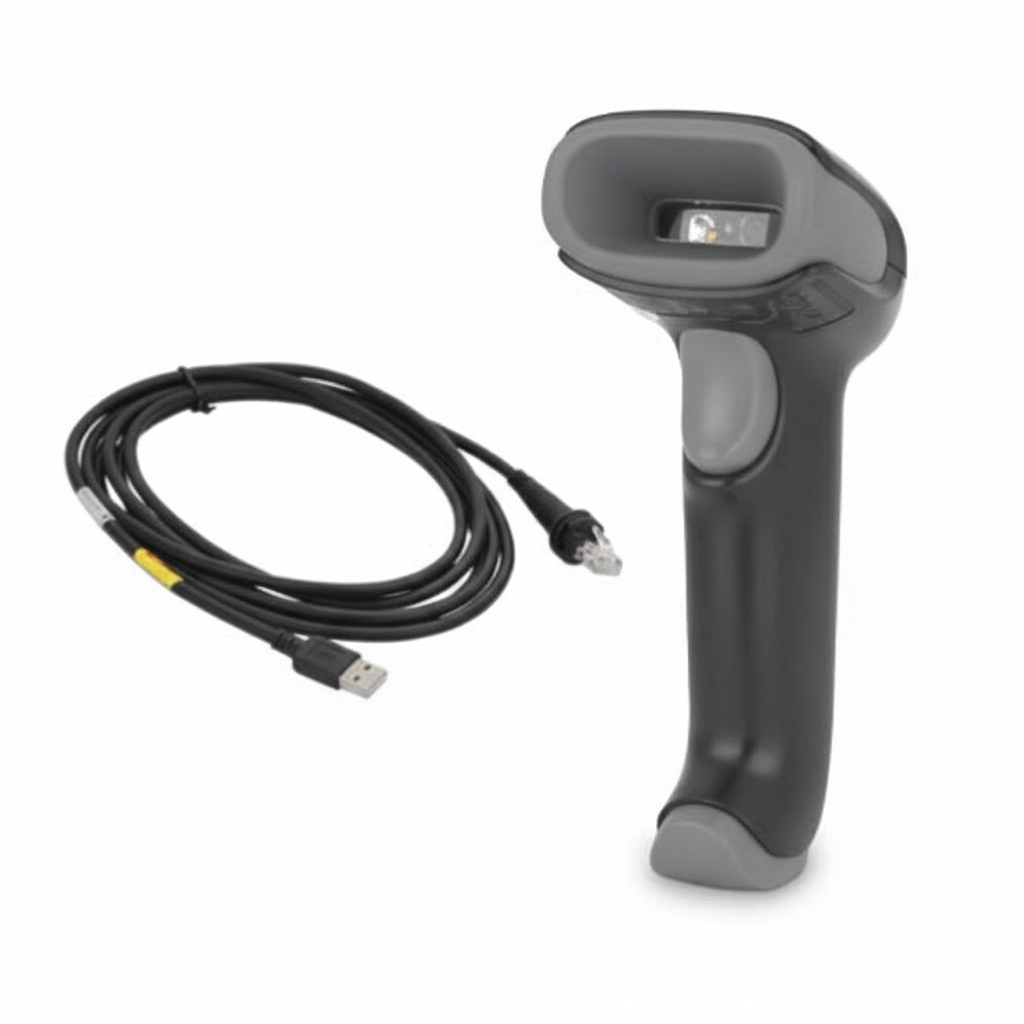

Honeywell Voyager XP 1472g 2D Wireless Barcode Scanner with Bluetooth

Name: Honeywell Voyager XP 1472g 2D Wireless Barcode Scanner with Bluetooth
Brand: Honeywell
SKU: DS-HNW-1472G2D-2-N
Price: 348.04 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• Scans damaged and poor-quality 1D/2D barcodes with high precision, including digital coupons on customer smartphones

• 100-meter Bluetooth 4.2 range with 100,000 scans per charge for full-shift operation without frequent docking

• Engineered to survive 30 drops from 1.8m and 1,000 tumbles from 0.5m with IP42 sealing for demanding retail environments

• Extended scan distance reaches bottom of shopping carts without bending, reducing checkout time at point of sale

• Backward compatible with previous Voyager accessories for seamless integration into existing POS systems

Overview
Specifications
FAQ
User Guides
Reviews

The Honeywell Voyager XP 1472g is engineered for high-volume retail environments where scanning accuracy and reliability are mission-critical. Built with Adaptus imaging technology, this wireless 2D scanner delivers exceptional decoding performance even when barcodes are damaged, poorly printed, or displayed on mobile screens. For enterprise buyers managing busy point-of-sale operations, the 1472g eliminates costly delays caused by scanning failures while maintaining the durability standards required for intensive daily use.

With Bluetooth 4.2 connectivity extending up to 100 meters and battery life supporting 100,000 scans per charge, the 1472g provides the operational flexibility enterprise IT teams demand. The scanner's rugged construction—tested to withstand 30 drops from 1.8 meters and 1,000 tumbles—combined with IP42 environmental sealing and disinfectant-ready housing ensures minimal downtime and low total cost of ownership. Backward compatibility with existing Voyager accessories protects your infrastructure investment while delivering next-generation scanning performance.

Best For

The Voyager XP 1472g is designed for enterprise applications requiring reliable wireless 2D scanning with exceptional durability and extended operational range:

- Retail Point of Sale: High-traffic checkout environments where associates need to scan traditional product barcodes, digital loyalty codes, and mobile payment QR codes without workflow interruption

- Inventory Management: Stock counting and cycle counting operations requiring mobility throughout retail floors and backroom storage areas with extended wireless range

- Distribution Centers: Light industrial receiving and shipping operations where workers need reliable scanning of damaged packaging labels and compliance barcodes

- Hospitality & Ticketing: Event venues, entertainment facilities, and hospitality operations scanning mobile tickets and digital credentials from customer devices

- Healthcare Retail Pharmacy: Pharmacy counter operations requiring sanitary, disinfectant-ready devices that can scan prescription barcodes and patient information accurately

Key Features

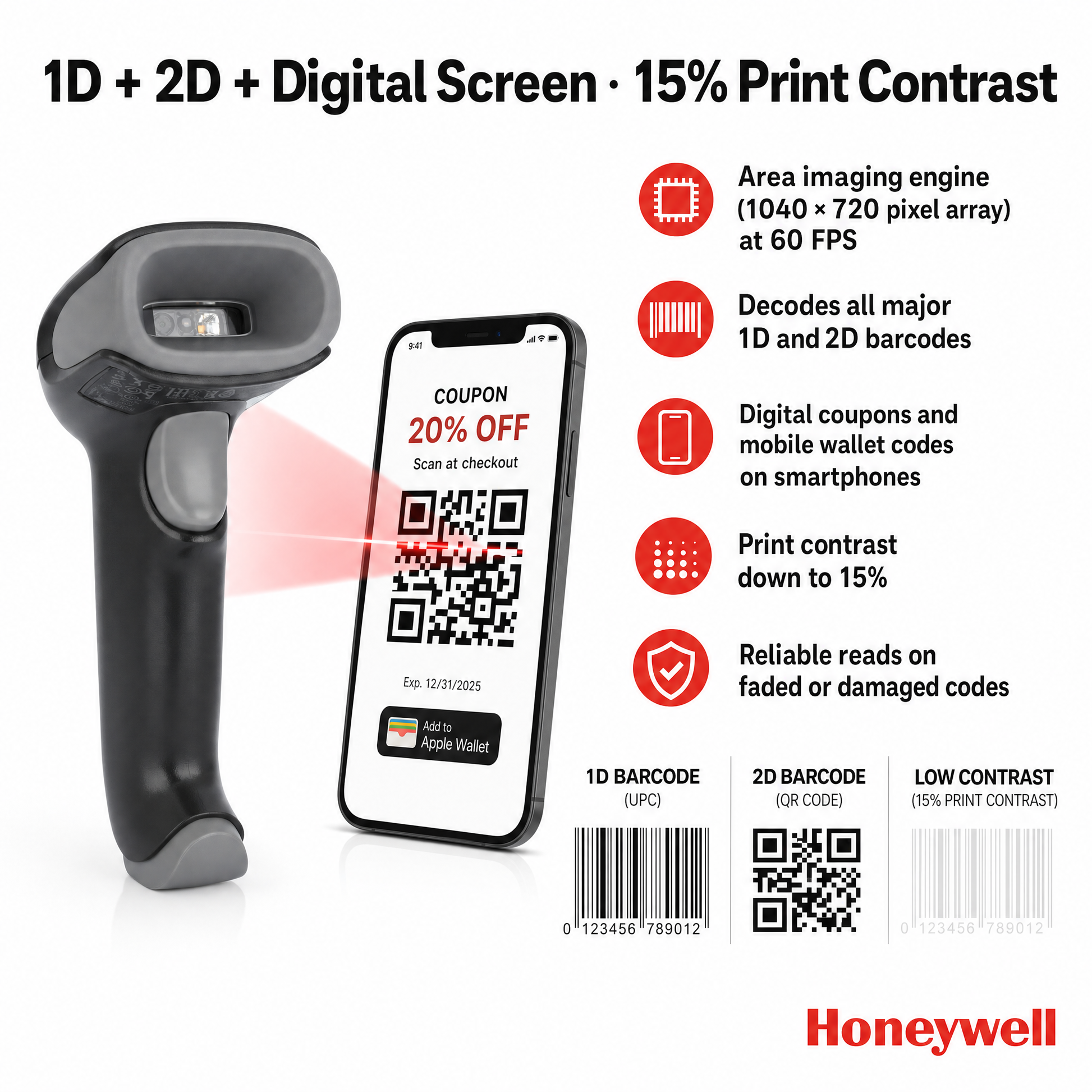

- Adaptus 2D Imaging Technology: 1040 x 720 pixel array captures and decodes all standard 1D, 2D, PDF417, and DotCode symbologies including damaged and low-contrast barcodes at 60 frames per second

- Extended Wireless Range: Bluetooth 4.2 with adaptive frequency hopping provides 100-meter line-of-sight connectivity when paired with Honeywell charging base for operational flexibility across large facilities

- Full-Shift Battery Performance: Replaceable 2400 mAh lithium-ion battery delivers approximately 14 hours of operation or 100,000 scans per 4.5-hour charge cycle, eliminating mid-shift battery swaps

- Industrial Durability: Engineered to survive 30 drops from 1.8 meters to concrete and 1,000 tumbles from 0.5 meters with IP42 environmental sealing against dust and water intrusion

- Disinfectant-Ready Housing: Chemical-resistant construction tested with 34 approved cleaning solutions supports multiple daily sanitization cycles for shared-device environments

- Extended Depth of Field: Scans 13 mil UPC barcodes from contact to over 40 cm distance, reaching shopping cart bottoms without associate bending or stretching

- Universal Interface Support: USB Type-C, RS-232, RS-485, and keyboard wedge interfaces with seamless backward compatibility to existing Voyager accessories and POS systems

- Operational Intelligence Ready: Compatible with Honeywell Operational Intelligence software for real-time scanning analytics, device health monitoring, and workforce productivity insights

Quick Specs

Model	Honeywell Voyager XP 1472g
Scanner Type	Wireless 2D Area Imager
Scan Engine	1040 x 720 pixel array, 60 FPS
Symbologies	All standard 1D, 2D, PDF417, DotCode, Aztec, Data Matrix, MaxiCode, GS1 composite codes
Wireless Technology	Bluetooth v4.2, 2.4-2.5 GHz ISM band, adaptive frequency hopping
Wireless Range	100 meters (300 ft) line-of-sight with Honeywell base; 30 meters (98 ft) with standard Bluetooth
Scan Angle	Horizontal: 39.2°, Vertical: 27.4°

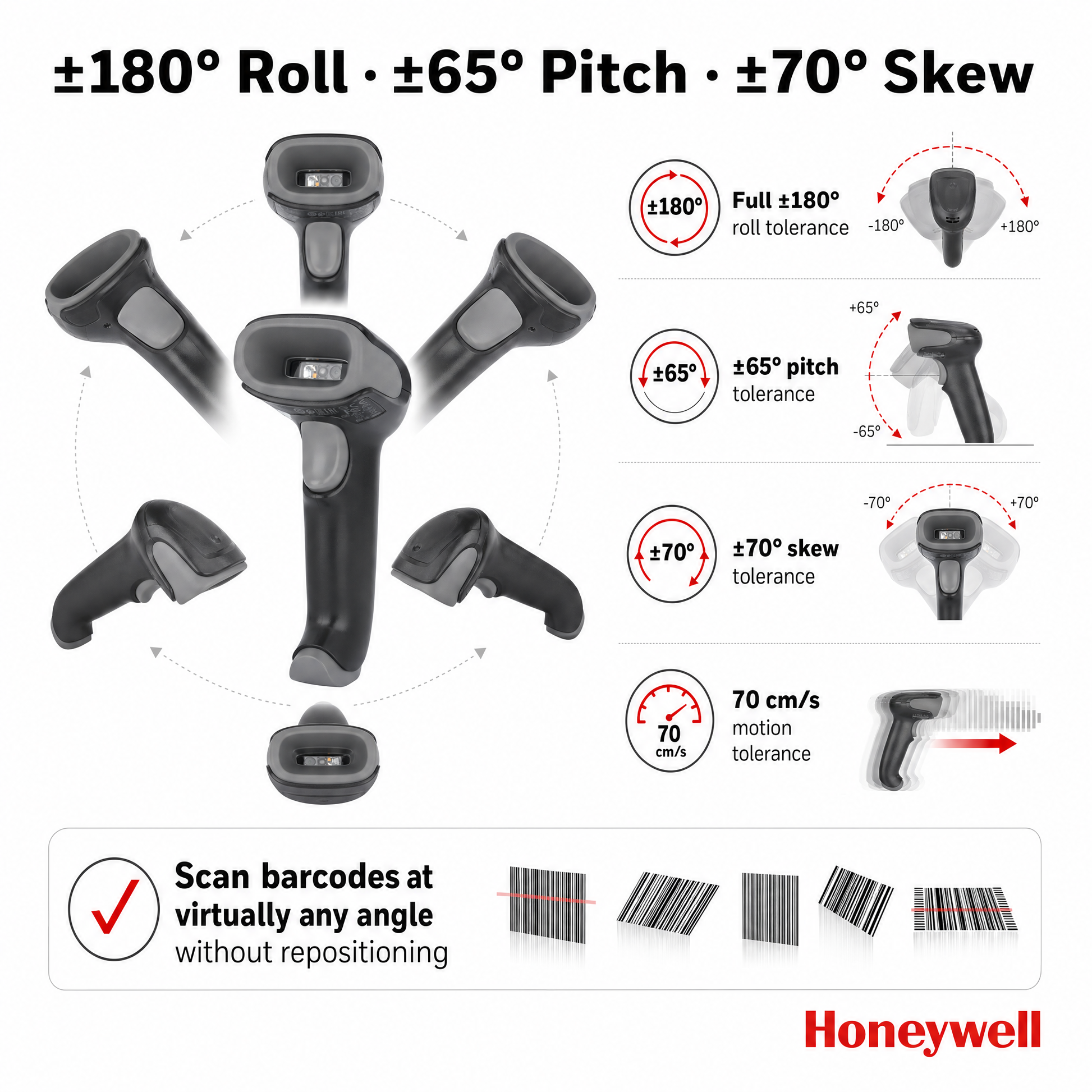

Motion Tolerance	70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Battery	Replaceable 2400 mAh lithium-ion, ~14 hours operation, 100,000 scans per charge
Charge Time	Approximately 4.5 hours (full charge)
Drop Specification	30 drops from 1.8 m (6 ft) to concrete; 1,000 tumbles from 0.5 m (1.6 ft)
Environmental Sealing	IP42
Operating Temperature	0°C to 50°C (32°F to 122°F) non-charging; 5°C to 40°C (41°F to 104°F) charging
Humidity	0% to 95% RH, non-condensing
Ambient Light Immunity	0 to 100,000 lux
Interfaces	USB Type-C, RS-232, RS-485 (IBM 46XX), Keyboard Wedge
Scanner Dimensions	173 x 82 x 62 mm (6.8 x 3.2 x 2.5 in)
Scanner Weight	210 g (7.4 oz)
Base Dimensions	132 x 102 x 81 mm (5.2 x 4.0 x 3.2 in)
Base Weight	179 g (6.3 oz)
Indicators	Good decode LED, rear view LED, adjustable beeper (tone and volume)
Special Features	CodeGate, batch mode support, 1D to 2D upgrade capability, disinfectant-ready housing (34 solutions)
Warranty	3-year factory warranty
Certifications	USB certified, ESD: ±15 kV air discharge, ±8 kV indirect coupling

What's Included

- Honeywell Voyager XP 1472g wireless scanner

- Charging and communication base (CCB01-010BT-V1N)

- 2400 mAh lithium-ion battery (installed)

- USB cable

- Quick start guide

- Warranty documentation

General Specifications
Brand	Honeywell
Model No.	1472

Product Details
Color	Black
Material	Plastic
Battery Size	Built-in battery
Battery Technology	Lithium-ion (Li-ion)
Power Source	Battery-powered, Rechargeable
Scanner Interface	USB, Serial, Keyboard wedge
Barcode Supported	1D, 2D

Q: What types of barcodes can the Honeywell 1472g scan?

A: The 1472g scans all standard 1D barcodes (UPC, EAN, Code 39, Code 128, ITF, GS1-128, etc.) and 2D symbologies including QR Code, Data Matrix, PDF417, Aztec, MaxiCode, DotCode, and GS1 composite codes. It also reads barcodes from mobile phone screens and digital displays, making it ideal for scanning digital coupons, mobile tickets, and loyalty programs.

Q: How far can the 1472g scanner operate from its base station?

A: When used with the included Honeywell charging and communication base, the 1472g provides up to 100 meters (300 feet) line-of-sight wireless range using Bluetooth 4.2 technology. With standard Bluetooth pairing to other devices, the range is up to 30 meters (98 feet). The adaptive frequency hopping ensures reliable connectivity even in RF-congested retail environments.

Q: How long does the battery last on a single charge?

A: The 1472g's 2400 mAh lithium-ion battery provides approximately 14 hours of continuous operation or up to 100,000 scans per full charge, easily supporting full retail shifts without requiring mid-shift recharging. A complete charge takes approximately 4.5 hours. The battery is user-replaceable, allowing organizations to maintain spare batteries for extended operations.

Q: Can the 1472g scan damaged or poor-quality barcodes?

A: Yes, the 1472g is specifically engineered with Adaptus imaging technology to decode damaged, poorly printed, wrinkled, or low-contrast barcodes that other scanners often fail to read. It maintains high first-pass read rates even with print contrast as low as 15%, significantly reducing checkout delays and associate frustration in real-world retail conditions.

Q: Is the 1472g durable enough for high-volume retail environments?

A: Yes, the 1472g is built for intensive retail use. It's engineered to survive 30 drops from 1.8 meters (6 feet) to concrete and 1,000 tumbles from 0.5 meters (1.6 feet). The IP42-rated housing protects against dust and water intrusion, and the disinfectant-ready construction withstands daily cleaning with 34 approved chemical solutions, making it suitable for shared-device environments.

Q: Will the 1472g work with our existing POS system and accessories?

A: The 1472g offers multiple interface options including USB Type-C, RS-232, RS-485 (supporting IBM 46XX systems), and keyboard wedge, ensuring compatibility with virtually all POS systems. It's also backward compatible with previous Voyager accessories, allowing seamless integration into existing infrastructure without requiring complete accessory replacement.

Q: What is CodeGate and how does it improve scanning accuracy?

A: CodeGate is a Honeywell-exclusive feature that allows operators to aim the scanner and preview which barcode will be scanned before transmitting the data. When enabled, the scanner remains on and decodes barcodes continuously, but only transmits data when the operator presses the trigger button. This prevents accidental scans of wrong barcodes in dense label environments or multi-code packaging.

Q: Can the 1472g scan barcodes at extended distances?

A: Yes, the 1472g features extended depth of field that allows scanning 13 mil UPC barcodes from contact distance to over 40 centimeters away. This extended range enables associates to scan items at the bottom of shopping carts without bending or stretching, reducing physical strain and improving checkout efficiency during high-volume periods.

Q: Does the 1472g support remote device management?

A: Yes, the 1472g is compatible with Honeywell Operational Intelligence software, which provides on-demand scanning insights, device health monitoring, battery status tracking, and usage analytics. This enterprise-grade management capability helps IT teams optimize fleet performance, predict maintenance needs, and improve workforce productivity across multiple locations.

Q: What warranty coverage does the 1472g include?

A: The Honeywell Voyager XP 1472g includes a comprehensive 3-year factory warranty covering manufacturing defects and hardware failures. Extended warranty options and service plans are available for organizations requiring longer coverage periods or enhanced support services. The warranty reflects Honeywell's confidence in the scanner's reliability for demanding enterprise applications.
