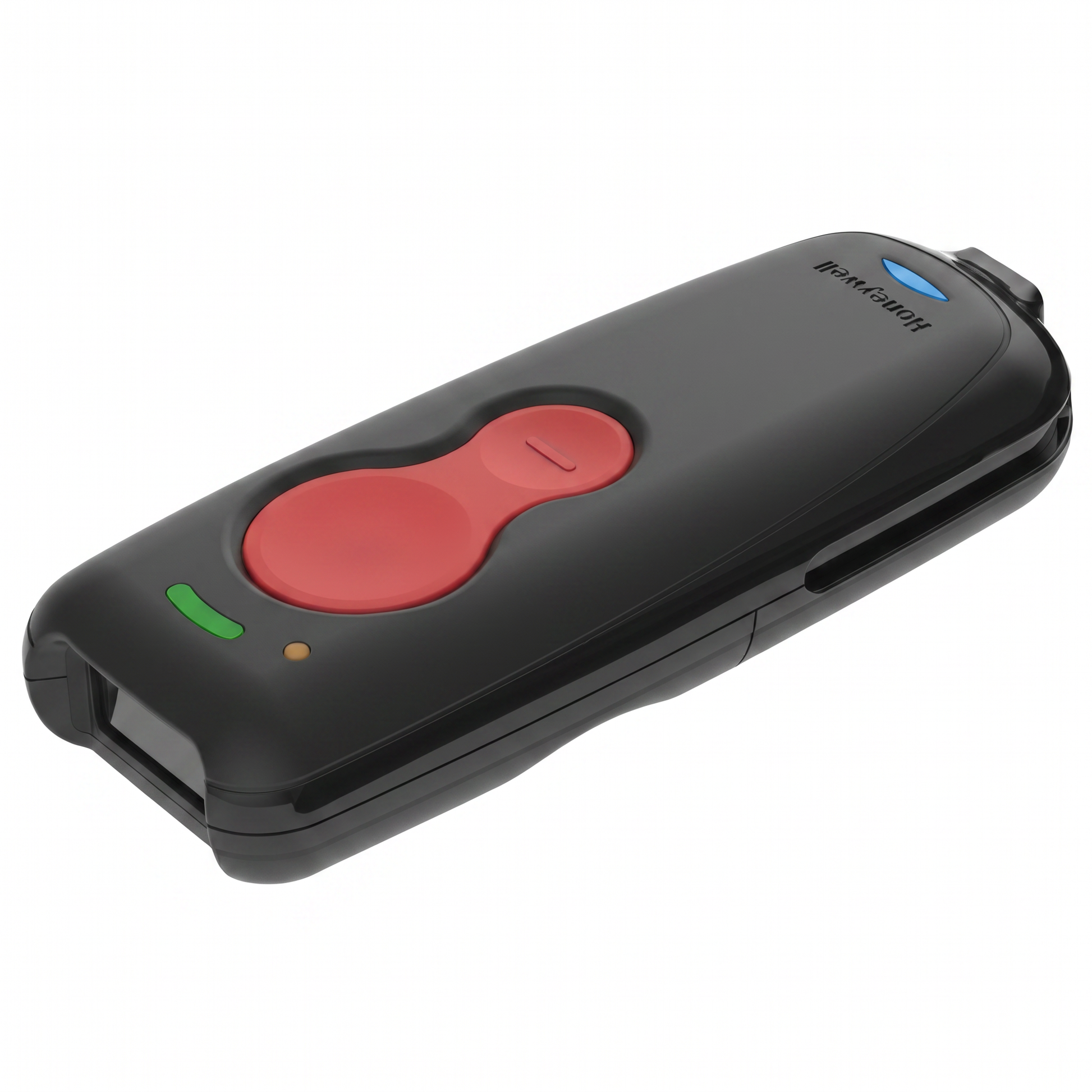

Honeywell Voyager 1602g Wireless Pocket Barcode Scanner - 2D Area Imager with Bluetooth

Name: Honeywell Voyager 1602g Wireless Pocket Barcode Scanner - 2D Area Imager with Bluetooth
Brand: Honeywell
SKU: HNW-1602G2D-2USB-OS
Price: 361.6 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

• Ultra-compact design at under 100g (3.5 oz) fits comfortably in palm for all-day mobile scanning operations

• High-performance area imager reads damaged, low-contrast 1D/2D barcodes and mobile coupons from smartphone screens

• Bluetooth 4.2 Class 1 wireless with 50-meter (164 ft) range connects to iOS, Android, Windows, and standard PCs

• 12-hour battery life rated for 2,250 scans per charge with fast 3-hour recharge via standard micro-USB

• Field-upgradeable from 1D to 2D scanning capability protects your investment as business needs evolve

Overview
Specifications
FAQ
User Guides
Reviews

Narrative Description

The Honeywell Voyager 1602g transforms mobile scanning with an incredibly compact wireless design that doesn't compromise on performance. Built around the same high-performance area imaging engine found in full-size handheld scanners, this pocket-sized scanner delivers exceptional 1D and 2D barcode reading capabilities—including damaged, poorly printed, or low-contrast codes—in a form factor that weighs less than 100 grams. Its ability to scan barcodes directly from smartphone screens makes it essential for modern retail environments handling mobile coupons, digital wallets, and membership cards.

Designed specifically for tablet-based point of sale and field service applications, the 1602g provides workers with the freedom to move up to 50 meters from their host device while maintaining reliable Bluetooth connectivity. The ergonomic contoured design with soft-touch plastic, oversized trigger button with tactile feedback, and white LED aimer makes scanning intuitive and comfortable even during extended shifts. With 12 hours of battery life supporting up to 2,250 scans per charge and convenient micro-USB charging, your team stays productive throughout the workday.

The 1602g's upgradeable architecture offers exceptional investment protection—purchase as a 1D scanner and economically upgrade to 2D capability when your business requirements expand. This flexibility, combined with seamless pairing to Apple iOS, Android, Windows Mobile devices, or standard Bluetooth-equipped PCs and laptops, makes the Voyager 1602g an ideal scanning solution for businesses seeking enterprise performance in a consumer-friendly package.

Best For

The Honeywell 1602g excels in mobile enterprise environments where portability, wireless freedom, and reliable scanning performance are essential:

- Tablet-Based Point of Sale: Perfectly complements sleek tablet POS systems with its compact, consumer-friendly design while delivering enterprise-grade scanning performance for retail checkout operations

- Mobile Point of Sale & Line Busting: Empowers retail associates to complete transactions anywhere in the store, reducing checkout lines and improving customer experience during peak periods

- Inventory Management & Stock Taking: Provides warehouse and retail staff with lightweight, all-day scanning capability for cycle counts, shelf audits, and receiving operations without tethering to fixed workstations

- Field Service & Sales Automation: Supports technicians and sales professionals with portable barcode capture for asset tracking, parts verification, and order processing in the field

- Back Office & Stockroom Operations: Streamlines receiving, put-away, and internal transfers with wireless scanning that pairs instantly with existing computers and mobile devices

Key Features

- High-Performance Area Imaging Engine: 640x480 pixel array delivers the same scanning capabilities as full-size handheld scanners, reading 1D, PDF417, and 2D barcodes including damaged or low-contrast codes down to 3.5 mil resolution

- Mobile Barcode Reading: Captures barcodes directly from smartphone and tablet screens for mobile coupons, digital loyalty cards, mobile ticketing, and contactless payment applications

- Extended Bluetooth Range: Class 1 Bluetooth 4.2 technology provides up to 50 meters (164 feet) line-of-sight wireless range, enabling true mobile freedom in retail floors and warehouse environments

- Universal Device Compatibility: Quickly pairs with Apple iOS, Android, Windows Mobile devices, or any Bluetooth-enabled PC or laptop without requiring specialized dongles or receivers

- All-Day Battery Performance: 750 mAh lithium-ion battery rated for 12 hours of operation and up to 2,250 scans per charge, with replaceable battery design and 3-hour recharge via standard micro-USB

- Field-Upgradeable Architecture: Purchase as model 1602g1D for 1D-only scanning and economically upgrade to 2D capability (1602g2D) as business needs evolve, protecting your technology investment

- Ergonomic Pocket Design: Contoured shape at just 120 x 48 x 22 mm and under 100g fits comfortably in hand or pocket, featuring soft-touch plastic and oversized trigger button with tactile feedback

- Wide Working Range: Scans 13 mil UPC barcodes from 39mm to 292mm (1.5" to 11.5"), 20 mil QR codes from 32mm to 233mm (1.3" to 9.2"), accommodating various scanning distances and label sizes

Quick Specs

Specification	Details
Scanner Type	Wireless 2D Area Imager
Scan Engine	640 x 480 pixel array area imaging
Barcode Types	1D, PDF417, 2D (Aztec, Codablock, Data Matrix, MaxiCode, MicroPDF417, QR Code) - model 1602g2D; 1D only on model 1602g1D
Minimum Resolution	1D: 3.5 mil \| PDF417: 4 mil
Scan Range (13 mil UPC)	39 mm to 292 mm (1.5" to 11.5")
Scan Range (20 mil QR)	32 mm to 233 mm (1.3" to 9.2")
Motion Tolerance	Up to 10 cm/s (4 in/s) for 13 mil UPC
Wireless Technology	Bluetooth v4.2, Class 1
Wireless Range	Up to 50 meters (164 feet) line-of-sight
Frequency	2.4 to 2.5 GHz (ISM Band), Adaptive Frequency Hopping
Compatible Devices	Apple iOS, Android, Windows Mobile, Bluetooth-enabled PCs/laptops
Battery Type	750 mAh Lithium-ion (minimum), user-replaceable
Battery Life	12 hours operation, up to 2,250 scans per charge
Charge Time	Approximately 3 hours
Charging Interface	Standard Micro-B USB
Dimensions (L x W x H)	120 x 48 x 22 mm (4.7 x 1.9 x 0.9 in)
Weight	Less than 100 g (3.5 oz)
Environmental Seal	IP42
Operating Temperature	0°C to 50°C (32°F to 122°F)
Charging Temperature	0°C to 40°C (32°F to 104°F)
Humidity	0 to 95% relative humidity, non-condensing
Ambient Light Immunity	0 to 100,000 lux (9,290 foot-candles)
Scan Angle	Horizontal: 41.4° \| Vertical: 32.2°

What's Included

- Honeywell Voyager 1602g Wireless Scanner (with battery installed)

- Micro-USB Charging Cable (1.2 meters)

- Wrist Strap/Lanyard

- Quick Start Guide

General Specifications
Brand	Honeywell
Model No.	1602g

Product Details
Color	Black
Material	Plastic
Battery Size	Built-in battery
Battery Technology	Lithium-ion (Li-ion)
Power Source	Battery-powered, Rechargeable
Scanner Interface	Bluetooth
Barcode Supported	1D, 2D

Q: What is the difference between the 1602g1D and 1602g2D models?

A: The 1602g1D model reads only 1D linear barcodes, while the 1602g2D model reads 1D barcodes plus PDF417 and 2D barcodes including Data Matrix, QR Code, Aztec Code, and others. The 1602g1D can be economically upgraded to 2D scanning capability in the field when your business requirements expand, protecting your initial investment.

Q: How far can the 1602g scanner operate from my mobile device or computer?

A: The 1602g features Bluetooth 4.2 Class 1 wireless technology providing up to 50 meters (164 feet) line-of-sight range from the host device. Actual range may vary depending on environmental conditions, obstacles, and interference from other wireless devices.

Q: Can the 1602g read barcodes from smartphone screens?

A: Yes, the 1602g is specifically designed to read barcodes displayed on smartphone and tablet screens, making it ideal for scanning mobile coupons, digital loyalty cards, mobile tickets, electronic boarding passes, and digital wallet applications in retail and hospitality environments.

Q: How long does the battery last and how is it charged?

A: The 750 mAh lithium-ion battery provides up to 12 hours of operation and is rated for up to 2,250 scans per full charge. The battery charges in approximately 3 hours using the included micro-USB cable connected to any standard USB power source. The battery is user-replaceable for extended operational life.

Q: What mobile devices and operating systems are compatible with the 1602g?

A: The 1602g pairs quickly with Apple iOS devices (iPhone, iPad), Android smartphones and tablets, Windows Mobile devices, and any Bluetooth-enabled standard PC or laptop computer. It uses standard Bluetooth HID (Human Interface Device) profile for broad compatibility without requiring special drivers on most systems.

Q: Can the 1602g scan damaged or poor-quality barcodes?

A: Yes, the 1602g uses the same high-performance area imaging engine found in full-size Honeywell handheld scanners, enabling it to successfully read damaged, poorly printed, faded, wrinkled, or low-contrast barcodes that may be difficult for other pocket scanners to decode. It reads 1D barcodes down to 3.5 mil resolution.

Q: Is the 1602g suitable for warehouse or outdoor use?

A: The 1602g is designed primarily for indoor retail, point-of-sale, and light field service applications. It carries an IP42 environmental seal rating providing basic protection against dust and water droplets, and operates in temperatures from 0°C to 50°C (32°F to 122°F). For more demanding warehouse or outdoor environments with exposure to drops, extreme temperatures, or harsh conditions, consider Honeywell's industrial-grade mobile computers or rugged handheld scanners.

Q: Does the 1602g require a separate Bluetooth dongle or base station?

A: The 1602g can pair directly with any Bluetooth-enabled device without requiring a dongle. However, it is also compatible with Honeywell Access Points (models AP01-010BT or AP01-100BT, sold separately) which provide enhanced functionality including two-way communication between scanner and host for remote management, configuration updates, and firmware upgrades.

Q: What is the scanning range for typical retail barcodes?

A: For standard 13 mil UPC barcodes commonly found on retail products, the 1602g scans from 39mm to 292mm (1.5" to 11.5") distance. For 20 mil Code 39 barcodes, the range extends from 43mm to 408mm (1.7" to 16"). Smaller codes like 10 mil Data Matrix can be read from 35mm to 122mm (1.4" to 4.8"), providing flexibility for various applications and label sizes.

Q: Is a wall charger included with the 1602g?

A: The standard package includes the 1602g scanner with battery, a micro-USB charging cable (1.2 meters), and a wrist strap/lanyard. A wall power adapter is not included and must be purchased separately if you don't have an existing USB wall charger. Any standard USB wall adapter (5V output) is compatible for charging.
