Honeywell, Inc. S8610M3009 IGNITION CONTROL

Product Highlights
  •  Rugged intermittent-pilot ignition control module intended for gas-fired furnaces, boilers and heating appliances — covers ignition sequence, flame monitoring and safety shut-off
  • Operates at 24 VAC / 60 Hz, designed for use with standard gas control valves (pilot ≤ 1 A, main valve ≤ 2 A) in one‐rod flame-sense configurations
  • Ignition trial time up to 90 seconds, and continuous‐retry mode (no automatic lock-out) to minimize nuisance shutdowns — includes 5-minute delay between retry cycles
  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

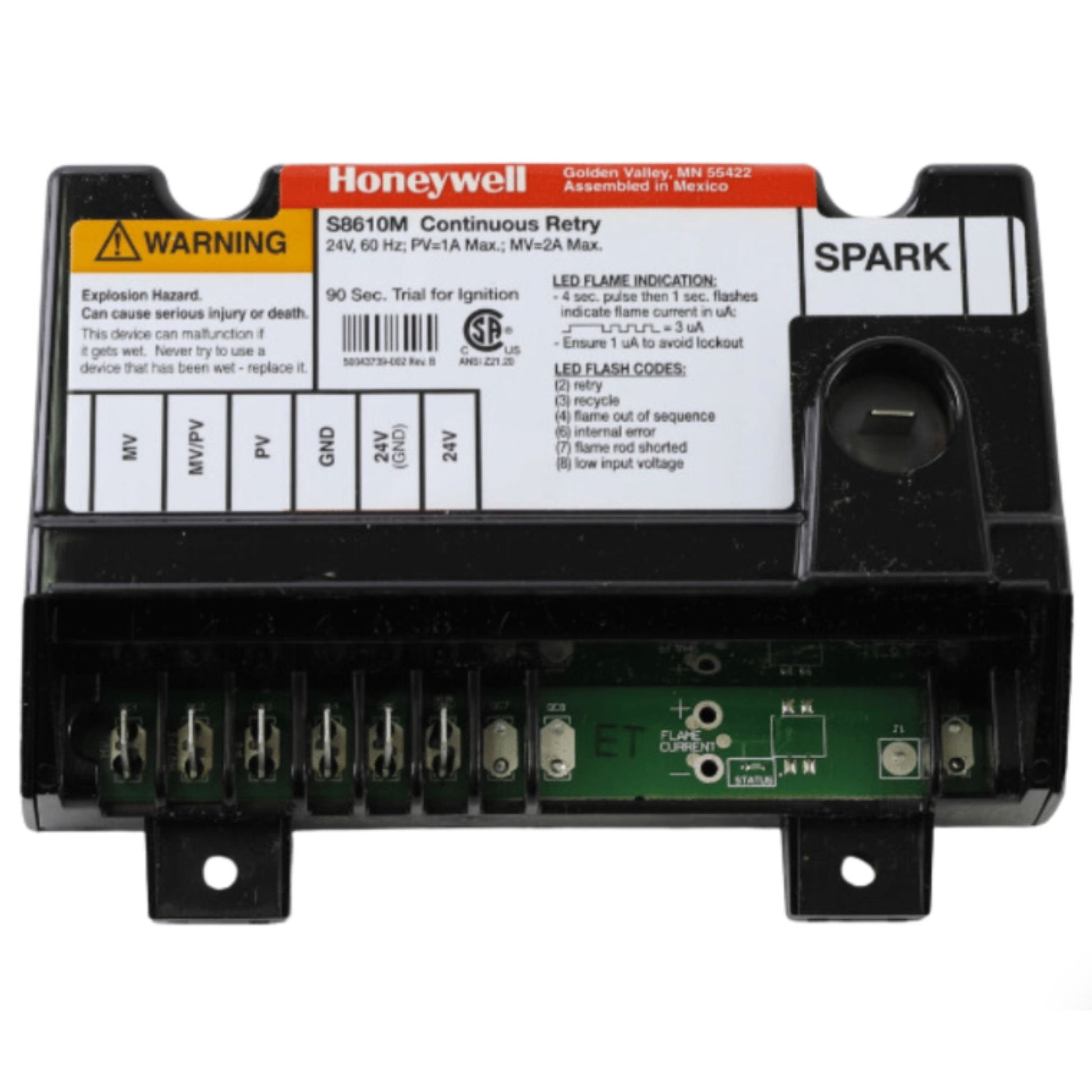

Honeywell  S8610M3009 Ignition Control Module

  •  Rugged intermittent-pilot ignition control module intended for gas-fired furnaces, boilers and heating appliances — covers ignition sequence, flame monitoring and safety shut-off
  • Operates at 24 VAC / 60 Hz, designed for use with standard gas control valves (pilot ≤ 1 A, main valve ≤ 2 A) in one‐rod flame-sense configurations
  • Ignition trial time up to 90 seconds, and continuous‐retry mode (no automatic lock-out) to minimize nuisance shutdowns — includes 5-minute delay between retry cycles
General Specifications
Brand Honeywell
Model No. S8610M3009
$149.99
$149.99
$149.99
$149.99
Temporarily Out of Stock

1–2 weeks lead time may apply
