Mean Well RSP-500-24 DC Power Supply 500W/24V/21A PFC for 3D Printer, LED Strip Light, Industrial Control System NES/SE/S

Delivery Time: 0-3 days
Product Highlights
  • Overview
  • Specifications
  • FAQ
  • User Guides

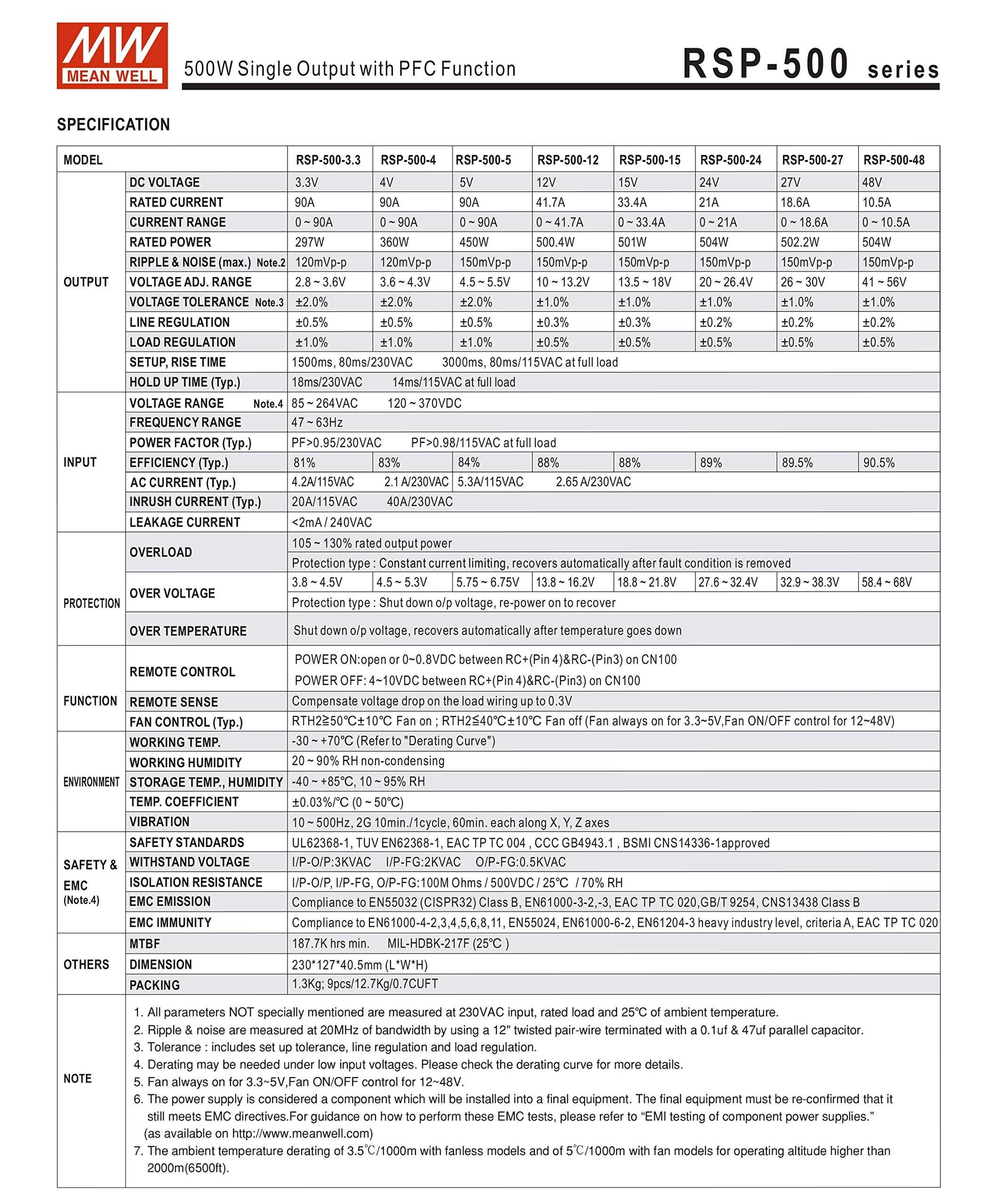

The RSP-500-24 is a high-performance 504W single-output industrial AC/DC power supply designed for demanding applications. With a 24V DC output voltage and 21A rated current (maximum output power 504W), it provides stable power for industrial automation, test equipment, laser systems, and RF applications. The power supply has a wide input voltage range (85-264VAC/120-370VDC) and high efficiency of 89%, ensuring reliable operation in global power grids while minimizing energy consumption. The power supply supports natural convection cooling (ambient temperature up to 70°C) and forced air cooling via a built-in smart fan with automatic speed regulation. Safety features include overvoltage protection (OVP), overtemperature protection (OTP), and current limiting protection with automatic recovery. Technical Specifications: Input: 85-264VAC/ 120-370VDC Output: 24V (adjustable 20-26.4V by potentiometer) Current: 21A continuous Ripple and noise: <150mVp-p Line regulation: ±0.2% Load regulation: ±0.5% Operating temperature: -30°C to +70°C Safety standards: UL 62368-1, EN 62368-1, BSMI certifiedMain Features:1. Universal Input: Compatible with worldwide AC voltage and DC power supply2. Active PFC3. Remote Control: On/Off control and voltage sense compensation terminal4. Protection System: Triple overload protection, overvoltage and overtemperature protection5. Industrial Design: Compact metal housing (230×127×40.5mm)6. Compliance: Compliant with CE, RoHS, REACH and WEEE Requirements The RSP-500-24 is a high-performance 504W single-output industrial AC/DC power supply designed for demanding applications. With a 24V DC output voltage and 21A rated current (maximum output power 504W), it provides stable power for industrial automation, test equipment, laser systems, and RF applications. The power supply has a wide input voltage range (85-264VAC/120-370VDC) and high efficiency of 89%, ensuring reliable operation in global power grids while minimizing energy consumption. The power supply supports natural convection cooling (ambient temperature up to 70°C) and forced air cooling via a built-in smart fan with automatic speed regulation. Safety features include overvoltage protection (OVP), overtemperature protection (OTP), and current limiting protection with automatic recovery.
$95.00
$95.00
$95.00
$95.00
In stock

Get same day shipping on orders placed before 3 PM EST.

Get approved for Net 30 Terms today —> Apply Now!
Quantity Discount
2+
Sign in to view volume discount
5+
Quote request for more savings

Get 10% Off your First Order

Click to get coupon

Real Support from Real People

Contact us for help

Free 30-Day Returns

Return Policy
