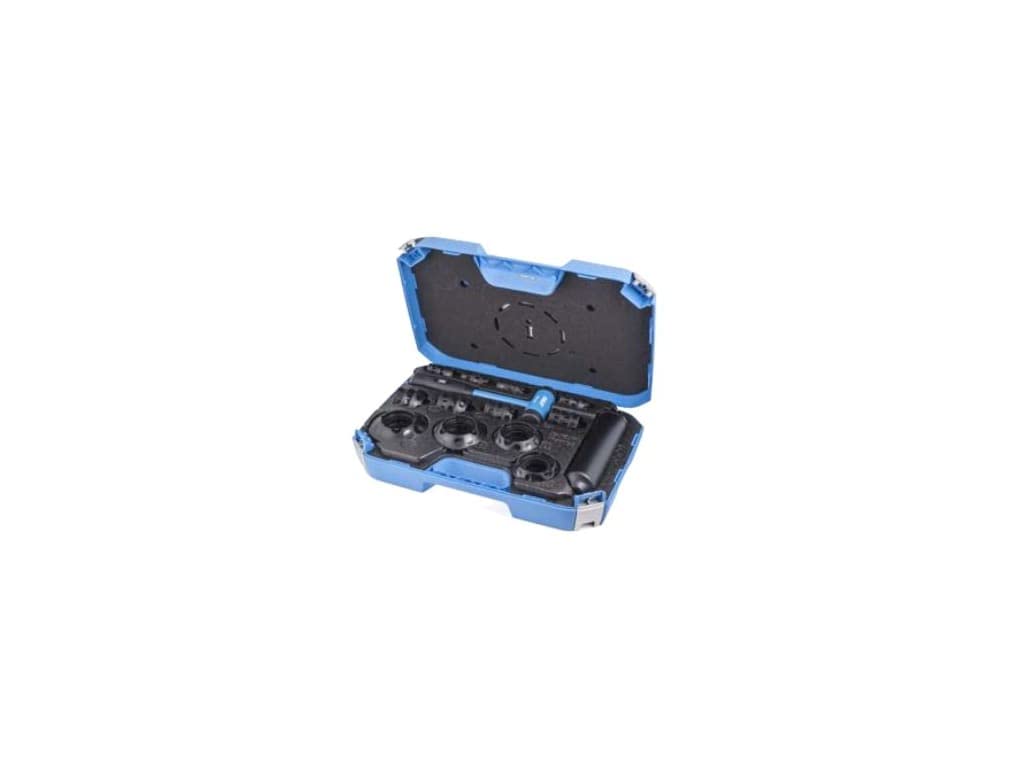

SKF TMFT 36 Bearing Fitting Tool Kit, 36 Impact Rings, 3 Impact Sleeves, Dead-Blow Hammer, Carry Case

Product Highlights

For mounting bearings with bore diameters from 10-55 mm
Tool kit contains 36 impact rings, 3 impact sleeves and 1 dead-blow hammer
Impact rings and sleeves are made of high impact resistant material for longevity
Nylon double-side head of dead-blow hammer helps to prevent damaging the components
Rubber handgrip of the hammer provides excellent grip.

Overview
Specifications
FAQ
User Guides

For mounting bearings with bore diameters from 10-55 mm
Tool kit contains 36 impact rings, 3 impact sleeves and 1 dead-blow hammer
Impact rings and sleeves are made of high impact resistant material for longevity
Nylon double-side head of dead-blow hammer helps to prevent damaging the components
Rubber handgrip of the hammer provides excellent grip.

For mounting bearings with bore diameters from 10-55 mm

General Specifications

Model: SKF TMFT 36
Type: Bearing Fitting Tool Kit
Purpose: For correct and safe mounting of bearings, bushings, seals, and pulleys

Kit Components

Impact Rings: 36 rings covering bore diameters from 10–55 mm
Impact Sleeves: 3 sleeves (A, B, C types)
Hammer: Dead-blow hammer (0.9 kg / 2.0 lb)

Applications

Suitable For: Mounting bearings, bushings, seals, pulleys
Bearing Bore Range: 10–55 mm (0.39–2.17 in.)
Bearing Outer Diameter Range: 26–120 mm (1.02–4.72 in.)

Performance Features

Material: High impact-resistant material for rings and sleeves
Grip: Even sleeve surface for better handling
Impact Stability: Click-connection between ring and sleeve
Durability: Impact rings suitable for use under press
Hammer Head: Nylon double-sided to prevent component damage

Carrying Case

Dimensions: 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.)
Total Weight: 4.4 kg (9.7 lb including case)

Technical Details

Max Shaft Length: 220 mm for Sleeves A and B, 225 mm for Sleeve C
Working Temperature: -30°C to +110°C (-22°F to +230°F)

Design Features

Mounting Stability: Diameter precision for inner/outer bearing diameters
Force Transmission: Optimized sleeve design for effective force distribution
Visual Identification: Clear size markings on rings

Additional Information

Recommended Use: Bearings with interference fits, including SKF 6000–6011, 6200–6211, 6300–6311, and many more series
Special Notes: Impact rings can be used with a press for mounting operations

📥 Download Product Manual (PDF)

📥 Download Instructions (PDF)

What is included in the SKF TMFT 36 kit?
The kit comprises 36 impact rings, 3 impact sleeves, a 0.9 kg (2.0 lb) dead-blow hammer, and a lightweight carrying case.

What bearing sizes are compatible with this kit?
It is suitable for mounting bearings with bore diameters ranging from 10 mm to 55 mm (0.39–2.17 in.) and outer diameters from 26 mm to 120 mm (1.02–4.72 in.).

Can the TMFT 36 be used for components other than bearings?
Yes, the kit is also suitable for mounting bushings, seals, pulleys, and similar components.

How does this kit help prevent bearing damage?
The combination of impact rings and sleeves ensures effective transmission of mounting force to the bearing ring with the interference fit, minimizing the risk of damaging the bearing’s raceways or rolling elements.

Are the impact rings and sleeves durable?
Yes, they are made of high-impact resistant material for longevity and are suitable for use under a press.

Is the hammer designed to prevent component damage?
The included dead-blow hammer features a nylon double-sided head to prevent damage to components during installation.

What are the dimensions and weight of the carrying case?
The carrying case measures 530 × 110 × 360 mm (20.9 × 4.3 × 14.2 in.) and the total kit weight, including the case, is approximately 4.4 kg (9.7 lb).

Are the impact rings marked for easy identification?
Yes, the impact rings are marked for clear visual identification of the ring’s size, facilitating easy selection.

Is this kit suitable for use in blind applications?
Yes, the TMFT 36 facilitates correct mounting on shaft, housing, and blind applications.
