SNBC BTP-R580II 80mm Thermal Receipt Printer with IPX1 Splash-Proof Design for POS and Restaurant Systems

Name: SNBC BTP-R580II 80mm Thermal Receipt Printer with IPX1 Splash-Proof Design for POS and Restaurant Systems
Brand: SNBC
SKU: SNB-PRI-BTP-R580IIU-NEW

Delivery Time: 0-3 days

Brand SNBC

Model Number R580

Manufacture Warranty 3 Years

EpicRise Warranty First Year

Product Highlights

• IPX1 splash-proof design protects against liquid spills in demanding restaurant, kitchen, and retail environments

• High-speed thermal printing at 230mm/s with 203 DPI resolution for fast, clear receipt output in high-volume operations

• Front-exit paper design enables compact installation in space-constrained POS setups and self-service kiosks

• Supports 100mm diameter paper rolls to reduce roll changes and minimize downtime during peak business hours

• Built-in power supply eliminates external adapters and supports interchangeable interface boards including USB, Ethernet, and WiFi

Overview
Specifications
FAQ
User Guides
Reviews

The SNBC BTP-R580II is a professional-grade 80mm thermal receipt printer engineered for high-volume enterprise environments where reliability and speed are critical. With its IPX1 splash-proof certification and front-exit design, the R580 delivers consistent performance in demanding retail, hospitality, and food service operations where moisture and space constraints challenge conventional printers.

Designed for IT decision-makers and procurement teams, this printer combines Energy Star certification with a 360,000-hour MTBF rating and 2 million cut auto-cutter lifespan—33-50% longer than competing models. The built-in power supply and interchangeable interface architecture simplify deployment and future upgrades across diverse POS ecosystems.

Best For

The BTP-R580II addresses receipt printing challenges across multiple enterprise verticals requiring rugged, high-speed thermal printing:

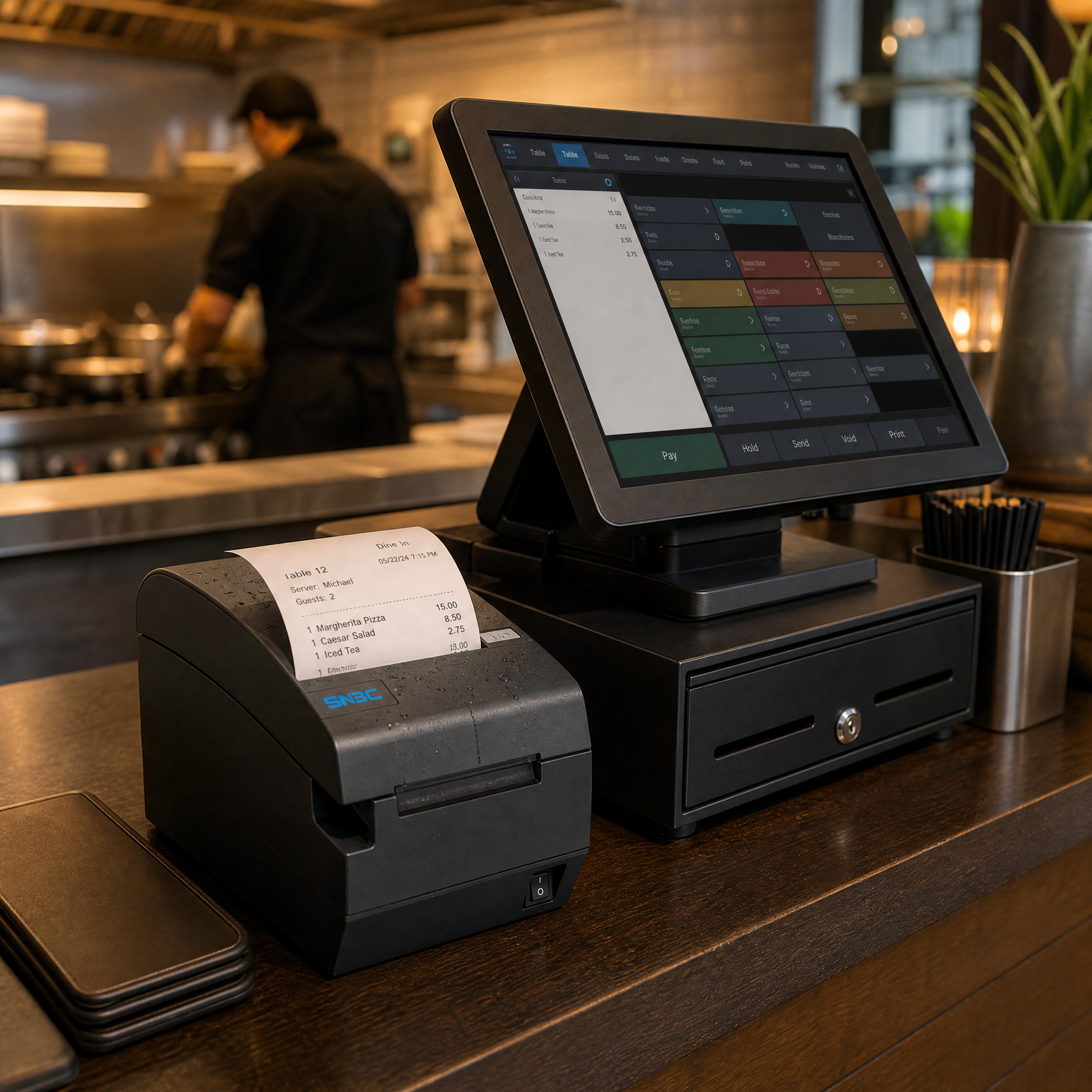

- Restaurant Kitchens: IPX1 splash-proof construction withstands steam and spills while Herald kitchen alarm system compatibility enables coordinated order management

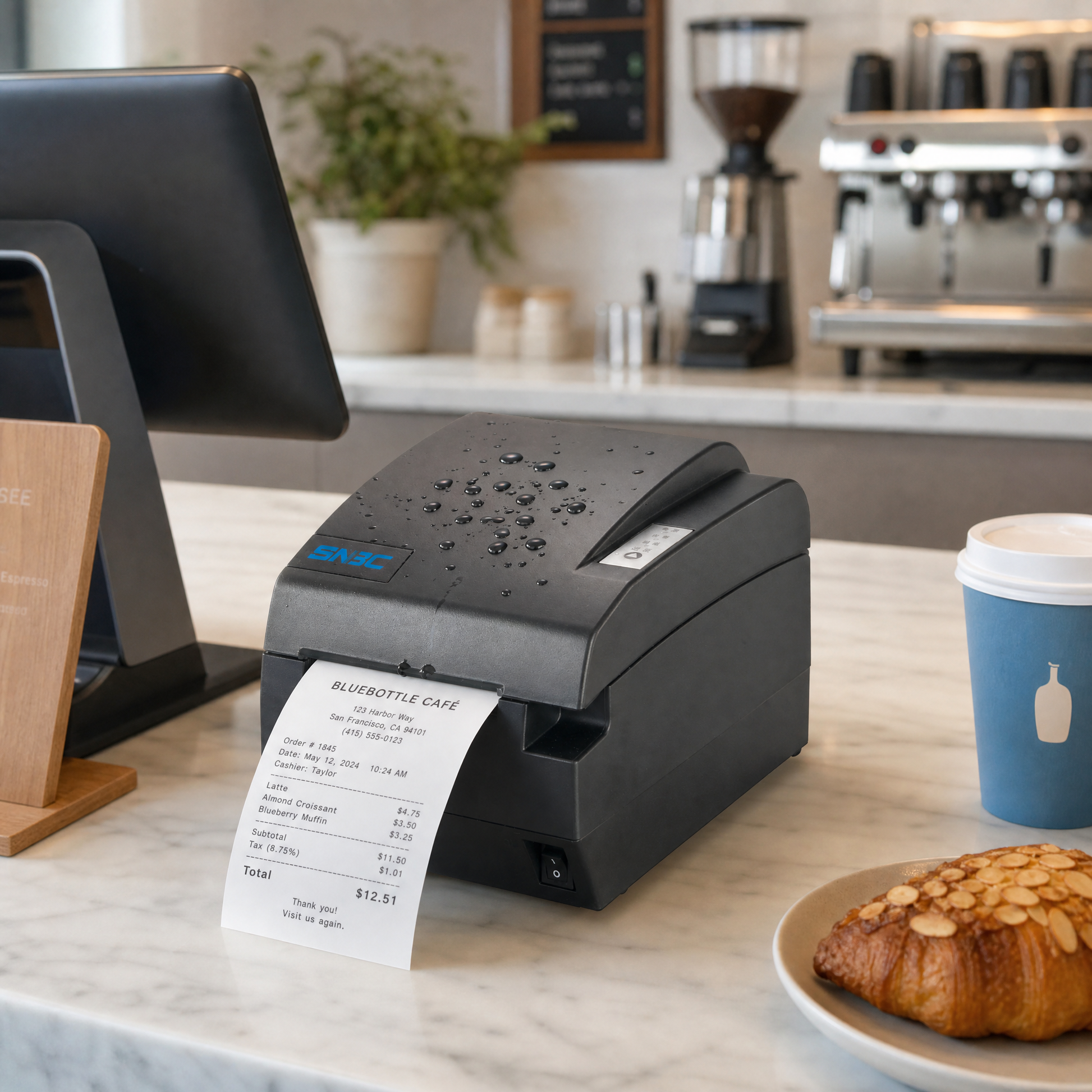

- Retail Point-of-Sale: 230mm/s print speed and 100mm roll capacity reduce customer wait times and cashier interruptions during peak transaction periods

- Self-Service Kiosks: Front-exit paper path and compact 155.5×205×160mm footprint enable installation in tight spaces without compromising paper capacity

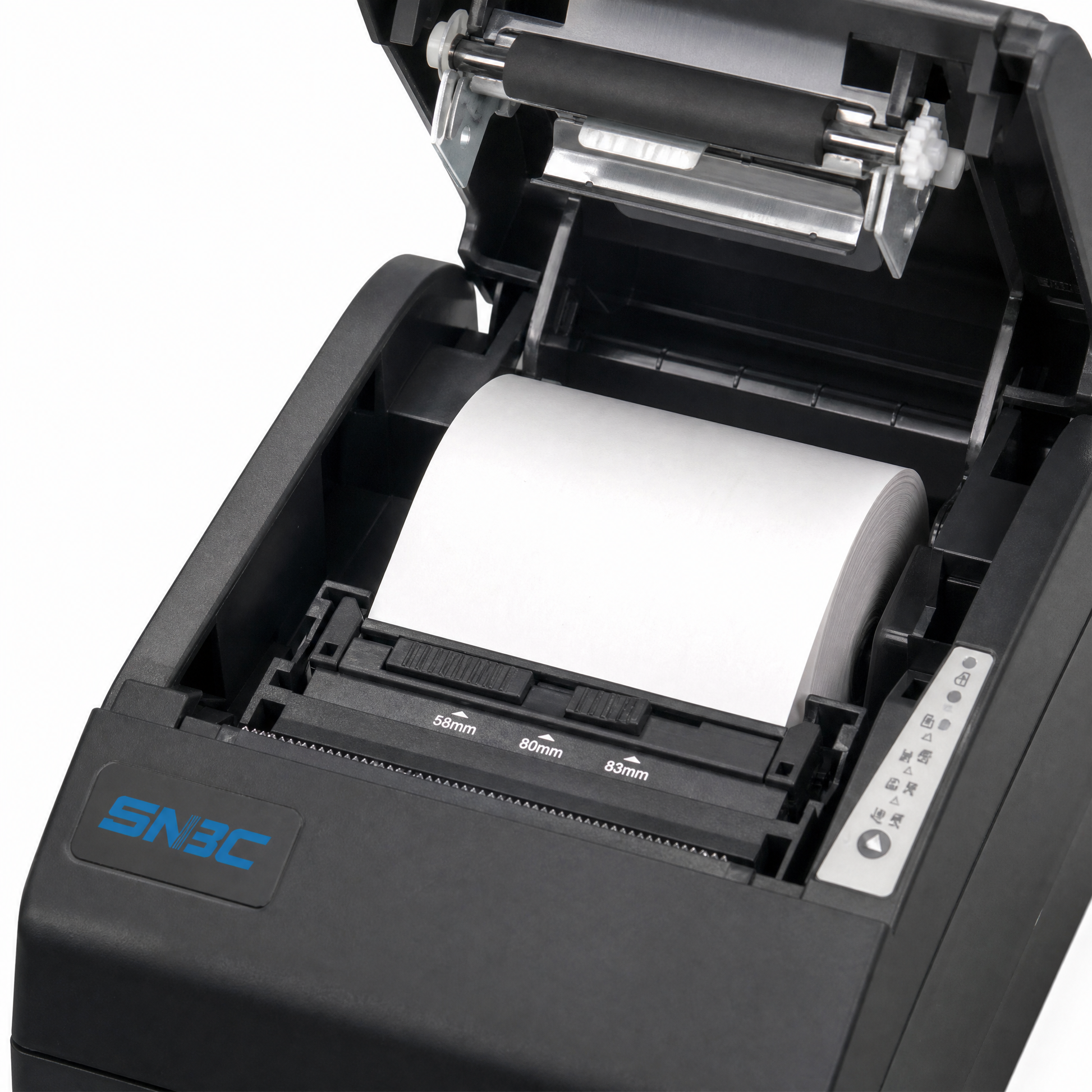

- Hospitality and Quick-Service: Dual cash drawer control and drop-and-print paper loading accelerate service in fast-paced hotel and QSR environments

- Logistics and Ticketing: Support for black-mark paper and 1D/2D barcode printing (UPC, EAN, Code128, QR, PDF417) handles shipping labels and event tickets

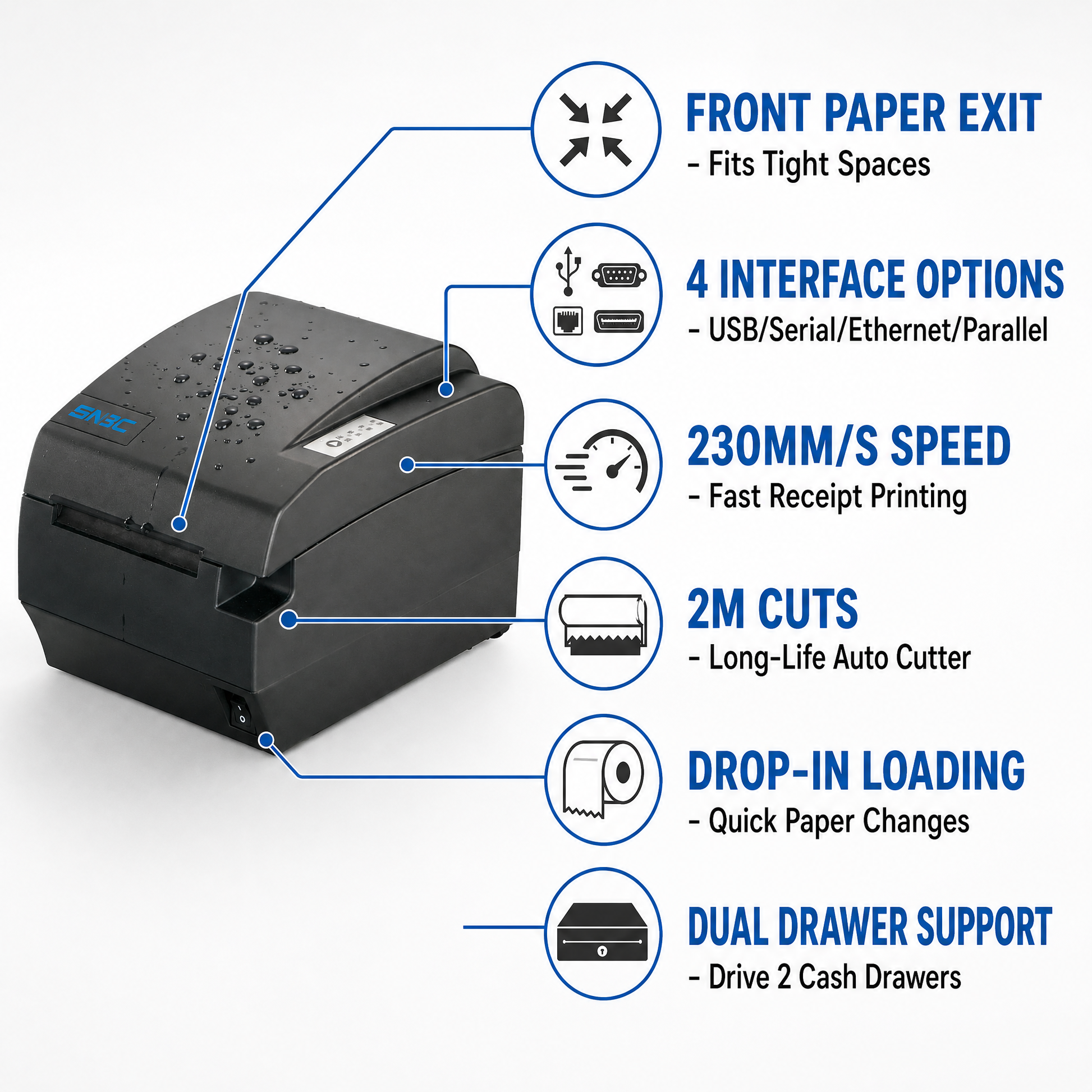

Key Features

- Direct thermal line printing at 230mm/s standard speed with 203×203 DPI resolution and grayscale/two-color printing modes

- IPX1-certified splash-proof housing protects internal components from liquid exposure in food service and outdoor environments

- Front paper exit design allows wall mounting or installation in narrow spaces while accommodating up to 100mm diameter rolls

- Auto-cutter rated for 2 million cuts with full or partial cut modes and 33-50% longer lifespan versus comparable printers

- Interchangeable interface boards support USB (standard), RS232 serial, parallel, Ethernet, and WiFi without replacing printer hardware

- Built-in universal power supply accepts 110-240VAC 50/60Hz input and eliminates external AC adapters for cleaner installations

- ESC/POS command compatibility and drivers for Windows, Linux, Mac, and UPOS middleware ensure broad POS software integration

- Energy Star certification and sub-1W sleep mode power consumption reduce operating costs and support sustainability initiatives

Quick Specs

Specification	Details
Print Technology	Direct thermal line printing
Print Resolution	203 × 203 DPI
Print Speed	230mm/s (standard), 150mm/s (grayscale), 120mm/s (two-color)
Maximum Print Width	80mm
Paper Type	Continuous thermal paper and black-mark paper
Paper Width	54.5mm – 82.5mm
Paper Roll Diameter	Up to 100mm
Paper Thickness	0.06mm – 0.145mm
Interfaces	USB (built-in); optional RS232, parallel, Ethernet, WiFi
Memory	2MB RAM, 2MB Flash (4MB optional), 64KB receive buffer
Barcode Support	1D: UPC-A/E, EAN8/13, Code39/93/128, CODABAR, ITF 2D: PDF417, QR Code, Maxicode
Auto-Cutter	2,000,000 cut lifespan, full/partial cut modes
Cash Drawer Control	2 drawers
Environmental Rating	IPX1 splash-proof
MTBF	360,000 hours
Print Head Life	≥150km (monochrome), ≥75km (two-color)
Operating Environment	5–45°C, 20–90% RH (at 40°C)
Power Supply	Built-in 110-240VAC 50/60Hz, <1W sleep mode

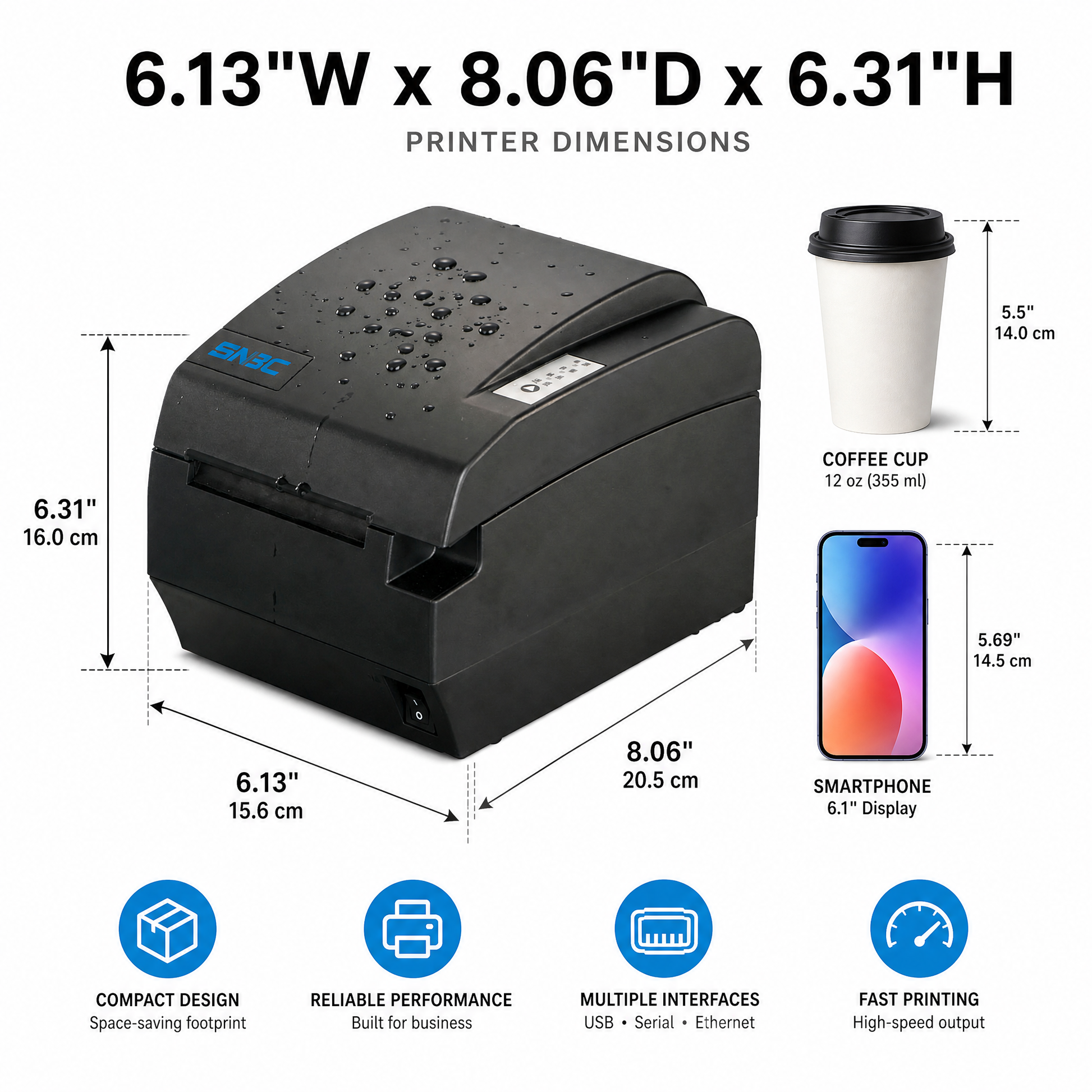

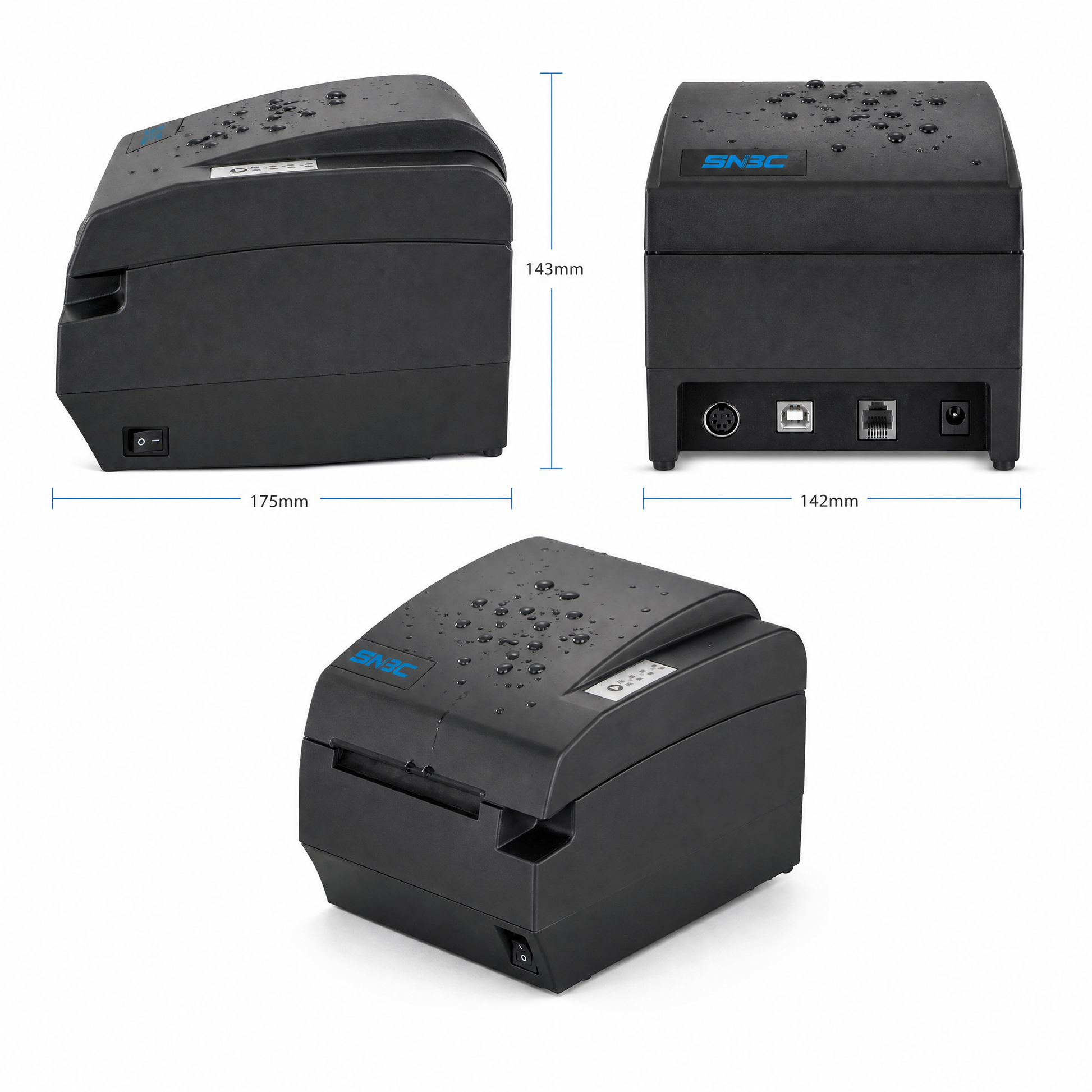

Dimensions (W×D×H)	155.5 × 205 × 160mm
Weight	Approximately 3.2kg (7 lbs)
Certifications	Energy Star
OS Compatibility	Windows 2000/XP/2003/Vista/2008/7, Linux, Mac, UPOS
Command Set	ESC/POS compatible

What's Included

- BTP-R580II thermal receipt printer

- Starter paper roll

- USB cable / communication cable

- Built-in power supply with power cord

- Quick reference manual

- CD-ROM with drivers, utilities, and user manual

What business environments is the SNBC R580 designed for?

The R580 is built for high-volume POS environments including restaurant kitchens, retail checkout counters, hotel front desks, and self-service kiosks. Its IPX1 splash-proof rating protects against liquid spills in food service settings. The front-exit paper design suits space-constrained installations where conventional rear-exit printers cannot fit.

How does the R580 compare to other SNBC thermal receipt printers?

The R580 offers IPX1 splash-proof protection not found in standard SNBC models, making it suitable for harsh environments. Its front-exit design differentiates it from rear-exit models when installation space is limited. The 100mm roll capacity and 230mm/s speed position it for high-volume operations requiring fewer roll changes.

Is the R580 worth the investment for enterprise deployments?

The R580 delivers value through its 360,000-hour MTBF and 2 million cut auto-cutter lifespan—33-50% longer than competing printers. Energy Star certification and sub-1W sleep mode reduce operating costs. Built-in power supply and interchangeable interface boards lower installation and future upgrade expenses across multi-site deployments.

What systems and interfaces does the R580 support?

The R580 includes built-in USB and supports optional RS232 serial, parallel, Ethernet, and WiFi through interchangeable interface boards. It runs ESC/POS commands and provides drivers for Windows (2000 through 7), Linux, Mac, and UPOS middleware. The printer controls up to two cash drawers and integrates with Herald kitchen alarm systems.

What paper sizes and types work with the R580?

The R580 accepts continuous thermal paper and black-mark paper from 54.5mm to 82.5mm width and 0.06mm to 0.145mm thickness. Maximum roll diameter is 100mm. Maximum print width is 80mm at 203 DPI resolution.

How fast does the R580 print and what is its duty cycle?

The R580 prints at 230mm/s in standard mode, 150mm/s in grayscale mode, and 120mm/s in two-color mode. It has a 360,000-hour MTBF and 70,000,000-line MCBF rating. The print head lasts at least 150km in monochrome or 75km in two-color printing.

What barcode and graphics capabilities does the R580 offer?

The R580 prints 1D barcodes including UPC-A/E, EAN8/13, Code39, Code93, Code128, CODABAR, and ITF. It supports 2D codes including PDF417, QR Code, and Maxicode. The printer can store and print logos, watermarks, and bitmap graphics with character rotation in four directions and 1-6x scaling.

What power requirements does the R580 have?

The R580 has a built-in universal power supply accepting 110-240VAC at 50/60Hz with no external adapter required. It consumes less than 1W in sleep mode and automatically enters sleep after 5 minutes of inactivity by default.
