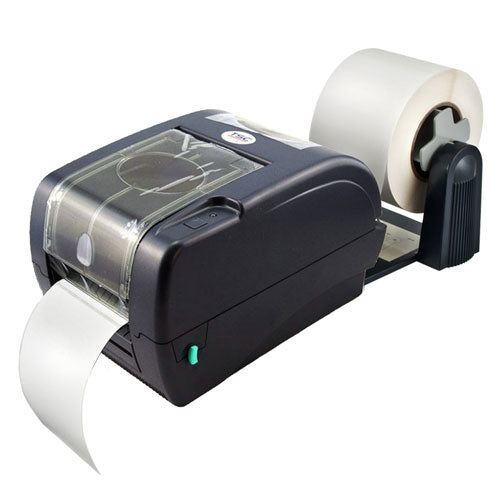

TSC TTP-247-BS Label Printer | Bracket/RTC/IE/EM, 3in, US Desktop

Brand TSC

Model Number 99-125A024-5061

EpicRise Warranty First Year

Product Highlights

Exceptional print speed and clarity: Prints at up to 7 inches per second with 203 dpi resolution, while the TTP-345 offers 300 dpi at 5 ips for high-detail graphics and barcodes.
Powerful memory and expansion: Equipped with 4MB Flash and 8MB SDRAM, with SD card slot expandable to 4GB for storing fonts, templates, or graphics.
Flexible connectivity options: Standard USB 2.0, serial, and parallel ports, with optional Ethernet for seamless integration in any network environment.
Durable and user-friendly design: Features a clamshell structure for easy media loading, a label gap sensor, and full-range adjustable black mark sensor.
Supports industry printer languages: TSPL-EZ firmware supports TSC, Zebra® (TPLZ), and Eltron® (TPLE) languages, ensuring compatibility with existing systems.

Overview
Specifications
FAQ
User Guides
Reviews

Delivering premium performance at an affordable price, the TSC TTP-247 Series sets the benchmark in thermal transfer desktop barcode printing. With print speeds up to 7 inches per second and support for up to 4-inch wide labels, it’s built for high-volume applications across retail, logistics, and asset tracking. The BS bracket model includes a real-time clock (RTC) module and supports expanded memory and network options for future-ready deployment.

Exceptional print speed and clarity: Prints at up to 7 inches per second with 203 dpi resolution, while the TTP-345 offers 300 dpi at 5 ips for high-detail graphics and barcodes.
Powerful memory and expansion: Equipped with 4MB Flash and 8MB SDRAM, with SD card slot expandable to 4GB for storing fonts, templates, or graphics.
Flexible connectivity options: Standard USB 2.0, serial, and parallel ports, with optional Ethernet for seamless integration in any network environment.
Durable and user-friendly design: Features a clamshell structure for easy media loading, a label gap sensor, and full-range adjustable black mark sensor.
Supports industry printer languages: TSPL-EZ firmware supports TSC, Zebra® (TPLZ), and Eltron® (TPLE) languages, ensuring compatibility with existing systems.

Product Details
Color	Gray
Connection Type	USB, Ethernet, Serial

What print speed and resolution does the TTP-247 offer?

The TTP-247 prints at speeds up to 7 inches per second with a print width of up to 4 inches at 203 dpi resolution. For higher-resolution needs, the TTP-345 model prints at 300 dpi and 5 inches per second.

What makes the TTP-247 series a good value for its price?

This printer delivers industry-leading performance with high speed, large media capacity, and robust construction—all at a budget-friendly price point.

What memory and expansion options does the printer have?

The TTP-247 comes with 8 MB SDRAM and 4 MB Flash memory onboard, with expandable Flash storage up to 4 GB via an SDHC card reader.

What connectivity options are available?

Standard interfaces include USB 2.0, parallel, and serial ports, with an optional internal Ethernet module for easy network integration.

Does the TTP-247 support multiple printer languages?

Yes! It features TSPL-EZ firmware, which is fully compatible with TPLE (Eltron®) and TPLZ (Zebra®) printer control languages for seamless integration with existing systems.

How easy is it to load labels and ribbons?

Its user-friendly clamshell design makes drop-in media loading quick and simple, while the rugged double-wall construction ensures durability.

How much ribbon and label material can it handle?

The TTP-247 can hold ribbons up to 300 meters long—more than four times the standard for desktop printers—and label rolls up to 5 inches OD on a 1-inch core, or up to 8.4 inches OD on a 3-inch core with an external hanger.
