Yealink W77P Rugged DECT Cordless Phone System with W70B Base and W57R Handset for Industrial Use

Name: Yealink W77P Rugged DECT Cordless Phone System with W70B Base and W57R Handset for Industrial Use
Brand: Yealink
SKU: Custom-Yealink-W77P

Delivery Time: 0-3 days

Brand Yealink

Model Number W77P

Manufacture Warranty 1 Year

EpicRise Warranty First Year

Product Highlights

• IP54-rated W57R handset withstands 3.5m drops, water splashes, and dust ingress for demanding work environments

• Supports up to 10 handsets and 20 concurrent calls with 10 SIP accounts for scalable enterprise communication

• Vibration alert and enhanced audio with noise cancellation ensure calls are never missed in loud industrial settings

• 1460mAh battery delivers up to 40 hours talk time with 10-minute quick charge providing 2 hours of use

• Compatible with full range of Yealink DECT devices including handsets, conference phones, and repeaters (RT30)

Overview
Specifications
FAQ
User Guides
Reviews

The Yealink W77P is a high-performance rugged SIP cordless phone system designed for mobile workers in challenging environments. Combining the W70B IP base station with the W57R rugged DECT handset, this system delivers enterprise-grade voice communication with exceptional durability. The W57R handset features IP54 protection against dust and water, withstands drops up to 3.5 meters, and includes vibration alerts to ensure critical calls are never missed in noisy warehouses, construction sites, or hospitality venues.

Built for scalability, the W77P supports up to 10 handsets and 20 concurrent calls across 10 SIP accounts, making it ideal for growing teams that need reliable mobile voice connectivity. Advanced audio technologies including full-duplex speakerphone, flexible noise reduction (FNR), and support for wideband codecs like G.722 and Opus ensure crystal-clear conversations even in high-pressure environments. The system integrates seamlessly with Yealink's DECT ecosystem, supporting up to 6 repeaters per base station for extended coverage.

Enterprise IT teams benefit from comprehensive security features including TLS 1.3, SRTP, and OpenVPN support, along with flexible deployment options via auto-provisioning through TFTP/FTP/HTTP/HTTPS. The W57R handset features a 1.8-inch TFT color display, backlit keypad, and supports local phonebook with up to 1000 entries stored on the base station, while the W70B base station offers PoE (IEEE 802.3af) for simplified installation.

Best For

The Yealink W77P is engineered for organizations requiring rugged, mobile voice communication across large facilities and harsh environments:

- Warehouses and Distribution Centers: Enables mobile workers to coordinate logistics, inventory management, and order fulfillment while moving freely across expansive facilities with up to 300m outdoor range

- Construction Sites: Provides reliable communication for site managers and contractors with handsets that survive drops, dust exposure, and weather conditions while supporting multi-party conferencing

- Hospitality and Event Venues: Empowers staff in hotels, restaurants, and convention centers to respond quickly to guest needs with vibration alerts and disinfectant-resistant surfaces ideal for high-touch environments

- Healthcare Facilities: Supports mobile clinical and support staff with UV-C resistant, easily sanitized handsets that maintain connectivity across multiple floors via repeater expansion

- Manufacturing Plants: Delivers clear voice communication in noisy production environments with advanced noise cancellation and hearing aid compatibility (HAC) for worker safety

Key Features

- Rugged Handset Design: IP54-rated W57R withstands 3.5m drops, water splashes, dust, and chemical disinfectants with scratch-resistant rubber surface and UV-C light exposure protection

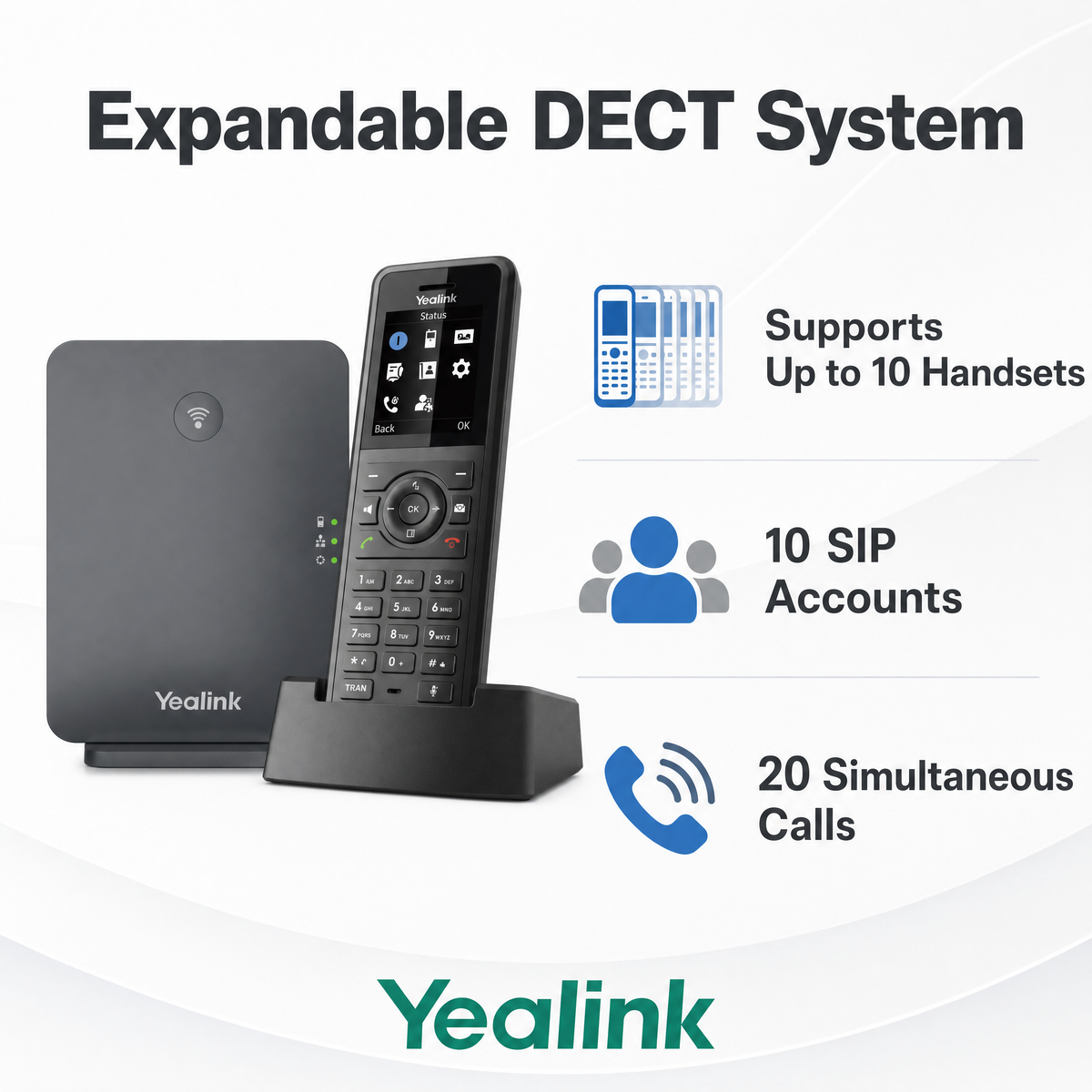

- High-Capacity System: Supports up to 10 SIP accounts, 10 handsets, and 20 concurrent calls with each handset handling 2 simultaneous calls for flexible team coordination

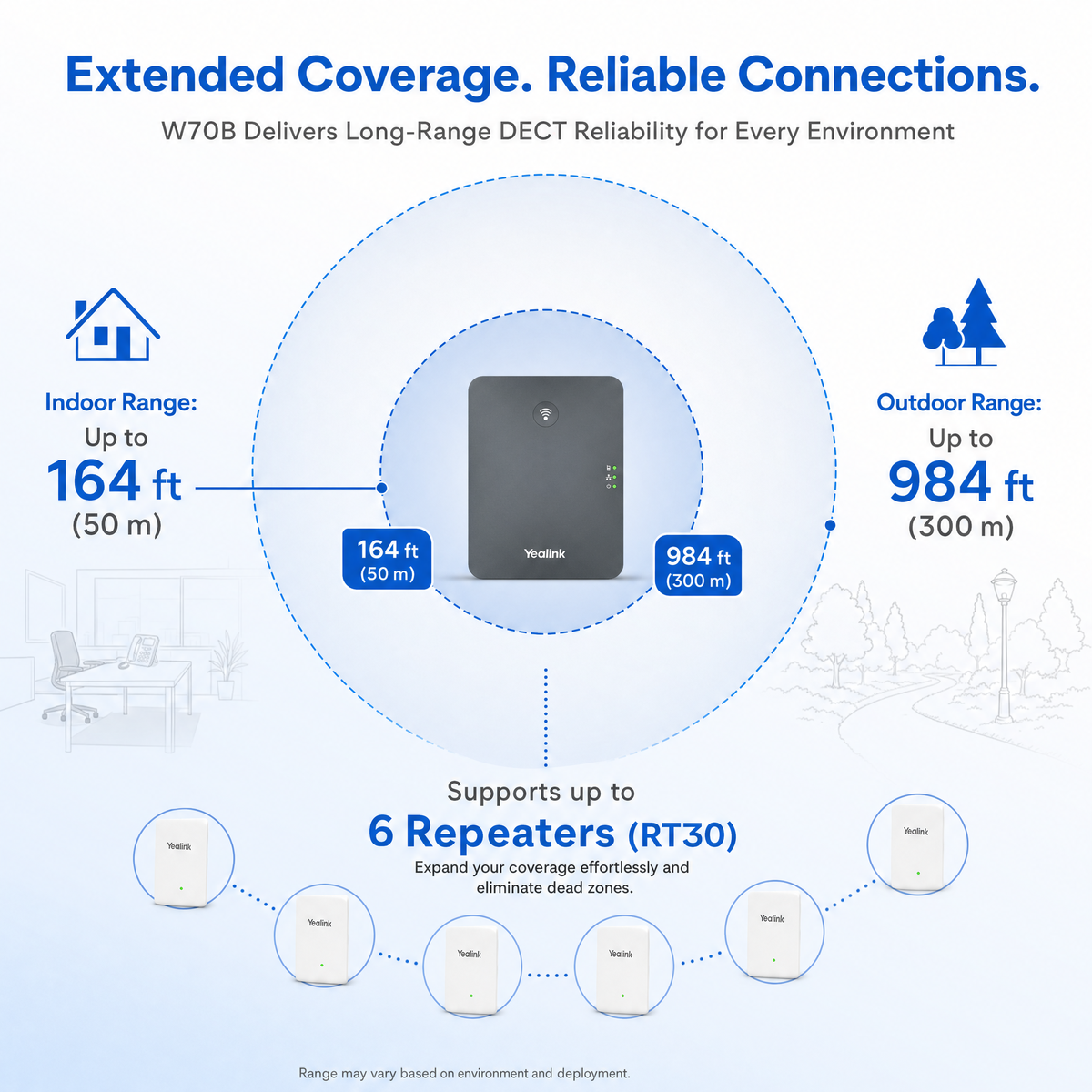

- Extended Coverage: 50m indoor and 300m outdoor range (ideal conditions) with support for up to 6 RT30 repeaters per base station for large facility deployment

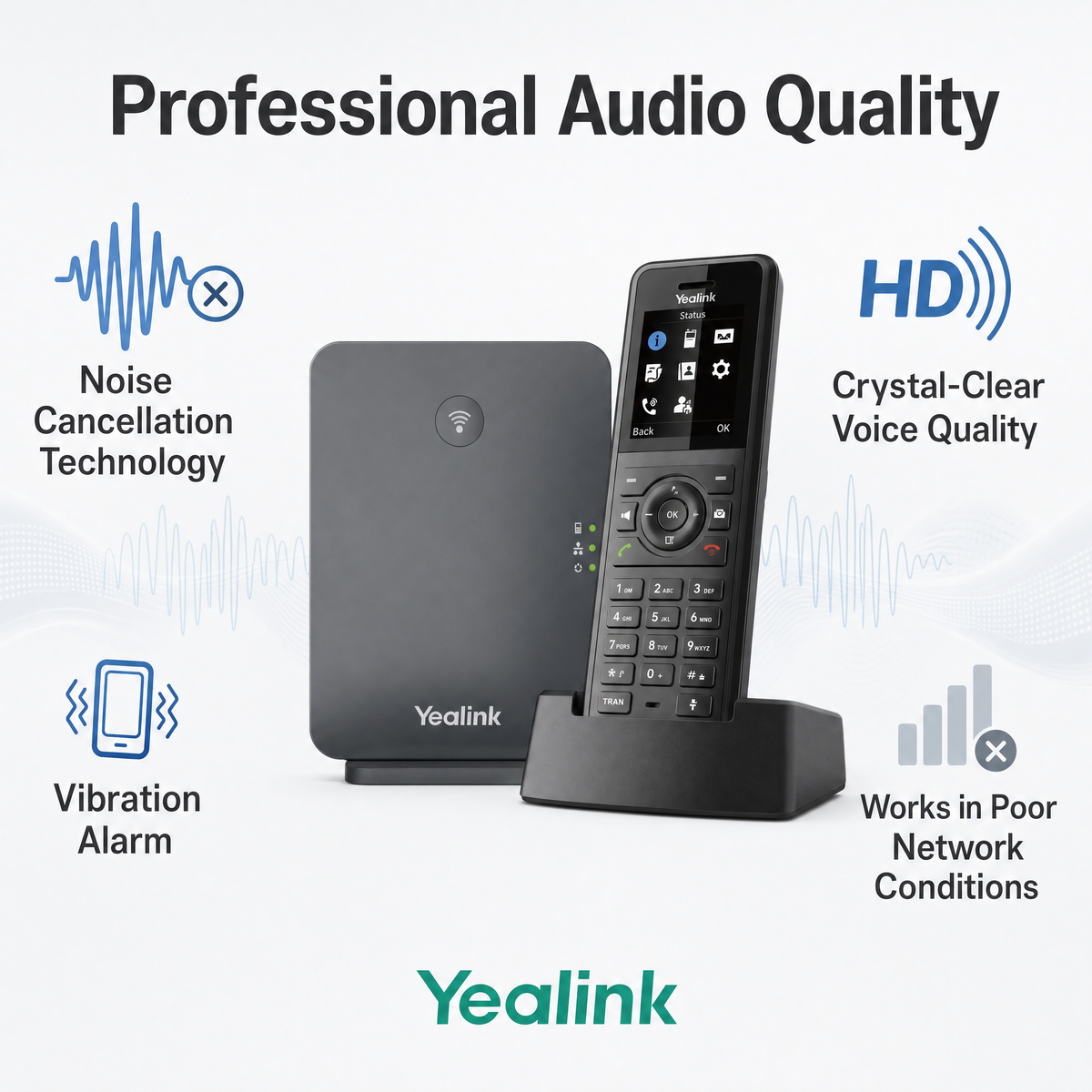

- Superior Audio Quality: Full-duplex speakerphone, flexible noise reduction (FNR), wideband codecs (G.722, AMR-WB, Opus), acoustic echo cancellation (AEC), and hearing aid compatibility

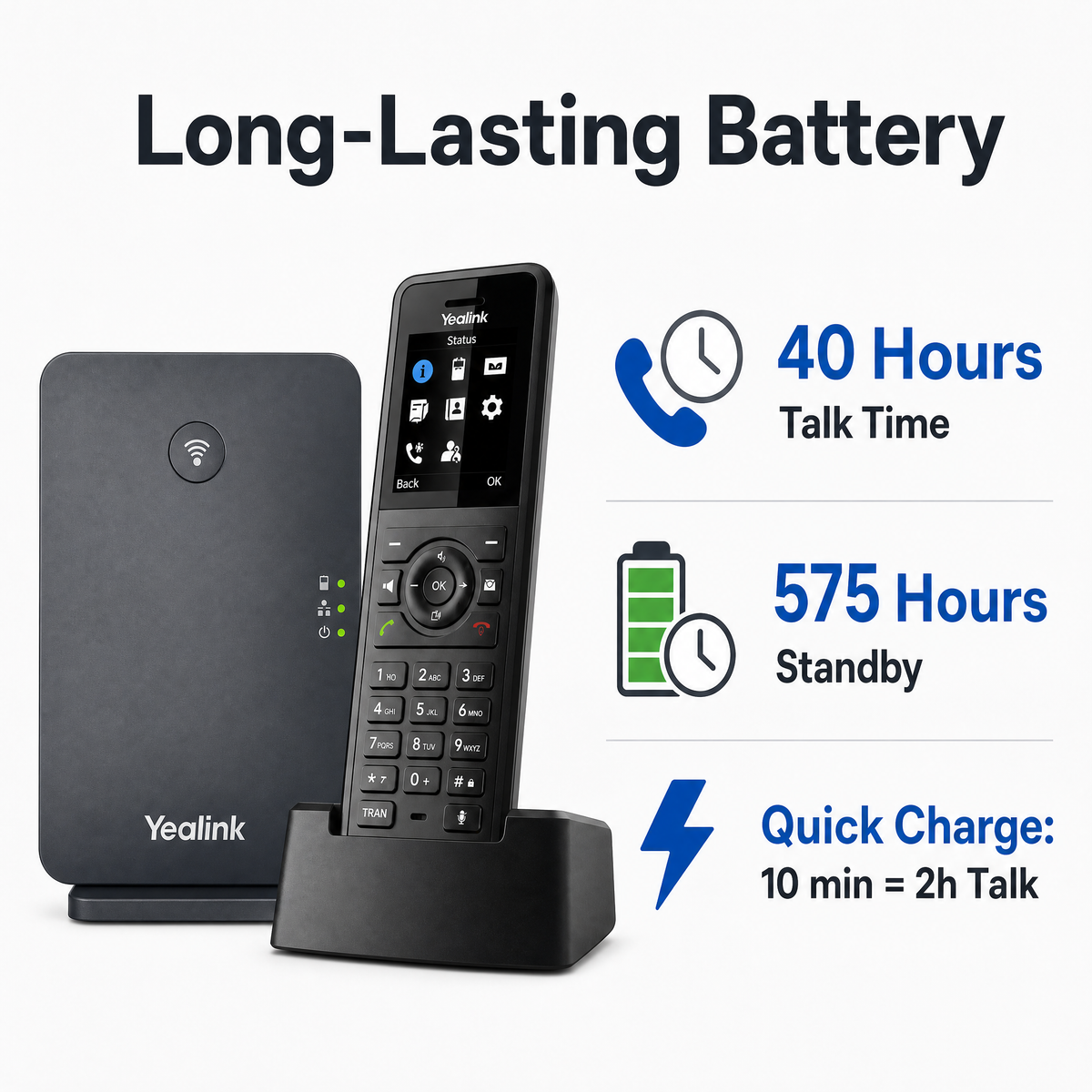

- Long Battery Life: Removable 1460mAh Li-ion battery provides up to 40 hours talk time and 575 hours standby with 10-minute quick charge delivering 2 hours of talk time

- Vibration Alert System: Ensures critical calls are not missed in noisy environments with customizable vibration patterns and visual ring indicators on 1.8-inch TFT color display

- Enterprise Security: TLS 1.3, SRTP (RFC3711), HTTPS, OpenVPN, digest authentication, AES encrypted configuration, and support for SHA256/512/384 for secure communications

- Flexible Deployment: PoE (IEEE 802.3af) support, auto-provisioning via TFTP/FTP/HTTP/HTTPS, OTA handset upgrades, and browser/phone/auto-configuration management options

Quick Specs

System Type	SIP DECT Cordless Phone System (W70B Base + W57R Handset)
Maximum Handsets	10 handsets per base station
Concurrent Calls	20 system-wide, 2 per handset
SIP Accounts	10 accounts
Handset Protection	IP54 (dust and water splash resistant)
Drop Resistance	Up to 3.5 meters
Display	1.8-inch 128x160 TFT color screen with backlight
Battery	1460mAh Li-ion (removable); 40hrs talk / 575hrs standby (V0-V3)
Quick Charge	10 minutes = 2 hours talk time
Audio Codecs	Wideband: G.722, AMR-WB, Opus; Narrowband: PCMU/A, G.726, G.729, iLBC
Audio Features	Full-duplex speakerphone, FNR noise cancellation, HAC, AEC
DECT Frequency	1880-1900 MHz (Europe), 1920-1930 MHz (US)
DECT Standard	CAT-iq 2.0
Range	50m indoor / 300m outdoor (ideal conditions)
Repeater Support	Up to 6 RT30 repeaters per base
Network Interface	1x RJ45 10/100M Ethernet
Power	PoE IEEE 802.3af Class 1, or AC 100-240V adapter (DC 5V/600mA)
VoIP Protocols	SIP v1/v2, UDP/TCP/TLS, SRTP, STUN
Security	TLS 1.3, HTTPS, SRTP, OpenVPN, AES encryption, SHA256/512/384
Phonebook	1000 entries (stored on base), LDAP, XML remote phonebook
Management	Auto-provisioning (TFTP/FTP/HTTP/HTTPS/RPS), OTA handset upgrade
Operating Temp	0°C to 40°C (32°F to 104°F)
Operating Humidity	10% to 95%
Base Dimensions	130 x 100 x 25.1 mm
Mounting	Desktop or wall-mount

What's Included

- W70B DECT IP Base Station

- W57R Rugged DECT Handset

- AC Power Adapter (100-240V input, 5V/600mA output)

- Belt Clip for W57R Handset

- 1460mAh Li-ion Battery (installed in handset)

Product Details
Color	Black, Gray
Connection Type	Ethernet
Power Source	AC-powered

What work environments is the Yealink W77P designed for?

The W77P is built for harsh industrial environments including warehouses, construction sites, manufacturing plants, and hospitality venues. The IP54-rated W57R handset withstands 3.5-meter drops, dust, water splashes, and chemical disinfectants. Vibration alerts and noise cancellation ensure reliable communication in loud settings where standard office phones would fail.

How does the W77P compare to other Yealink DECT systems for enterprise deployments?

The W77P offers rugged handset protection that standard Yealink DECT systems lack, making it the choice for demanding physical environments. It supports the same scalability as Yealink's business DECT line with 10 handsets and 20 concurrent calls, but adds IP54 rating, drop resistance, and vibration alerts. Organizations needing both durability and enterprise capacity choose the W77P over office-focused models.

Is the W77P worth the investment for mobile workforce communication?

The W77P delivers enterprise-grade durability with IP54 protection and 3.5-meter drop resistance, reducing handset replacement costs in harsh environments. Supporting 10 handsets and 20 concurrent calls across 10 SIP accounts, it scales with team growth. The 40-hour battery life and quick charge capability minimize downtime. Organizations with mobile workers in demanding conditions see ROI through reduced equipment failure and improved operational efficiency.

What systems and infrastructure does the W77P work with?

The W77P works with any SIP-compliant VoIP platform or PBX system supporting standard protocols including SIP v1/v2, UDP/TCP/TLS, and SRTP. It integrates with Yealink DECT repeaters (RT30) for coverage extension and other Yealink DECT devices. Network deployment requires standard Ethernet with optional PoE (IEEE 802.3af). The system does not support third-party DECT handsets or non-Yealink base stations.

How many handsets and calls can a single W70B base station support?

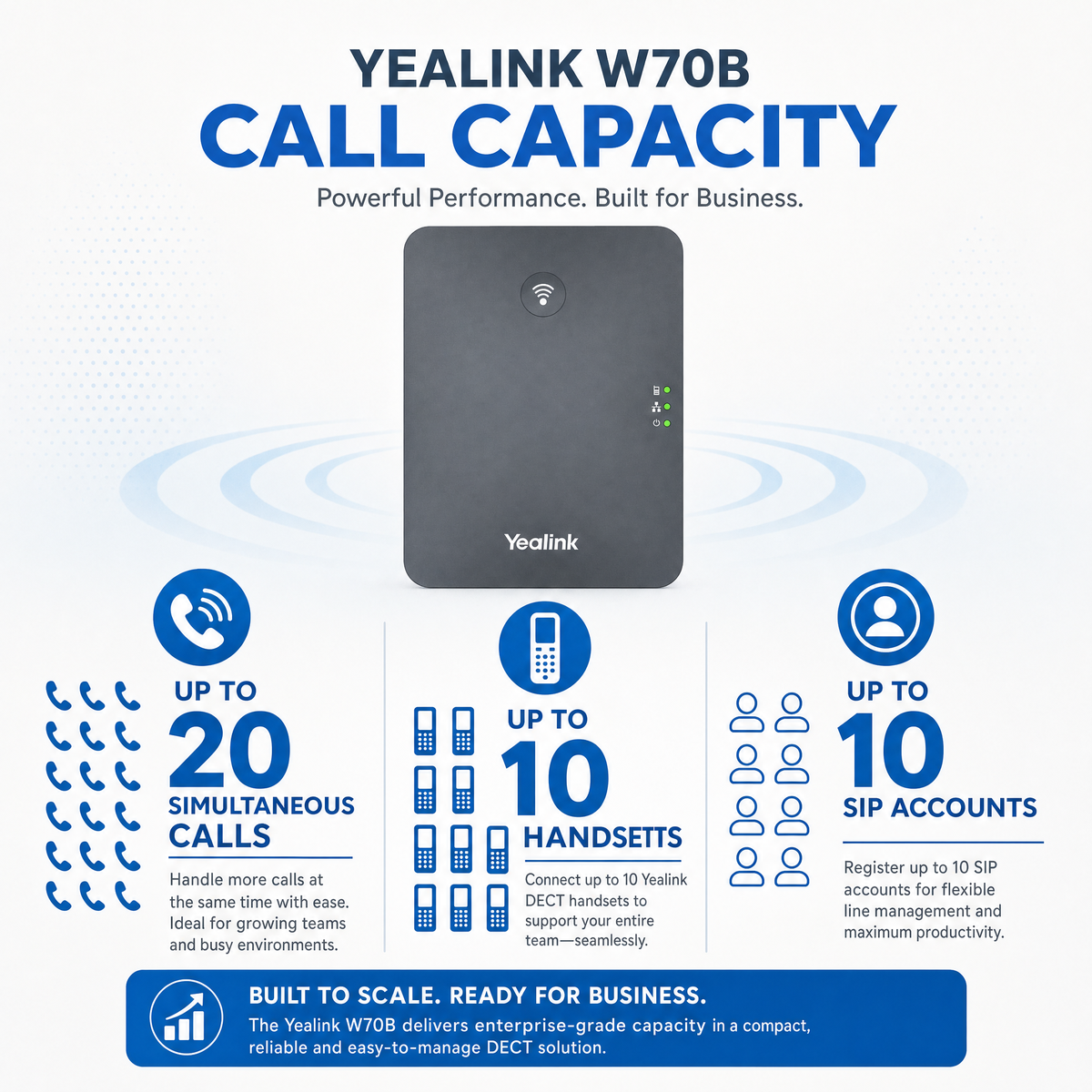

A single W70B base station supports up to 10 handsets with 20 concurrent calls across 10 SIP accounts. Each handset can handle 2 simultaneous calls. The base station can connect to 6 RT30 repeaters for extended coverage across large facilities.

What is the actual range of the W77P system in typical deployments?

The W70B base provides up to 50 meters range indoors and 300 meters outdoors under ideal conditions. Real-world range varies based on building materials, interference, and obstacles. Adding RT30 repeaters extends coverage across multi-floor facilities or large outdoor areas. Each base supports up to 6 repeaters for comprehensive site coverage.

How long does the W57R handset battery last between charges?

The 1460mAh battery provides up to 40 hours talk time and 575 hours standby time in V0-V3 versions under ideal conditions. V4 versions deliver up to 28 hours talk time and 320 hours standby. Quick charge delivers 2 hours of talk time from just 10 minutes of charging. Battery performance varies with signal strength, usage patterns, and environmental factors.

Can the W77P integrate with existing network security infrastructure?

The W77P supports TLS 1.3 for transport encryption, SRTP for media encryption, and OpenVPN for secure tunneling. It offers HTTPS provisioning, digest authentication, AES-encrypted configuration files, and SHA256/512/384 support. The system integrates with 802.1x network authentication and supports VLAN tagging (802.1Q/P) for network segmentation. Three-level configuration modes (admin/variable/user) enable granular access control.

What audio codecs does the W77P support for call quality optimization?

Wideband codecs include G.722, AMR-WB (optional), and Opus for HD voice quality. Narrowband codecs include PCMU, PCMA, G.726, G.729/A, and iLBC for bandwidth efficiency. The system supports VAD, CNG, AGC, PLC, and AJB for adaptive call quality, plus AEC for echo cancellation and VQ-RTCPXR (RFC6035) for quality monitoring.
