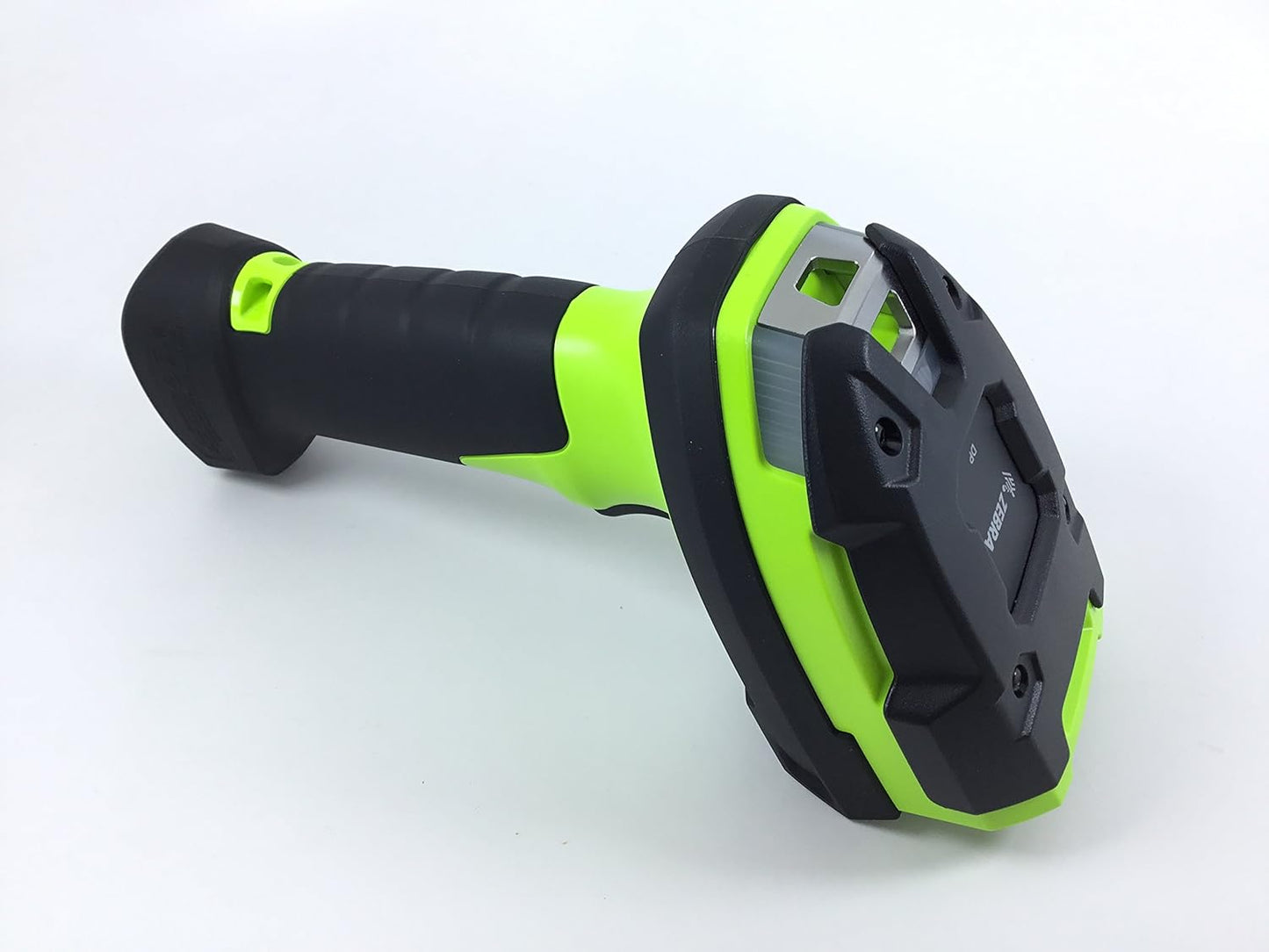

Zebra, DS3608-DP Ultra-Rugged Corded Scanner | Direct Part Marking, 2D Imager (1D/2D/PDF417/QR/OCR), USB Cable

Name: Zebra, DS3608-DP Ultra-Rugged Corded Scanner | Direct Part Marking, 2D Imager (1D/2D/PDF417/QR/OCR), USB Cable
Brand: Zebra
SKU: ZEB-SCA-DS3608-DP-NEW
Price: 549.0 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Product Highlights

Superior scanning performance on DPM and standard 1D/2D barcode, in any condition------Comprehensive patented features enable the capture of literally every type of direct part mark(DPM) and printed 1D/2D barcode. DPM codes can be captured, regardless of size, surface, contrast or density---including the most challenging mark, dot peen, as well as laser etch, ink mark, chemical etch, inkjet mold, cast and thermal spray.
Ultra-Rugged ------the most indestructible design in its class------The DS3608-DP is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-DP is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Extreme Temperature Rating------Built to handle extreme cold, heat and more, you can use the DS3608-DP anywhere ?even in the freezer.
Advanced Illumination System------Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface---including reflective, irregular and curves as well as low and high contrast marks. The built-in diffuser provides the indirect light required to capture marks printed on very shinny and reflective surfaces. The proprietary design of the diffuser also directs additional lighting to the edges of barcodes marked on a curved surface, enhancing the image fo
The DS3608-DP is warranted against defects in workmanship and materials for 36 months fromt he date of shipment.

Overview
Specifications
FAQ
User Guides

Zebra DS3608-DP (Direct Part Marking) Ultra-Rugged Handheld Corded DPM 2D Barcode Scanner (DP, 1D, 2D, PDF417, QR Code and OCR) with USB Cable

Superior scanning performance on DPM and standard 1D/2D barcode, in any condition------Comprehensive patented features enable the capture of literally every type of direct part mark(DPM) and printed 1D/2D barcode. DPM codes can be captured, regardless of size, surface, contrast or density---including the most challenging mark, dot peen, as well as laser etch, ink mark, chemical etch, inkjet mold, cast and thermal spray.
Ultra-Rugged ------the most indestructible design in its class------The DS3608-DP is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-DP is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Extreme Temperature Rating------Built to handle extreme cold, heat and more, you can use the DS3608-DP anywhere ?even in the freezer.
Advanced Illumination System------Advanced illumination provides the multiple lighting effects required to capture marks on any type of surface---including reflective, irregular and curves as well as low and high contrast marks. The built-in diffuser provides the indirect light required to capture marks printed on very shinny and reflective surfaces. The proprietary design of the diffuser also directs additional lighting to the edges of barcodes marked on a curved surface, enhancing the image fo
The DS3608-DP is warranted against defects in workmanship and materials for 36 months fromt he date of shipment.

General Specifications

Model: DS3608-DP
Type: Ultra-Rugged Corded 2D Barcode Scanner for DPM (Direct Part Mark)
Includes: USB Cable
Use Case: Designed for manufacturing, industrial, and traceability environments

Scanner Performance

Scanning Technology: Area Imager with PRZM Intelligent Imaging
Sensor: 1280 × 960 pixels (1 Megapixel)
Field of View: Horizontal 31°, Vertical 23°
Illumination:

Direct: 2 × warm white LEDs
Diffuse: 634 nm red LED ring
Aimer: 655 nm laser

Minimum Print Contrast: 15%
Skew/Pitch/Roll: ±60° / ±60° / 360°
Decode Range (Examples):

Code 39 (3 mil): 0.2–2.8 in (0.5–7.1 cm)
Datamatrix (5 mil): 0.4–2.5 in (1.0–6.3 cm)
QR Code (10 mil): up to 3.4 in (8.6 cm)

Supported Symbologies

1D: Code 39, Code 128, UPC/EAN, MSI, Codabar, I 2 of 5, GS1 DataBar, and more
2D: PDF417, QR Code, Data Matrix, MaxiCode, Aztec, TLC-39, Micro PDF417
OCR: Supports IUID parsing and Optical Character Recognition (OCR)
DPM Support: Dot peen, laser etch, ink mark, chemical etch, thermal spray, mold cast

Physical Characteristics

Dimensions: 7.3 in H × 3.0 in W × 5.2 in D (18.5 × 7.7 × 13.2 cm)
Weight: 10.72 oz (304 g)
Color: Industrial Green
Sealing: IP65 and IP67 rated (dustproof and waterproof)
Drop Spec: Withstands multiple 8 ft (2.4 m) drops to concrete
Tumble Spec: 5,000 tumbles at 3.3 ft (1 m)

Environmental

Operating Temperature: -22°F to 122°F (-30°C to 50°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Humidity: 5% to 95% RH, non-condensing
Ambient Light Immunity: Up to 108,000 lux

Electrical

Input Voltage:

Host powered: 4.5 to 5.5 VDC
External power supply: 11.4 to 12.6 VDC

Operating Current: 360 mA (typical)
Standby Current: 100 mA (typical)

Host Interfaces

USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP, TCP/IP

📥 Download Product Manual (PDF)

What types of barcodes can the DS3608-DP scan?
The DS3608-DP can scan a wide range of barcodes, including:

1D barcodes: Code 39, Code 128, UPC/EAN, and more.
2D barcodes: PDF417, DataMatrix, QR Code, Aztec, and others.
Direct Part Marks (DPM): Laser etch, ink mark, chemical etch, inkjet mold, cast, thermal spray, and dot peen.
OCR: Optical Character Recognition for alphanumeric text.

What is the scanning range of the DS3608-DP?
The scanner offers a versatile scanning range, capable of capturing barcodes from as close as 0.5 inches (1.3 cm) to several feet away, depending on the barcode size, type, and condition.

How does the DS3608-DP connect to host devices?
The DS3608-DP connects via a corded USB interface. It also supports other interfaces, including RS-232 Serial and Keyboard Wedge, providing flexibility for various system integrations.

Is the scanner suitable for harsh environments?
Yes, the DS3608-DP is designed for ultra-rugged use. It can withstand multiple 8-foot (2.4-meter) drops to concrete and 5,000 tumbles at 3.3 feet (1 meter). It has an IP67 sealing rating, offering complete protection against dust and water immersion up to 30 minutes.

Can the DS3608-DP operate in extreme temperatures?
Yes, it operates reliably in temperatures ranging from -22°F to 122°F (-30°C to 50°C), making it ideal for use in freezers and outdoor environments.

What are the physical dimensions and weight of the DS3608-DP?
