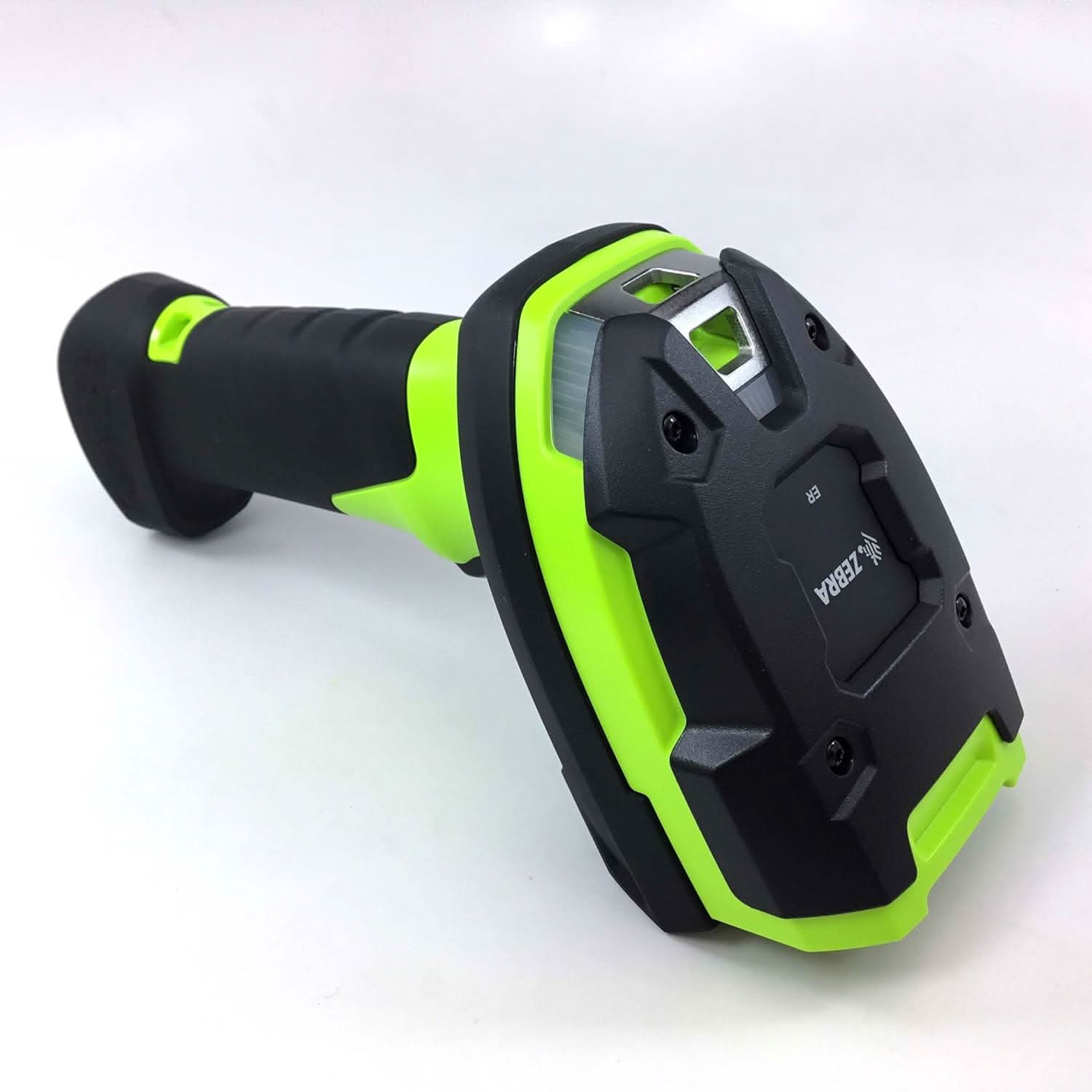

Zebra DS3608-ER (Extended Range) Ultra-Rugged Handheld Corded 2D Barcode Scanner/Imager (1D, 2D, PDF417, QR Code) with USB Cable

Name: Zebra DS3608-ER (Extended Range) Ultra-Rugged Handheld Corded 2D Barcode Scanner/Imager (1D, 2D, PDF417, QR Code) with USB Cable
Brand: EpicRise
SKU: ZEB-SCA-DS3608-ER-NEW
Price: 515.0 USD
Availability: InStock
Rating: 5 (47 reviews)

Delivery Time: 0-3 days

Product Highlights

Superior scanning range------The advanced imager reads 1D and 2D barcodes printed on a label up to 60 percent closer and 35 percent farther than similar models in this class, with an extraordinary scanning range from 3 in. to 70 ft. (7.6 cm to 21.4 m). Now, one scanner can easily read barcodes on a picklist inhand and on the uppermost shelves of your warehouse racks, as well as extra-wide codes just a hands-length away — evenif they are under shrinkwrap, damaged, dirty or poorly printed.
Ultra-rugged, the most indestructible design in its class------The DS3608-ER is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-ER is built to survive an 8 ft./2.4 m drop to concrete---23 percent more durable in this class. The DS3608-ER operates reliably after 5,000 tumbles. DS3608-ER is dust proof, spray proof and waterproofed to IP67 — they can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Multi-code captures and processes up to 20 barcodes simultaneously------Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems — all with complete control over the order barcodes are processed.
Ready for the freezer------The DS3608-ER is built from the ground up to handle extreme cold. Its unique plastics, cables and components is designed to handle freezing temperatures without becoming brittle — making these scanners ideal for use in freezers and outdoor yards.
Faster pick-list processing------Users can easily select and capture an individual barcode from any pick list.

Overview
Specifications
FAQ
User Guides

Superior scanning range------The advanced imager reads 1D and 2D barcodes printed on a label up to 60 percent closer and 35 percent farther than similar models in this class, with an extraordinary scanning range from 3 in. to 70 ft. (7.6 cm to 21.4 m). Now, one scanner can easily read barcodes on a picklist inhand and on the uppermost shelves of your warehouse racks, as well as extra-wide codes just a hands-length away — evenif they are under shrinkwrap, damaged, dirty or poorly printed.
Ultra-rugged, the most indestructible design in its class------The DS3608-ER is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-ER is built to survive an 8 ft./2.4 m drop to concrete---23 percent more durable in this class. The DS3608-ER operates reliably after 5,000 tumbles. DS3608-ER is dust proof, spray proof and waterproofed to IP67 — they can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Multi-code captures and processes up to 20 barcodes simultaneously------Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems — all with complete control over the order barcodes are processed.
Ready for the freezer------The DS3608-ER is built from the ground up to handle extreme cold. Its unique plastics, cables and components is designed to handle freezing temperatures without becoming brittle — making these scanners ideal for use in freezers and outdoor yards.
Faster pick-list processing------Users can easily select and capture an individual barcode from any pick list.

Superior scanning range------The advanced imager reads 1D and 2D barcodes printed on a label up to 60 percent closer and 35 percent farther than similar models in this class, with an extraordinary scanning range from 3 in. to 70 ft. (7.6 cm to 21.4 m). Now, one scanner can easily read barcodes on a picklist inhand and on the uppermost shelves of your warehouse racks, as well as extra-wide codes just a hands-length away — evenif they are under shrinkwrap, damaged, dirty or poorly printed.

General Specifications

Model: DS3608-ER
Type: Ultra-Rugged Corded 2D/1D Barcode Scanner (Extended Range)
Connectivity: USB Cable Included
Color: Industrial Green
Recommended Use: Long-range scanning in warehouse, manufacturing, and freezer environments

Scanner Performance

Scan Type: Area Imager (Extended Range)
Sensor: 1 Megapixel (1280 × 800 pixels)
Field of View:

Near: 32° (H) × 20° (V)
Far: 12° (H) × 7.6° (V)

Illumination: 660 nm LED
Minimum Print Contrast: 25%
Skew/Pitch/Roll: ±60° / ±60° / 360°
Typical Decode Range:

Code 128 (15 mil): 5" to 100"
Code 128 (100 mil): 20" to 840"
Data Matrix (10 mil): 4" to 44"

Supported Symbologies

1D: Code 39, Code 128, UPC/EAN, MSI, I 2 of 5, Codabar, etc.
2D: PDF417, QR Code, Data Matrix, Aztec, Micro PDF417, MaxiCode
Postal & Others: Han Xin, Composite Codes, TLC-39

Physical Characteristics

Dimensions: 7.3 in H × 3.0 in W × 5.2 in D (18.5 × 7.6 × 13.2 cm)
Weight: 11.8 oz (334 g)
Sealing: IP65 and IP67 (Dustproof and Waterproof)

Electrical

Input Voltage (Host): 4.5 to 5.5 VDC
Operating Current:

Near: ~320 mA
Far: ~700 mA

Standby Current: 120 mA typical

Environmental

Operating Temperature: -22°F to 122°F (-30°C to 50°C)
Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Humidity: 5% to 95% RH, condensing
Drop Spec: Multiple drops from 8 ft (2.4 m) to concrete
Tumble Spec: 5000 tumbles at 3.3 ft (1 m)
Ambient Light Immunity: Up to 107,639 lux
Freezer-Ready: Yes (with heated holder accessory)

📥 Download Product Manual (PDF)

What types of barcodes can the DS3608-ER scan?
The DS3608-ER can scan both 1D and 2D barcodes, including Code 39, Code 128, PDF417, QR Code, DataMatrix, and more. It also supports scanning from paper labels and electronic displays, such as smartphone screens.

What is the scanning range of the DS3608-ER?
The scanner offers an extended range (ER) scanning capability, effectively capturing barcodes from as close as 3 inches (7.6 cm) to as far as 70 feet (21.4 meters), depending on the barcode size and density.

How does the DS3608-ER connect to host devices?
It utilizes a corded USB connection for reliable communication. The scanner supports multiple interfaces, including USB, RS232, and Keyboard Wedge.

Is the scanner suitable for harsh environments?
Yes, the DS3608-ER is designed for ultra-rugged use. It can withstand multiple 8-foot (2.4-meter) drops to concrete and 5,000 tumbles at 3.3 feet (1 meter). It has an IP67 sealing rating, offering complete protection against dust and water immersion up to 30 minutes.

Can the DS3608-ER operate in extreme temperatures?
Yes, it operates reliably in temperatures ranging from -22°F to 122°F (-30°C to 50°C), making it ideal for use in freezers and outdoor environments.

What are the physical dimensions and weight of the DS3608-ER?
