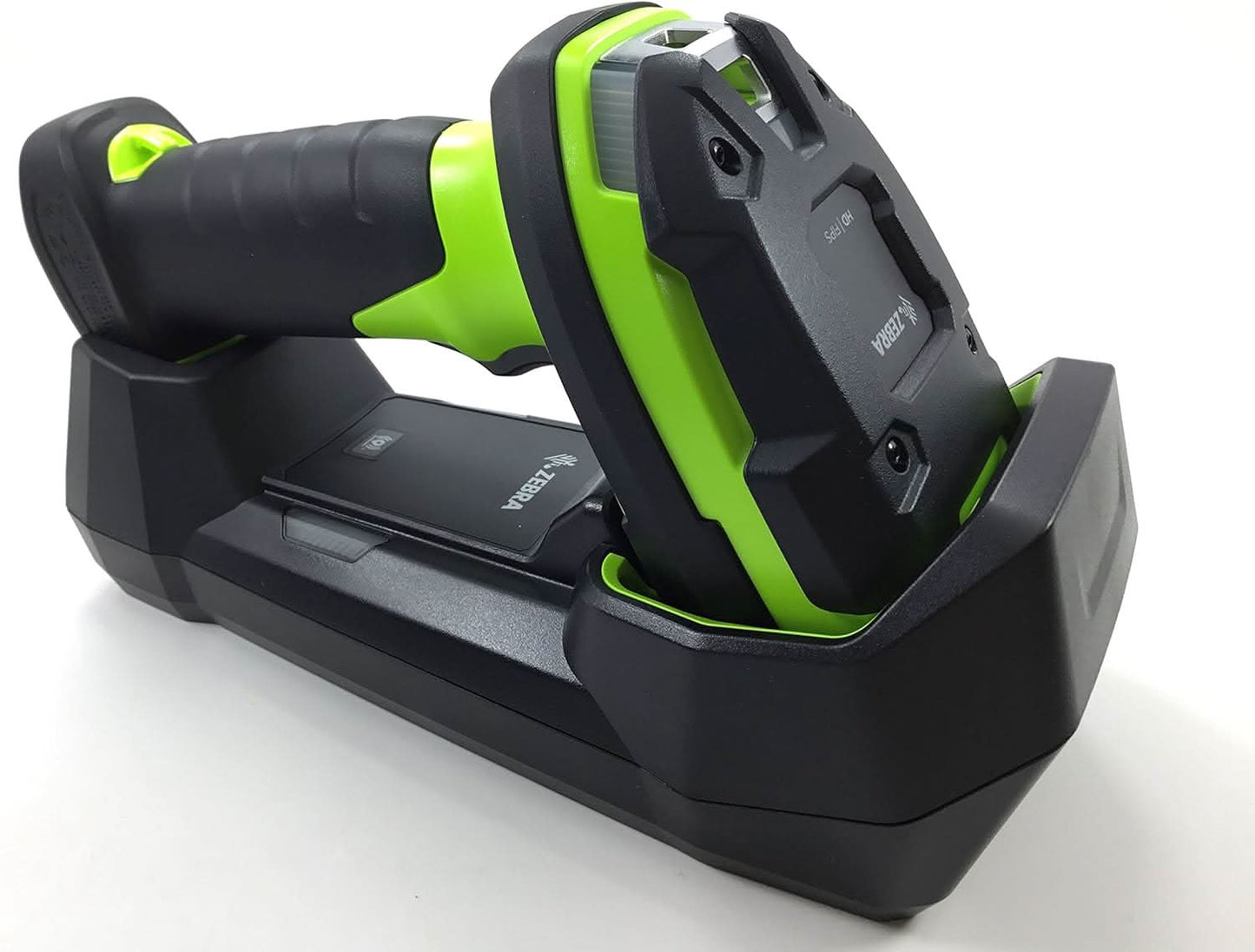

Zebra DS3678-HD Ultra-Rugged Cordless Scanner | High Density 1D/2D Imager, Bluetooth, FIPS, Cradle, Power Supply, 7ft USB Cable (CBA-U42-S07ZAR)

Zebra DS3678-HD Ultra-Rugged Cordless Scanner | High Density 1D/2D Imager, Bluetooth, FIPS, Cradle, Power Supply, 7ft USB Cable (CBA-U42-S07ZAR)

Brand Zebra

Model Number DS3678-HD

UPC 758399858312

EpicRise Warranty First Year

Product Highlights

Superior scanning performance on any high density 1D/2D barcode------This advanced imager delivers first time capture of high-density 1D and 2D barcodes printed on labels or directly on product components — including tiny and dense 3 mil codes that are barely visible to the naked eye. These scanners also capture standard printed barcodes in virtually any condition — damaged, dirty, poorly printed or under shrinkwrap.
Ultra-rugged, the most indestructible design in its class------The DS3678-HD is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3678-HD is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Multi-code captures and processes up to 20 barcodes simultaneously------Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems — all with complete control over the order barcodes are processed.
Faster pick-list processing------Users can easily select and capture an individual barcode from any pick list.
A Bluetooth model in a class of its own for superior cordless freedom------Bluetooth 4.0 (Low Energy) provides lightning fast wireless communication and maximum energy efficiency. Our Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can often create in your Wi-Fi environment. The ‘go anywhere’ rugged cradle offers superior versatility and durability. The DS3678-HD is the only scanner in its family to offer a cradle with IP65 sealing. And its industrial charging.

Overview
Specifications
FAQ
User Guides
Reviews

Superior scanning performance on any high density 1D/2D barcode------This advanced imager delivers first time capture of high-density 1D and 2D barcodes printed on labels or directly on product components — including tiny and dense 3 mil codes that are barely visible to the naked eye. These scanners also capture standard printed barcodes in virtually any condition — damaged, dirty, poorly printed or under shrinkwrap.
Ultra-rugged, the most indestructible design in its class------The DS3678-HD is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3678-HD is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Multi-code captures and processes up to 20 barcodes simultaneously------Many labels have multiple barcodes your workers need to capture. Now, one press of the trigger captures the right barcodes and applies the unique data format required for each one for instant transmission to your backend systems — all with complete control over the order barcodes are processed.
Faster pick-list processing------Users can easily select and capture an individual barcode from any pick list.
A Bluetooth model in a class of its own for superior cordless freedom------Bluetooth 4.0 (Low Energy) provides lightning fast wireless communication and maximum energy efficiency. Our Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can often create in your Wi-Fi environment. The ‘go anywhere’ rugged cradle offers superior versatility and durability. The DS3678-HD is the only scanner in its family to offer a cradle with IP65 sealing. And its industrial charging.

Product Details
Color	Black
Connection Type	Bluetooth, USB
Scanner Interface	Bluetooth, USB
Barcode Supported	1D, 2D
Scanner Sensor Type	2D imager
Power Source	Rechargeable

General Specifications

Model: DS3678-HD
Type: Cordless Ultra-Rugged 2D/1D High-Density Barcode Scanner
Includes: Scanner, Charging Cradle, Power Supply, Shielded 7ft USB Cable (CBA-U42-S07ZAR)
Color: Industrial Green

Performance

Scan Engine: Area Imager (1280 × 960 pixels)
Supported Codes:

1D: Code 39, Code 128, Code 93, Codabar, UPC/EAN, I 2 of 5, GS1 DataBar, MSI, and others
2D: PDF417, Micro PDF417, QR Code, DataMatrix, Aztec, MaxiCode, Composite Codes, Postal Codes

Resolution: Reads 3 mil high-density codes
Print Contrast: 15% minimum reflectance difference
Motion Tolerance: Up to 400 cm/s
Field of View: Horizontal 31°, Vertical 23°
Skew/Pitch/Roll: ±60° Skew, ±60° Pitch, ±360° Roll
Reading Range Examples:

Code 128 (3 mil): 2.0–3.0 in. (5.1–7.6 cm)
13 mil UPC: Up to 19.3 in. (49 cm)

Features

Ultra-Rugged Build:

Drop Spec: Withstands multiple 8 ft. (2.4 m) drops onto concrete
Tumble Spec: 5000 tumbles at 1 m (3.3 ft)
Sealing: IP65 and IP67 (Scanner and Cradle)

Bluetooth 4.0 LE: Class 1 (up to 300 ft / 100 m line of sight)
Vibration Motor: Haptic feedback for good-read
Multi-code Capture: Reads up to 20 barcodes at once
Picklist Mode: Precision targeting for individual barcodes
FIPS 140-2 Encryption Ready

Electrical

Battery: PowerPrecision+ 3100 mAh Li-Ion Rechargeable Battery

Scans per Charge: 70,000+
Charge Gauge: Battery health and status monitoring

Input Voltage:

Host Powered: 4.5–5.5 VDC
External Power: 11.4–12.6 VDC

Cradle Contacts: Rated for 250,000 insertions

Environmental

Operating Temperature:

Scanner: -4°F to 122°F (-20°C to 50°C)
Cradle Charging: 41°F to 104°F (5°C to 40°C)

Storage Temperature: -40°F to 158°F (-40°C to 70°C)
Humidity: 5% to 95% non-condensing
Ambient Light Immunity: 0 to 108,000 lux
ESD Protection: ±25kV air discharge

Physical Characteristics

Dimensions:

Scanner: 7.3 in. H × 3.0 in. W × 5.6 in. D (18.5 × 7.6 × 14.2 cm)

Weight:

Cordless Scanner: 14.5 oz. (411 g)

User Indicators: Direct decode indicator, LEDs, beeper, vibration feedback

Management and Utilities

123Scan and SMS (Scanner Management Service): Remote setup, firmware upgrade, and management
Scanner SDK: For custom applications
Wi-Fi Friendly Mode: Reduces Bluetooth interference with Wi-Fi networks

📥 Download Product Manual (PDF)

Can I pair the DS3678-HD directly to a tablet, phone or laptop without the cradle?

Yes. Scan the "HID BT Classic" barcode in Zebra's DS36X8 Product Reference Guide, then pick the scanner from your device's Bluetooth list; it types scanned data like a keyboard. You still need the cradle to charge it. If the scanner drops the tablet connection when docked, scan "Disable Pair on Contacts" so it charges without re-pairing to the cradle.

How many scans does the battery last, and how long does it take to charge?

Zebra rates the PowerPrecision+ 3100 mAh Li-ion battery at 100,000+ scans per full charge. A fully drained battery takes up to 3 hours to charge in the cradle on the included power supply, or up to 10 hours if the cradle is powered only over USB. The battery is user-replaceable, and Zebra's free 123Scan software shows its health and charge cycles.

Can I use it in a freezer or cold storage?

Yes, within limits. The cordless DS3678-HD is rated to operate from -4°F to 122°F (-20°C to 50°C) and is IP65/IP68 sealed. Only charge it between 32°F and 104°F (0–40°C), so keep the cradle outside the freezer. Moving between cold and warm areas can fog the scan window.

What happens to my scans if I walk out of Bluetooth range?

Zebra rates the Class 1 Bluetooth range at a minimum of 300 ft (100 m) line of sight in open air; racks and walls shorten it. If you turn on Out of Range Batch Mode, the scanner stores barcodes while disconnected and sends them when it reconnects. It's off by default. Turn on Persistent Batch Storage too, so stored scans survive a power-down.

Can several DS3678 scanners share one cradle?

Yes. The cradle supports Multipoint-to-Point mode, which lets up to seven scanners pair to a single cradle. The first scanner connected must scan the "Multipoint-to-Point" barcode in the Product Reference Guide. Each scanner still needs somewhere to charge, so plan for extra cradles or a battery charger.

What does "FIPS" mean on this kit? Do I need to turn it on?

FIPS 140 is a U.S. government security standard for encryption modules. FIPS-enabled DS3678 scanners and cradles can encrypt all data sent between the scanner and the cradle over Bluetooth. FIPS mode is off by default; turn it on by scanning "Enable FIPS" in the Product Reference Guide. While it's active, the scanner lights an amber LED on every trigger pull.

Will it read very small barcodes, and barcodes on phone screens?

Yes. The HD model is built for small, dense codes: Zebra lists 3 mil Code 128 at 2.0–3.0 in and 10 mil Data Matrix at 1.0–9.0 in, so hold tiny codes close. It isn't a long-range scanner. It also reads codes on screens; if a phone screen reads slowly, scan an "Enhanced" Mobile Phone/Display Mode barcode in the guide.

Can the DS3678-HD connect to an Allen-Bradley or Siemens PLC?

Yes, through Zebra's EA3600 Network Connect adapter (sold separately). Choose the version that matches your PLC: EA3600-R1 models support EtherNet/IP (Rockwell/Allen-Bradley), Modbus TCP and standard TCP/IP; EA3600-S1 models support PROFINET (Siemens), Modbus TCP and standard TCP/IP.
