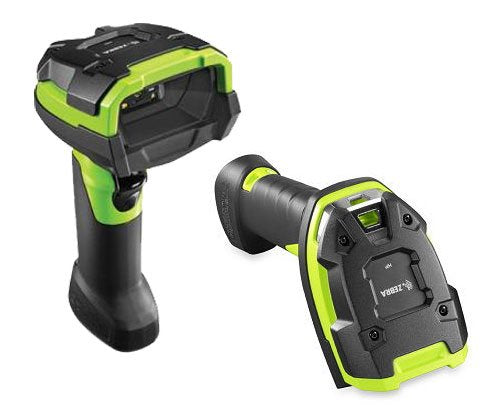

DS3608-HD3U4602VZW Zebra Enterprise DS3608-HD Barcode Scanner High Density 1D/2D Imager (USB Kit, Includes 7ft USB Cable)

DS3608-HD3U4602VZW Zebra Enterprise DS3608-HD Barcode Scanner High Density 1D/2D Imager (USB Kit, Includes 7ft USB Cable)

Delivery Time: 0-3 days

Brand Zebra Technologies

Model Number DS3608-HD3U4602VZW

UPC N/A

EpicRise Warranty First Year

Product Highlights

USB Kit, Includes Scanner and 7ft USB Cable
Vibration Motor
Industrial Green
Rugged High Density 1D/2D Imager

Overview
Specifications
FAQ
User Guides
Reviews

[DS3608-HD3U4602VZW] Zebra Enterprise DS3608-HD Barcode Scanner High Density 1D/2D Imager (USB Kit, Includes 7ft USB Cable)

USB Kit, Includes Scanner and 7ft USB Cable
Vibration Motor
Industrial Green
Rugged High Density 1D/2D Imager

USB Kit, Includes Scanner and 7ft USB Cable

Product Details
Color	Black
Connection Type	USB
Scanner Interface	USB
Barcode Supported	1D, 2D
Scanner Sensor Type	2D imager

General Specifications

Model: DS3608-HD
Type: Corded Ultra-Rugged 2D/1D High-Density Barcode Scanner
Includes: Scanner and 7ft Shielded USB Cable
Color: Industrial Green

Performance

Scan Engine: High-Density Area Imager (1280 × 960 pixels)
Supported Symbologies:

1D: Code 39, Code 128, UPC/EAN, GS1 DataBar, MSI, Codabar, and others
2D: PDF417, MicroPDF417, QR Code, DataMatrix, Aztec, MaxiCode, Postal Codes

Resolution:

Reads tiny, dense barcodes down to 3 mil Code 128

Print Contrast: 15% minimum reflectance difference
Field of View: Horizontal 31°, Vertical 23°
Motion Tolerance: High-speed scanning capability

Durability

Drop Spec: Withstands multiple drops from 8 ft. (2.4 m) onto concrete
Tumble Spec: 5000 tumbles at 1 m (3.3 ft)
Sealing: IP65 and IP67 (dustproof, waterproof, submersible)
Temperature Range:

Operating: -22°F to 122°F (-30°C to 50°C)
Storage: -40°F to 158°F (-40°C to 70°C)

Humidity: 5% to 95% RH, non-condensing
ESD Protection: ±25kV air discharge, ±10kV direct discharge

Physical Characteristics

Dimensions: 7.3 in H × 3.0 in W × 5.2 in D (18.5 × 7.6 × 13.2 cm)
Weight: 10.9 oz (309 g)
Cable: 7ft shielded USB cable included (CBA-U42-S07ZAR)

Electrical

Input Voltage: 4.5 to 5.5 VDC (host-powered)
Operating Current: 450 mA typical
Standby Current: 100 mA typical

Features

Direct Decode Indicator: LED, beeper, and vibration feedback
Multi-Code Data Capture: Captures up to 20 barcodes simultaneously
Picklist Mode: Allows targeting a single barcode from a picklist
Scanner Management:

123Scan2 Utility
Scanner Management Service (SMS)

SDK Support: For custom application development

📥 Download Product Manual (PDF)

Do I need to install a driver?

Usually not. The DS3608-HD comes set to USB HID Keyboard mode, so any computer that accepts a standard USB keyboard treats it as a keyboard and it types scanned data into the active field. You can switch to other USB modes (virtual COM/CDC, SNAPI, IBM) for specialized software; USB CDC mode needs Zebra's USB CDC driver installed first.

How do I make it press Enter or Tab after each scan?

By default it sends only the barcode data. For Enter, scan "Add Enter Key (Carriage Return/Line Feed)" in the DS36X8 Product Reference Guide. For Tab, set Suffix 1 to Tab and set Scan Data Transmission Format to . You can also build the setting in Zebra's free 123Scan software and scan the configuration barcode it creates.

Will it work in a freezer?

Yes. The corded DS3608-HD is rated to operate from -22°F to 122°F (-30°C to 50°C), is IP65/IP68 sealed, and is rated for multiple 8 ft drops to concrete even at -30°C. Moving between the freezer and warm areas can cause condensation on the scan window.

Can it scan barcodes on a phone or computer screen?

Yes. Zebra states the DS3600-HD reads codes displayed on a screen as well as printed ones. If a phone screen is slow to read, scan an "Enhanced" Mobile Phone/Display Mode barcode in the Product Reference Guide.

How tough is it?

Very. The DS3608-HD is IP65/IP68 sealed, so it is dust-tight and handles water jets and submersion. Zebra rates it for multiple 10 ft drops to concrete at room temperature and 7,500 tumbles from 3.3 ft.

Can I connect the corded DS3608-HD to a PLC?

Yes. Zebra's EA3600 Network Connect (sold separately) connects 3600 Series scanners, including the DS3608, to industrial Ethernet. Pick the EtherNet/IP version (EA3600-R1) for Rockwell PLCs or the PROFINET version (EA3600-S1) for Siemens PLCs.

Can it read the tiny barcodes on circuit boards and electronic parts?

Yes, for small printed codes. The HD model reads 3 mil Code 128 at 2.0–3.0 in and 5 mil PDF417 at 2.0–6.0 in, so you scan close up. It isn't designed for direct part marks, such as dot-peened or laser-etched codes on metal.

Can I use it hands-free?

Yes, but this kit doesn't include a stand. Set the DS3608 in Zebra's Intellistand (sold separately) and a built-in sensor puts it into hands-free mode, reading any barcode presented to it without a trigger pull. Lift it out of the stand and it returns to trigger mode automatically.
