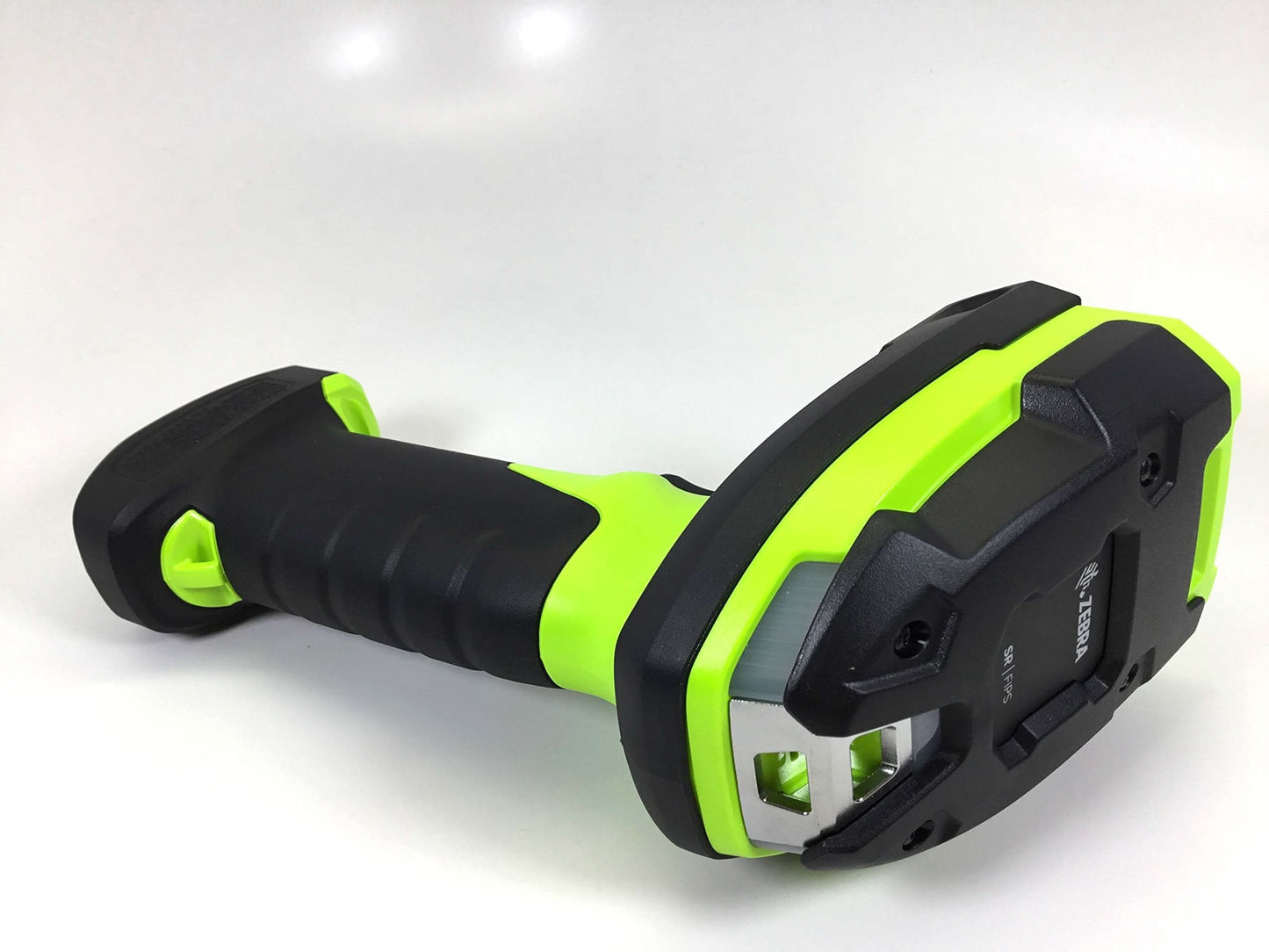

Zebra LI3678-SR Ultra-Rugged Cordless 1D Barcode Scanner | Linear Imager Kit, FIPS, Vibration Motor, Cradle, Power Supply, USB Cord

Name: Zebra LI3678-SR Ultra-Rugged Cordless 1D Barcode Scanner | Linear Imager Kit, FIPS, Vibration Motor, Cradle, Power Supply, USB Cord
Brand: Zebra
SKU: ZEB-SCA-LI3678-SR-NEW
Price: 439.0 USD
Availability: OutOfStock

Brand ZEBRA

Model Number LI3678-SR

UPC 758399858022

Manufacture Warranty

EpicRise Warranty 1 Year

Product Highlights

Superior scanning performance on any 1D barcode, in any condition------The advanced imager reads 1D barcodes displayed on a screen or printed on a label faster and farther than other standard scanners. Easily read barcodes even if they are under shrinkwrap, damaged, dirty or poorly printed.
Ultra-rugged, the most indestructible design in its class------The LI3678 is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The LI3678 is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Extreme temperature rating------Built to handle extreme cold, heat and more, you can use the LI3678 anywhere, even in the freezer.
A Bluetooth model in a class of its own provides lightning fast wireless communication and maximum energy efficiency.------Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can often create in your Wi-Fi environment. The ‘go anywhere’ rugged cradle offers superior versatility and durability. The LI3678 cradle is the only one in its class to offer IP65 sealing. And its industrial charging contacts withstand 250,000 insertions.
Three flexible feedback modes------Mix and match the feedback modes that are ideal in your environment — vibration, red and green LEDs located in an area where they are always easy to see, plus the traditional loud beep tone.

Overview
Specifications
FAQ
User Guides
Reviews

Zebra LI3678 offers unmatched durability, superior scanning performance and unrivaled manageability, while delivering lightning-fast capture of any 1D barcode printed on a label in virtually any condition, or displayed on a screen. The ultra-rugged design is practically indestructible — ideal for punishing environments. The LI3678 couldn’t be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the LI3678 is in a class of its own, with a complete solution that includes a sealed rugged cradle, a smart battery and Zebra’s Wi-Fi Friendly Mode that prevents interference with your Wi-Fi network. Get the unstoppable performance you need to maximize workforce productivity and throughput in your operations with the LI3678 — only from Zebra. Zebra LI3678 couldn't be easier and less time-consuming to deploy and manage. LI3678--the unstoppable performance you need to maximize workforce productivity and throughput in your operations. The dependable, fast and accurate scanning you need to take the quality of your products and your customer service to the next level.

Superior scanning performance on any 1D barcode, in any condition------The advanced imager reads 1D barcodes displayed on a screen or printed on a label faster and farther than other standard scanners. Easily read barcodes even if they are under shrinkwrap, damaged, dirty or poorly printed.
Ultra-rugged, the most indestructible design in its class------The LI3678 is the most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The LI3678 is built to survive an 8 ft./2.4 m drop to concrete, 23 percent more durable than any other scanner in this class. It is dustproof, sprayproof and waterproofed to IP67, it can be sprayed down with jetting water and even submersed in water for up to 30 minutes.
Extreme temperature rating------Built to handle extreme cold, heat and more, you can use the LI3678 anywhere, even in the freezer.
A Bluetooth model in a class of its own provides lightning fast wireless communication and maximum energy efficiency.------Zebra Wi-Fi Friendly Mode eliminates the wireless interference that Bluetooth devices can often create in your Wi-Fi environment. The ‘go anywhere’ rugged cradle offers superior versatility and durability. The LI3678 cradle is the only one in its class to offer IP65 sealing. And its industrial charging contacts withstand 250,000 insertions.
Three flexible feedback modes------Mix and match the feedback modes that are ideal in your environment — vibration, red and green LEDs located in an area where they are always easy to see, plus the traditional loud beep tone.

Superior scanning performance on any 1D barcode, in any condition------The advanced imager reads 1D barcodes displayed on a screen or printed on a label faster and farther than other standard scanners. Easily read barcodes even if they are under shrinkwrap, damaged, dirty or poorly printed.

Product Details
Color	Green, Black
Connection Type	Bluetooth, USB, Wi-Fi
Scanner Interface	Bluetooth, USB
Barcode Supported	1D
Scanner Sensor Type	Linear imager
Power Source	Rechargeable, Battery-powered

General Specifications

Model: Zebra LI3678
Type: Cordless Linear Imager Scanner
Use Case: High-performance scanning for industrial use, optimized for durability and comfort

Physical Features

Scan Window: Front-facing for linear barcode capture
Trigger: Located on the handle
Indicators: LEDs, Beeper, Battery and Radio LEDs
Battery Access: Bottom-located latch with lock/unlock control

Host Interface Options

Supported Interfaces:

USB (Profiles: HID Keyboard, CDC Host, IBM Tabletop, Handheld, SNAPI, OPOS, SSI)
RS-232 (Standard, ICL, NIXDORF A/B)
Keyboard Wedge
IBM 46XX (Ports 5B, 9B, 17)

Setup and Configuration

Auto Detect: Auto-host detect cable included
Defaults: Scan to restore factory settings
Key Emulation: Scan to add Enter or Tab key
Caps Lock Options: Override or disable USB Caps Lock

Aiming and Scanning Guidance

Aiming Pattern: Covers barcode to ensure visibility
Posture Tips: Avoid wrist bending, overreaching, and awkward angles

Feedback & Indicators

LED Indications:

Green: Scan successful
Red: Transmission error
Off: No power

Beeper Indications:

Power up: Low/Medium/High beeps
Success: Medium beep
Error: 4 long low beeps
Programming sequences: Distinctive beep patterns

Troubleshooting & Tools

Utility Software: 123Scan2 (Configuration, Firmware updates, Logging, Remote management)
Common Fixes: Cable setup, host config, pairing, interface issues

Regulatory & Safety

Compliance: FCC, CE, IC, Bluetooth, EEA
RF Safety: Meets international RF exposure requirements
Laser Classification: Class 2 Laser; Do not stare into beam
Ergonomics: Usage tips to avoid repetitive strain and fatigue

Battery Details

Battery Type: Zebra-approved Li-ion 3200 mAh (P/N 82-166537-01)
Charging Temp: 0–40 °C
Storage: Store at partial charge in dry, cool areas; verify charge yearly
Precautions: Avoid impact, fluid exposure, incompatible chargers, and overheating

📥 Download Product Manual (PDF)
