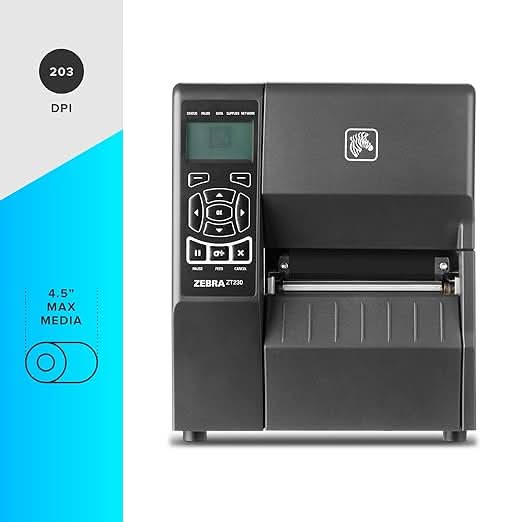

Zebra ZT230 (ZT23042-T01200FZ) Industrial Thermal Transfer Printer | 203dpi, 4-inch, Serial/USB/Ethernet

Name: Zebra ZT230 (ZT23042-T01200FZ) Industrial Thermal Transfer Printer | 203dpi, 4-inch, Serial/USB/Ethernet
Rating: 5.0 (2 reviews)

Delivery Time: 0-3 days

Product Highlights

Easy to use: Connects via USB or serial and is compatible with thermal transfer rolls with a 1 in core, 6 in diameter and a max media width of 4.5 in
Use with thermal ribbon: Prints using thermal transfer technology which uses a wax/resin ribbon instead of expensive ink or toner
Enterprise grade quality: Designed for ease and performance, the ZT230 is ideal for manufacturing, transportation, healthcare and retail
Save time and money: Prints 6 in/sec at 203 dpi, energy star approved, and on demand printing allows you to print exact quantities instead of wasting 8.5 x 11 sheets of labels
Ultra rugged: Equipped with an all-metal case for long-lasting use in the harshest environments

Overview
Specifications
FAQ
User Guides
Reviews

If you need fast thermal printers that are easy to use, easy to deploy and easy to manage, then choose the ZT230. The ZT230 series is small in price but big in ease and performance. It features a space-saving design with an intuitive-user graphical LCD interface. It also has easy media loading and simple cleaning and printhead replacement. The ZT230 series features the industry leading printer management and monitoring with Print DNA applications. Replaces Stripe/S4M series.

Easy to use: Connects via USB or serial and is compatible with thermal transfer rolls with a 1 in core, 6 in diameter and a max media width of 4.5 in
Use with thermal ribbon: Prints using thermal transfer technology which uses a wax/resin ribbon instead of expensive ink or toner
Enterprise grade quality: Designed for ease and performance, the ZT230 is ideal for manufacturing, transportation, healthcare and retail
Save time and money: Prints 6 in/sec at 203 dpi, energy star approved, and on demand printing allows you to print exact quantities instead of wasting 8.5 x 11 sheets of labels
Ultra rugged: Equipped with an all-metal case for long-lasting use in the harshest environments

Easy to use: Connects via USB or serial and is compatible with thermal transfer rolls with a 1 in core, 6 in diameter and a max media width of 4.5 in

General Specifications

Model: ZT23042-T01200FZ
Type: Industrial Thermal Transfer Printer
Operating System: Link-OS®
Construction: Metal frame with metal media cover
User Interface: Graphical LCD display with full keypad

Print Specifications

Print Resolution: 203 dpi (8 dots/mm)
Maximum Print Width: 4.09 in (104 mm)
Maximum Print Speed: 6 in/sec (152 mm/sec)
Maximum Print Length: 157 in (3988 mm)
Print Methods: Direct Thermal and Thermal Transfer

Connectivity

Standard Interfaces:

USB 2.0
RS-232 Serial
10/100 Ethernet

Memory

Standard: 128 MB SDRAM, 128 MB Flash
User Available: 58 MB Flash, 4 MB SDRAM

Physical Characteristics

Dimensions: 17 in L × 9.5 in W × 10.9 in H (432 × 242 × 277 mm)
Weight: 20 lbs (9.1 kg)

Media Handling

Media Width: 0.75 in to 4.5 in (19.4 mm to 114 mm)
Media Types: Continuous, die-cut, notch, black mark
Media Roll Size: Up to 8.0 in O.D. on a 3.0 in I.D. core
Media Thickness: 0.003 in to 0.010 in (0.076 mm to 0.25 mm)
Sensors: Transmissive and reflective

Ribbon Handling (Thermal Transfer Only)

Ribbon Length: Up to 1,476 ft (450 m)
Ribbon Width: 1.57 in to 4.33 in (40 mm to 110 mm)
Ribbon Core: 1.0 in (25.4 mm)

Environmental

Operating Temp: 40°F to 105°F (5°C to 40°C)
Storage Temp: -40°F to 140°F (-40°C to 60°C)
Humidity: Operating: 20–85% / Storage: 5–85% (non-condensing)
Energy: ENERGY STAR® certified

Firmware & Software

Supported Languages: ZPL, ZPL II, EPL (203 dpi only), EPL2
Optional: ZBI 2.0 for stand-alone operation
Print DNA Tools: Management, development, visibility, and productivity utilities

Barcode Symbologies

1D: Code 11, Code 39, Code 128, UPC, EAN, Interleaved 2-of-5, MSI, Codabar, etc.
2D: PDF417, Data Matrix, QR Code, MaxiCode, Aztec, MicroPDF417, TLC 39, Codablock

📥 Download Product Manual (PDF)

What are the available print resolutions for the ZT230?
The ZT230 offers two print resolution options:

203 dpi (8 dots/mm)
300 dpi (12 dots/mm)

The maximum print width is 4.09 inches (104 mm), and the maximum print length is up to 157 inches (3988 mm) for 203 dpi and 73 inches (1854 mm) for 300 dpi.

What is the maximum print speed of the ZT230?
The ZT230 can print at speeds up to 6 inches per second (152 mm/s) for both 203 dpi and 300 dpi resolutions.

What media types and sizes are supported?
The ZT230 supports various media types, including continuous, die-cut, notch, and black mark. The media width ranges from 0.75 inches (19.4 mm) to 4.5 inches (114 mm), with a maximum media roll diameter of 8.0 inches (203 mm) on a 3.0-inch (76 mm) core.

What are the ribbon specifications for the ZT230?
For thermal transfer printing, the ZT230 uses ribbons with widths ranging from 1.57 inches (40 mm) to 4.33 inches (110 mm) and a standard length of 1,476 feet (450 meters). The ribbon core diameter is 1.0 inch (25.4 mm).

What connectivity options are available?
Standard connectivity options include USB 2.0 and RS-232 Serial ports. Optional connectivity features include:

Parallel Port
10/100 Ethernet
802.11a/b/g/n Wireless

These options provide flexibility for various network environments.

What are the physical dimensions and weight of the ZT230?

Width: 9.5 inches (242 mm)
Depth: 17 inches (432 mm)
Height: 10.9 inches (277 mm)
Weight: 20 lbs (9.1 kg)

The compact design with a bi-fold door requires only 4 inches (102 mm) of opening space, making it suitable for confined areas.

What user interface does the ZT230 have?
The ZT230 features a graphical LCD user interface with an intuitive menu for easy printer setup and control. This interface simplifies operation and reduces the need for extensive training.

Can the ZT230 be upgraded to support additional features?
Yes, the ZT230 supports field-installable options, including:
