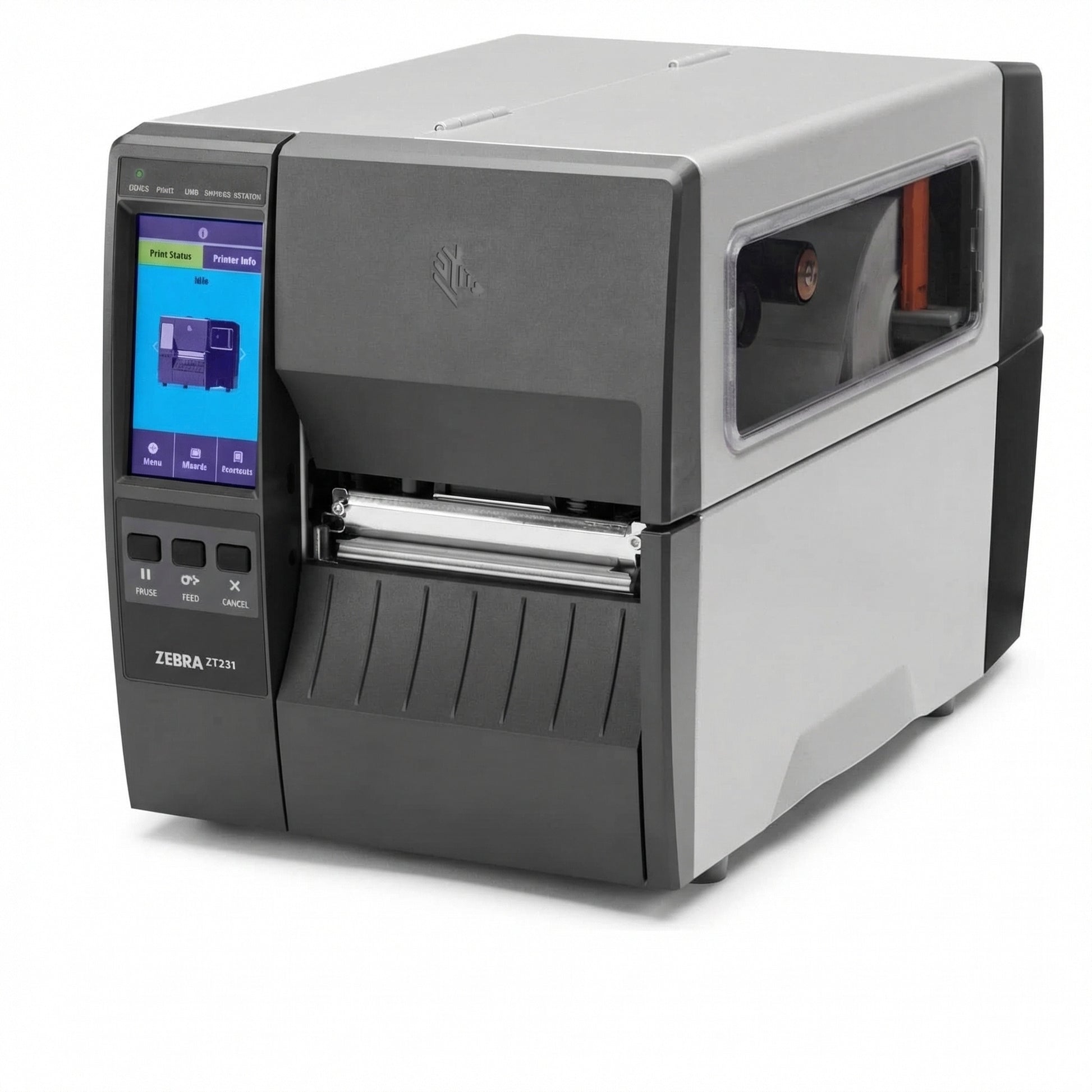

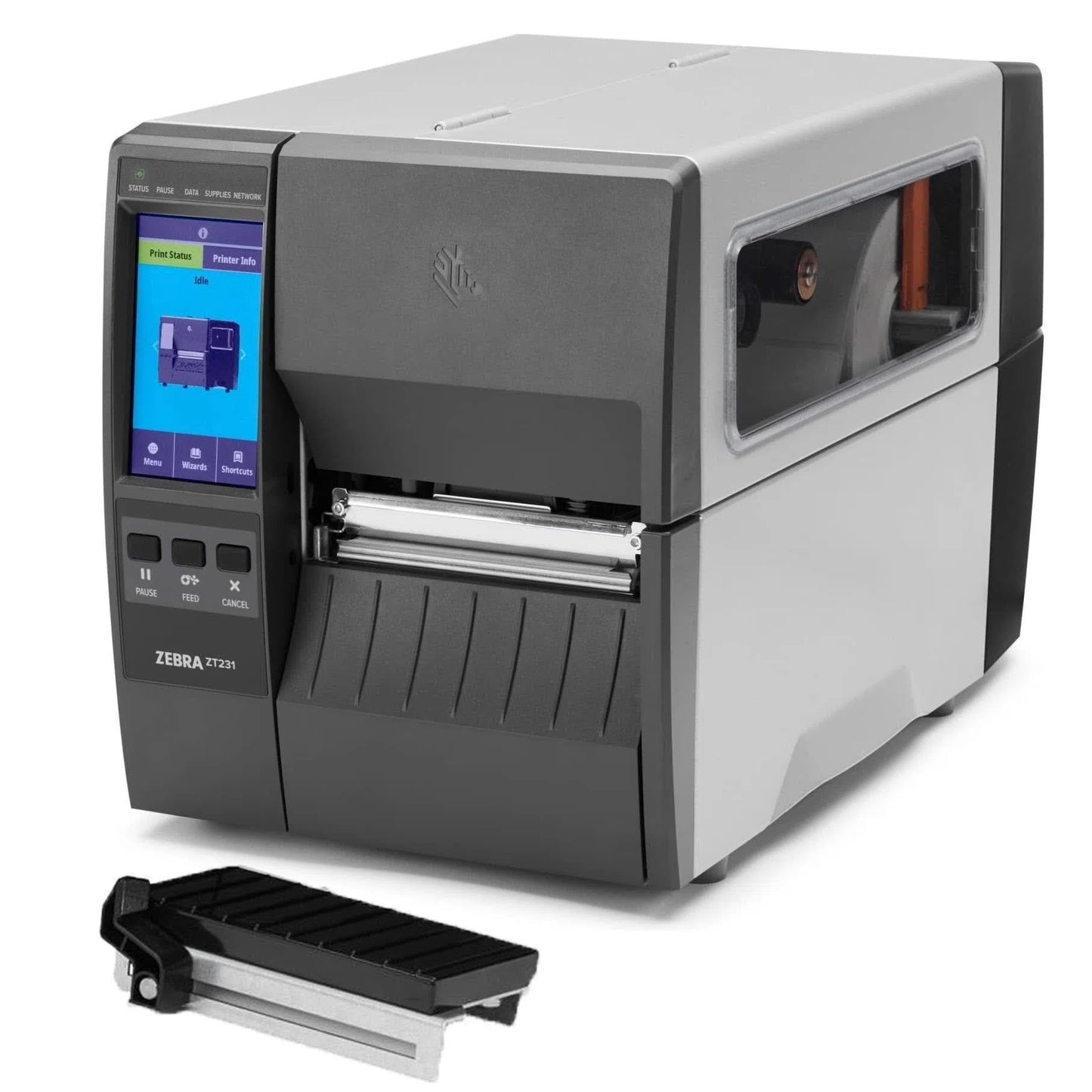

ZEBRA ZT231 ZT23143-T01000FZ 300 DPI Thermal Transfer Industrial Printer, ZT231 Upgraded Version of ZT230 Printer, Print Width 4 in Ethernet Bluetooth Serial USB, Includes: Touch Display, Tear Bar

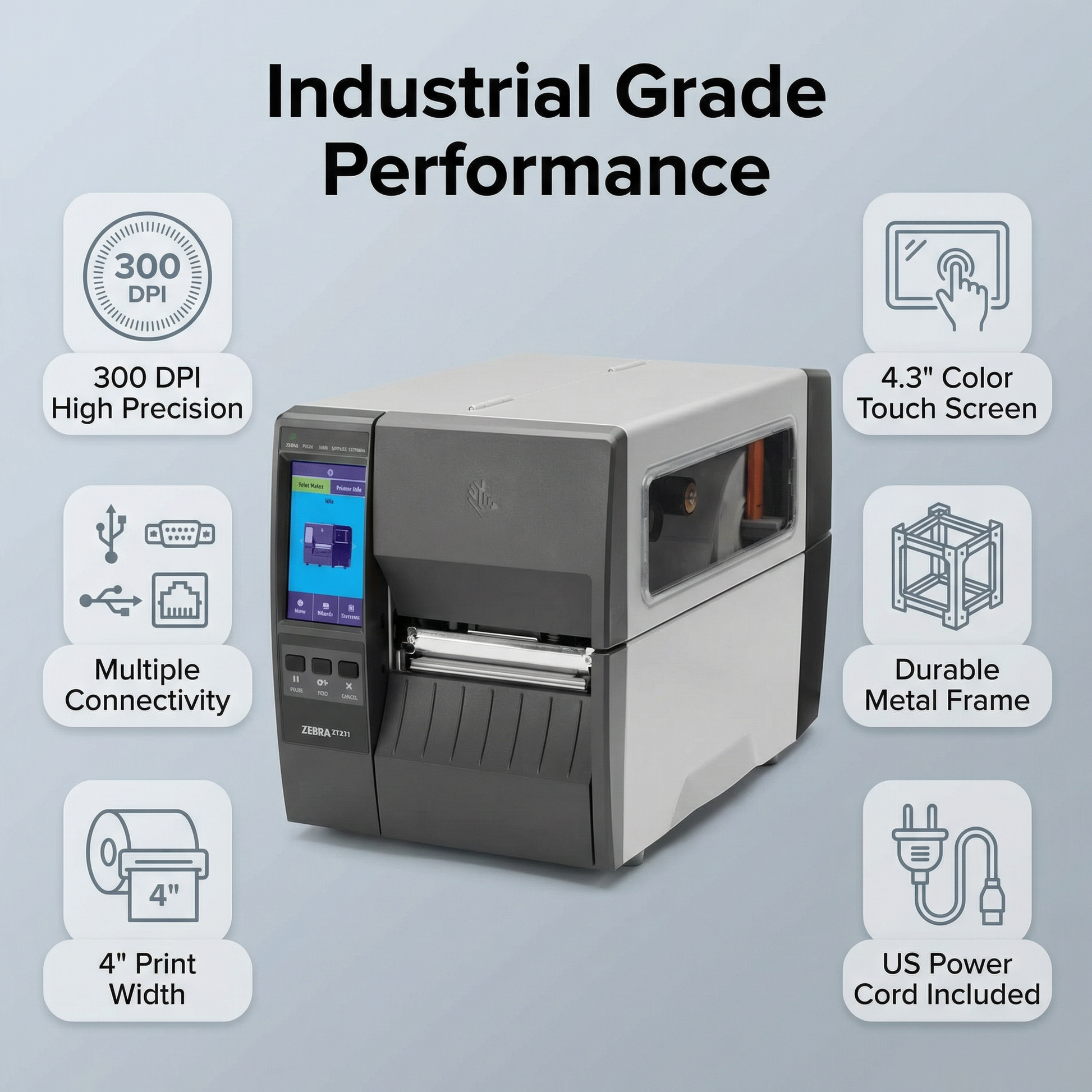

Product Highlights

Upgraded ZT231 model with 4.3” color resistive touchscreen
Supports both direct thermal and thermal transfer printing methods
Print resolution: 300 dpi / 12 dots per mm
Max print speed: 8 ips; max print width: 4.09 in. (104 mm)
Durable metal frame and enclosure for rugged industrial use
Space-saving bi-fold media door with clear window
Thin film printhead with E3 Element Energy Equalizer for optimal quality
Built-in tear bar for easy label handling
Media sensors: moveable transmissive and reflective
Supports media types: continuous, die-cut, notch, black mark
Media width: 0.75–4.50 in. | Media roll: 8 in. O.D. on 3 in. core

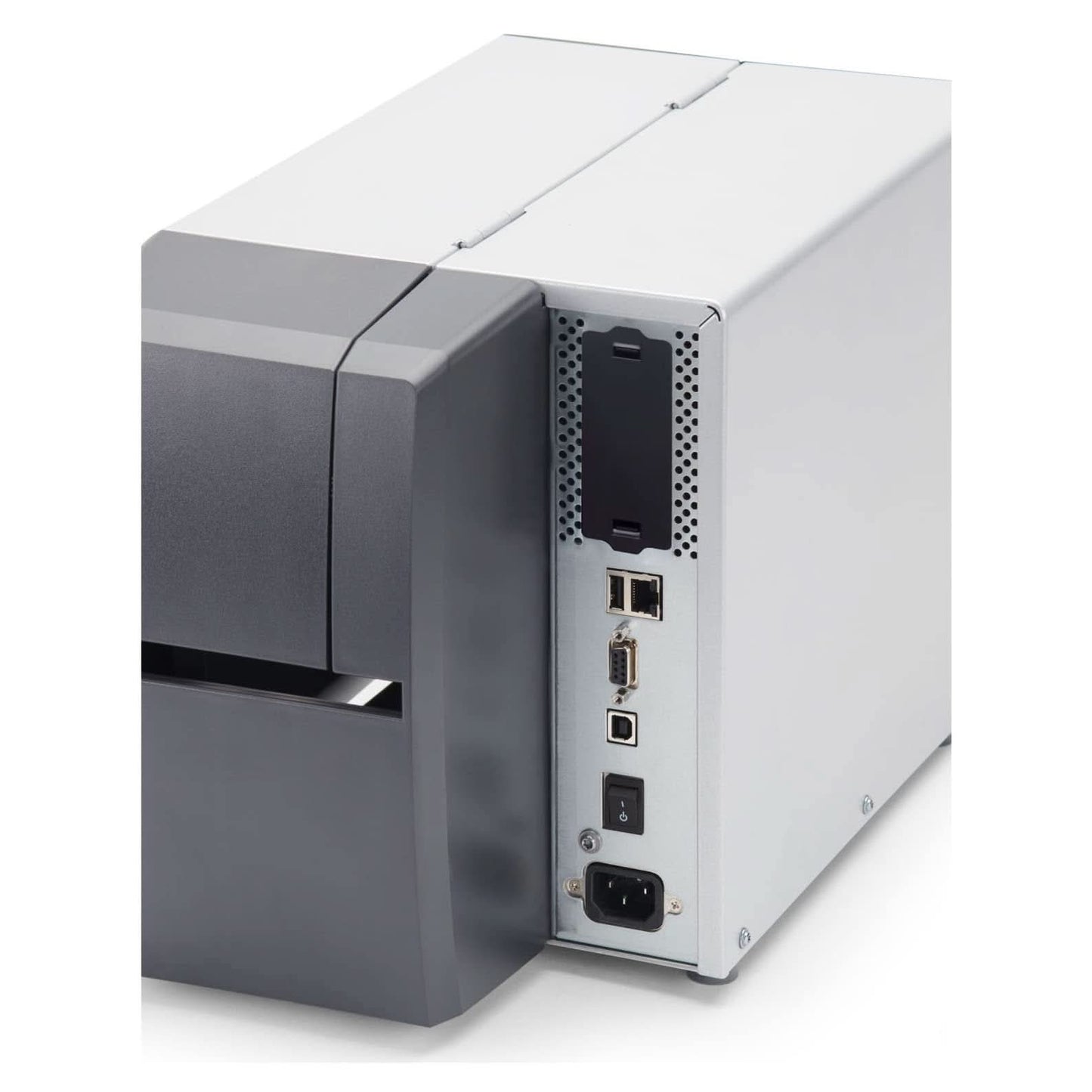

Multiple connectivity options: USB 2.0, RS-232, Ethernet, Bluetooth, USB Host
Dimensions: 17" L x 9.5" W x 11" H | Weight: 20 lbs (10.9 kg)
Includes US power cord; ribbon sold separately

Overview
Specifications
FAQ
User Guides

The Zebra ZT23143-T01000FZ is an upgraded version of the ZT230, engineered to meet evolving industrial printing needs with enhanced performance, durability, and usability. Featuring a large 4.3” color resistive touchscreen, this 300 dpi thermal transfer printer delivers intuitive operation, fast setup, and real-time status monitoring. It supports both thermal transfer (with ribbon) and direct thermal (no ribbon) printing technologies, giving you flexibility based on media type. With print speeds up to 8 inches per second, it's ideal for high-volume label throughput. The all-metal frame ensures rugged reliability in demanding environments, while the space-saving bi-fold door allows for easy integration into tight spaces. Equipped with multiple communication options including USB, Serial, Ethernet, Bluetooth, and USB Host, the ZT231 is easy to integrate and manage remotely via Zebra's Print DNA suite powered by Link-OS. A built-in tear bar offers added convenience, and the printer ships with a US power cord—ribbon sold separately.

Upgraded ZT231 model with 4.3” color resistive touchscreen
Supports both direct thermal and thermal transfer printing methods
Print resolution: 300 dpi / 12 dots per mm
Max print speed: 8 ips; max print width: 4.09 in. (104 mm)
Durable metal frame and enclosure for rugged industrial use
Space-saving bi-fold media door with clear window
Thin film printhead with E3 Element Energy Equalizer for optimal quality
Built-in tear bar for easy label handling
Media sensors: moveable transmissive and reflective
Supports media types: continuous, die-cut, notch, black mark
Media width: 0.75–4.50 in. | Media roll: 8 in. O.D. on 3 in. core
Multiple connectivity options: USB 2.0, RS-232, Ethernet, Bluetooth, USB Host
Dimensions: 17" L x 9.5" W x 11" H | Weight: 20 lbs (10.9 kg)
Includes US power cord; ribbon sold separately

Zebra ZT23143-T01000FZ Upgraded Version of ZT230 Thermal Transfer Industrial Printer 〓 The Zebra ZT23143-T01000FZ 4.09" 300 dpi Thermal Transfer Industrial Printer featuring advanced technology with its large color touch display, takes performance to an all new level and adapt to your evolving business needs. The built in Tear Bar allows you to easily tear labels off as they are printed.

General Specifications

Product Name: Zebra® ZT231 Industrial Printer
Type: Industrial Label Printer (Direct Thermal and Thermal Transfer)
Display: 4.3" Color Resistive Touchscreen
Construction: Metal Frame and Enclosures

Performance

Print Resolution:

Standard: 203 dpi (8 dots/mm)
Optional: 300 dpi (12 dots/mm)

Maximum Print Speed:

12 inches per second (203 dpi)
8 inches per second (300 dpi)

Maximum Print Width: 4.09 inches (104 mm)
Maximum Print Length:

157 inches (203 dpi)
73 inches (300 dpi)

Memory:

256 MB SDRAM
256 MB On-board Linear Flash

Media Handling

Media Width: 0.75" to 4.50" (19.4 mm to 114 mm)
Media Types: Continuous, Die-Cut, Notch, Black Mark
Media Roll Size:

8.0" OD on 3.0" ID core
6.0" OD on 1.0" ID core

Ribbon Capacity (Thermal Transfer Mode Only):

Length: 1,476 ft (450 m)
Width: 2" to 4.33" (51 mm to 110 mm)
Core Diameter: 1.0" (25.4 mm)

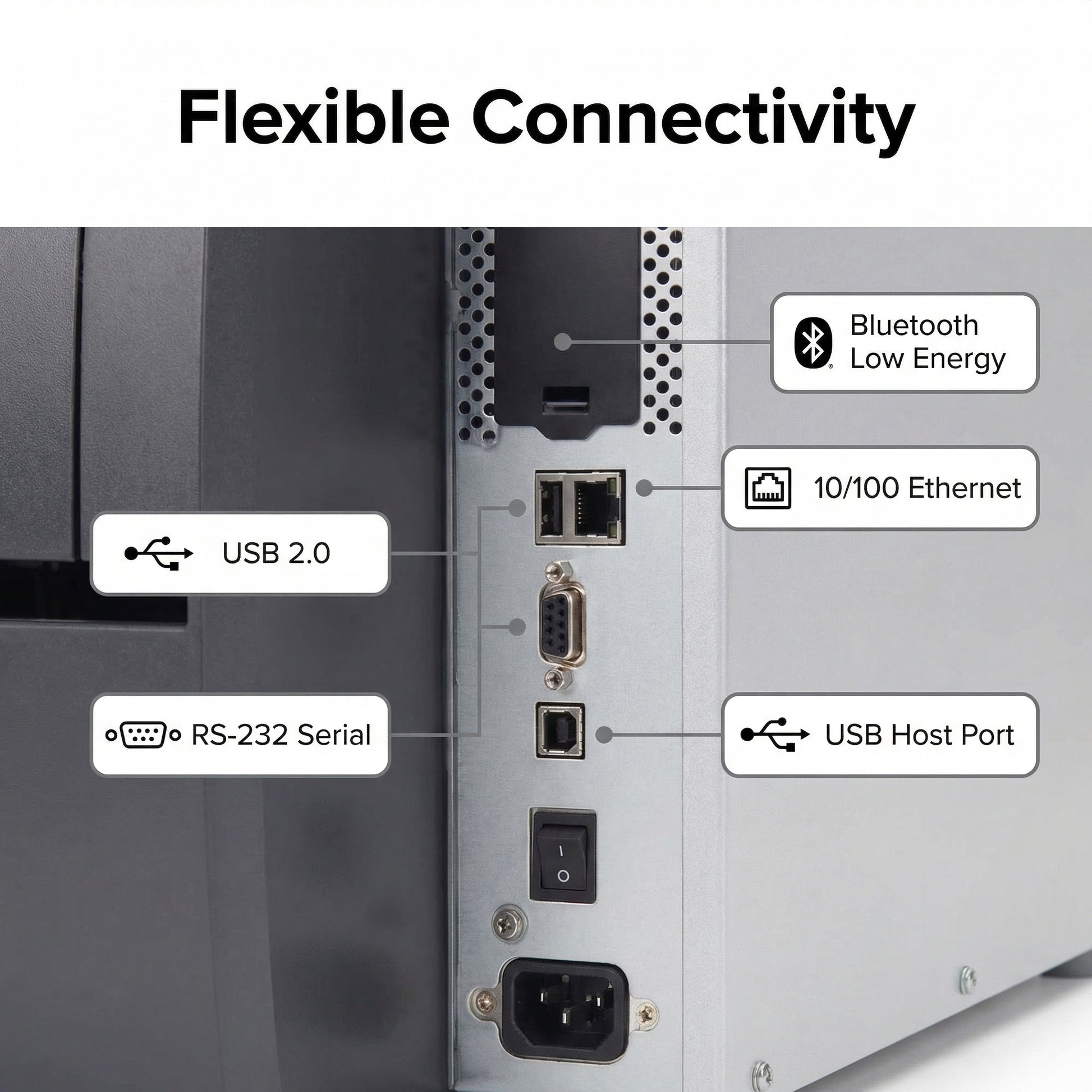

Connectivity

Standard Interfaces:

USB 2.0
RS-232 Serial
10/100 Ethernet
USB Host

Optional Interfaces:

Wi-Fi (802.11ac)
2nd Ethernet Port
Applicator Interface

Mobile Connectivity: NFC (Print Touch Tag)

Physical

Dimensions (W x D x H):

9.5" x 17" x 11" (Closed)
9.5" x 17" x 12.75" (with Liner Takeup Unit)

Weight:

20 lbs (9.1 kg) (Base model)
24 lbs (10.9 kg) (with Liner Takeup Unit)

Environmental

Operating Temperature:

Thermal Transfer: 40°F to 105°F (5°C to 40°C)
Direct Thermal: 32°F to 105°F (0°C to 40°C)

Operating Humidity: 20% to 85% non-condensing
Storage Temperature: -40°F to 140°F (-40°C to 60°C)
Storage Humidity: 5% to 85% non-condensing Certifications: ENERGY STAR® certified, RoHS compliant, FCC, CE, and more

📥 Download Product Manual (PDF)

What is the print resolution of the ZT231?
The ZT231 offers an optional 300 dpi resolution, providing crisp text and barcodes.

What is the maximum print width and speed?
It supports a maximum print width of 4.09 inches (104 mm) and can print at speeds up to 8 inches per second at 300 dpi.

What connectivity options are available?
The printer includes USB 2.0, RS-232 Serial, 10/100 Ethernet, USB Host, and Bluetooth Low Energy (BTLE) for versatile connectivity.

Does the ZT231 support both direct thermal and thermal transfer printing?
Yes, it supports both direct thermal and thermal transfer printing methods.

What are the physical dimensions and weight of the printer?
The ZT231 measures 17 inches (L) x 9.5 inches (W) x 11 inches (H) and weighs approximately 20 lbs (9.1 kg).

Is the printer compatible with different operating systems?
Yes, the ZT231 is compatible with Windows, Android, and iOS operating systems.

What is included with the ZT231 printer?
The package includes the Zebra ZT231 300 dpi Thermal Transfer Industrial Printer, touch display, tear bar, and a US power cord.

Does the printer have a user-friendly interface?
Yes, it features a 4.3-inch color resistive touchscreen for intuitive operation and settings adjustment.

Can the ZT231 be upgraded with additional features?
Yes, the printer supports field-installable upgrades such as a cutter, peeler, wireless connectivity, and UHF RFID encoding.
