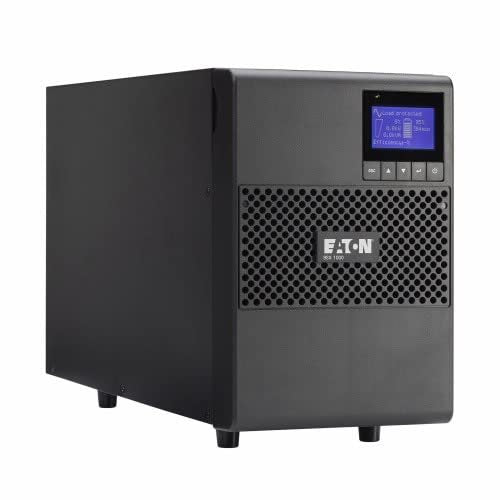

Eaton 9SX1000 1000VA/900W Online Double-Conversion Tower UPS with Six 5-15R Outlets for Commercial IT Loads

Delivery Time: 0-3 days
Brand Eaton
Model Number 9SX1000
UPC 743172091239
EpicRise Warranty First Year
Product Highlights

• Online double-conversion topology and true sine wave output keep up to 900 W of connected equipment on regulated power.

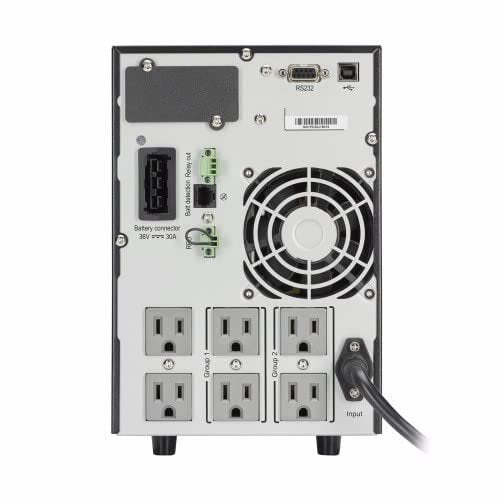

• Six 5-15R outlets and a 5-15P plug on an 8 ft cord fit standard 120V office, closet and lab circuits without rewiring.

• ABM three-stage charging extends battery service life by 50% and gives advance warning before a replacement is due.

• Hot-swappable internal batteries plus support for 9SXEBM36 extended battery modules when you need longer runtime.

• MiniSlot bay accepts NETWORK-M3 Web/SNMP, INDGW-M2 Modbus or RELAY-MS cards, alongside built-in USB and RS-232 ports.

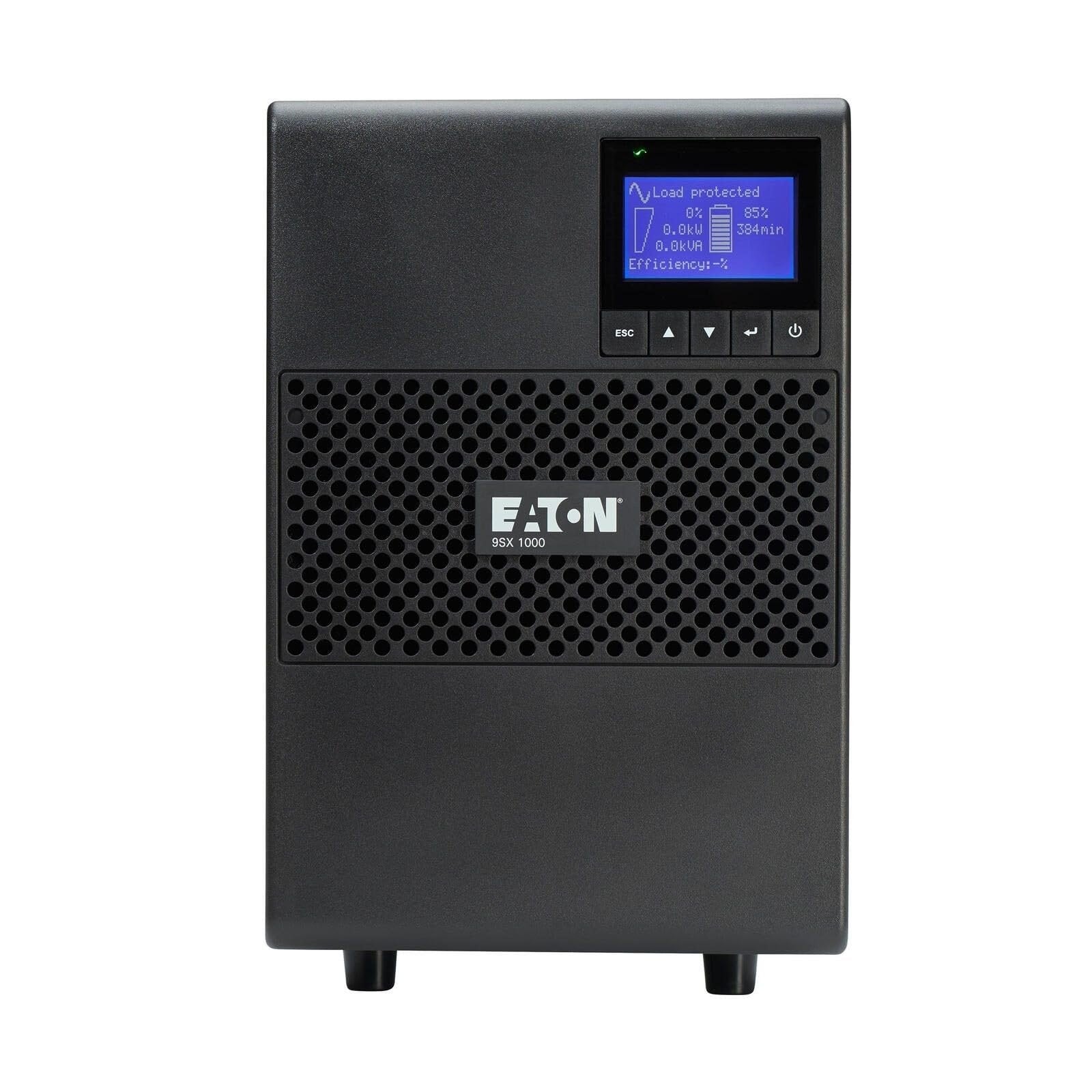

• Compact 6.3 in wide metal tower with a 5-button graphical display and a 51 dB noise level at 1 m for shared workspaces.

  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

The Eaton 9SX1000 is a 1000 VA / 900 W online double-conversion UPS in a compact tower format, built for commercial IT equipment that cannot tolerate dirty or unstable power. It delivers a true sine wave output with a 0.9 output power factor, so servers, network switches and storage devices receive consistently regulated power whether the UPS is running on utility input or on battery.

Eaton designed the 9SX with features typically required in commercial applications, including network connectivity and a metal case. Advanced Battery Management (ABM) three-stage charging extends battery service life by 50% and warns you before a replacement is needed, while hot-swappable internal batteries let you service the unit without interrupting protected loads. When the standard internal battery is not enough, the 9SX1000 accepts 9SXEBM36 extended battery modules for longer runtime.

A MiniSlot expansion bay, USB and RS-232 ports, RPO/ROO and signal input terminals, and an output relay terminal give IT teams several ways to monitor the UPS and integrate it with shutdown software, building systems or industrial controls.

Best For

The 9SX1000 fits sites that need online-grade power protection for a modest load in a free-standing tower that does not require rack space.

- Network closets and small server rooms: Protect switches, routers, firewalls and a small server on six 5-15R outlets with up to 900 W of regulated output.

- Branch and remote offices: Add a NETWORK-M3 Gigabit Web/SNMP card to monitor the UPS and manage shutdowns without someone on site.

- Industrial and building automation: Use the INDGW-M2 Modbus card or the RELAY-MS relay card to report UPS status to control and building management systems.

- Critical workstations and edge equipment: Keep sensitive desktop systems, lab instruments or edge computing devices on a true sine wave output in occupied spaces.

Key Features

- Online double-conversion topology: True sine wave output at 0.9 output power factor, rated 1000 VA / 900 W.

- Configurable output voltage: 120V by default, selectable at 100, 110, 120 or 125V, with 50/60 Hz output frequency.

- Wide input frequency range: Accepts 50–70 Hz on 60 Hz systems and 40–60 Hz on 50 Hz systems, with an input power factor above 0.99.

- ABM battery technology: Three-stage charging extends battery service life by 50% and provides advance warning for battery replacement.

- Hot-swappable batteries and EBM support: Replace internal batteries without shutting down and add 9SXEBM36 extended battery modules for longer runtime.

- Flexible connectivity: One MiniSlot bay for NETWORK-M3, INDGW-M2 or RELAY-MS cards, plus USB, RS-232, RPO/ROO/signal input and output relay terminals.

- Internal bypass: The UPS includes a built-in internal bypass.

- Efficient, quiet operation: 90.81% efficiency at maximum load and a 51 dB noise level at 1 m.

Quick Specs

Model 9SX1000
Capacity 1000 VA / 900 W
Topology Online double-conversion
Output Waveform True sine wave
Output Power Factor 0.9
Output Voltage 120V default (100/110/120/125V selectable)
Output Frequency 50/60 Hz
Output Receptacles (6) 5-15R
Input Connection 5-15P, 8 ft cord
Input Nominal Voltage 120 VAC default (100/110/120/125V)
Input Frequency Range 60 Hz: 50–70 Hz; 50 Hz: 40–60 Hz
Input Power Factor >0.99
Internal Battery 36 VDC, 9 Ah, 324 Wh
Replacement Battery Cartridge 744-A4311
Extended Battery Module 9SXEBM36 (optional)
Communications (1) MiniSlot, (1) USB, (1) RS-232, (1) RPO/ROO/signal input terminal, (1) output relay terminal
Optional Cards NETWORK-M3 (Gigabit Web/SNMP), INDGW-M2 (Modbus), RELAY-MS (relay)
User Interface 5-button graphical display
Efficiency at Max Load 90.81%
Heat Dissipation Online 421 BTU/hr; Battery 505 BTU/hr; High efficiency 208 BTU/hr
Noise Level 51 dB at 1 m
Operating Temperature 0° to 40°C (32° to 104°F)
Relative Humidity 0–96% non-condensing
Altitude 3000 m
Form Factor Tower, free-standing (0U)
Dimensions (H x W x D) 9.9 x 6.3 x 15.1 in
Weight 30.9 lb

What's Included

- Eaton 9SX1000 double-conversion UPS

- USB cable

- RS-232 cable

- Quick start guide

Product Details
Color Black
What environments is the Eaton 9SX1000 best suited for?
The Eaton 9SX1000 suits network closets, small server rooms, branch offices and critical workstations that need online double-conversion protection for up to 900 W. Its free-standing tower format means it does not need rack space, and its 51 dB noise level at 1 m works in shared workspaces.
How does the Eaton 9SX1000 compare with other Eaton 9SX models?
The 9SX1000 is the 1000 VA / 900 W tower model in the Eaton 9SX online double-conversion line. Choose a higher-capacity 9SX model when the protected load exceeds 900 W, or add 9SXEBM36 extended battery modules to the 9SX1000 when you need more runtime rather than more power.
Is an online double-conversion UPS like the Eaton 9SX1000 worth the investment?
The 9SX1000 is a good value when connected equipment needs a true sine wave output, 0.9 output power factor and serviceable hot-swappable batteries. ABM charging also extends battery service life by 50%, which lowers battery replacement frequency over the life of the UPS. For less sensitive loads where budget comes first, a line-interactive UPS is the more economical choice.
What plugs, outlets and voltages is the Eaton 9SX1000 compatible with?
The 9SX1000 connects to a standard 5-15 wall receptacle through a 5-15P plug on an 8 ft cord and provides six 5-15R outlets. Output voltage defaults to 120V and can be set to 100, 110, 120 or 125V at 50/60 Hz.
What battery does the Eaton 9SX1000 use and can runtime be extended?
The 9SX1000 has a 36 VDC, 9 Ah, 324 Wh internal battery. Runtime can be extended by connecting Eaton 9SXEBM36 extended battery modules.
What is the replacement battery part number for the Eaton 9SX1000?
The replacement battery cartridge for the 9SX1000 is Eaton part number 744-A4311. The internal batteries are hot-swappable, so they can be replaced without shutting down connected equipment.
How can the Eaton 9SX1000 be monitored and managed remotely?
The 9SX1000 has one MiniSlot bay that accepts the NETWORK-M3 Gigabit Web/SNMP card, the INDGW-M2 Modbus card or the RELAY-MS relay card. It also includes USB and RS-232 ports, an RPO/ROO/signal input terminal and an output relay terminal.
What are the dimensions and weight of the Eaton 9SX1000?
The 9SX1000 measures 9.9 in high, 6.3 in wide and 15.1 in deep and weighs 30.9 lb. It is a free-standing tower unit with a 0U rack size.
What operating conditions does the Eaton 9SX1000 support?
The 9SX1000 operates from 0° to 40°C (32° to 104°F) at 0–96% non-condensing relative humidity and up to an altitude of 3000 m. Heat output is 421 BTU/hr online, 505 BTU/hr on battery and 208 BTU/hr in high efficiency mode.
How efficient is the Eaton 9SX1000?
The 9SX1000 reaches 90.81% efficiency at maximum load. Its input power factor is above 0.99, and heat output drops to 208 BTU/hr in high efficiency mode.
