ABB AF52-30-00-13 Contactor IEC, 100-250 VAC/VDC
-
Overview
-
Specifications
-
FAQ
-
User Guides
-
Reviews

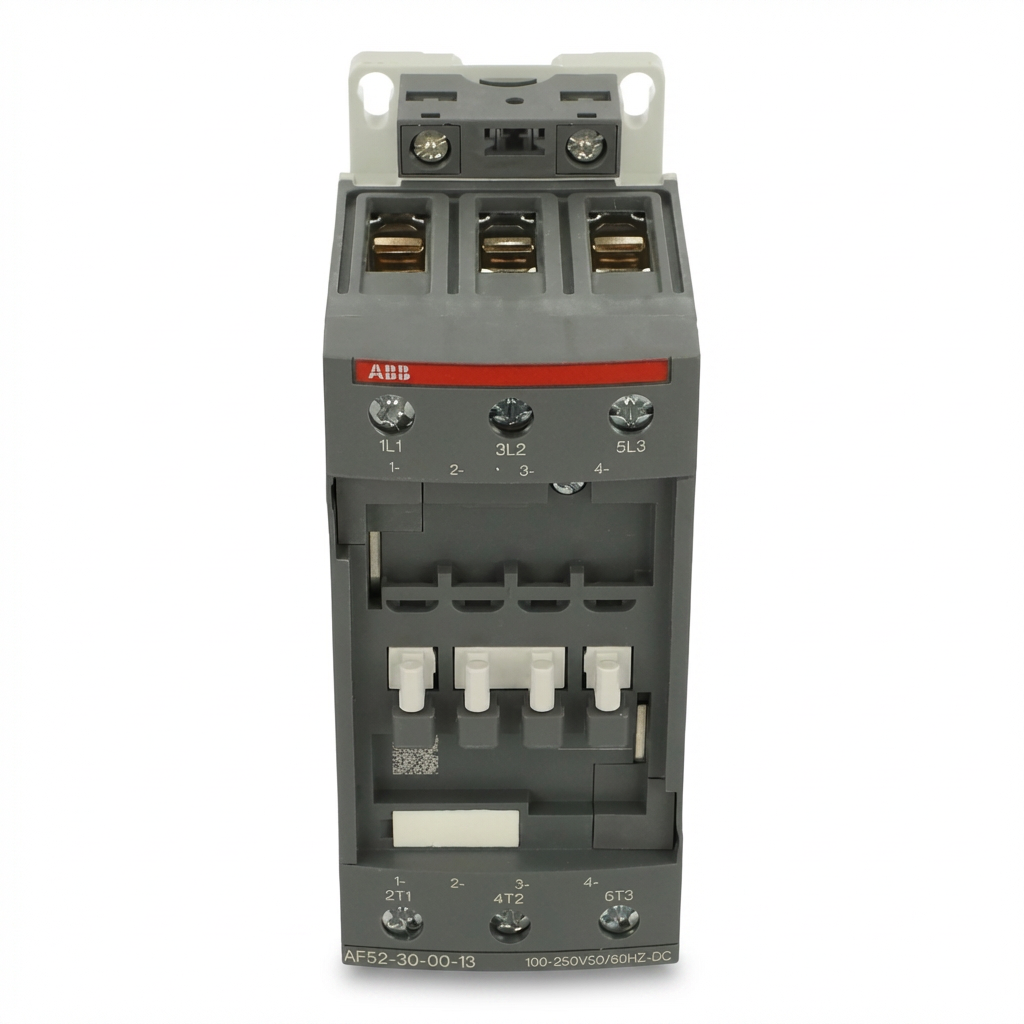

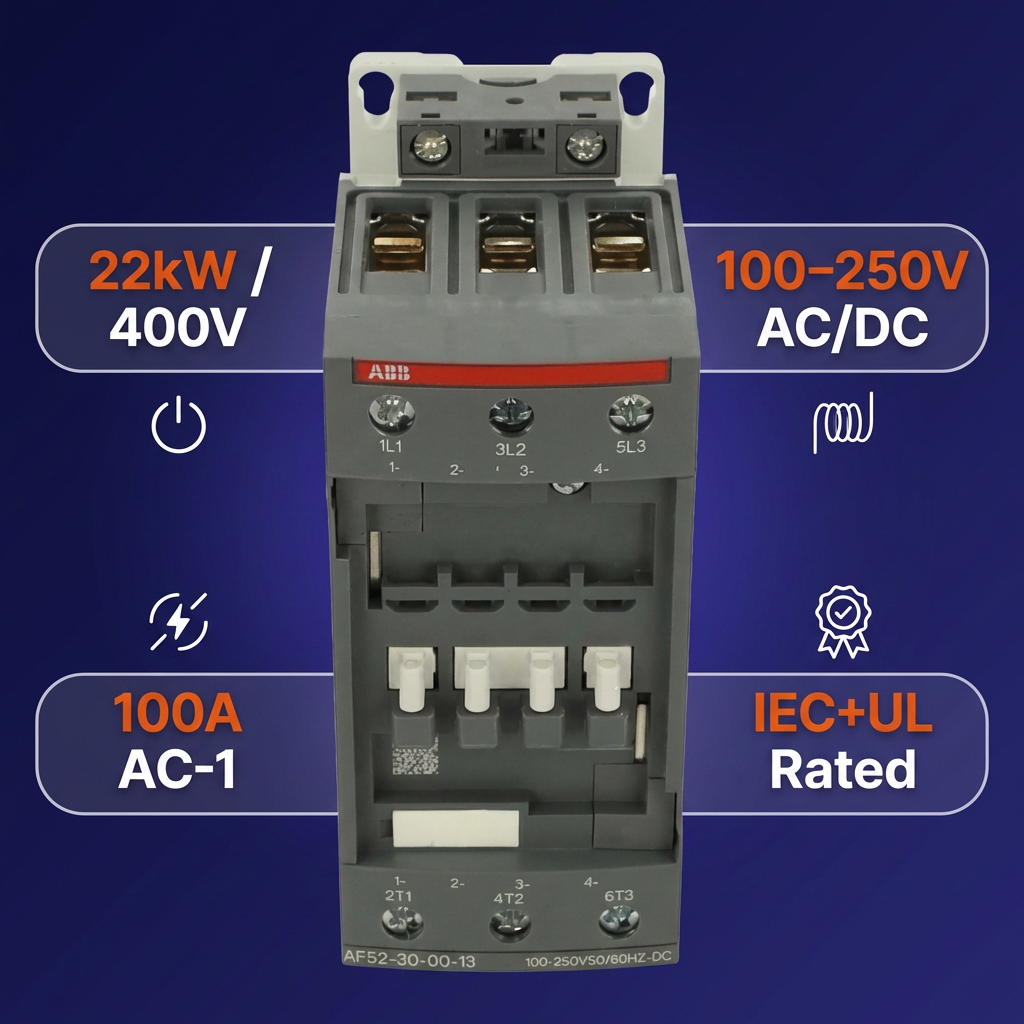

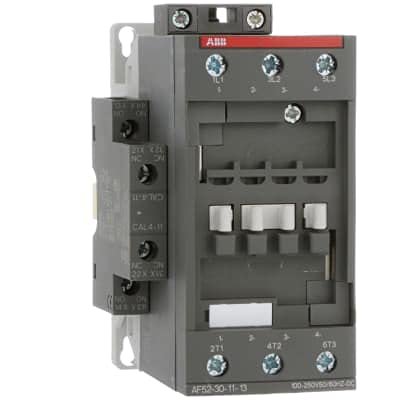

The ABB AF52-30-00-13 is a 3-pole IEC contactor rated for 22 kW at 400V (AC-3) and 40 hp at 480V (UL), with a 100A AC-1 current capacity and a maximum operational voltage of 690V. The wide-range coil accepts 100–250V AC (50/60 Hz) or 100–250V DC, covering the most common control bus voltages used in industrial panels worldwide — including 110V, 120V, 220V, and 240V systems.
Integrated surge suppression is built into the coil circuit, and the AF52 frame is mechanically compatible with ABB EF-series electronic overload relays for direct assembly as a complete motor starter. The unit is a 3-pole (3NO) device suited for motor control, capacitor switching, and other industrial load duties.
Best For:
Motor control applications from 18.5–22 kW at 400V (IEC) or up to 40 hp at 480V (UL)
- Control panels operating on 110V, 120V, 220V, or 240V AC or DC control bus
- OEMs and panel builders standardizing on ABB AF-series contactors
- Facilities requiring IEC/UL dual-rated contactors for global or mixed-standard installations
- Replacement of 52A-class or 60A-class IEC contactors in existing installations
Key Features:
3-pole (3NO) configuration, IEC frame
- AC-3 rating: 22 kW / 400V; AC-1 rating: 100A / 690V
- UL rating: 40 hp / 480V
- Wide-range coil: 100–250V AC (50/60 Hz) / 100–250V DC

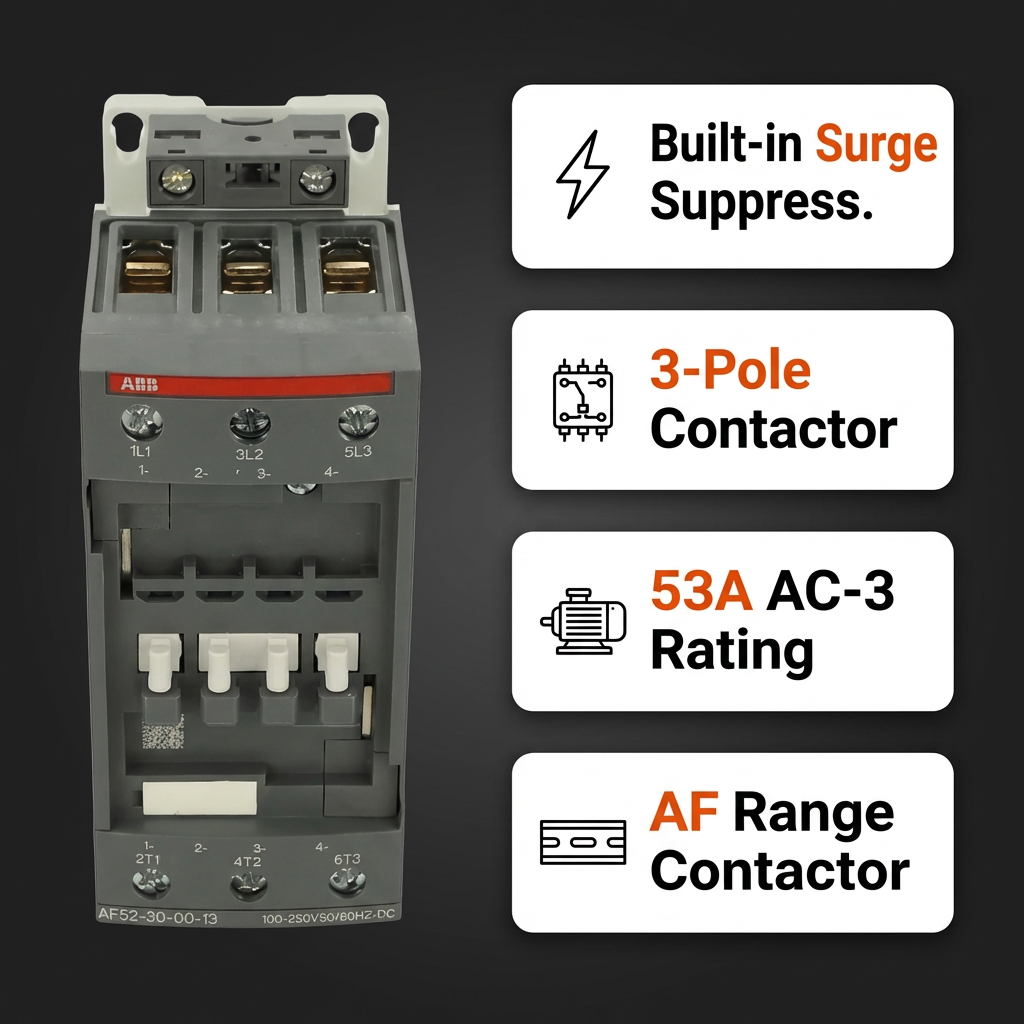

- Built-in coil surge suppression (no external varistor required)
- Compatible with ABB EF-series electronic overload relays
- Standard IEC mounting dimensions
- ABB part number: 1SBL367001R1300
Quick Specs:
Part Number: 1SBL367001R1300
- Poles: 3 (3NO)
- AC-3 Power Rating: 22 kW @ 400V
- AC-1 Current Rating: 100A @ 690V
- UL Motor Rating: 40 hp @ 480V
- Coil Voltage: 100–250V AC (50/60 Hz) / 100–250V DC
- Max Operational Voltage: 690V
- Surge Protection: Built-in
| Brand | ABB |
| Model No. | AF52-30-00-13 |
| Color | Gray |
-
