Teltonika TSW114 DIN Rail Switch| Black

Delivery Time: 0-3 days
Product Highlights
  • 5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions
  • Integrated DIN rail bracket and front-facing ports for convenient installation
  • Wide operating temperature range: 40 to 75°C
  • Rugged, pocket-sized anodized aluminum housing
  • Plug-n-play setup with no configuration required
  • 9–30V wide power input range supports flexible supply options
  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews

The Teltonika TSW114 is a compact and cost-effective DIN rail switch designed to streamline connectivity in industrial environments. Equipped with 5x Ethernet ports, it provides stable and reliable communication for high-bandwidth applications involving multiple Ethernet devices. Its plug-n-play functionality eliminates the need for complex configuration, making deployment quick and easy.

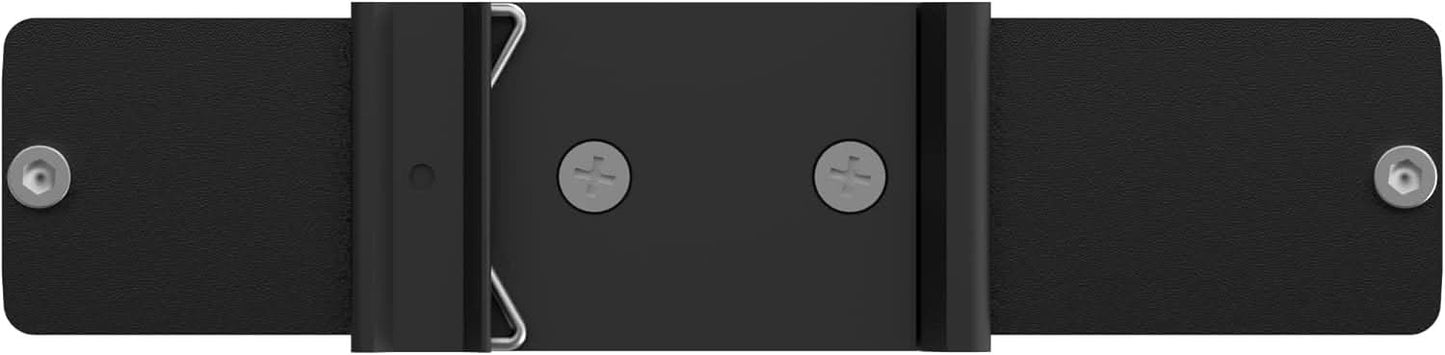

Built with an integrated DIN rail bracket and front-facing ports, the TSW114 is perfect for tight spaces such as control cabinets. Its rugged anodized aluminum housing is not only durable enough for harsh conditions but also compact enough to fit in your pocket. The switch supports a wide operating temperature range of 40°C to 75°C, making it highly suitable for industrial use.

With non-blocking bandwidth up to 10 Gbps, a 128 KB packet buffer, and jumbo frame support up to 9216 bytes, it handles intensive data traffic efficiently. The MAC address table supports up to 2,000 entries, providing flexibility for growing networks.

Power-wise, the TSW114 operates on a 9–30 VDC input range through a 2-pin industrial DC socket, though the power supply unit (PSU) is sold separately. It also supports passive PoE through the LAN port (not compatible with IEEE 802.3af/at/bt standards), and power consumption is extremely low—just 0.3 W idle / 2.3 W max.

Physically, it features 5 RJ45 Ethernet ports (10/100/1000 Mbps), 10 LAN status LEDs, 1 power LED, a grounding screw, and a 2-pin power connector, offering a reliable and versatile solution for industrial networking needs.

  • 5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions
  • Integrated DIN rail bracket and front-facing ports for convenient installation
  • Wide operating temperature range: 40 to 75°C
  • Rugged, pocket-sized anodized aluminum housing
  • Plug-n-play setup with no configuration required
  • 9–30V wide power input range supports flexible supply options
5x Ethernet ports provide stable, reliable connectivity for high-bandwidth solutions with multiple Ethernet devices
$49.00
$49.00
$49.00
$49.00
In stock

Get same day shipping on orders placed before 3 PM EST.

Get approved for Net 30 Terms today —> Apply Now!
Quantity Discount
2+
Sign in to view volume discount
5+
Quote request for more savings

Get 5% Off your First Order

Click to get coupon

Real Support from Real People

Contact us for help

Free 30-Day Returns

Return Policy
