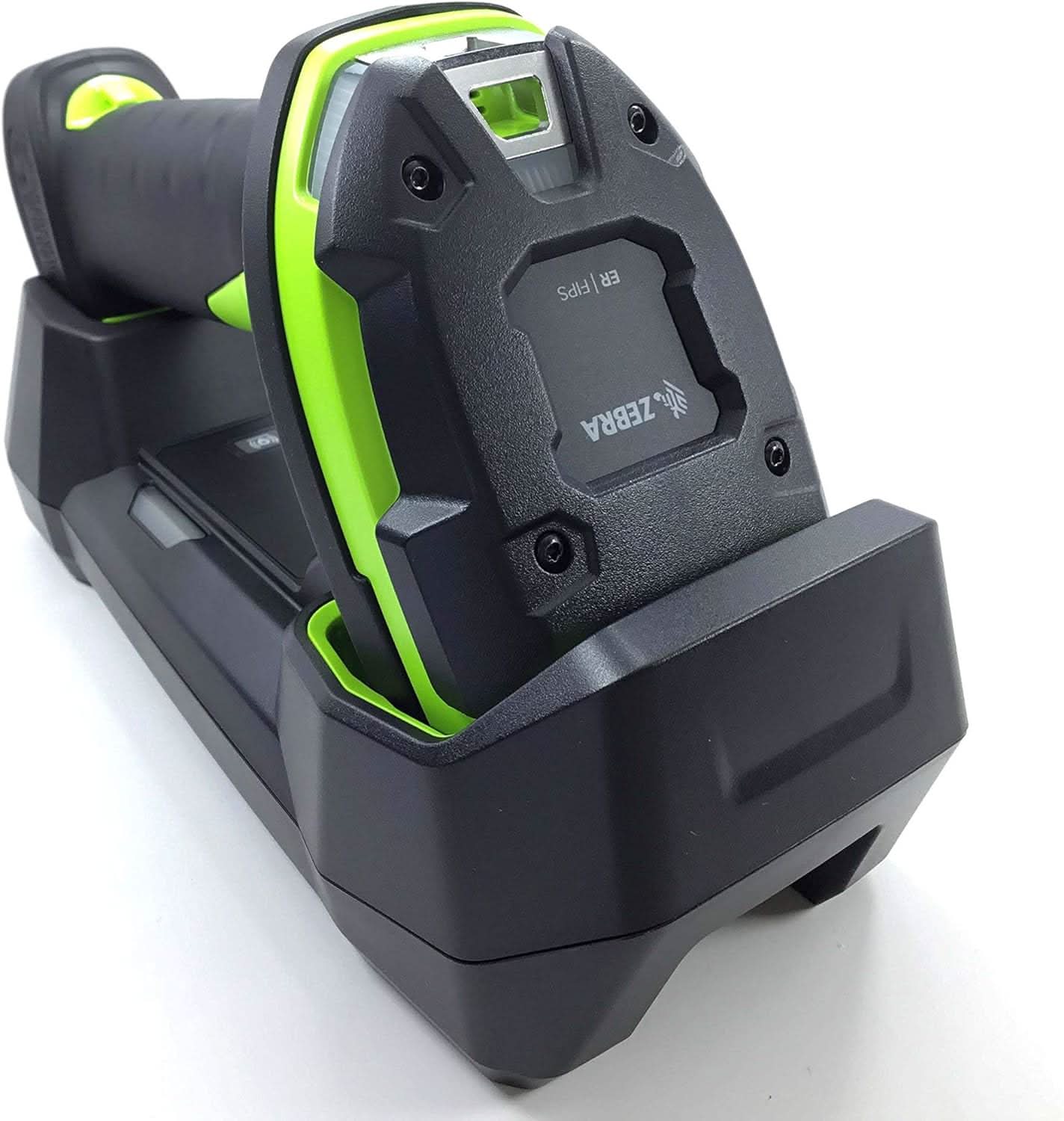

Zebra DS3678-ER Ultra-Rugged Cordless Barcode Scanner | 2D/1D Linear Imager, Extended Range, Bluetooth, FIPS, Cradle, Power Supply

Name: Zebra DS3678-ER Ultra-Rugged Cordless Barcode Scanner | 2D/1D Linear Imager, Extended Range, Bluetooth, FIPS, Cradle, Power Supply
Rating: 5.0 (1 reviews)

Product Highlights

Ultra-rugged design with Zebra DS3600-ER and DS3678-ER models
Includes DS3678-ER2F003VZWW scanner with green vibration motor
Comes with STB3678-C100F3WW standard cradle
Shielded USB cable CBA-U42-S07PAR supports 12V power supply
Includes PWR-BGA12V50W0WW power supply
Comes with CBL-DC-451A1-01 and 23844-00-00R line cord

Overview
Specifications
FAQ
User Guides
Reviews

Zebra DS3678-ER - Zebra's DS3678-ER ultra-rugged scanner has unstoppable performance for extended range 1D/2D barcode scanning. The cordless DS3678-ER scanner enables workers to reliably scan 1D and 2D barcodes near and far, while offering unmatched ultra-rugged design, scanning performance and mangeability. The ultra-rugged DS3678-ER is practically indestructible and deployment and management are simple and fast. The DS3678-ER is built from the ground up to handle extreme cold. The DS3678-ER is built with unique plastics, cables and components that are designed to handle freezing temperatures without becoming britter, making the scanner ideal for use in freezers and outdoor yards. Zebra's Network Connect for Automation delivers a seamless connection between DS3678-ER scanners and a manufacturer's industrial Ethernet network without the need for third part conversion equipment.

Ultra-rugged design with Zebra DS3600-ER and DS3678-ER models
Includes DS3678-ER2F003VZWW scanner with green vibration motor
Comes with STB3678-C100F3WW standard cradle
Shielded USB cable CBA-U42-S07PAR supports 12V power supply
Includes PWR-BGA12V50W0WW power supply
Comes with CBL-DC-451A1-01 and 23844-00-00R line cord

General Specifications

Model: Zebra DS3678
Type: Cordless Digital Scanner
Use Case: High-performance scanning for industrial environments

Physical Features

Scan Window: Front-facing with aiming capability
Trigger: Located on handle
Indicators: LEDs, Beeper, Battery, and Radio LEDs
Battery Access: Bottom latch with lock/unlock control

Host Interface Options

Supported Interfaces:

USB (Multiple profiles including HID, CDC, OPOS, SNAPI)
RS-232 (Standard, ICL, NIXDORF)
Keyboard Wedge
IBM 46XX

Setup and Configuration

Auto Detect: Interface cables automatically detect host interface type
Defaults: Factory defaults available via bar code scan
Key Emulation: Enter and Tab key bar codes available for scan
Caps Lock Options: USB Caps Lock override supported

Aiming and Scanning Modes

Aiming Modes: HP/HD, SR, ER, DP – each with optimized aiming patterns
Recommended Use: Ergonomic posture guidance included (avoid extreme wrist angles, reaching, bending)

Feedback & Indicators

LED Indications:

Green: Scan successful
Red: Transmission error
Off: No power

Beeper Indications:

Power up: Low/Med/High beep
Scan success: Medium beep
Error: 4 long low beeps
Correct/incorrect programming: Beep patterns vary

Troubleshooting & Tools

Common Fixes: Covers cable, host setup, pairing, configuration issues
Software: 123Scan2 for configuration, diagnostics, and updates

Regulatory & Safety

Compliance: FCC, CE, IC, Bluetooth, EEA
RF Safety: Follows international RF exposure guidelines
Laser Safety: Class 2 compliance; avoid direct eye exposure
Medical Guidance: Recommendations for use near pacemakers and other devices

Battery Details

Battery Type: Zebra-approved Li-ion 3200 mAh (Part Number 82-166537-01)
Charge Conditions: 0–40 °C for safe charging
Storage Notes: Store partially charged; verify yearly if stored long-term
Usage Notes: Avoid drops, short circuits, high heat, and fluid exposure

📥 Download Product Manual (PDF)

What is the Zebra DS3678 used for?

The DS3678 is a rugged, cordless barcode scanner designed for industrial environments. It captures 1D and 2D barcodes in a variety of conditions, including damaged, dirty, or poorly printed codes.

Is the Zebra DS3678 wireless?

Yes, it uses Bluetooth for wireless connectivity and offers up to 300 feet of range from the base station.

What types of barcodes can the DS3678 scan?

It can scan both 1D and 2D barcodes, including those displayed on mobile screens.

Is the DS3678 suitable for outdoor or industrial use?

Yes, it is built to withstand harsh conditions. It has an IP67 rating, meaning it’s dustproof, waterproof, and drop-resistant up to 8 feet.

How long does the battery last on the DS3678?

The PowerPrecision+ battery provides up to 70,000 scans per charge and charges quickly.

Can I use the DS3678 with Windows or Android devices?

Yes, it is compatible with Windows, Android, and other systems that support Bluetooth or USB connections.

Does the DS3678 support multiple interface options?

Yes, it includes USB, RS-232, and Keyboard Wedge interfaces for flexible setup.
