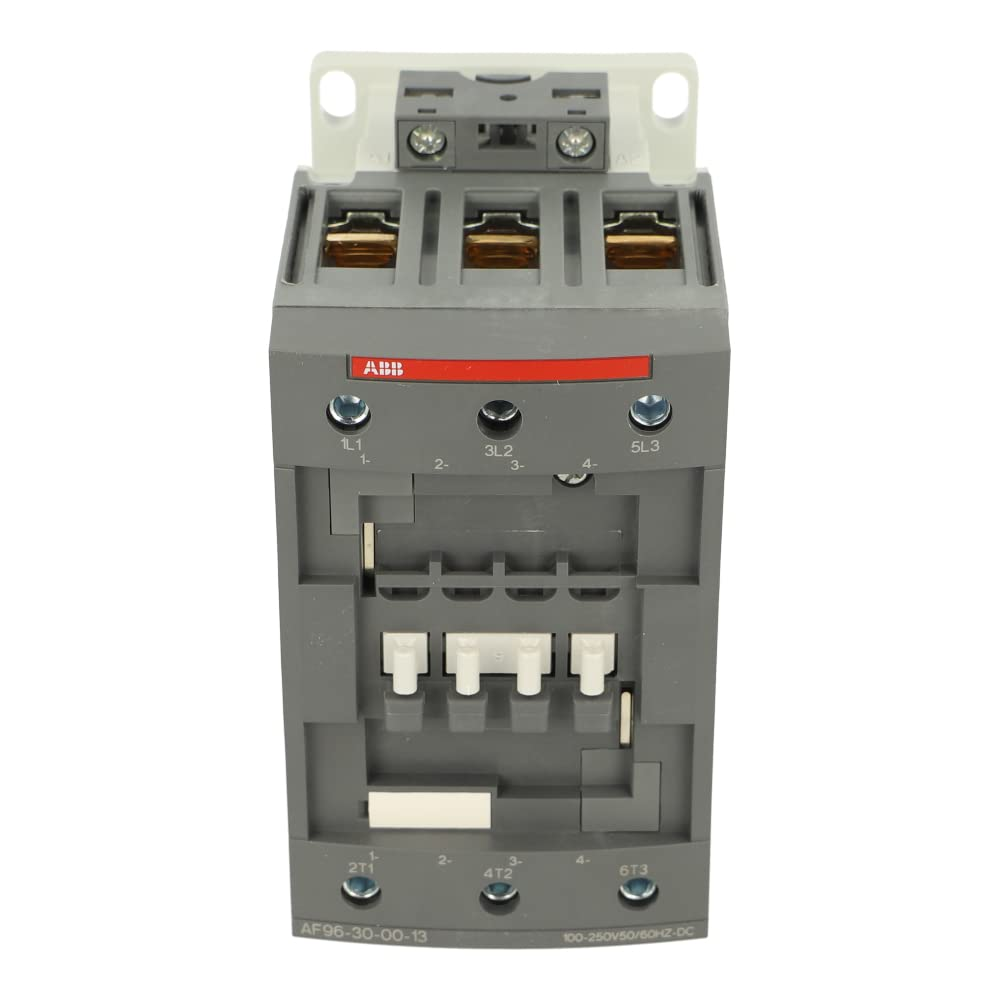

ABB AF96-30-00-13 3-Pole Contactor 96A 45kW Motor Control with 100-250V Universal Coil

Name: ABB AF96-30-00-13 3-Pole Contactor 96A 45kW Motor Control with 100-250V Universal Coil
Brand: ABB
SKU: ABB-IND-AF96-30-00-13-NEW

Brand ABB

Model Number AF96-30-00-13

EpicRise Warranty First Year

Product Highlights

• Universal 100-250V AC/DC coil eliminates inventory complexity across global installations with wide voltage tolerance

• Controls motors up to 45kW at 400V or 60hp at 480V with 96A AC-3 rated switching capacity for demanding applications

• Built-in surge protection reduces panel space and component costs by eliminating external suppression devices

• Low 4VA @ 60Hz AC (holding) / 2W DC (holding) power consumption reduces panel heat generation and operating costs

• Modular design accepts front and side-mounted auxiliary contact blocks for flexible control circuit configurations

Overview
Specifications
FAQ
User Guides
Reviews

The ABB AF96-30-00-13 is a 3-pole IEC contactor engineered for industrial motor control and power switching applications up to 690V AC. Built on ABB's AF technology platform, this contactor addresses common challenges in global installations through its universal 100-250V control voltage range, which accommodates both AC and DC control circuits without coil changes. The integrated surge protection and low-power coil design reduce panel complexity while the modular architecture supports field customization with auxiliary contacts and accessories.

Rated for 96A at AC-3 duty (motor loads) and 130A at AC-1 duty (resistive loads), this contactor handles three-phase motors up to 45kW at 400V or single/three-phase motors up to 75hp at 600V. The screw terminal design with dual connection points per pole ensures reliable field wiring in vibration-prone environments. With 10 million mechanical operations and switching frequencies up to 1200 cycles/hour in AC-3 service, the AF96-30-00-13 delivers long-term reliability in automated production lines, HVAC systems, and material handling equipment.

Best For

The AF96-30-00-13 serves industrial facilities requiring reliable motor control across varied voltage environments and global deployments.

- Manufacturing automation: Controls conveyor motors, pumps, and compressors in production lines with frequent starts/stops up to 1200 cycles per hour

- HVAC systems: Switches large fan and pump motors in commercial buildings with voltage fluctuations where universal coil prevents nuisance trips

- Water treatment plants: Operates pump motors in corrosive environments with auxiliary blocks for remote monitoring integration

- Global installations: Standardizes control panels across facilities with different voltage standards using single coil specification for 24-500V range

- Retrofit projects: Replaces obsolete contactors without control circuit rewiring thanks to wide voltage acceptance and compact footprint

Key Features

- 3-pole configuration rated 1000V IEC / 600V UL with 96A motor switching capacity (AC-3) and 130A resistive load rating (AC-1)

- Universal control voltage 100-250V 50/60Hz AC or 100-250V DC eliminates coil inventory and accommodates voltage variations up to ±30%

- Built-in surge suppression protects control circuits without external RC/varistor networks, reducing panel space by 20-30%

- Low holding power consumption of 4VA @ 60Hz AC / 2W DC minimizes heat generation in enclosed panels and reduces energy costs

- Modular auxiliary contact mounting accepts CA4/CAL4 blocks on front or side without disassembly for up to 8NO+8NC configurations

- Screw terminals accommodate 6-1 AWG conductors with dual connection points per pole for parallel feeds or redundant wiring

- Operating temperature range -60°C to +80°C with 5-300Hz vibration resistance suits harsh industrial and outdoor installations

- 10 million mechanical operations and switching frequency up to 1200 cycles/hour in AC-3 duty extends service intervals

Quick Specs

Model Number	AF96-30-00-13
Product ID	1SBL407001R1300
Pole Configuration	3-pole (3PST-NO)
Rated Voltage	1000V IEC / 600V UL
Rated Current AC-1	130A @ 40°C / 105A @ 60°C
Rated Current AC-3	96A @ 415-440V / 105A @ 380-400V
Motor Power AC-3	45kW @ 400V / 55kW @ 415-690V
HP Rating (UL)	30hp @ 230V 3-phase / 60hp @ 480V 3-phase / 75hp @ 600V 3-phase
Control Voltage	100-250V AC 50/60Hz / 100-250V DC
Coil Power Consumption	4VA @ 60Hz AC / 2W DC (holding)
Terminal Type	Screw terminals, dual connection per pole
Wire Capacity	Main: 6-1 AWG / Control: 18-14 AWG
Switching Frequency	1200 cycles/hour (AC-3) / 600 cycles/hour (AC-1)
Mechanical Life	10,000,000 operations
Operating Temperature	-60°C to +80°C
Mounting	DIN rail
Dimensions (H×W×D)	125.5 × 70 × 116 mm (4.94" × 2.76" × 4.57")
Weight	1.17 kg (2.58 lbs) net
IP Rating	IP10 / Coil terminals IP20

Product Details
Power Source	AC-powered, DC-powered

What applications is the AF96-30-00-13 best suited for?

This contactor is designed for controlling three-phase motors from 25kW to 55kW in industrial automation, HVAC systems, water treatment, and material handling. The 96A AC-3 rating handles medium-power motors with frequent starts and stops up to 1200 cycles per hour. The universal 100-250V coil makes it ideal for global deployments or facilities with inconsistent supply voltages.

How does the AF96 series compare to ABB's older A-series contactors?

The AF96 uses ABB's newer AF technology platform with universal voltage coils that replace multiple A-series coil variants, reducing inventory needs. Built-in surge protection eliminates the separate suppressors required on A-series models. The AF96 consumes 60-70% less holding power than equivalent A-series contactors and offers higher switching frequency ratings for automated systems.

Is the AF96-30-00-13 cost-effective for its power rating?

This model provides mid-range value for 45-55kW motor control with the universal coil offsetting higher unit cost through inventory reduction and installation flexibility. Facilities operating across multiple voltage standards save on stocking multiple coil variants. The built-in surge protection and low panel heat generation reduce total installed cost compared to budget contactors requiring external components.

What control systems and accessories is this contactor compatible with?

The 100-250V DC coil accepts direct control from PLCs with outputs rated 250mA or higher without interface relays. It mounts CA4-10, CA4-01 front auxiliary blocks and CAL4-11 side blocks for additional NO/NC contacts. Compatible with ABB's TEF4 electronic timers and standard thermal overload relays without blocking accessory mounting.

What is the maximum motor power this contactor can control at 480V?

At 480V three-phase, the AF96-30-00-13 controls motors up to 60 horsepower or approximately 55kW using AC-3 rated current of 96A. For 400V European applications, the rating is 45kW. At 600V the rating increases to 75hp three-phase.

How many auxiliary contacts can be added to this contactor?

The modular design accepts front-mounted CA4 blocks (1NO or 1NC each) and side-mounted CAL4 blocks (1NO+1NC combined). Multiple blocks can be stacked to achieve configurations up to 8NO and 8NC total auxiliary contacts without interfering with overload relay mounting.

What is the expected lifespan in typical motor control applications?

The contactor is rated for 10 million mechanical operations. In AC-3 motor control duty at rated current with switching frequency of 600 cycles per hour, electrical life typically reaches 1-2 million operations depending on load characteristics and operating voltage. Higher switching frequencies or capacitive loads reduce electrical contact life.

Can this contactor be used for DC motor control applications?

The AF96-30-00-13 is primarily rated for AC motor control up to 690V AC and resistive AC loads. While the coil accepts DC control voltage, the main contacts are not specifically rated for DC motor switching. DC motor applications require contactors with DC current ratings and arc suppression for inductive DC loads.
