Aiphone LE-DA Flush Mount Audio Door Station — Stainless Steel Faceplate, IP33 Weather & Vandal Resistant, Hands-Free, 2-Gang Flush or Surface Mount, LEF/LEM Series Compatible

Name: Aiphone LE-DA Flush Mount Audio Door Station — Stainless Steel Faceplate, IP33 Weather & Vandal Resistant, Hands-Free, 2-Gang Flush or Surface Mount, LEF/LEM Series Compatible
Brand: Aiphone
SKU: AIP-NET-LE-DA-NEW
Price: 89.0 USD
Availability: OutOfStock
Rating: 5 (47 reviews)

Product Highlights

• 【Outdoor Ready】: Made for outdoor use and built to handle rough conditions.

• 【Hands-Free Talk】: Talk clearly without needing to hold the button.

• 【Flexible Mounting】: Easy to install in different entry setups.

• 【Long Wire Reach】: Works well even when the wiring distance is very long.

• 【System Match】: Made to work with compatible Aiphone master stations.

Overview
Specifications
FAQ
User Guides
Reviews

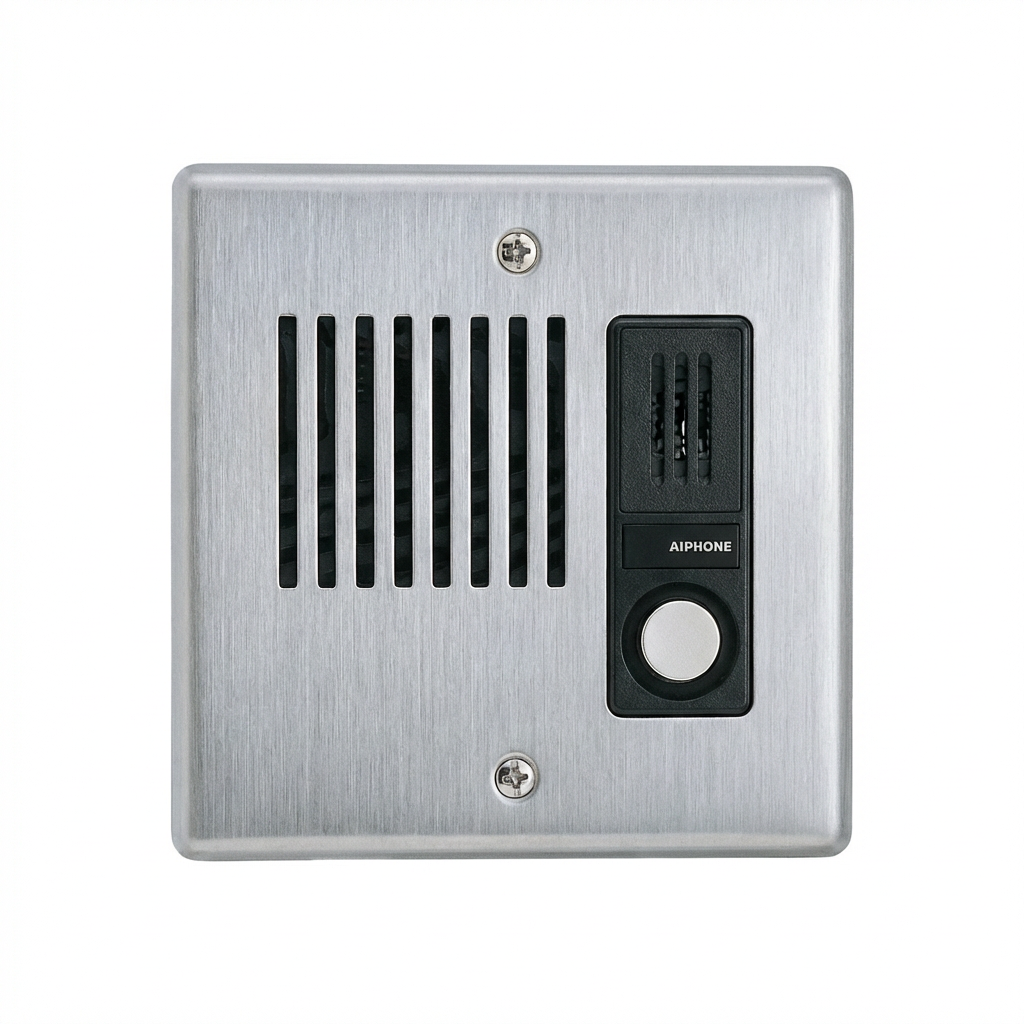

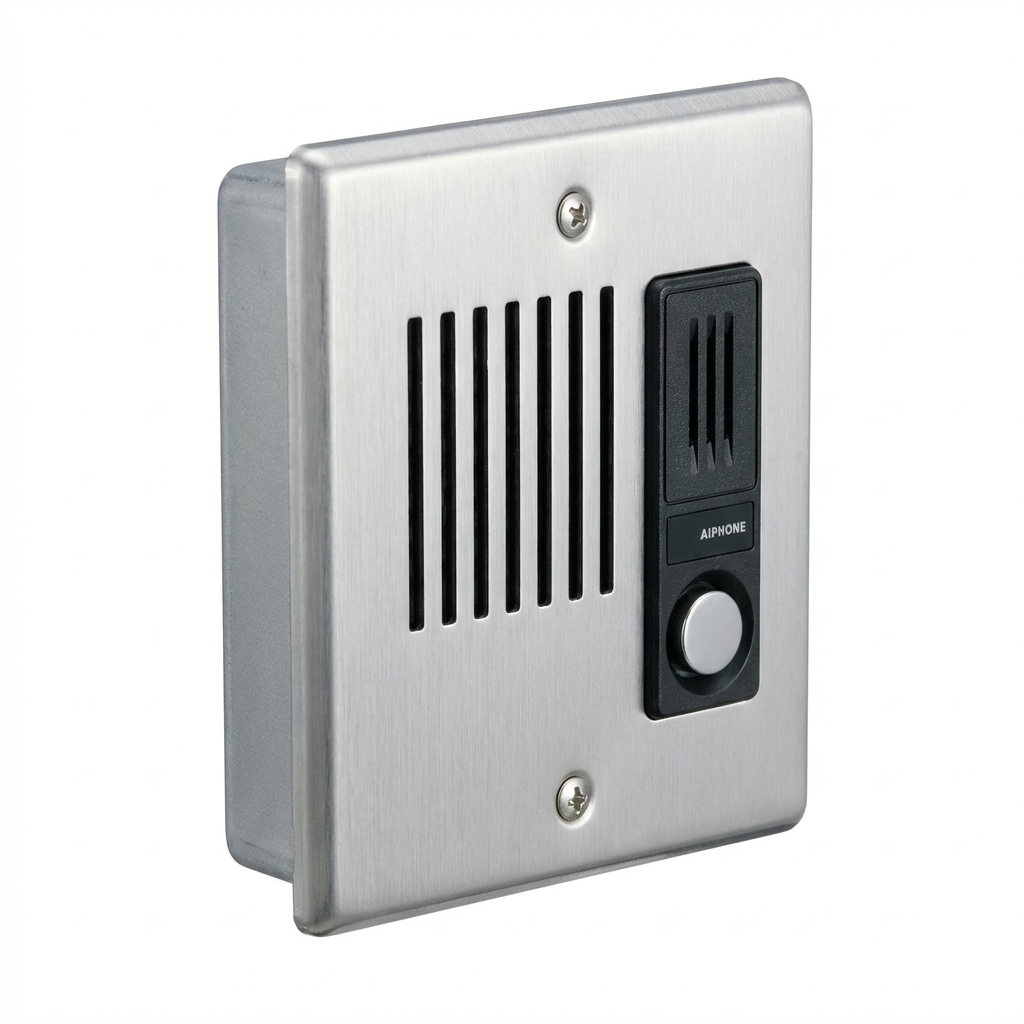

The Aiphone LE-DA is a flush-mount audio door station built for exterior intercom applications requiring weather resistance and a durable, low-profile installation profile. Its stainless steel faceplate and IP33-rated construction protect against rain ingress and casual vandal contact, making it appropriate for building lobbies, gate entrances, and sheltered outdoor mounting locations. The LE-DA provides hands-free audio communication with connected master stations in Aiphone's LEF and LEM series, requiring only 3-conductor shielded cable that can run up to 650 feet at 22AWG or 1,600 feet at 18AWG — enabling deployment across large commercial, institutional, or multi-tenant residential facilities. It mounts flush in a standard 2-gang electrical back box for a clean finished appearance, or installs surface-mounted with the separately available SBX-2G/A adapter. Power is supplied via a separately purchased 12V DC power supply such as the Aiphone PS-1225UL, keeping the installation aligned with Aiphone's LE series ecosystem.

Best For:

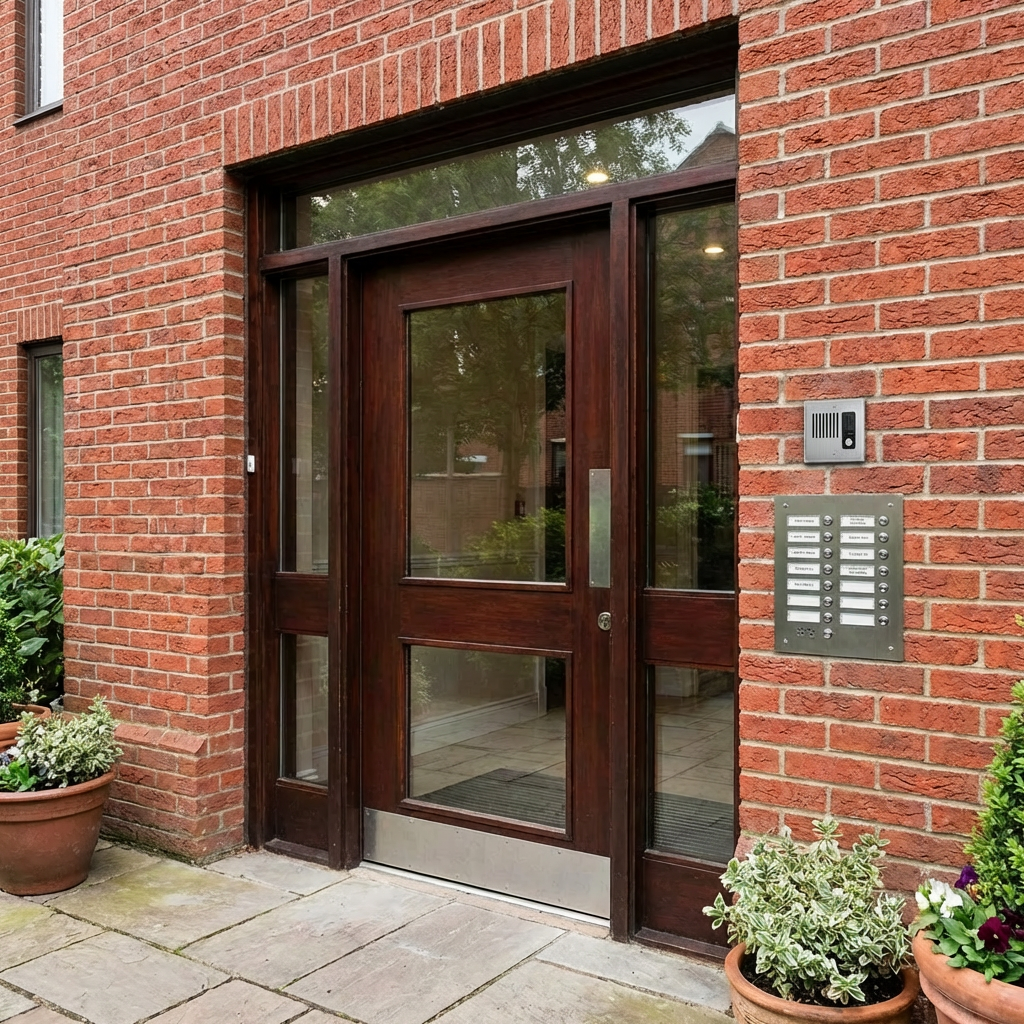

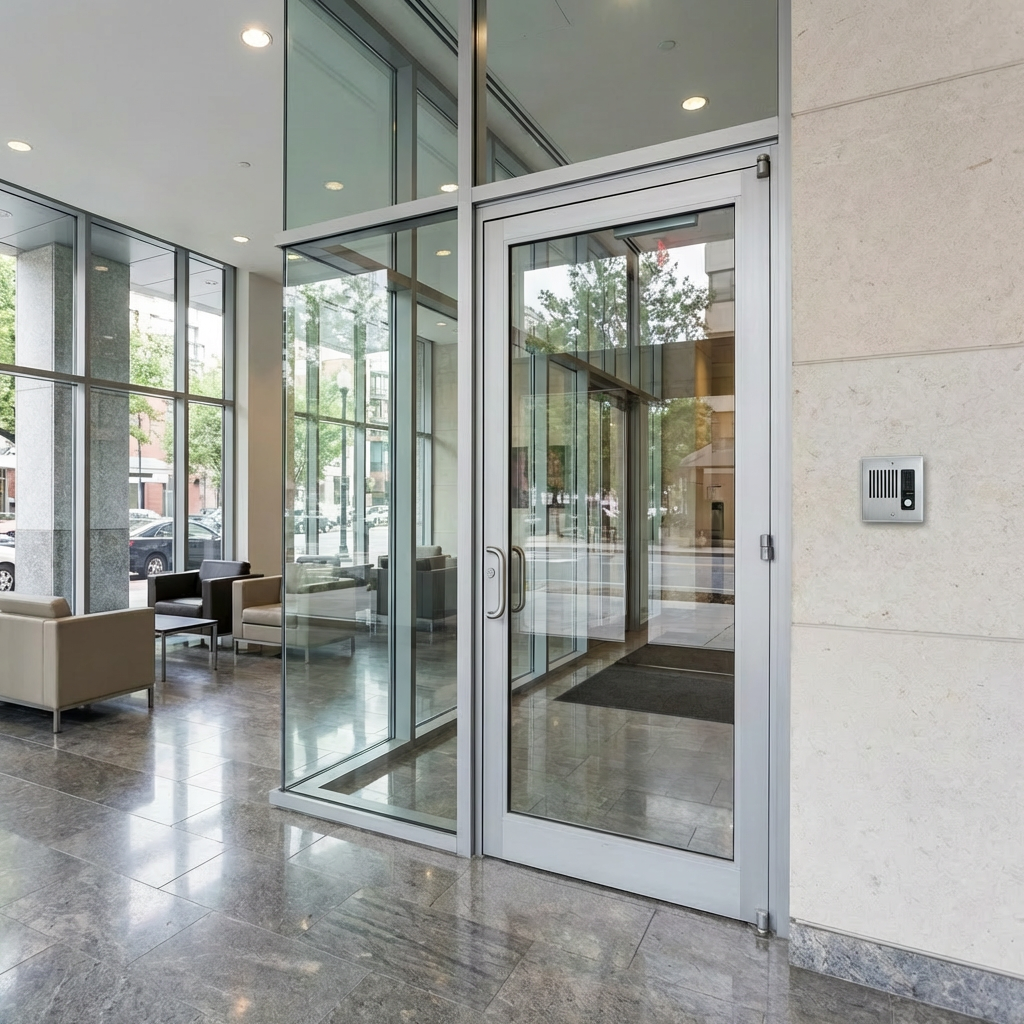

Commercial building main entrances and lobby door stations, multi-tenant residential entry intercom installations, gate intercom systems with LEF or LEM series master stations, retrofit intercom upgrades requiring flush 2-gang box mounting, large-campus wiring runs up to 1,600 feet.

Key Features:

• IP33 weather resistance: Rated to withstand rain and splashing water, suitable for covered outdoor and semi-exposed exterior installations.

• Stainless steel faceplate: Provides vandal resistance and a clean, professional appearance that complements commercial and institutional architecture.

• Hands-free audio: Door station and master station communicate hands-free once the call is answered, without requiring button-hold operation.

• 2-gang flush or surface mount: Installs in a standard 2-gang back box (flush) or with the SBX-2G/A adapter (surface), accommodating both new-build and retrofit scenarios.

• Extended wiring distance: Supports 650' runs with 22AWG or 1,600' with 18AWG 3-conductor shielded cable, suitable for large facilities.

• LEF/LEM series integration: Compatible with Aiphone LEF series open-voice selective call systems and LEM series master stations.

Quick Specs:

• Mounting: 2-gang electrical back box (flush) or SBX-2G/A adapter (surface)

• Faceplate: Stainless steel

• Weather/Vandal Rating: IP33

• Communication: Hands-free audio

• Wire: 3-conductor, overall shielded (Aiphone #822203 22AWG or #821803 18AWG)

• Wire Distance: 650 ft (22AWG) / 1,600 ft (18AWG)

• Operating Temperature: 14°F to 140°F (-10°C to 60°C)

• Power: 12V DC (PS-1225UL power supply, sold separately)

• Dimensions: 4-1/2" H × 4-9/16" W × 2" D

General Specifications
Brand	Aiphone
Model No.	LE-DA

Product Details
Color	Silver
Connection Type	Wired
Connectivity Technology	Wired

Q: What master station systems is the Aiphone LE-DA compatible with?

A: The LE-DA is compatible with Aiphone's LEF series open-voice selective call intercom systems and LEM series master stations. It is designed for use within Aiphone's LE series intercom ecosystem.

Q: Does the LE-DA require a separate power supply?

A: Yes. The LE-DA requires a 12V DC power supply such as the Aiphone PS-1225UL, which is sold separately.

Q: Can the LE-DA be surface-mounted instead of flush-mounted?

A: Yes. The LE-DA can be surface-mounted using the separately available Aiphone SBX-2G/A adapter. Without it, the unit flush-mounts into a standard 2-gang electrical back box.

Q: What is the maximum wiring distance for the LE-DA?

A: The LE-DA supports cable runs up to 650 feet using 22AWG 3-conductor shielded cable, or up to 1,600 feet using 18AWG 3-conductor shielded cable.

Q: Is the LE-DA suitable for outdoor installation?

A: Yes. The LE-DA is rated IP33 for weather resistance and features a stainless steel faceplate for vandal resistance, making it appropriate for covered outdoor or semi-exposed exterior mounting locations.

Q: What type of cable does the LE-DA require?

A: The LE-DA requires 3-conductor, overall shielded cable. Aiphone recommends using Aiphone #822203 (22AWG) or #821803 (18AWG) cable.
