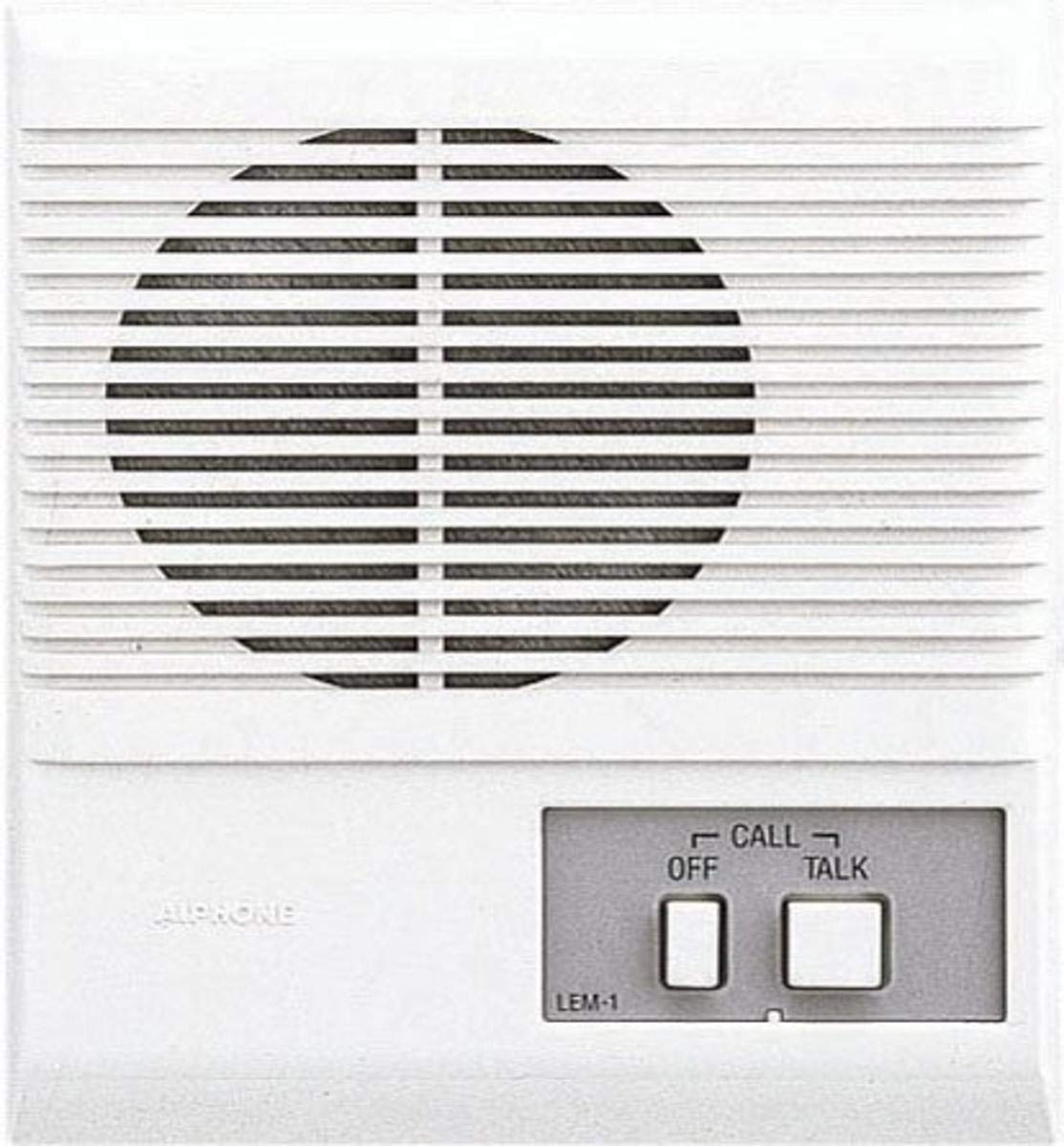

Aiphone LEM-1 Open Voice Master Intercom, Accepts One Door or Sub-Master Intercom

Brand Aiphone
Model Number LEM-1
UPC 790143116286
Manufacture Warranty
EpicRise Warranty 1 Year
Product Highlights
  • Master intercom works with one door or sub-master intercom (sold separately) to enable audio communication with visitors or other rooms within the building
  • Initiates calls to and receives calls from a sub-master station for internal communication
  • Listening feature allows the master intercom operator to receive audio transmission from a door or sub-master intercom at any time
  • Adjustable audio volume
  • Overview
  • Specifications
  • FAQ
  • User Guides
  • Reviews
Primary Station, Indoor, Height (In.) 2 in, Width (In.) 6 5/16 in, Depth (In.) 5 3/16 in, Door Station Height (In.) 2 in, Door Station Width (In.) 6 5/16 in, Door Station Depth (In.) 5 3/16 in, Master Depth (In.) 2 in, Master Height (In.) 6 5/16 in, Master Width (In.) 5 3/16 in, Distance (Ft.) @ 18AWG 1,570 ft, Distance (Ft.) @ 22AWG 650 ft, Wiring Conductors 2 Conductors, Wire Type 22 AWG, Power Source 6V AC, Voltage 6V AC, For Use With LE Series, Includes Mounting Hardware
  • Master intercom works with one door or sub-master intercom (sold separately) to enable audio communication with visitors or other rooms within the building
  • Initiates calls to and receives calls from a sub-master station for internal communication
  • Listening feature allows the master intercom operator to receive audio transmission from a door or sub-master intercom at any time
  • Adjustable audio volume
Master intercom works with one door or sub-master intercom (sold separately) to enable audio communication with visitors or other rooms within the building
Product Details
Color White
Connection Type Wired
General Specifications

Power Supply:6 VDC, 200 mA maximum

Communication:

  • Sub call-in with tone
  • Press Talk button to transmit, release to listen

Output:350 mW

Wiring:2 wires per sub, non-twisted and non-polarized, shielded

Required Cabling:#822202

Cable Lengths Supported:

  • 22 AWG (0.02" / 0.65 mm): up to 650.0' (198.1 m)
  • 18 AWG (0.03" / 1.00 mm): up to 1570.0' (478.5 m)

Operating Temperature:32 to 104°F (0 to 40°C)

Dimensions:6.2 × 5.2 × 2.0" (16.0 × 13.2 × 5.1 cm)

Weight:0.66 lb (0.30 kg)

Packaging Information

Package Weight:0.85 lb

Box Dimensions (L × W × H):6.6 × 5.6 × 2.3"

$76.00
$76.00
$76.00
$76.00
Temporarily Out of Stock

1–2 weeks lead time may apply
