APC AP9631 UPS Network Management Card 2 with Environmental Monitoring

Name: APC AP9631 UPS Network Management Card 2 with Environmental Monitoring
Rating: 4.4 (150 reviews)

Product Highlights

• 【Extra Sensor Support】: Lets you add more environmental monitoring features.

• 【Secure Remote Access】: Helps keep remote UPS management safe and protected.

• 【Modern Network Ready】: Works with both older and newer network setups.

• 【Multi-User Control】: Lets multiple team members access the system at once.

• 【Easy Hot Swap Install】: Installs into compatible APC UPS systems without shutting them down.

Overview
Specifications
FAQ
User Guides
Reviews

The APC AP9631 UPS Network Management Card 2 enables full IP-based monitoring and control of APC SmartSlot UPS systems, with the added capability of two Universal I/O ports for connecting environmental sensors. Administrators can monitor UPS status, configure alarms, execute graceful server shutdowns, and track temperature and humidity conditions — all from a secure network browser or command line interface.

Security features include HTTPS/SSL, SSH (up to 2048-bit), SNMPv3, and FTP, with IPv6 support for modern network infrastructure. The card supports up to 8 concurrent web users and 3 CLI sessions, making it suitable for distributed IT teams managing UPS assets across multiple locations.

Best For:

-IT administrators requiring remote UPS monitoring and graceful shutdown capability

- Data centers and server rooms where environmental monitoring (temperature, humidity) is required alongside power monitoring

- Organizations deploying APC SmartSlot UPS systems on IPv6 networks

- Facilities management teams needing centralized UPS status and alarm reporting

- Replacing or upgrading an existing AP9630 card where environmental I/O is needed

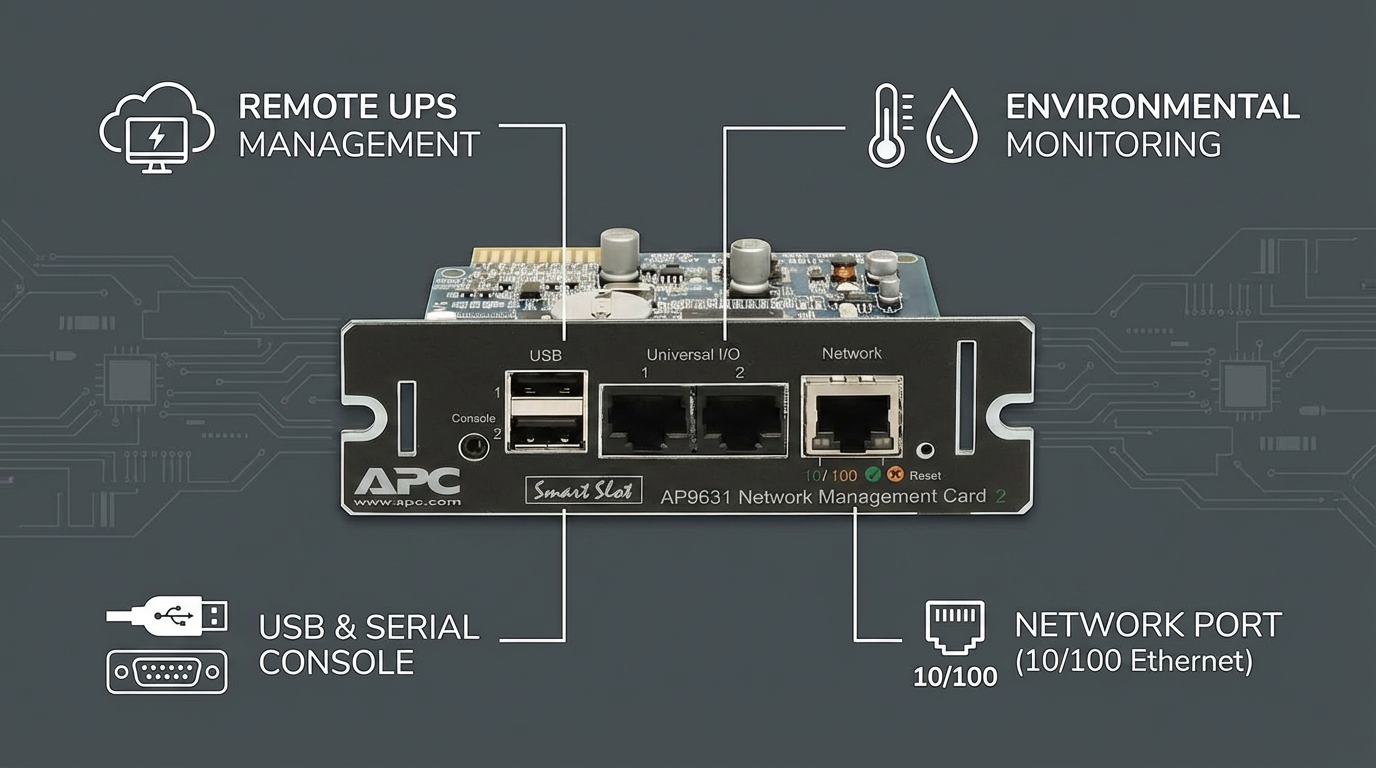

Key Features:

SmartSlot form factor — installs in APC UPS without powering down

- RJ45 10/100 Ethernet interface

- IPv4 and IPv6 dual-stack support

- HTTPS/SSL, SSH (up to 2048-bit), SNMPv3 secure communications

- 2x Universal I/O ports for temperature, temperature/humidity, or dry-contact relay sensors

- Up to 8 simultaneous web browser sessions; up to 3 concurrent CLI sessions

- Two USB ports for firmware upgrade

- Operating temperature: 32-113F (0-45C)

- Dimensions: 1.5” H x 4.75” W x 4.5” D; weight: 0.2 lbs

- APC part number: AP9631

Quick Specs:

Part Number: AP9631

- Form Factor: SmartSlot

- Network Interface: RJ45 10/100 Ethernet

- Protocols: HTTPS/SSL, SSH, SNMPv3, FTP, SMTP, Telnet, IPv4, IPv6

- Environmental I/O: 2x Universal I/O (temperature, temp/humidity, or relay)

- Concurrent Web Users: 8

- Concurrent CLI Users: 3

- Operating Temperature: 0-45C (32-113F)

- Dimensions: 1.5” H x 4.75” W x 4.5” D

- Weight: 0.2 lbs

General Specifications
Brand	APC
Model No.	AP9631

Product Details
Color	Black

Q: What is the difference between the AP9630 and AP9631?

A: The AP9631 adds two Universal I/O ports for connecting APC environmental sensors (temperature, temperature/humidity, or relay I/O). The AP9630 provides network management without environmental sensor ports.

Q: Which APC UPS models are compatible with the AP9631?

A: The AP9631 is compatible with APC UPS systems that have a SmartSlot expansion slot. Refer to APC’s compatibility guide to confirm support for your specific UPS model.

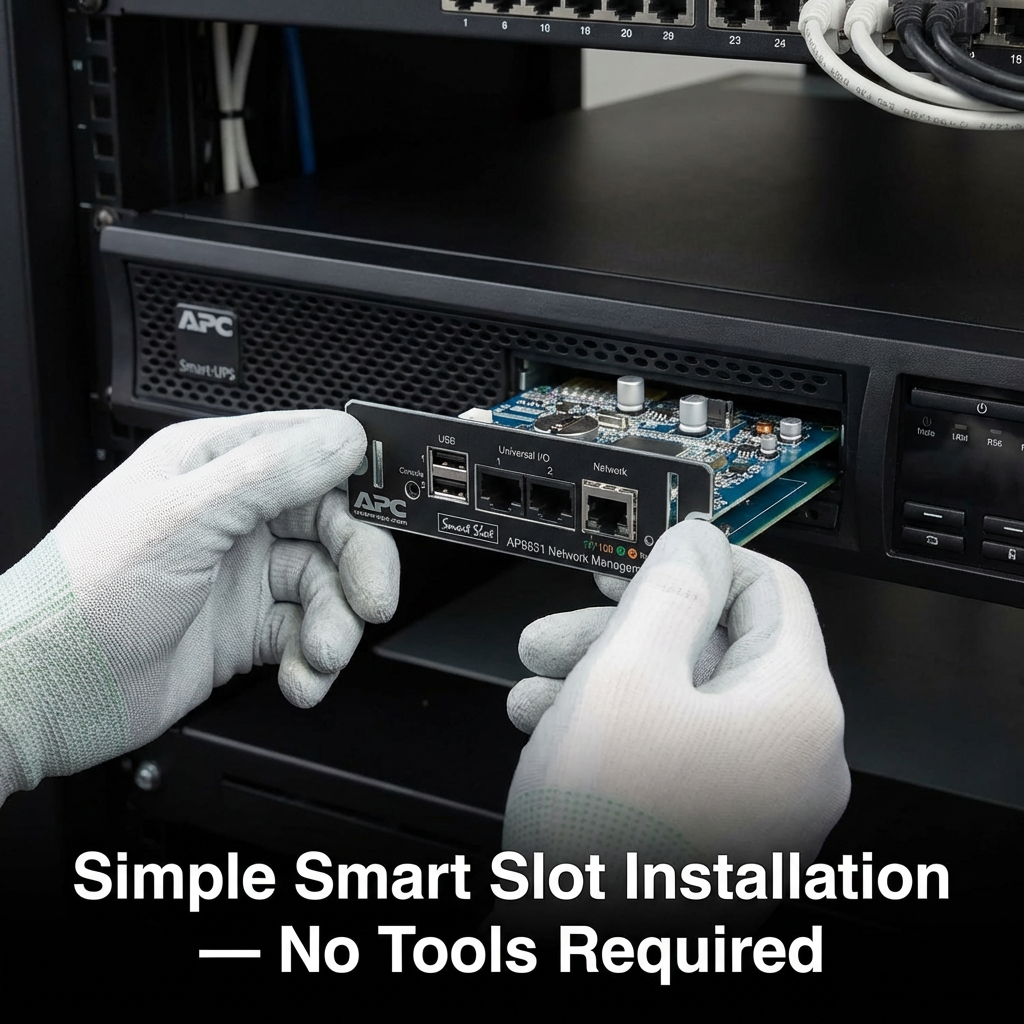

Q: Can the AP9631 be installed without powering down the UPS?

A: Yes. The SmartSlot interface supports hot-swappable insertion, so the card can be installed without interrupting power to protected equipment.

Q: Does the AP9631 support IPv6?

A: Yes. The AP9631 supports both IPv4 and IPv6 in a dual-stack configuration.

Q: What sensors are compatible with the Universal I/O ports?

A: The Universal I/O ports support APC temperature sensors, temperature/humidity sensors, and relay input/output accessories. Consult APC’s accessory list for compatible sensor part numbers.

Q: How many users can access the AP9631 simultaneously?

A: Up to 8 users can access the web interface simultaneously, and up to 3 users can access the command line interface concurrently
